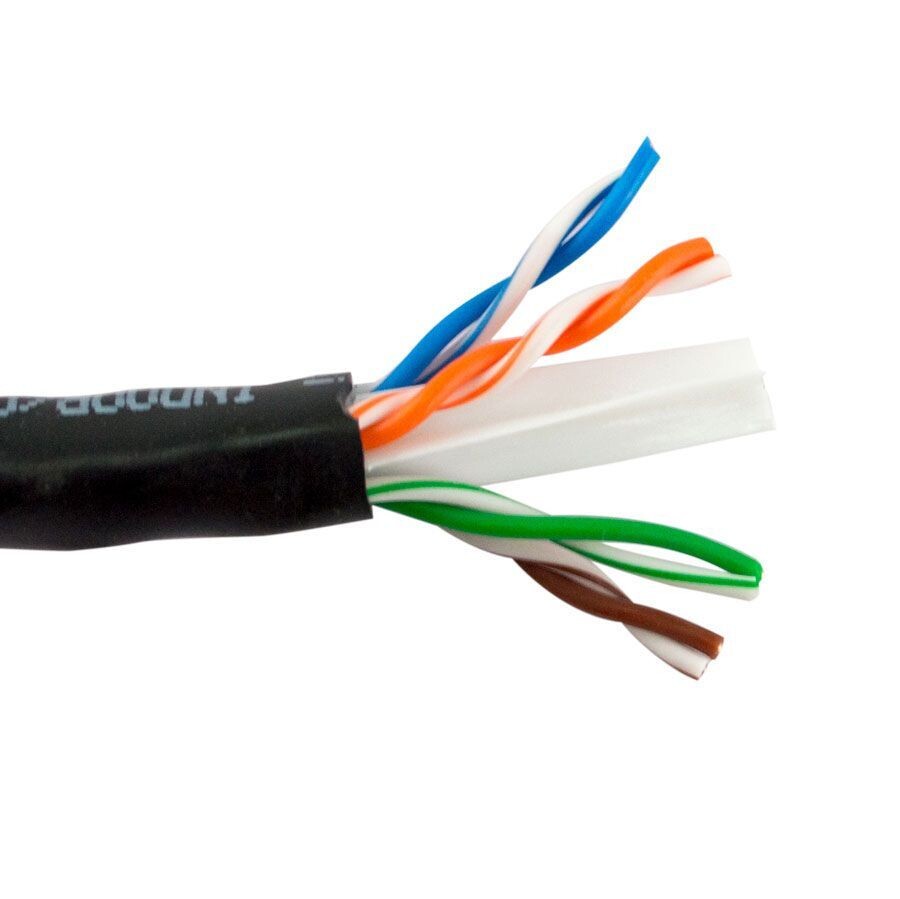

SCP HNCPROPLUS-6A-UTP-BK

HDBaseT Alliance-Verified Performance

SCP's HNCPROPLUS+ was among the first Category cables tested and recommended by the HDBaseT Alliance — a distinction that matters when specifying cable for AV matrix systems, extenders, and HDBaseT displays. Standard Cat6A cables meet minimum TIA/EIA electrical specs, but HDBaseT is particularly sensitive to pair-to-pair crosstalk (NEXT/PS-NEXT) and attenuation headroom. SCP's measured performance data consistently exceeds category minimums across the full 1–500 MHz sweep, reducing the risk of intermittent video drop-outs, HDCP handshake failures, or reduced extension distances that often get blamed on the AV equipment rather than the cable. For end users, this means a stable, full-distance HDBaseT link from day one — and fewer callback visits for the installer.

Full PoE/PoH IEEE 802.3bt Type 4 Support

The cable is rated to carry up to 90W of power under the IEEE 802.3bt Type 4 standard (PoH). This covers the most power-hungry single-cable endpoints currently on the market: PTZ cameras, Wi-Fi 6 access points, HDBaseT receivers with local display power, and intelligent LED drivers. The 23AWG solid bare copper conductor keeps DC resistance well within the 802.3bt budget, and the balanced pair construction limits heat build-up even in bundled conduit runs. For end users, this translates to fewer power supplies, cleaner ceiling and wall installations, and the ability to centralise UPS protection at the rack — a meaningful reliability benefit in conference rooms, retail, and control rooms.

Indoor/Outdoor Rating with UV-Resistant Jacket

The UV-stabilised PVC jacket means this cable can be routed through exterior cable trays, between buildings under a covered walkway, or in unheated plant rooms without requiring a separate outdoor-rated product. The operating temperature range of –20°C to +75°C, combined with outdoor UV resistance, covers the vast majority of real-world installation environments in a single SKU. For projects that cross indoor/outdoor boundaries — such as retail forecourts, stadia concourses, or campus buildings — this eliminates the need for a transition joint or splice, reducing both installation time and long-term fault risk.

Broad Regulatory Compliance: UL CMR & EN50575 Dca

The cable holds UL 444 CMR (Riser) listing with c(UL) FT4 for Canadian projects, and carries the European EN50575:2014 Dca-s3,d2,a3 fire reaction classification required under the EU Construction Products Regulation (CPR). This dual-market certification simplifies procurement for international projects and for distributors serving both North American and European integrators. The EN50575 Dca class is accepted by most European building inspectors for riser and horizontal runs, removing the need to source a separate LSZH variant for standard commercial buildings. RoHS compliance is also confirmed, covering disposal and environmental requirements in EU member states.

Factory-Tested Spool with Tangle-Free Pull Box

Every spool is electrically tested at SCP's factory before shipment, and a copy of the test report is attached to each reel. This factory QA step means installers are not discovering performance issues mid-project — the cable arrives with documented proof of conformance, which can be kept as part of an installation record or handed to the end customer. The 1000ft/305m quantity ships in SCP's purpose-designed pull box that feeds cleanly without kinking or tangling, reducing cable waste and saving time on long horizontal runs. The round, flexible construction with a nylon rip cord also simplifies jacket stripping during termination.
