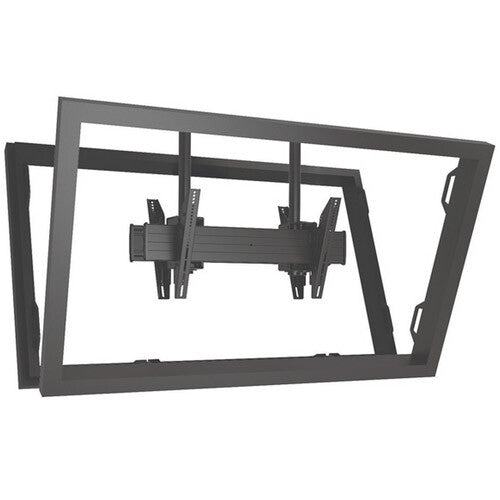

Chief XCB7000

The Chief XCB7000 is a heavy-duty dual-pole back-to-back ceiling mount from the Fusion range, designed specifically for extra-large flat panel displays — typically 140 to 254 cm — that are deeper than 12,7 cm. Its two-pole drop design distributes the structural load across a wider footprint, making it the recommended solution for large-format commercial signage installations where the single-pole XCB1U cannot handle the display depth or weight. Targeting AV integrators working in retail, corporate, and public-space environments, the XCB7000 supports two displays simultaneously and pairs with Chief ceiling plates and extension columns ordered separately.

Dual-Pole Structure for Deep, Heavy XL Displays

Unlike single-pole ceiling mounts, the XCB7000 uses two independent drop poles to carry the combined load of two back-to-back extra-large flat panels. This is the critical design difference: the mount is rated for displays thicker than 12,7 cm (5") — territory where a single pole creates too much cantilever stress. With a weight capacity of 136,1 kg per display, the structure accommodates even the heaviest commercial LCD or LED panels in the 140–254 cm class. For the end user, this means a mechanically stable installation that does not flex, drift, or sag over time — essential in high-traffic public spaces where the mount is rarely re-accessed after commissioning.

Centris Fingertip Tilt with Repeatable Lock Points

Chief's Centris tilt mechanism is the practical standout of this mount. The resistance is calibrated so that even a large, heavy display can be repositioned with fingertip pressure rather than tools — no ladders required for fine-tuning after the initial install. The continuous tilt range spans +7,5° to -20°, covering both level viewing and a pronounced downward angle for overhead digital signage. Critically, four defined locking positions let an integrator set matching angles across both display faces simultaneously, removing the guesswork when both screens must align for a symmetrical installation. This repeatability is particularly valuable in multi-unit deployments where consistency matters.

Two screens. Two poles. One solid overhead solution.

UL Listed · TAA Compliant · 10-year limited warranty

Simple On-Off Connection for Fast Install and Service

The XCB7000 uses a snap-on mounting interface that connects and disconnects the display bracket from the ceiling column system in a single action, without requiring the display to be fully removed. This dramatically reduces the time needed to service or swap panels on site. In a retail or corporate environment where a display replacement must happen quickly — often outside business hours — this connection system means a single technician can complete the job without specialist tooling. The optional padlock point adds a physical security layer for installations in publicly accessible areas where tampering is a risk.

Dual Ceiling Plate System Compatibility

The XCB7000 is compatible with both Chief's traditional 1.5" NPT threaded column system and the newer CPA pin-connection system, giving integrators flexibility to match whichever infrastructure is already in the building or preferred for the project. Ceiling plates and extension columns are sold separately, which means the drop height and ceiling attachment method can be customised precisely to the space — from a low-profile fixed column to multi-metre adjustable drops in atria or shopping malls. This open accessory approach also future-proofs the installation: if ceiling conditions change, only the column or plate needs replacing, not the entire mount assembly.

UL Listed and TAA Compliant

UL Listing confirms the mount has been independently tested and meets North American safety standards for structural integrity and load-bearing performance. TAA (Trade Agreements Act) compliance is a procurement requirement for US federal government and many public-sector contracts — without it, the product cannot be specified for those projects. For integrators targeting government buildings, public libraries, schools, or military facilities, TAA compliance on the XCB7000 removes a common disqualifier and simplifies the procurement paperwork.

10-Year Manufacturer Warranty

Chief backs the XCB7000 with a 10-year limited warranty covering defects in materials and workmanship — one of the longest warranty periods in the commercial mount category. For end users, this translates to a decade of coverage on a structural component that is difficult and costly to replace once a display is in-ceiling. It also signals confidence in the product's long-term build quality, which is relevant when specifying mounts for permanent installations in corporate headquarters, airports, or retail flagships where structural failure would be highly disruptive.
