AUDAC CENA7

AUDAC CENA7

SpringFit, 6.5", ceiling speaker, black version, 100V

  • High intelligibility and sound accuracy
  • Fastest possible installation time with unique Springfit™ innovation
  • Snapconnect™ enabling a fast and reliable connection
  • Eye catching complete family
  • SKU:CENA706/B
  • GTIN/EAN:
  • MPN:CENA706/B
Add To Favorite

You need to login to view the price.

View full details

The unbeatable one. The CENA series are full-range ceiling speakers, designed to offer an unmatched solution for large scale public address projects. The SpringFit™ fixation offers the fastest possible installation time of any speaker available on the market, while the borderless grill design is absolutely unseen for any ceiling speaker in this segment. With the selection of high-quality cone materials, exceptional intelligibility and background music performance are guaranteed. The CENA Series are equipped with SnapConnect™, a faster, more reliable and safer choice for fixed installations, accepting solid and stranded wires with sections up to 4.0 mm².

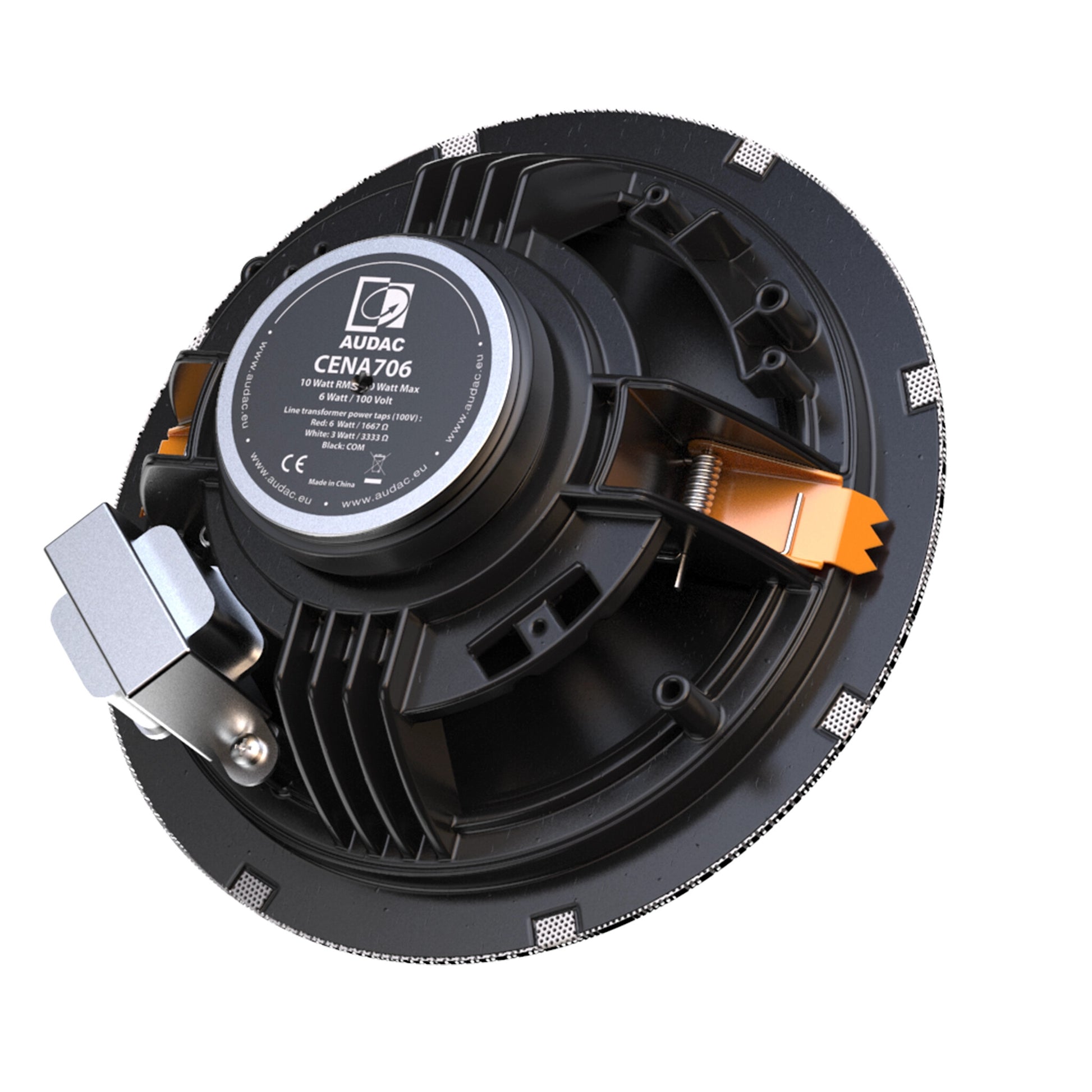

The CENA706 features a 6.5” broadband driver with a continuous power handling of 10 Watt (RMS) and maximum power handling of 20 Watt. It is fitted with a multi-tapping 100V line transformer with tappings for 6W and 3W.

Optimal speech and background sound
High intelligibility and sound accuracy

CENA series are full-range ceiling speakers, designed to offer an unmatched solution for large-scale public-address projects. With a selection of high-quality cone materials, exceptional intelligibility and background music performance are guaranteed.

Fastest possible installation time
Springfit™ technology

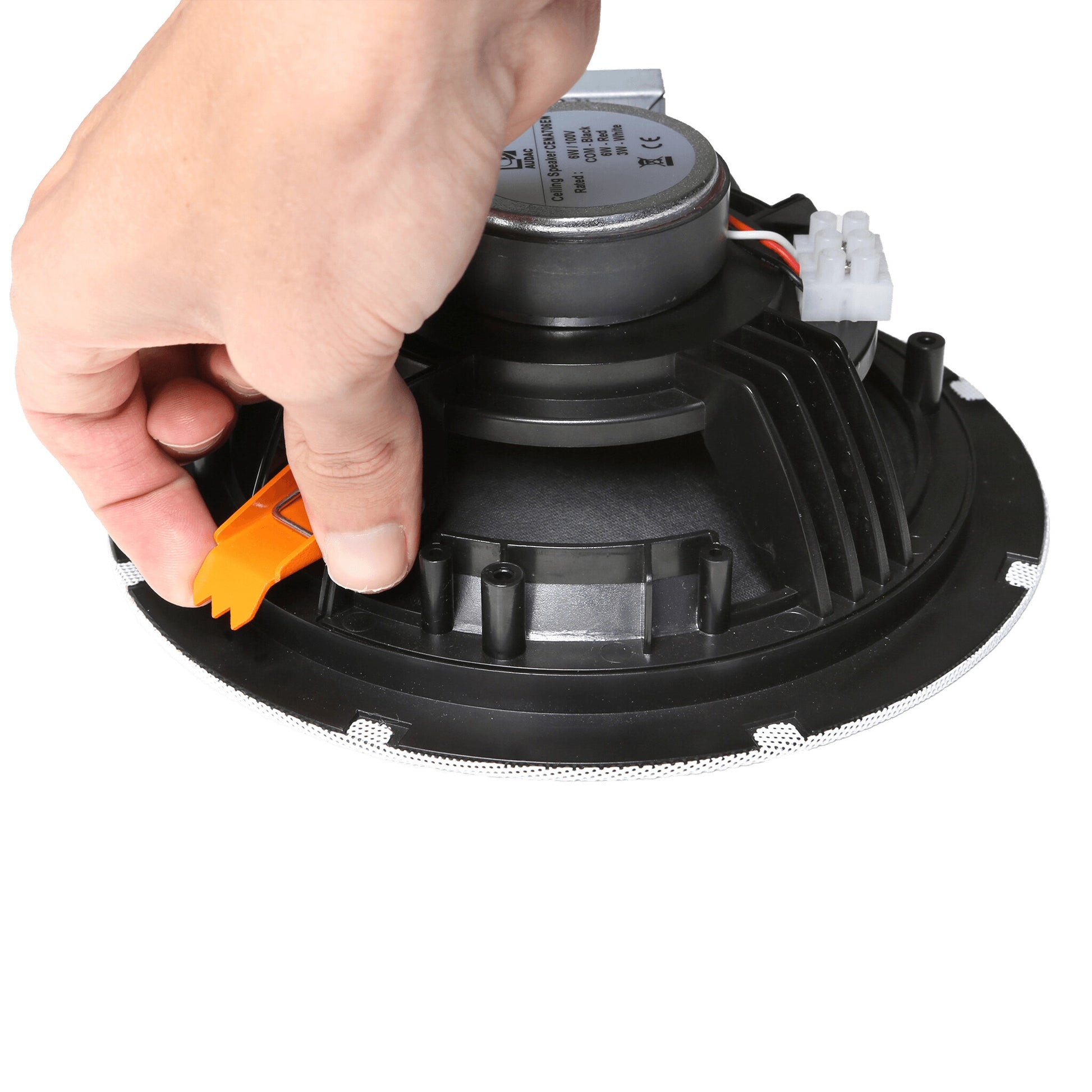

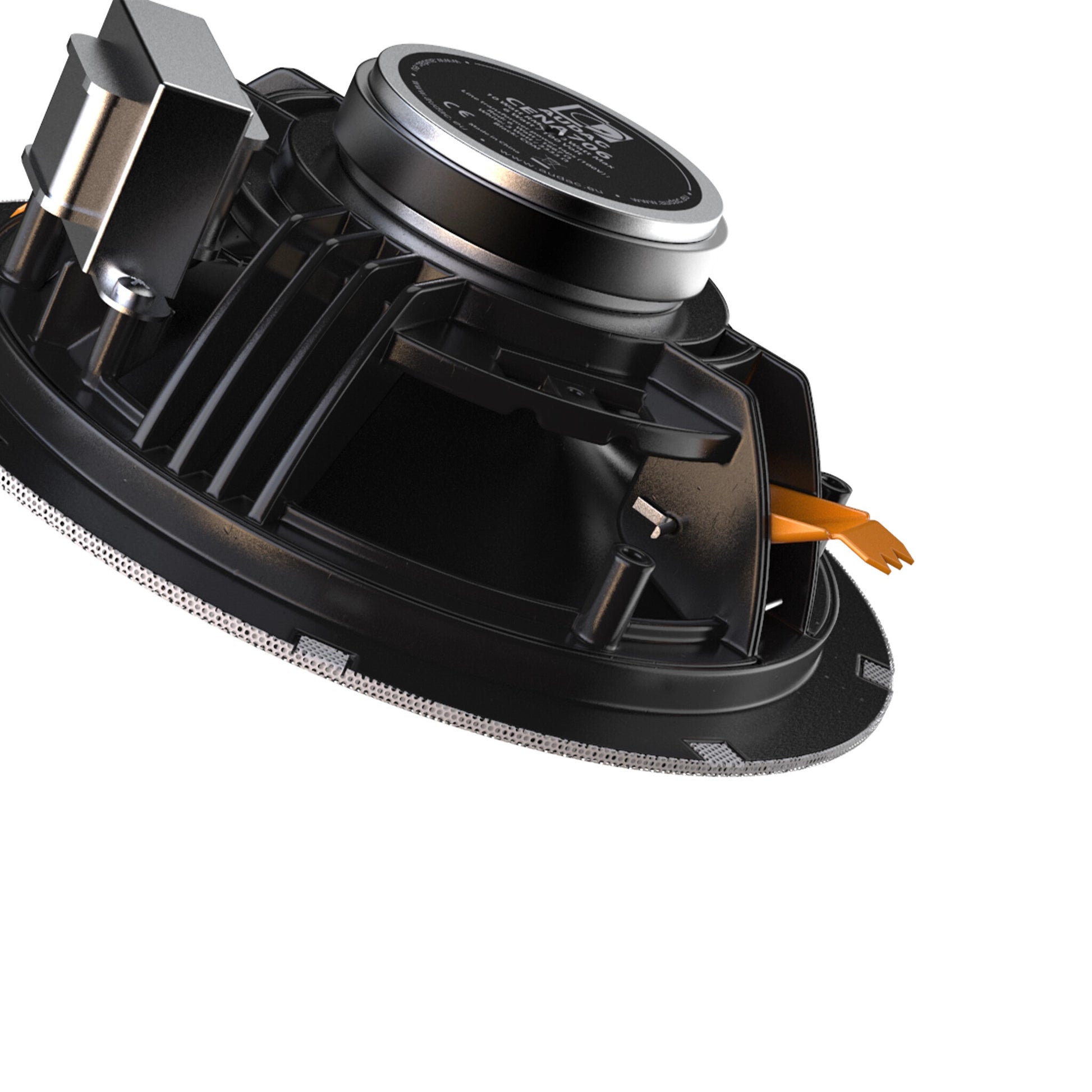

The SpringFit™ installation system allows installation of the CENA series speakers in a snap. Bend the mounting arms inwards and insert the speaker through the provided cut-out. The spring loaded mechanism will flip out and lock the speaker behind the ceiling surface.

A fast and convenient connection
SnapConnect™ connection

A more user-friendly equivalent for screw terminal connectors to connect speaker cables together. SnapConnect™ is a faster, more reliable and safer choice for fixed installations, accepting solid and stranded wires with sections up to 4.0 mm².

Many different models
Eye catching complete family

This version too big or too small? No worries, the CENA series consists of a complete family of different models that will fit perfectly into your project.

Loudspeakers
Speaker grille material
Steel
Driver diameter
16.5 cm
Number of drivers
1
Speaker placement
Ceiling-mountable
Speaker type
Full range
Audio
Sound pressure level (max)
106 dB
Sensitivity
96 dB
Impedance
8 Ω
Frequency range
100 - 15000 Hz
RMS rated power
10 W
Performance
Housing material
Acrylonitrile butadiene styrene (ABS)
Recommended usage
Universal
Product colour
Black
Ports & interfaces
Connectivity technology
Wired
Power
Transformer taps
1,2 W
AC input voltage
100 V
Weight & dimensions
Diameter
19.3 cm
Weight
712.1 g
Depth
70.1 mm
Packaging data
Package type
Box
Packaging content
Quantity per pack
1 pc(s)
Operational conditions
Operating temperature (T-T)
-15 - 55 °C
Technical details
Center speaker power handling
20 W
Warranty period
5 year(s)
Other features
Peak power
40 W
