SoundTube Entertainment CM400I-WH

SoundTube Entertainment CM400I-WH

SoundTube 4" 2-way In Ceiling Speaker in White with BroadBeam Tweeter, 90 Hz - 22 kHz, 20 W, 4 Ω, 87 dB

  • Included accessories: Paint mask, Euroblock connector and UL cover plate, and Choose between a color-coded (orange) tile bridge or a pre-construction bracket.
  • SKU:CM400I-WH
  • GTIN/EAN:
  • MPN:CM400I-WH

You need to login to view the price.

Add To Favorite
View full details

SoundTube Entertainment CM400I-WH. Recommended usage: Universal. Speaker type: 2-way. Connectivity technology: Wired. RMS rated power: 20 W, Frequency range: 90 - 22000 Hz, Impedance: 4 Ω, Sensitivity: 87 dB. Product colour: Stainless steel, White

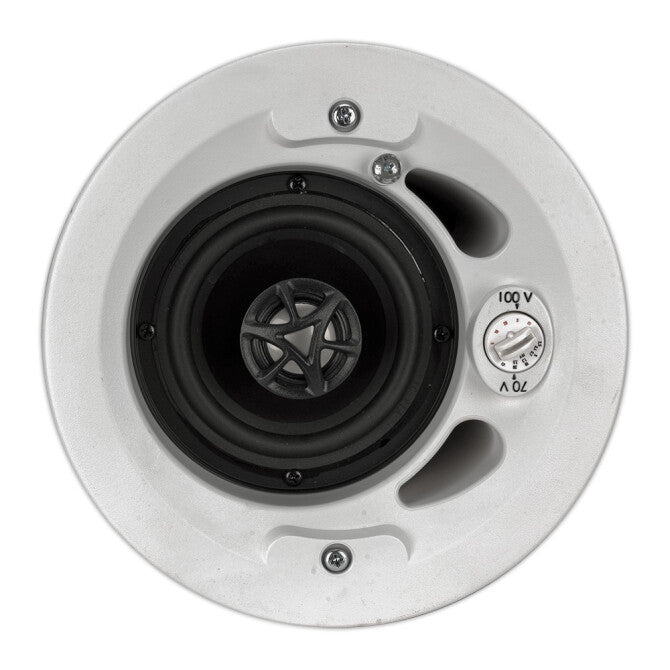

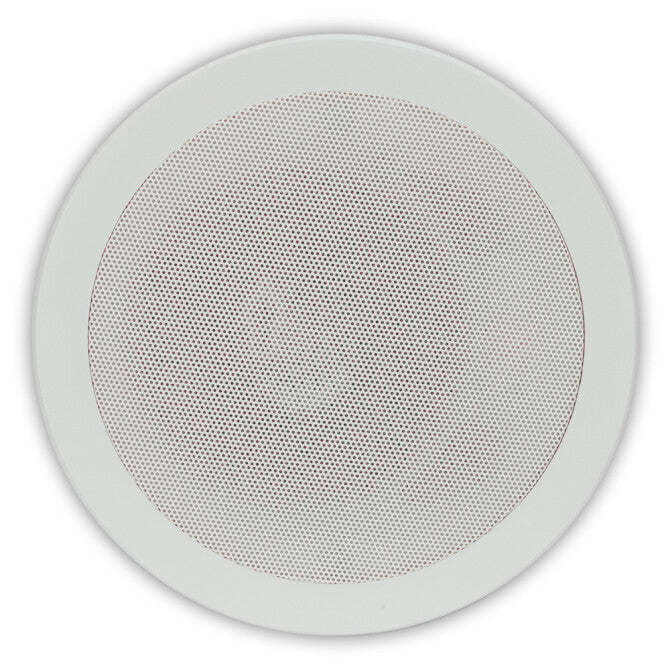

One 4.0 inch polypropylene woofer and one 1.0 inch convex aluminum tweeter with FerroFluid cooling. Rapid installation blind-mount, fixed- wing mounting mechanism with constant tension design affixing to ceiling thicknesses ranging from 0.025 inch (0.6 mm) to 1.87 inch (47.5 mm). Easy access five-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Separate tool-free magnetic grille and bezel assembly for ease of install and in-field painting. Powder-coated steel grille for lasting durability. 90 dB average sensitivity offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2043 approved.

Included accessories: Paint mask, Euroblock connector and UL cover plate, and Choose between a color-coded (orange) tile bridge or a pre-construction bracket.

Loudspeakers
Woofer diameter (imperial)
10.2 cm (4")
Woofer
Yes
Tweeter diameter (imperial)
2.54 cm (1")
Tweeter
Yes
Speaker placement
In-wall/in-ceiling
Speaker type
2-way
Audio
Crossover frequency
1800 Hz
Sensitivity
87 dB
Impedance
4 Ω
Frequency range
90 - 22000 Hz
RMS rated power
20 W
Performance
Certification
CE, RoHS, UL1480A, UL2043
Housing material
Acrylonitrile butadiene styrene (ABS), Steel
Recommended usage
Universal
Product colour
Stainless steel, White
Amplifier
Amplifier
No
Ports & interfaces
Bluetooth
No
Connectivity technology
Wired
Weight & dimensions
Weight
2.5 kg
Packaging data
Package depth
254 mm
Package width
254 mm
Packaging data
Package weight
3.29 kg
Package height
234.9 mm
Package type
Box
Packaging content
Manual
Yes
Quantity per pack
1 pc(s)
Sustainability
Sustainability certificates
CE, RoHS
