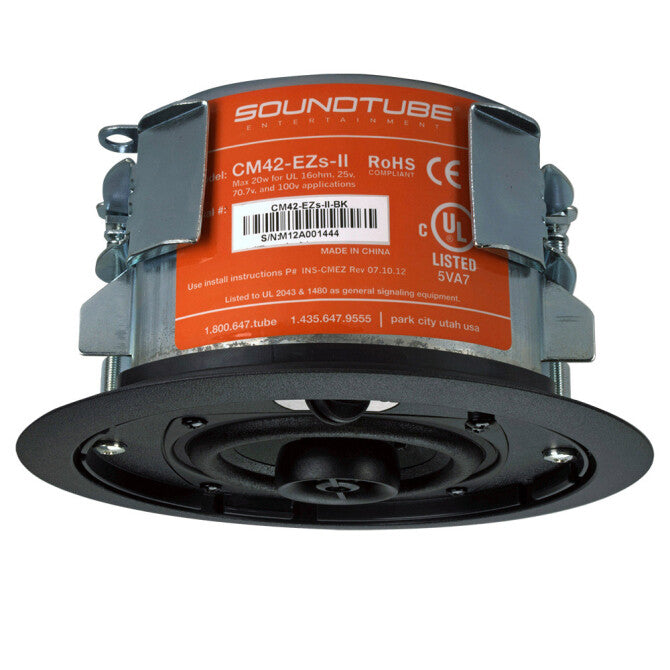

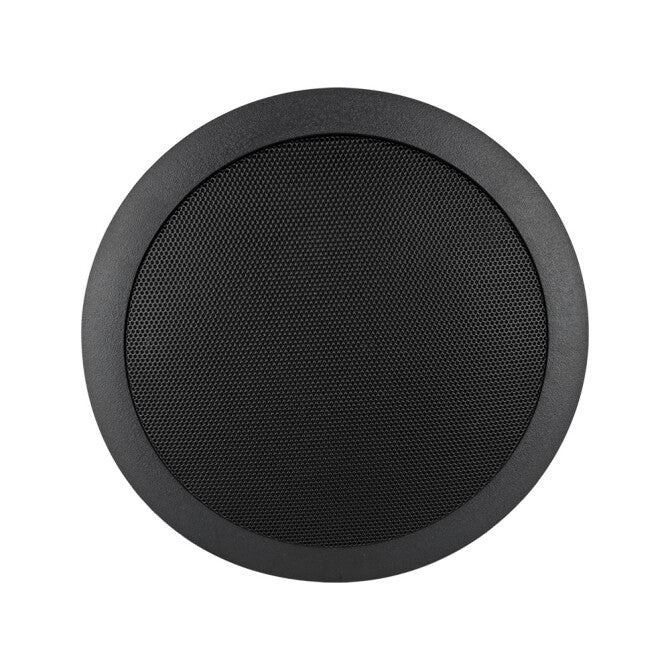

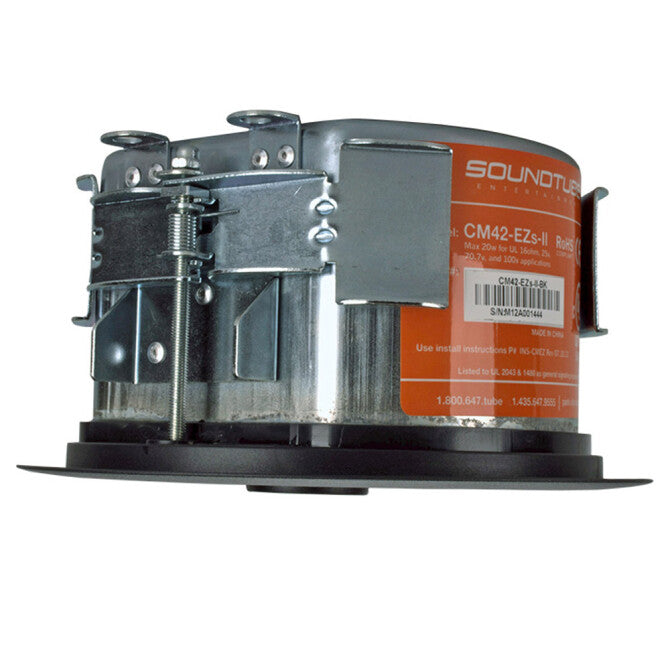

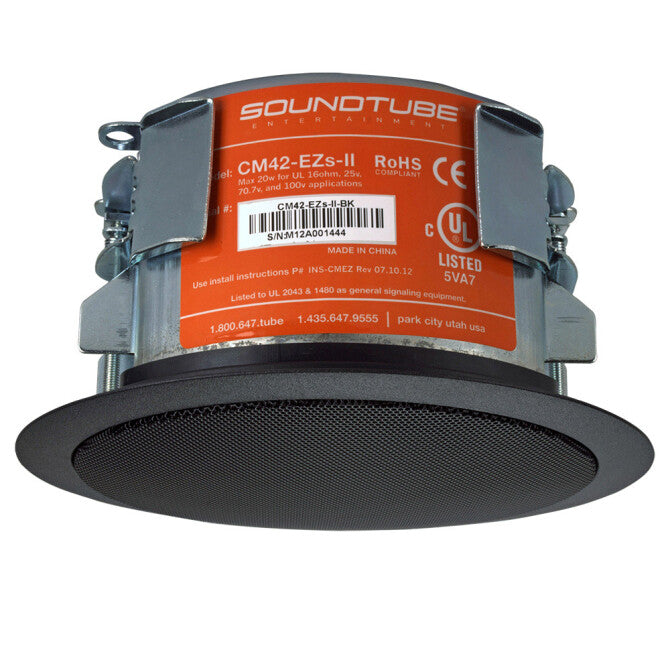

SoundTube Entertainment CM42-EZS-II-BK

SoundTube Entertainment CM42-EZS-II-BK

SoundTube 4" 2-way In Ceiling Speaker in Black with Short Can, 125 Hz - 22 kHz, 20 W, 16 Ω, 87.5 dB

  • Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. EN54-24 listed
  • Included accessories: Choose between a tile bridge or a pre-construction bracket, UL-listed 0.5-inch flex conduit clamp, paint shield and two wire nuts.
  • SKU:CM42-EZS-II-BK
  • GTIN/EAN:
  • MPN:CM42-EZS-II-BK

You need to login to view the price.

Add To Favorite
View full details

SoundTube Entertainment CM42-EZS-II-BK. Recommended usage: Universal. Speaker type: 2-way. Connectivity technology: Wired. RMS rated power: 20 W, Frequency range: 125 - 22000 Hz, Impedance: 16 Ω, Sensitivity: 87.5 dB. Product colour: Black, Stainless steel

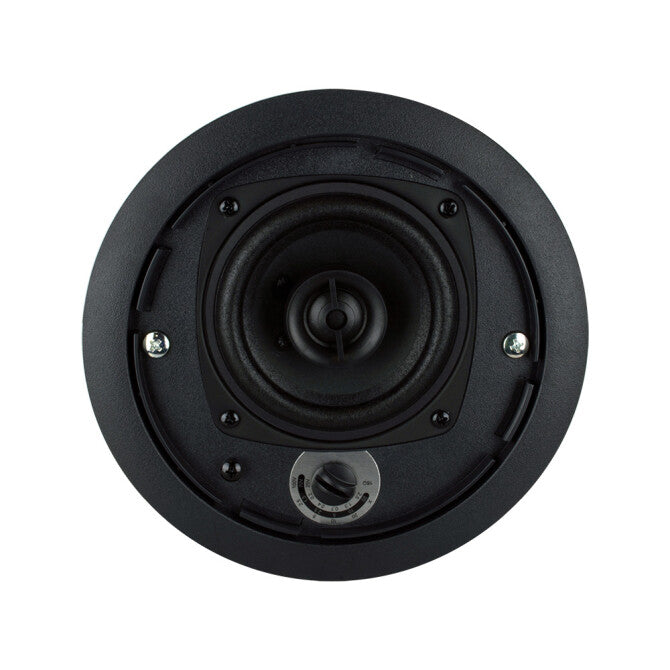

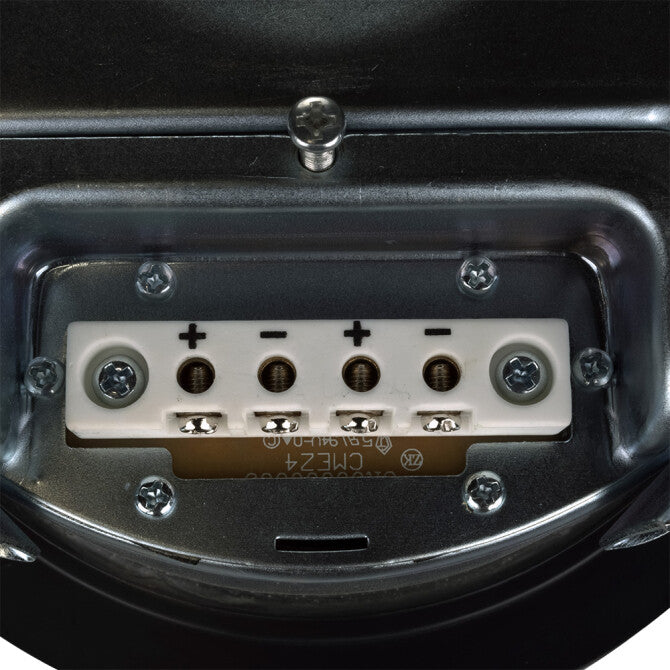

Engineered for applications with limited plenum space incorporating a SoundTube specific shallow backcan with an installed depth of only 3.5 inches. One 4 inch (102 mm) treated fiber woofer with cloth surround and one 0.75 inch (19 mm) silk dome tweeter. Easy-access six-position tap switch for 25/70.7/100-volt and 16 ohm transformer bypass position allows for easy ordering, stocking and installation. Reduced amplification costs with maximum efficiency including 87.5 dB sensitivity and 16 ohm impedance. Superior voice intelligibility with an average coverage angle of 100 (210 kHz, independently verified). Cost-effective 16 ohm settings allows for the use of multiples of two, four, or six speakers in a system using a standard amplifier without a transformer. Incorporates a painted steel grille for lasting durability. Ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. EN54-24 listed. Clamping allowance from 0.00 in. (0.0 mm) to 1.50 in. (38.1 mm). UL 1480 (UEAY) and 2043, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved.

Included accessories: Choose between a tile bridge or a pre-construction bracket, UL-listed 0.5-inch flex conduit clamp, paint shield and two wire nuts.

Loudspeakers
Woofer diameter (imperial)
10.2 cm (4")
Woofer diameter
10.2 cm
Woofer
Yes
Tweeter diameter (imperial)
1.91 cm (0.75")
Tweeter
Yes
Speaker placement
In-wall/in-ceiling
Speaker type
2-way
Audio
Crossover frequency
5000 Hz
Sensitivity
87.5 dB
Impedance
16 Ω
Frequency range
125 - 22000 Hz
RMS rated power
20 W
Performance
Certification
CE, EN54, RoHS, UL1480A, UL2043
Housing material
Acrylonitrile butadiene styrene (ABS), Steel
Recommended usage
Universal
Product colour
Black, Stainless steel
Amplifier
Amplifier
No
Ports & interfaces
Bluetooth
No
Connectivity technology
Wired
Weight & dimensions
Weight
1.8 kg
Packaging data
Package depth
228.6 mm
Package width
228.6 mm
Packaging data
Package weight
2.27 kg
Package height
139.7 mm
Package type
Box
Packaging content
Manual
Yes
Quantity per pack
1 pc(s)
Sustainability
Sustainability certificates
CE, RoHS
