CM52-BGM-II-WH 5.25" In-Ceiling Speaker with Seamless Magnetic White Grille.

CM52-BGM-II-WH 5.25" In-Ceiling Speaker with Seamless Magnetic White Grille.

  • Transformer: 25 / 70 / 100 V, Impedance 16 Ohm

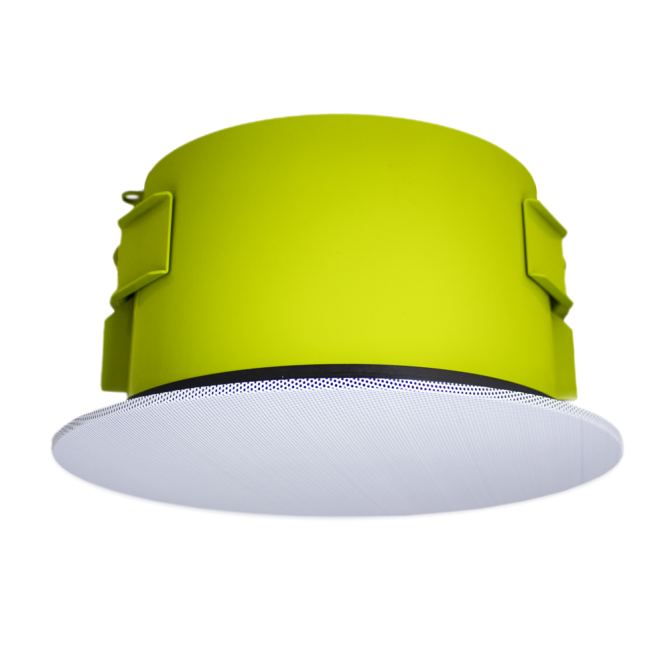

  • Included accessories: Color-coded (green) tile bridge, UL listed conduit clamp, paint shield.
  • SKU:CM52-BGM-II-WH
  • GTIN/EAN:
  • MPN:CM52-BGM-II-WH

You need to login to view the price.

Add To Favorite
View full details

SoundTube CM52-BGM-II In Ceiling Speaker in White

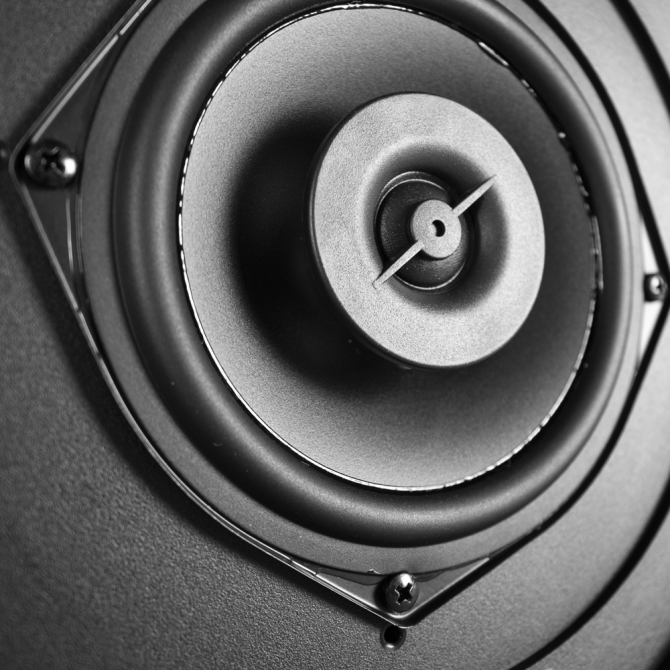

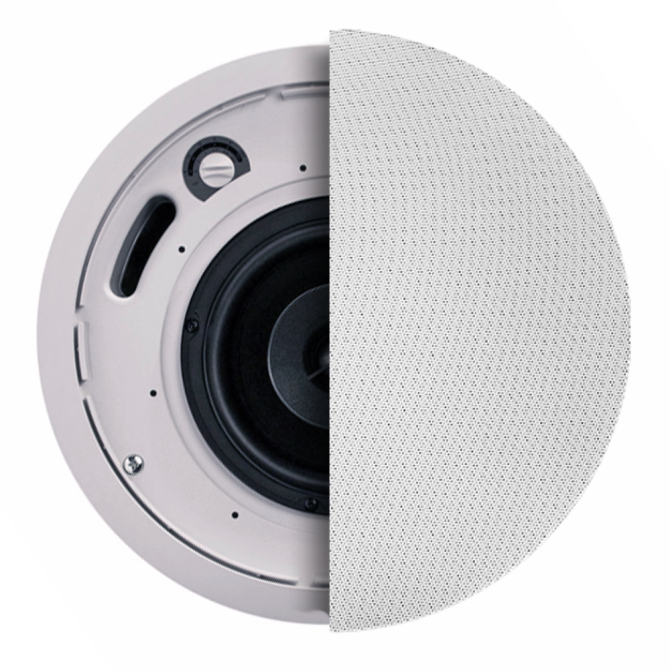

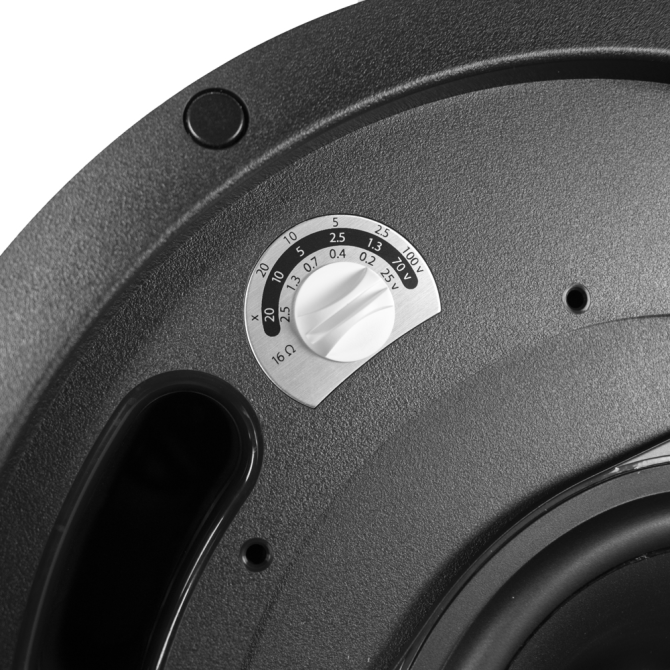

One 5.25 inch (134 mm) polypropylene woofer with rubber surround and one 0.75 inch (19 mm) silk dome tweeter. BroadBeam Ring™ technology for mid-range clarity and smooth off axis performance. Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation. Tuned port on baffle for added musicality and bass response down to 65 Hz (-10 dB). Reduced amplification costs and maximum efficiency of 84.5 dB sensitivity, 16 ohm impedance. Incorporates a painted steel magnetic seamless grille for lasting durability. Adaptable to material thicknesses ranging from 0.035 in. (0.9 mm) to 1.6 in. (40.6 mm). UL 1480 and 2043 listed.

Included accessories: Color-coded (green) tile bridge, UL listed conduit clamp, paint shield.

Owner's Manual |  Tech Sheet |  GLL

Loudspeakers
Woofer
5.25" Polypropylene Cone w/ Butyl Rubber Surround
Tweeter
1" Silk Dome w/ BroadBeam Ring®
Speaker type
In-ceiling
Audio
Impedance
25 / 70.7 / 100 V, 16 Ohm direct
