CM52s-BGM-II-WH 5.25" In-Ceiling Speaker with Short Can and Seamless Magnetic White Grille.

CM52s-BGM-II-WH 5.25" In-Ceiling Speaker with Short Can and Seamless Magnetic White Grille.

  • Transformer: 25 / 70 / 100 V, Impedance 16 Ohm
  • Included accessories: Color-coded (green) tile bridge, UL listed conduit clamp, paint shield.
  • SKU:CM52S-BGM-II-WH
  • GTIN/EAN:
  • MPN:CM52S-BGM-II-WH

You need to login to view the price.

Add To Favorite
View full details

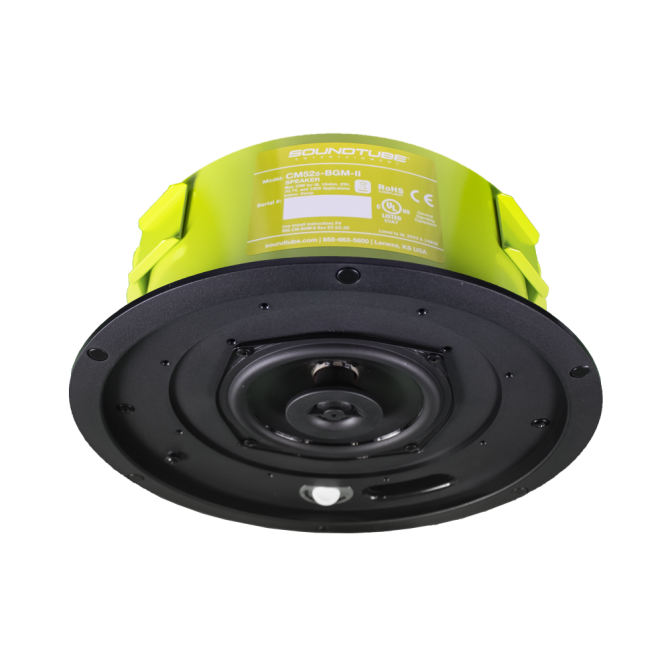

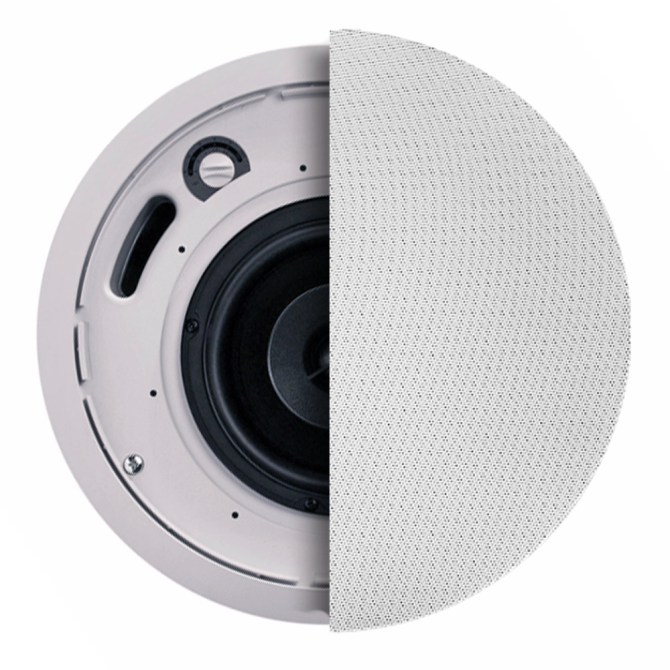

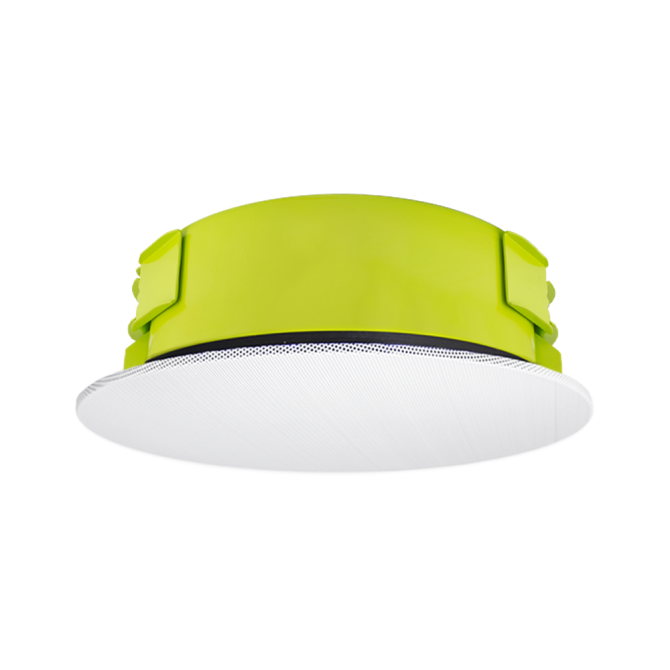

SoundTube CM52s-BGM-II In Ceiling Speaker in White



Engineered for applications with limited plenum space. Incorporates a SoundTube-specific shallow backcan with an installed depth of 3.5 inches. One 5.25 inch (134 mm) polypropylene woofer with rubber surround and one 0.75 inch (19 mm) silk dome tweeter. BroadBeam Ring™ technology for mid-range clarity and smooth off axis performance. Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation. Tuned port on baffle for added musicality and bass response down to 65 Hz (-10 dB). Reduced amplification costs and maximum efficiency of 84.5 dB sensitivity, 16 ohm impedance. Incorporates a painted steel magnetic seamless grille for lasting durability. Adaptable to material thicknesses ranging from 0.035 inch (0.9 mm) to 1.6 inch (40.6 mm). UL 1480 and 2043 listed.

Included accessories: Color-coded tile bridge, UL listed 0.5 inch conduit clamp, paint shield.

Owner's Manual |  Tech Sheet

Loudspeakers
Woofer
5.25" Polypropylene Cone w/ Butyl Rubber Surround
Tweeter
1" Silk Dome w/ BroadBeam Ring®
Speaker type
In-ceiling
Audio
Impedance
25 / 70.7 / 100 V, 16 Ohm direct
