SoundTube Entertainment CM62-EZ-II-WH

SoundTube Entertainment CM62-EZ-II-WH

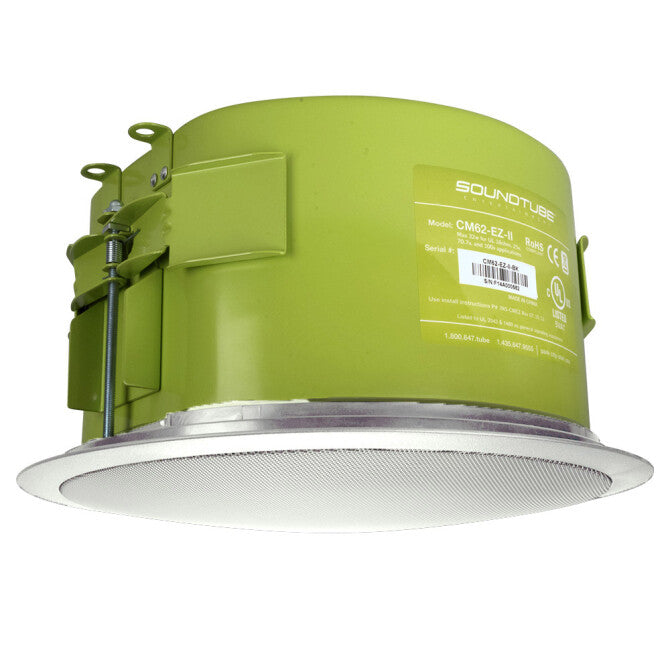

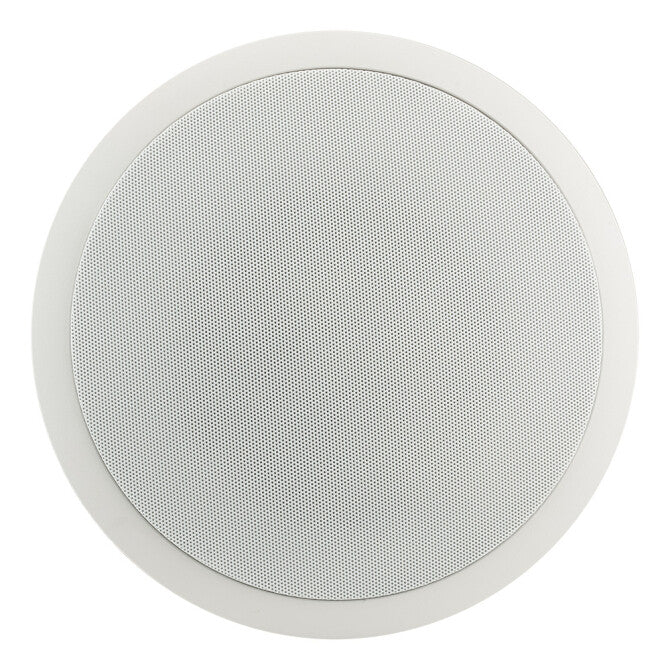

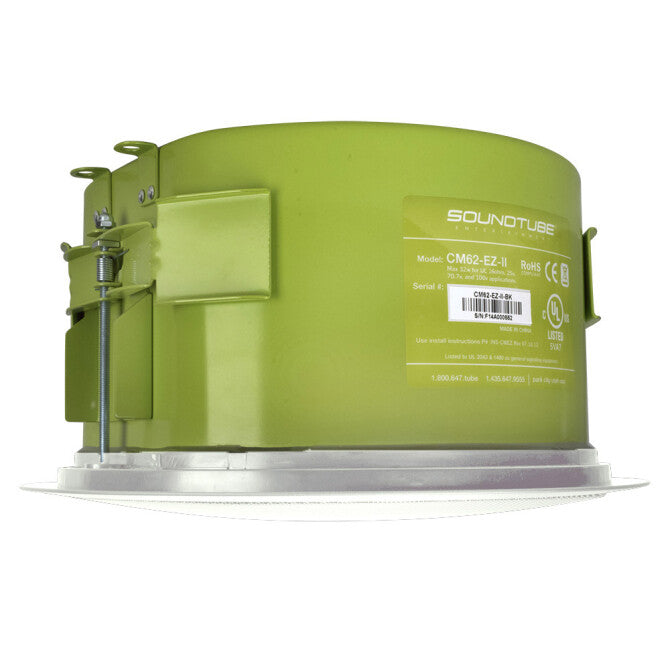

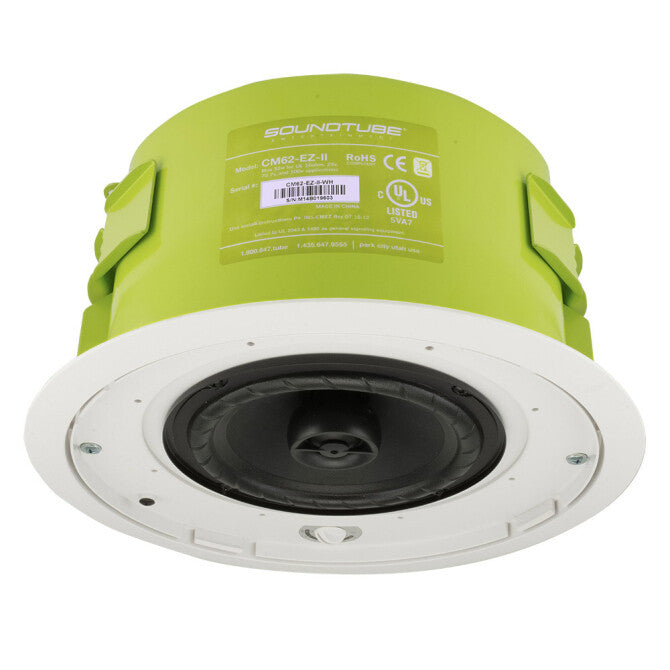

SoundTube 6" 2-way In Ceiling Speaker in White, 125 Hz - 20 kHz, 16 Ω, 50 W, IPX3

  • 50 W
  • 125 - 20000 Hz 16 Ω
  • Green, White
  • SKU:CM62-EZ-II-WH
  • GTIN/EAN:
  • MPN:CM62-EZ-II-WH

You need to login to view the price.

Add To Favorite
View full details

SoundTube Entertainment CM62-EZ-II-WH. Recommended usage: Universal. Connectivity technology: Wired. RMS rated power: 50 W, Frequency range: 125 - 20000 Hz, Impedance: 16 Ω, Sensitivity: 90 dB. Product colour: Green, White

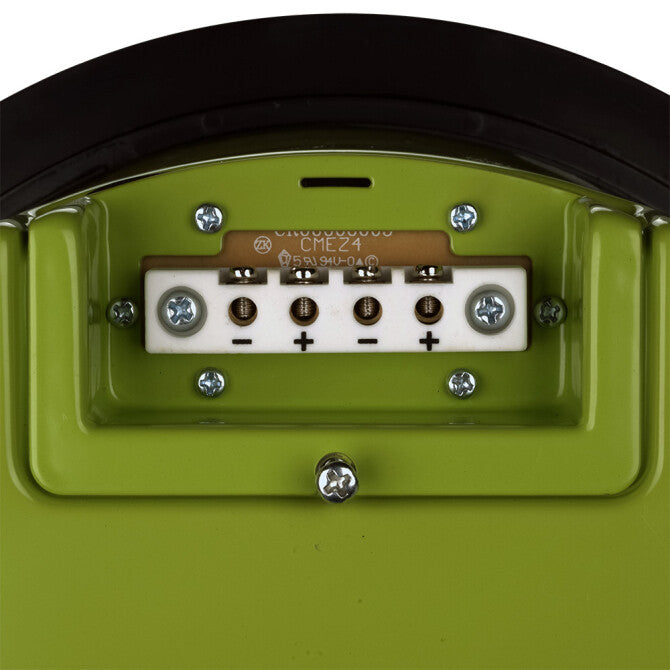

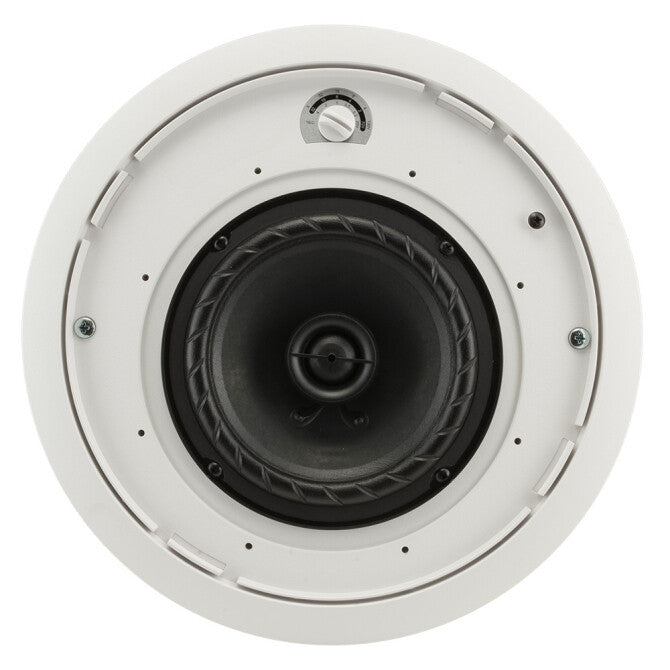

The next generation version of the CM62-EZ with improved and additional features. One 6.5 in (165 mm) treated fiber woofer with cloth surround and one 1.0 in (25.4 mm) silk dome tweeter. Easy-access, six-position tap switch for 25/70.7/100-volt and 16 ohm transformer bypass position allows for easy ordering, stocking and installation. Reduced amplification costs with maximum efficiency including 90 dB sensitivity and 16-ohm impedance. Superior voice intelligibility with a 10 kHz coverage angle of 80 (Independently verified). Incorporates a painted steel grille for lasting durability. Ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. EN54-24 listed. Adaptable to material thicknesses ranging from 0.04 in (0.9 mm) to 1.60 in (40.6 mm). UL 1480 (UEAY) and 2043, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved. IP-Rating: IPX3.

Included accessories: Choose between a tile bridge or a pre-construction bracket, UL listed 0.5-inch flex conduit clamp, paint shield and two wire nuts.

Loudspeakers
Woofer diameter (imperial)
16.5 cm (6.5")
Woofer
Yes
Tweeter diameter (imperial)
2.54 cm (1")
Tweeter
Yes
Speaker placement
In-wall/in-ceiling
Audio
Crossover frequency
4000 Hz
Sensitivity
90 dB
Impedance
16 Ω
Frequency range
125 - 20000 Hz
RMS rated power
50 W
Performance
Certification
CE, EN54, RoHS, UL1480A, UL2043
International Protection (IP) code
IPX3
Recommended usage
Universal
Product colour
Green, White
Amplifier
Amplifier
No
Ports & interfaces
Bluetooth
No
Connectivity technology
Wired
Weight & dimensions
Weight
3.6 kg
Packaging data
Package depth
330.2 mm
Package width
336.6 mm
Packaging data
Package weight
4.69 kg
Package height
203.2 mm
Package type
Box
Packaging content
Manual
Yes
Quantity per pack
1 pc(s)
Sustainability
Sustainability certificates
CE, RoHS
