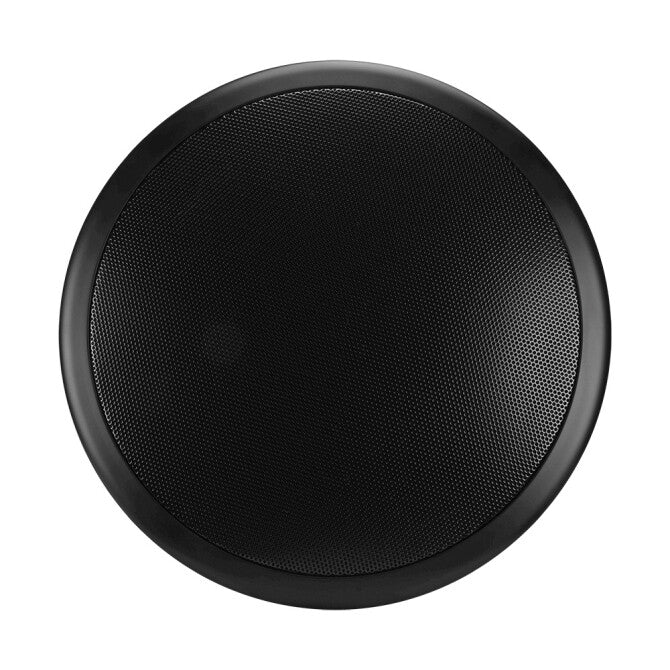

SoundTube Entertainment CM800I-BK

SoundTube Entertainment CM800I-BK

SoundTube 8" In Ceiling Speaker in Black with a BroadBeam Tweeter, 97 Hz - 22 kHz, 125 W, 8 Ω, 90 dB

  • 125 W
  • 97 - 22000 Hz 8 Ω
  • Acrylonitrile butadiene styrene (ABS), Steel
  • Black, Stainless steel
  • SKU:CM800I-BK
  • GTIN/EAN:
  • MPN:CM800I-BK
Add To Favorite

You need to login to view the price.

View full details

Collections:

  • AUDIO
  • Audio/SPEAKER
  • In-Ceiling Speaker

SoundTube Entertainment CM800I-BK. Recommended usage: Universal. Connectivity technology: Wired. RMS rated power: 125 W, Frequency range: 97 - 22000 Hz, Impedance: 8 Ω, Sensitivity: 90 dB. Product colour: Black, Stainless steel

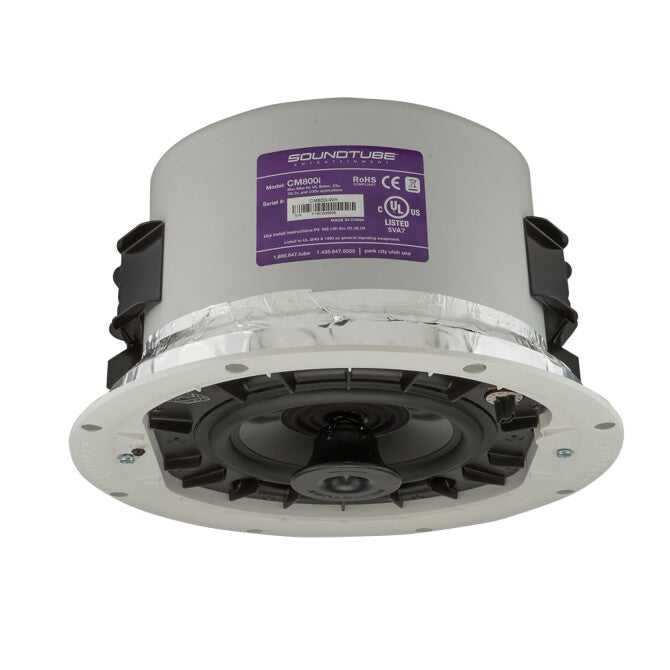

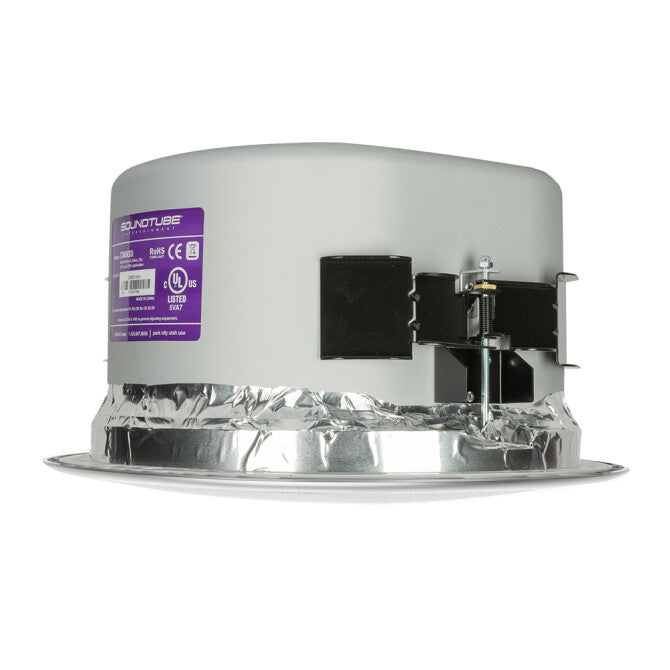

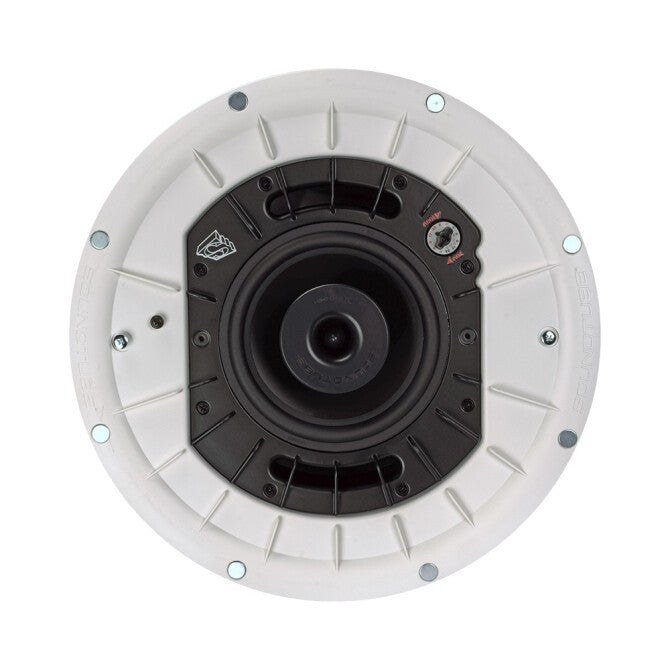

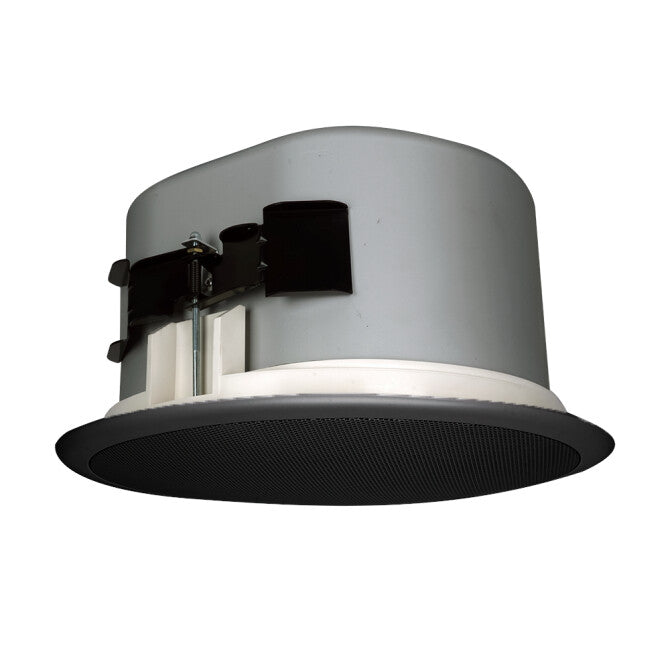

Patented BroadBeam Ring™ waveguide technology delivers a consistent dispersion pattern for maximum coverage area per speaker. One 8.0 inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. Rapid-installation, blind-mount, fixed-wing mounting mechanism with constant-tension design affixing to ceiling thicknesses ranging from 0.25 inch (6.4 mm) to 1.91 inch (48.5 mm). Easy-access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Separate tool-free magnetic grille and bezel assembly with integrated safety cable for ease of install and in-field painting. Steel grille with protective powder-coated finish for lasting durability. An average sensitivity of 90 dB offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2043 approved.

Included accessories: Tile bridge, conduit plate, Euroblock connector and paint mask.

Loudspeakers
Woofer diameter (imperial)
20.3 cm (8")
Woofer
Yes
Tweeter diameter (imperial)
2.54 cm (1")
Tweeter
Yes
Speaker placement
In-wall/in-ceiling
Audio
Crossover frequency
3000 Hz
Sensitivity
90 dB
Impedance
8 Ω
Frequency range
97 - 22000 Hz
RMS rated power
125 W
Performance
Certification
CE, RoHS, UL1480A, UL2043
Housing material
Acrylonitrile butadiene styrene (ABS), Steel
Recommended usage
Universal
Product colour
Black, Stainless steel
Amplifier
Amplifier
No
Ports & interfaces
Bluetooth
No
Connectivity technology
Wired
Weight & dimensions
Weight
5.7 kg
Packaging data
Package depth
812.8 mm
Package width
361.9 mm
Packaging data
Package weight
18.2 kg
Package height
482.6 mm
Package type
Box
Packaging content
Manual
Yes
Quantity per pack
1 pc(s)
Sustainability
Sustainability certificates
CE, RoHS
