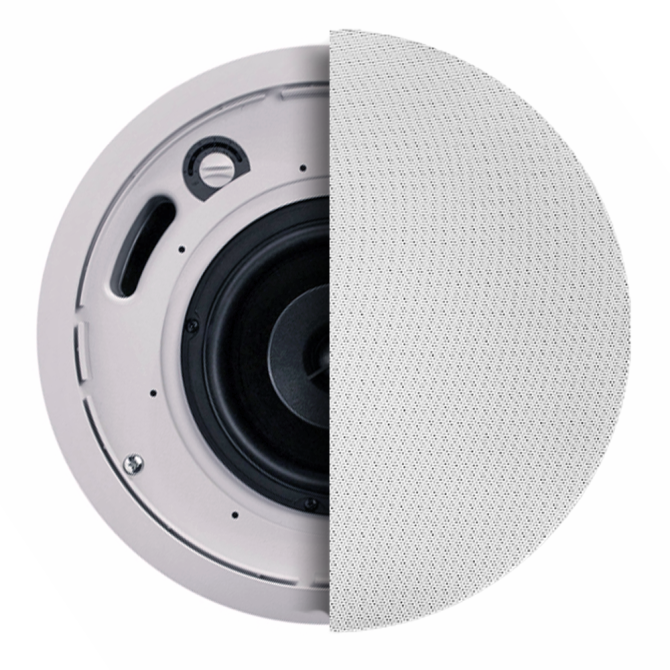

CM82-BGM-II-WH 8" In-Ceiling Background Music Speaker with White Seamless Magnetic Grille.

CM82-BGM-II-WH 8" In-Ceiling Background Music Speaker with White Seamless Magnetic Grille.

  • 25 / 70.7 / 100 V, 16 Ohm direct
  • Included accessories: Tile bridge, UL listed 0.5-inch conduit clamp, paint shield.
  • SKU:CM82-BGM-II-WH
  • GTIN/EAN:
  • MPN:CM82-BGM-II-WH

You need to login to view the price.

Add To Favorite
View full details

SoundTube CM82-BGM-II In-Ceiling Speaker

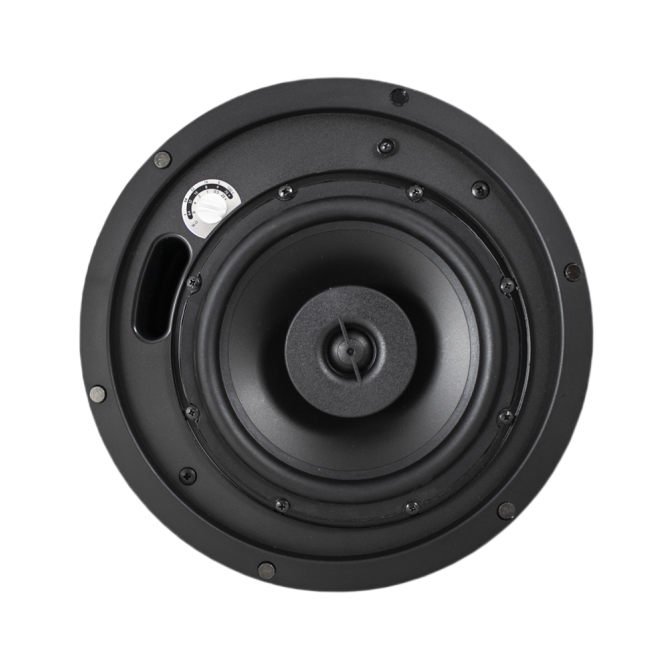

One 8.0 inch (203 mm) polypropylene woofer with butyl rubber surround and one 1.0 inch (25 mm) silk dome tweeter. BroadBeam Ring™ technology for mid-range clarity and smooth off axis performance. Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation. Tuned port on baffle for added musicality and bass response down to 55 Hz (-10 dB). Reduced amplification costs and maximum efficiency of 86.0 dB sensitivity, 16 ohm impedance. Incorporates a painted steel magnetic seamless grille for lasting durability and refined aesthetics. Adaptable to material thicknesses ranging from 0.035 inch (0.9 mm) to 1.6 inch (40.6 mm). UL 1480 and 2043 listed.

Included accessories: Tile bridge, UL listed 0.5-inch conduit clamp, paint shield.

Owner's Manual | Tech Sheet

Loudspeakers
Woofer
8" Polypropylene Cone w/ Butyl Rubber Surround
Tweeter
1" Silk Dome w/ BroadBeam Ring®
Speaker type
In-ceiling
Audio
Impedance
25 / 70.7 / 100 V, 16 Ohm direct
