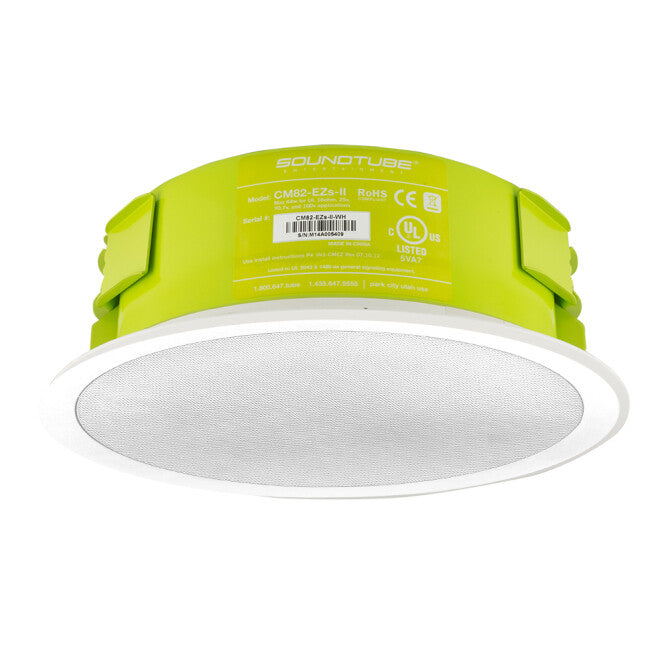

SoundTube Entertainment CM82-EZS-II-WH

SoundTube Entertainment CM82-EZS-II-WH

SoundTube 8" 2-way In Ceiling Speaker in White with Short Can, 92 Hz - 18 kHz, 64 W, 16 Ω, 89 dB

  • 64 W 2-way
  • 92 - 18000 Hz 16 Ω
  • Acrylonitrile butadiene styrene (ABS)
  • Green, White
  • SKU:CM82-EZS-II-WH
  • GTIN/EAN:
  • MPN:CM82-EZS-II-WH

You need to login to view the price.

Add To Favorite
View full details

SoundTube Entertainment CM82-EZS-II-WH. Recommended usage: Universal. Speaker type: 2-way. Connectivity technology: Wired. RMS rated power: 64 W, Frequency range: 92 - 18000 Hz, Impedance: 16 Ω, Sensitivity: 89 dB. Product colour: Green, White

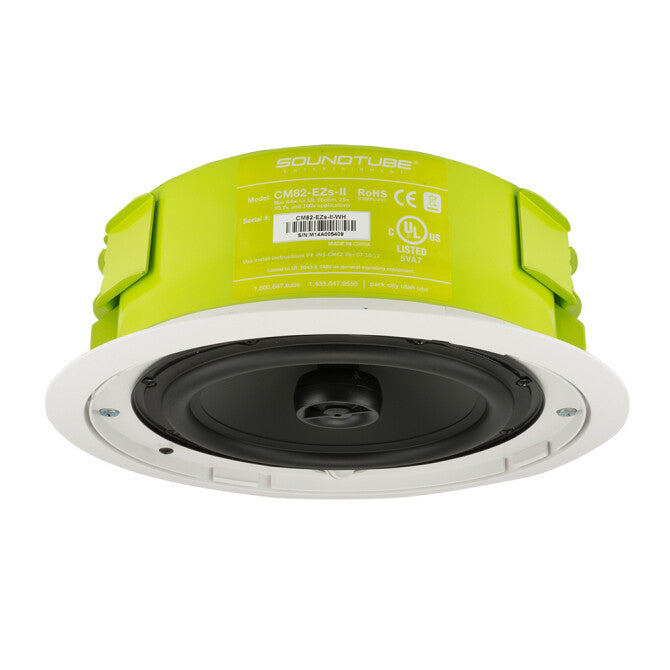

The next generation version of the CM82-EZs with improved and additional features. Engineered for applications with limited plenum space incorporating a SoundTube-specific shallow backcan with an installed depth of 3.5 inches. One 8 inch (203 mm) polypropylene woofer with butyl rubber surround and one 1.0 inch (25.4 mm) silk dome tweeter. Easy-access six-position tap switch for 25/70.7/100-volt and 16 ohm transformer bypass settings allows for easy ordering, stocking and installation. Reduced amplification costs and maximum efficiency of 88.0 dB sensitivity, 16 ohm impedance and a sealed enclosure. Superior voice intelligibility with an average coverage angle of 105 (210 kHz, independently verified). Cost-effective 16 ohm settings allows for the use of multiples of two, four, or six speakers in a system using a standard amplifier without a transformer. Incorporates a painted steel grille with rust inhibitor for lasting durability. Ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. Adaptable to ceiling thicknesses ranging from 0.04 inch (0.9 mm) to 1.60 inch (40.6 mm). UL 1480 (UEAY) and 2043, cUL, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved.

Included accessories: Choose between a tile bridge or a pre-construction bracket, UL-listed 0.5-inch conduit clamp, paint shield and two wire nuts.

Loudspeakers
Woofer diameter (imperial)
20.3 cm (8")
Woofer
Yes
Tweeter diameter (imperial)
2.54 cm (1")
Tweeter
Yes
Speaker placement
In-wall/in-ceiling
Speaker type
2-way
Audio
Crossover frequency
3000 Hz
Sensitivity
89 dB
Impedance
16 Ω
Frequency range
92 - 18000 Hz
RMS rated power
64 W
Performance
Certification
CE, RoHS, UL1480A, UL2043
Housing material
Acrylonitrile butadiene styrene (ABS)
Recommended usage
Universal
Product colour
Green, White
Amplifier
Amplifier
No
Ports & interfaces
Bluetooth
No
Connectivity technology
Wired
Weight & dimensions
Weight
3.2 kg
Packaging data
Package depth
336.6 mm
Package width
336.6 mm
Packaging data
Package weight
4.24 kg
Package height
158.8 mm
Package type
Box
Packaging content
Manual
Yes
Quantity per pack
1 pc(s)
Sustainability
Sustainability certificates
CE, RoHS
