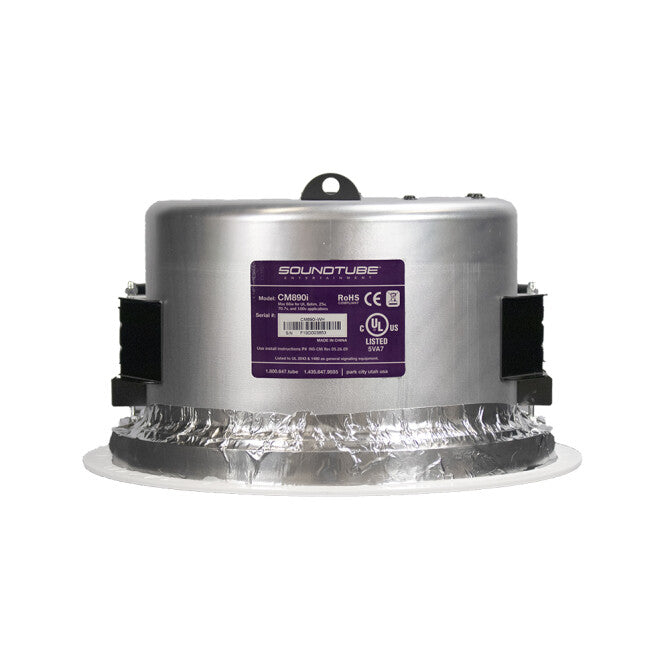

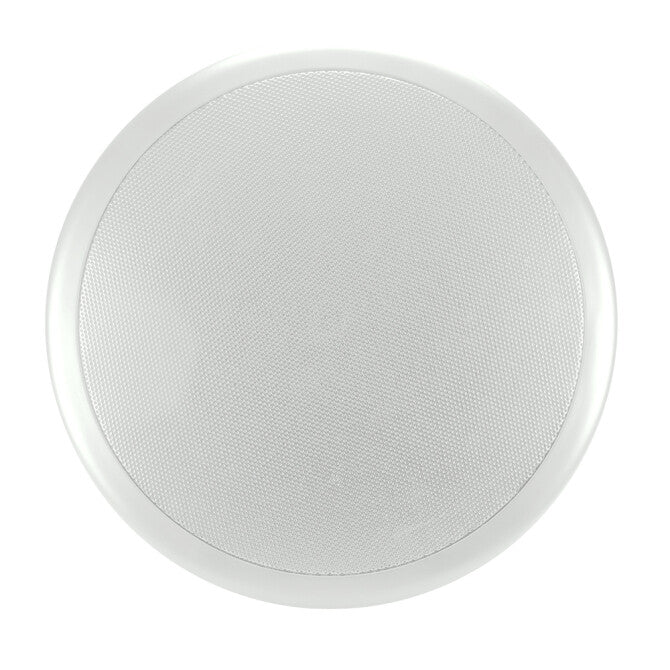

CM890I-WH 8" 2-way High Power In Ceiling Speaker in White

CM890I-WH 8" 2-way High Power In Ceiling Speaker in White

  • 25 / 70.7 / 100 V, 8 Ohm direct
  • Included accessories: Tile bridge, conduit plate, Euroblock connector and paint mask/installation aid.
  • SKU:CM890I-WH
  • GTIN/EAN:
  • MPN:CM890I-WH

You need to login to view the price.

Add To Favorite
View full details

SoundTube CM890i In Ceiling Speaker in White

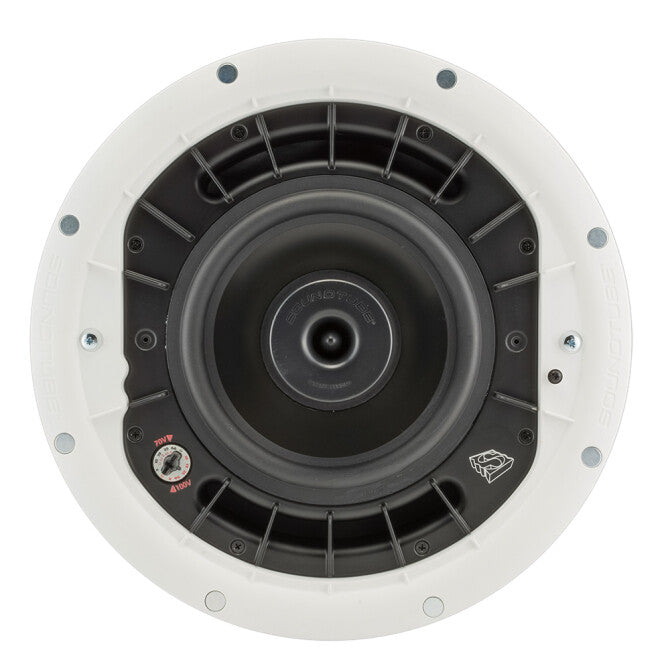

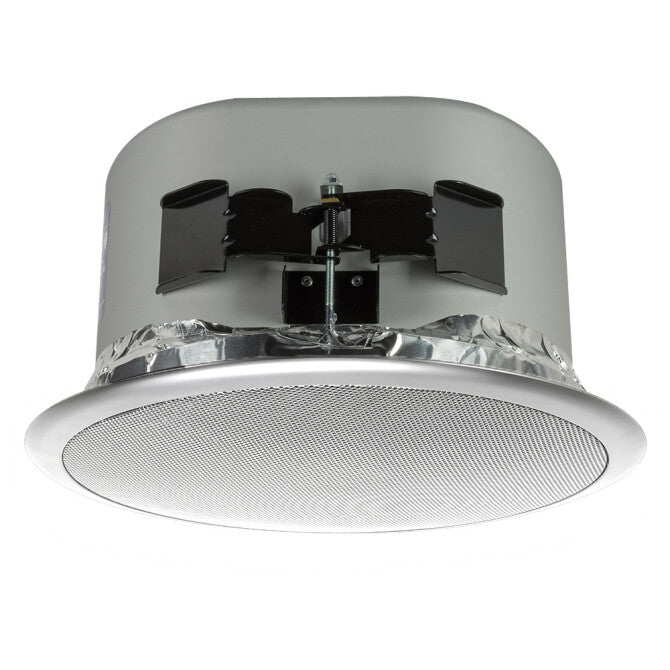

Patented BroadBeam Ring™ waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage. A 66-watt transformer and high output for the sound reinforcement and PA markets. One 8.0 inch treated fiber driver and one compression driver with a 1.0 inch exit mounted to a proprietary cast-aluminum baffle and heat sink. Rapid-installation, blind-mount, fixed-wing mounting mechanism with constant-tension design affixes to ceiling thicknesses ranging from 0.25 inch (6.4 mm) to 1.91 inch (48.5 mm). Easy access six-position tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Separate tool-free magnetic grille and bezel assembly with integrated safety cable for ease of install and in-field painting. Average sensitivity of 93.0 dB offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2043 approved.

Included accessories: Tile bridge, conduit plate, Euroblock connector and paint mask/installation aid.

Owner's Manual | Tech Sheet | Mechanical Drawing | Minimum/Maximum Ceiling | GLL | EASE 4.0 | CLF 1 | CLF 2 | A&E Specs | Revit | DXF | DWG |  PDF Drawing |  Tap Switch Instructions |  UL Certificate

Loudspeakers
Woofer
8" High-Efficiency Woofer
Tweeter
1.42" Titanium Compression Driver w/ Waveguide
Speaker type
In-ceiling
Audio
Impedance
25 / 70.7 / 100 V, 8 Ohm direct
