Vaddio ConferenceSHOT AV HD Conference Room System

Vaddio ConferenceSHOT AV HD Conference Room System

1/2.8 CMOS, 2.14 MP, 1080p, 10X zoom, RJ-45, USB 3.0 B, 20 HZ - 20KHZ, >90dB, Bundle - CeilingMIC 1, Black

  • Signal-to-Noise Ratio (SNR): 50 dB
  • Full HD 60 fps
  • 20 - 20000 Hz
  • Ethernet LAN 10,100,300 Mbit/s
  • 2.14 MP CMOS 1/2.8"
  • Black
  • SKU:0840077506360
  • GTIN/EAN:0840077506360
  • MPN:999-99950-101B

You need to login to view the price.

View full details

Vaddio ConferenceSHOT AV HD Conference Room System. Sensor type: CMOS. HD type: Full HD, Supported video modes: 480p, 720p, 1080p, Maximum frame rate: 60 fps. Ethernet LAN. Product colour: Black

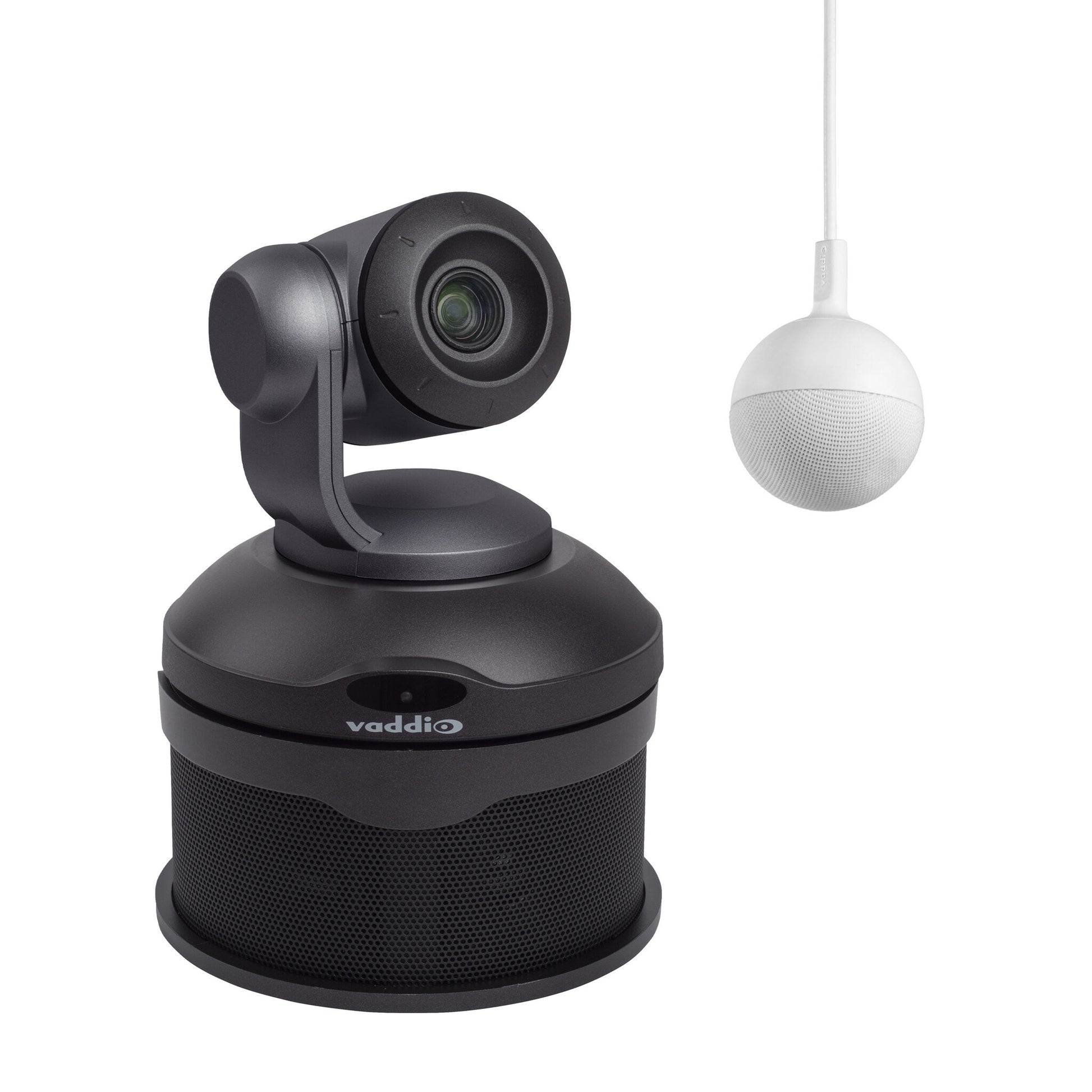

Ideal for smaller meeting rooms, the ConferenceSHOT AV CeilingMIC 1 Bundle includes one ConferenceSHOT AV camera, one ConferenceSHOT AV Speaker and one white CeilingMIC microphone.

Powerful

ConferenceSHOT AV integrates a 10X zoom PTZ camera and audio conferencing mixer into a single USB 3.0 device, so you can easily connect microphone and external speaker to the camera. The CeilingMIC 1 Bundle is easy to install and allows simple plug and play functionality with all major UCC soft clients such as Skype for Business, WebEx and Google.

Simple

ConferenceSHOT AV is UVC compliant. No external drivers need to be installed on your PC – just plug and play. The versatile system supports customized AV designs with third-party equipment or can be deployed as a standalone solution.

Enterprise-Class

ConferenceSHOT AV allows for remote monitoring, management and control of a distributed camera network. IP-accessible and a browser-based user interface enables both browser control and IP-live preview and setup from PCs, Macs and mobile devices including iPhone, iPad and Android devices.

This USB-based solution makes it easy for your organization to collaborate using Skype for Business, WebEx, Zoom, BlueJeans, Google Hangouts, Vidyo and other leading UC services.

ConferenceSHOT AV turns your BYOD device into a small space UC system with professional PTZ camera quality and full room audio performance. It’s a significant step up in performance from the current webcam-based technology offerings.

2 years

Performance
Product colour
Black
Signal-to-Noise Ratio (SNR)
50 dB
Pan range
-165 - 165°
Pan speed
90 °/sec
Tilt speed
90 °/sec
Tilt angle range
-30 - 90°
Video
HD type
Full HD
Supported video modes
480p, 720p, 1080p
Maximum frame rate
60 fps
Video codecs
H.264
Audio
Frequency range
20 - 20000 Hz
Line-out impedance
50 Ω
Output voltage Total Harmonic Distortion (THD)
0.02%
Automatic gain control
Yes
Echo cancellation
Yes
Noise reduction
Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
1
Power over Ethernet plus (PoE+) ports quantity
1
Ethernet LAN (RJ-45) ports
2
Line-out
Yes
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,300 Mbit/s
Web-based management
Yes
Management protocols
Telnet
Camera
Megapixel (approx.)
2.14 MP
Effective sensor resolution
2.14 MP
Sensor type
CMOS
Image sensor size
1/2.8"
Focal length range (normal mode)
3.8 - 38 mm
Optical zoom (normal mode)
10x
Optical zoom (super-wide mode)
11x
Wide end viewing angle (normal mode)
67°
Tele end viewing angle (normal mode)
7.6°
Wide end viewing angle (super-wide mode)
74°
Tele end viewing angle (super-wide mode)
7.6°
Focus adjustment
Auto/Manual
Remote control interface
IR Wireless
Aperture range (F-F)
1.8 - 3.4
Minimum illumination
100 lx
Aperture number of steps
16
White balance
Auto, Manual, One push
Closest focusing distance (wide)
0.01 m
Closest focusing distance (tele)
1 m
Lens modes
Normal lens mode, Super-wide lens mode
Sync system
Internal
Gain control type
Auto/Manual
Microphone
Microphone colour
White
Microphone sensitivity
90 dB
Microphone frequency
100 - 16000 Hz
Microphone Total Harmonic Distortion (THD)
0.02%
Maximum input level
115 dBu
Number of microphones
1
Logistics data
Harmonized System (HS) code
85176990
Operational conditions
Storage relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-5 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Operating temperature (T-T)
0 - 40 °C
Power
Power over Ethernet (PoE) power per port
25 W
Certificates
Certification
CE Approved, FCC Approved, UL Listed, TAA Compliant
Weight & dimensions
Microphone weight
900 g
Speaker dimensions (WxDxH)
184 x 171 x 92 mm
Camera dimensions (WxDxH)
155 x 145 x 163 mm
Camera weight
1.36 kg
Packaging content
Number of microphones included
1
PoE adapter included
Yes
Mounting kit
Yes
Speaker included
Yes
Microphone included
Yes
Camera included
Yes
