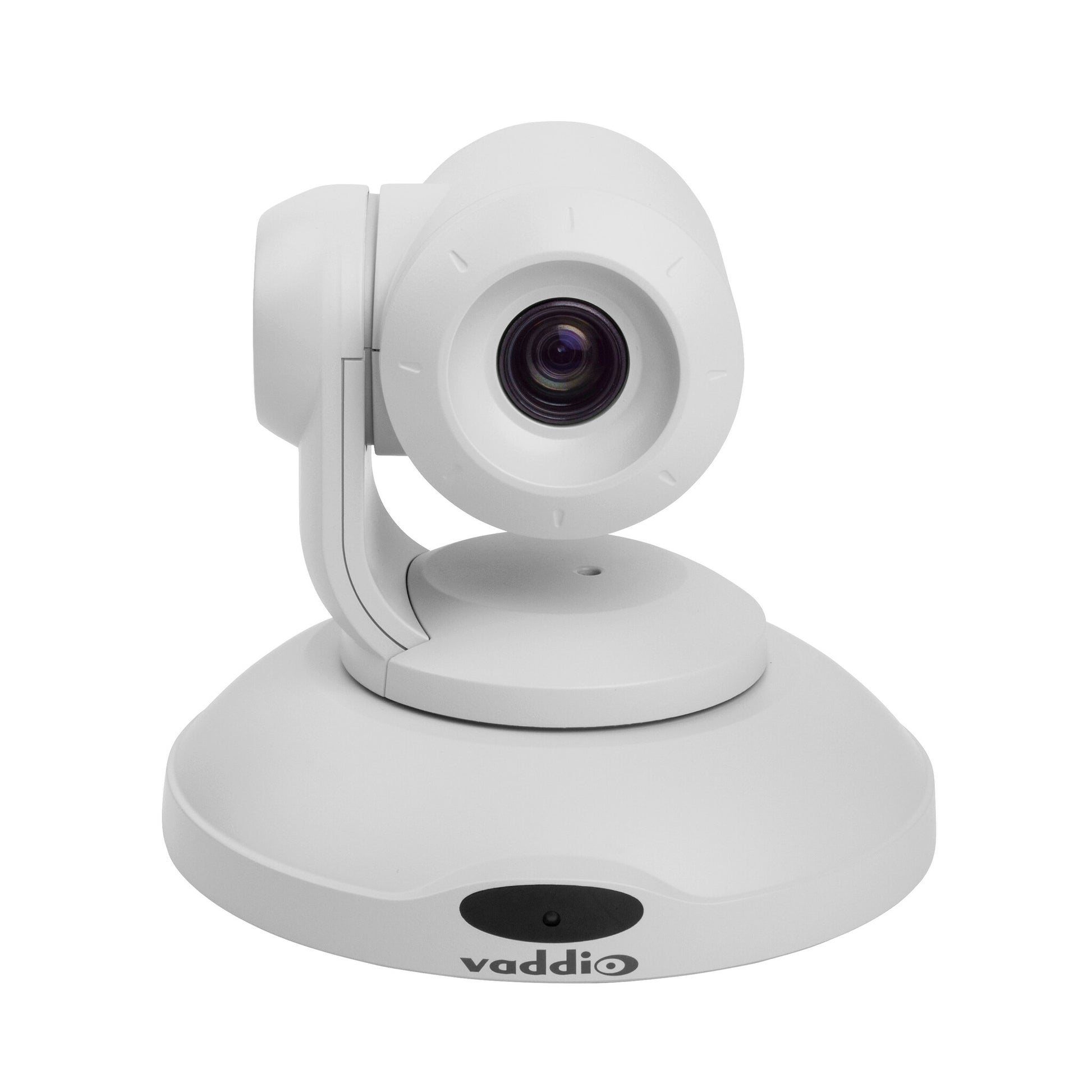

Vaddio ConferenceSHOT AV HD Conference Room System

Vaddio ConferenceSHOT AV HD Conference Room System

1/2.8 CMOS, 2.14 MP, 1080p, 10X zoom, RJ-45, USB 3.0 B, 20 HZ - 20KHZ, >90dB, Bundle - CeilingMIC 1 w/o Speaker, White

  • HD PTZ Camera with 10x zoom, 74° HFOV

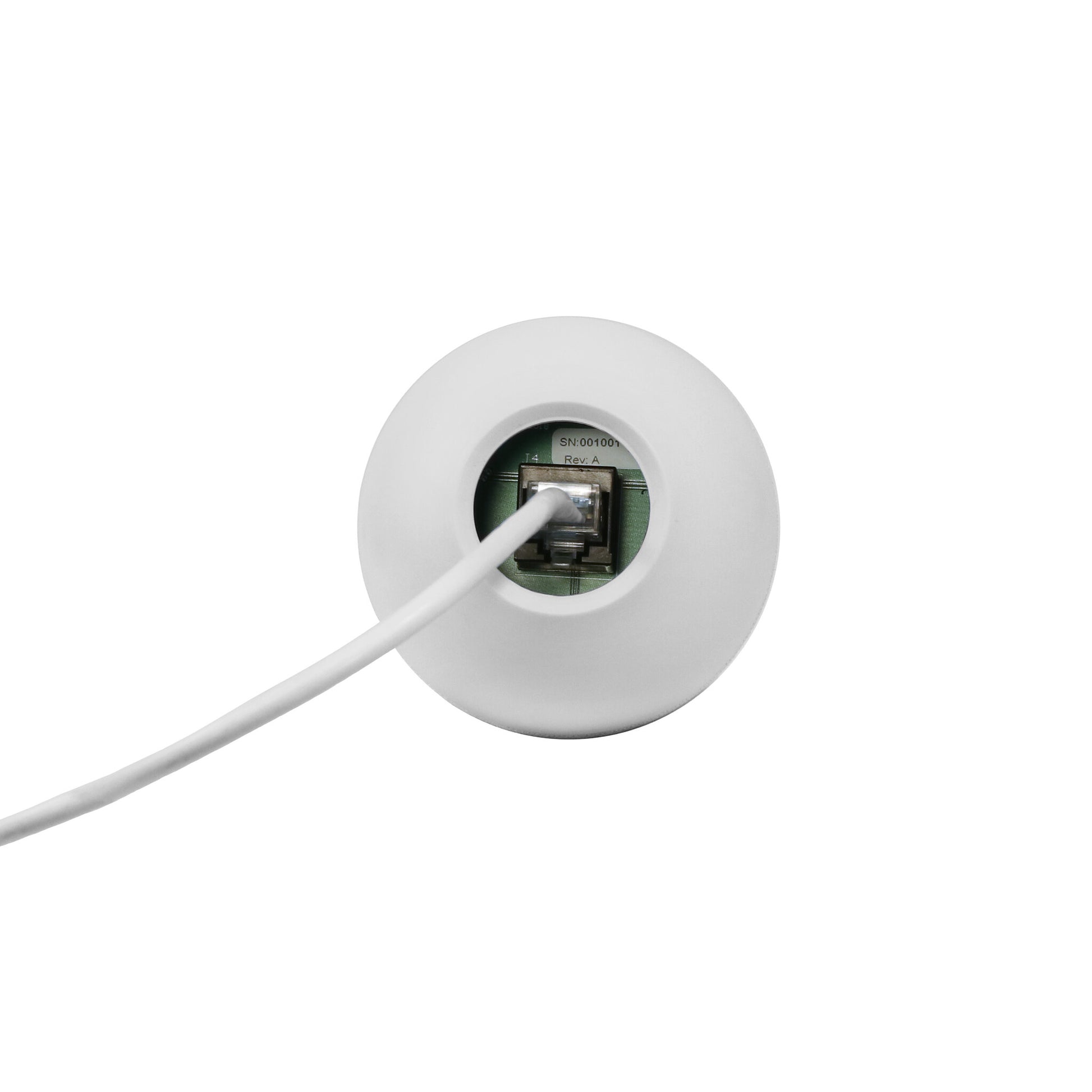

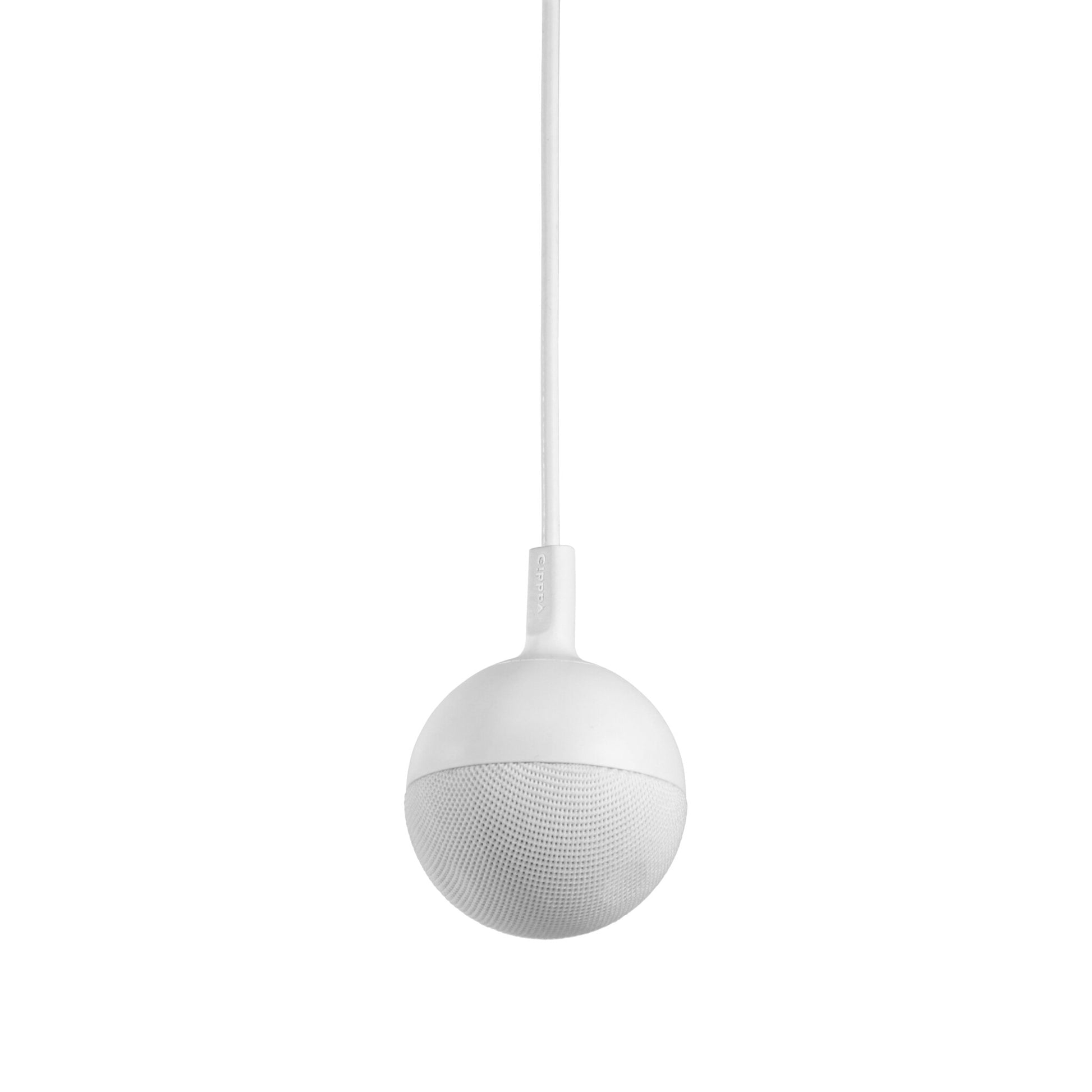

  • Two CeilingMIC microphones with 360° coverage and echo cancellation
  • Administration and control via web interface
  • SKU:0840077505509
  • GTIN/EAN:0840077505509
  • MPN:999-99950-801W

You need to login to view the price.

View full details

Vaddio ConferenceSHOT AV HD Conference Room System. Sensor type: CMOS. HD type: Full HD, Supported video modes: 480p, 720p, 1080p, Maximum frame rate: 60 fps. Ethernet LAN. Product colour: White

Cost-effective USB 3.0 conferencing for small to medium conference spaces. Use the ConferenceSHOT AV camera and two CeilingMIC microphones with your existing audio solution.

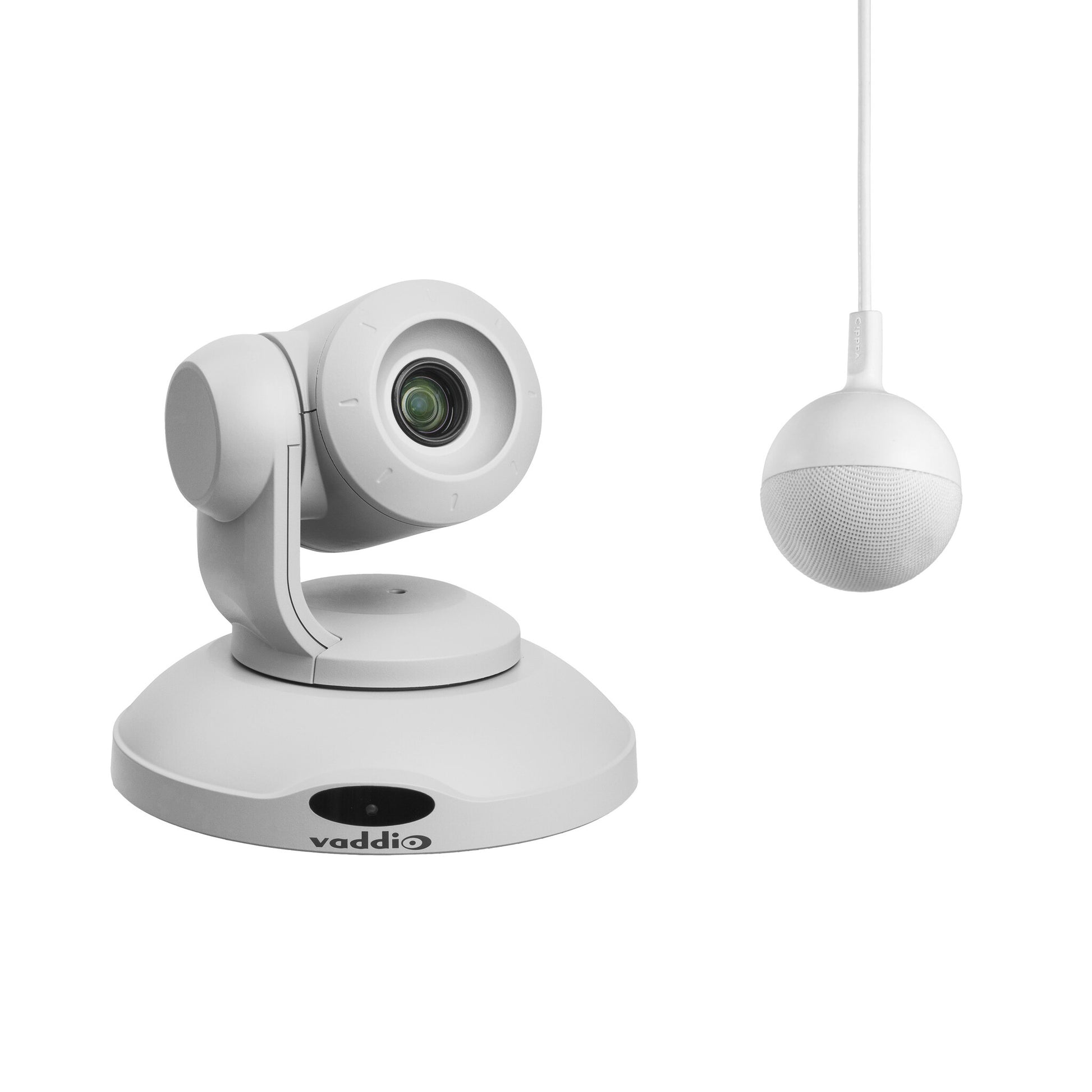

USB Collaboration ideal for small to medium-sized videoconferencing rooms. The ConferenceSHOT AV CeilingMIC 2 Bundle (without speaker) includes one ConferenceSHOT AV Camera and two CeilingMIC microphones, for easy integration into existing in-room/third-party speaker systems.

Powerful

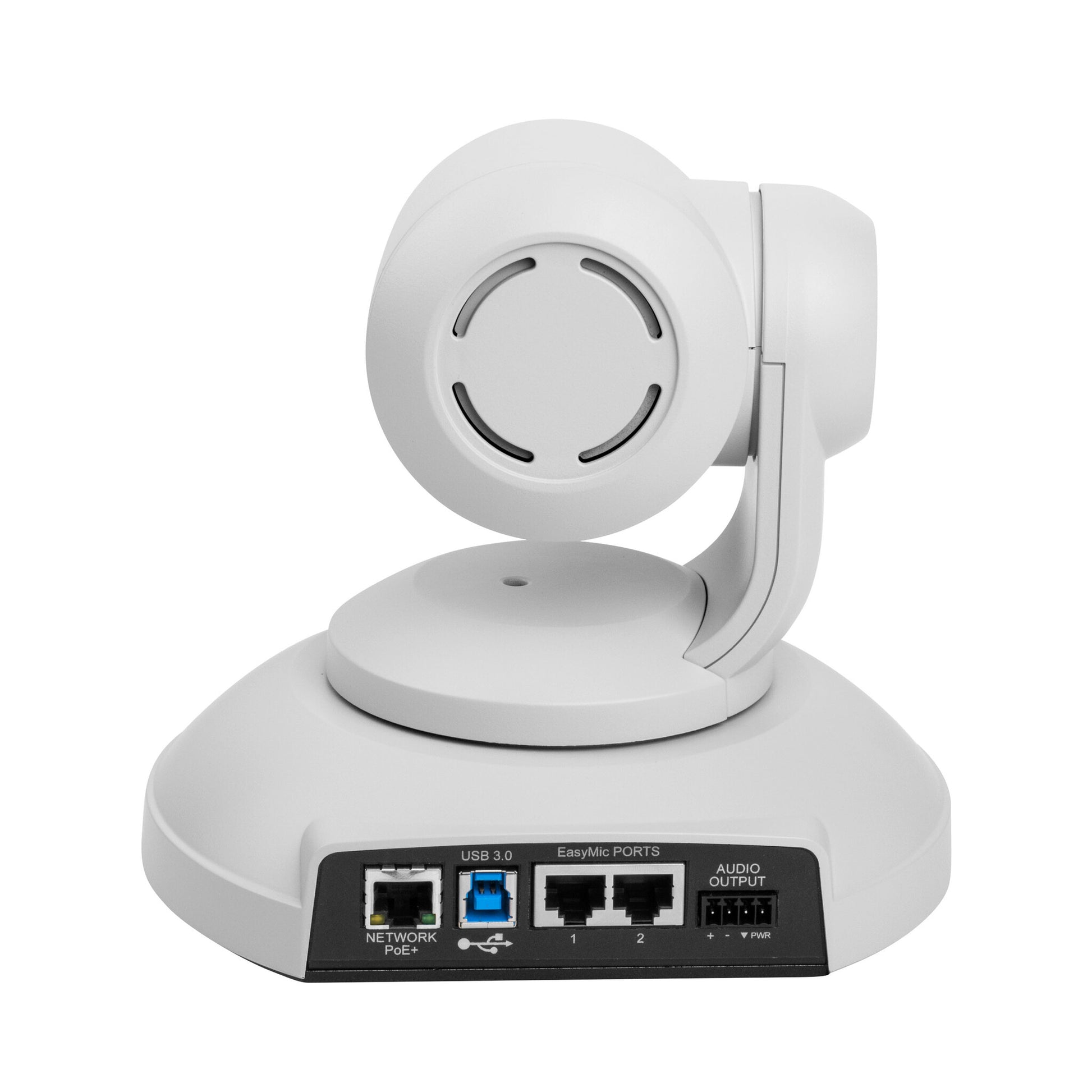

ConferenceSHOT AV integrates a 10X zoom PTZ camera and audio conferencing mixer into a single USB 3.0 device, so you can easily connect a microphone and external speaker to the camera. The CeilingMIC 2 Bundle (without speaker) is easy to install and allows simple plug and play functionality with all major UCC soft clients such as Skype for Business, WebEx and Google.

Simple

ConferenceSHOT AV is UVC compliant. No external drivers need to be installed on your PC – just plug and play. The versatile system supports customized AV designs with third-party equipment or can be deployed as a standalone solution.

Enterprise-Class

ConferenceSHOT AV allows for remote monitoring, management and control of a distributed camera network. IP-accessible and a browser-based user interface enables both browser control and IP-live preview and setup from PCs, Macs and mobile devices including iPhone, iPad and Android devices.

ConferenceSHOT AV turns your BYOD device into a small space UC system with professional PTZ camera quality and full room audio performance. It’s a significant step up in performance from the current webcam-based technology offerings.

2 years

Performance
Product colour
White
Signal-to-Noise Ratio (SNR)
50 dB
Pan range
-165 - 165°
Pan speed
90 °/sec
Tilt speed
90 °/sec
Tilt angle range
-30 - 90°
Video
HD type
Full HD
Supported video modes
480p, 720p, 1080p
Maximum frame rate
60 fps
Video codecs
H.264
Audio
Frequency range
20 - 20000 Hz
Line-out impedance
50 Ω
Output voltage Total Harmonic Distortion (THD)
0.02%
Automatic gain control
Yes
Echo cancellation
Yes
Noise reduction
Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
1
Power over Ethernet plus (PoE+) ports quantity
1
Ethernet LAN (RJ-45) ports
2
Line-out
Yes
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Web-based management
Yes
Management protocols
Telnet
Camera
Megapixel (approx.)
2.14 MP
Effective sensor resolution
2.14 MP
Sensor type
CMOS
Image sensor size
1/2.8"
Focal length range (normal mode)
3.8 - 38 mm
Optical zoom (normal mode)
10x
Optical zoom (super-wide mode)
11x
Wide end viewing angle (normal mode)
67°
Tele end viewing angle (normal mode)
7.6°
Wide end viewing angle (super-wide mode)
74°
Tele end viewing angle (super-wide mode)
7.6°
Focus adjustment
Auto/Manual
Remote control interface
IR Wireless
Aperture range (F-F)
1.8 - 3.4
Minimum illumination
100 lx
Aperture number of steps
16
White balance
Auto, Manual, One push
Closest focusing distance (wide)
0.01 m
Closest focusing distance (tele)
1 m
Lens modes
Normal lens mode, Super-wide lens mode
Sync system
Internal
Gain control type
Auto/Manual
Microphone
Microphone colour
White
Microphone sensitivity
90 dB
Microphone frequency
100 - 16000 Hz
Microphone Total Harmonic Distortion (THD)
0.02%
Number of microphones
1
Logistics data
Harmonized System (HS) code
85176990
Operational conditions
Storage relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-5 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Operating temperature (T-T)
0 - 40 °C
Power
Power over Ethernet (PoE) power per port
25 W
Certificates
Certification
CE Approved, FCC Approved, UL Listed, TAA Compliant
Weight & dimensions
Microphone weight
900 g
Camera dimensions (WxDxH)
155 x 145 x 163 mm
Camera weight
1.36 kg
Packaging content
Number of microphones included
2

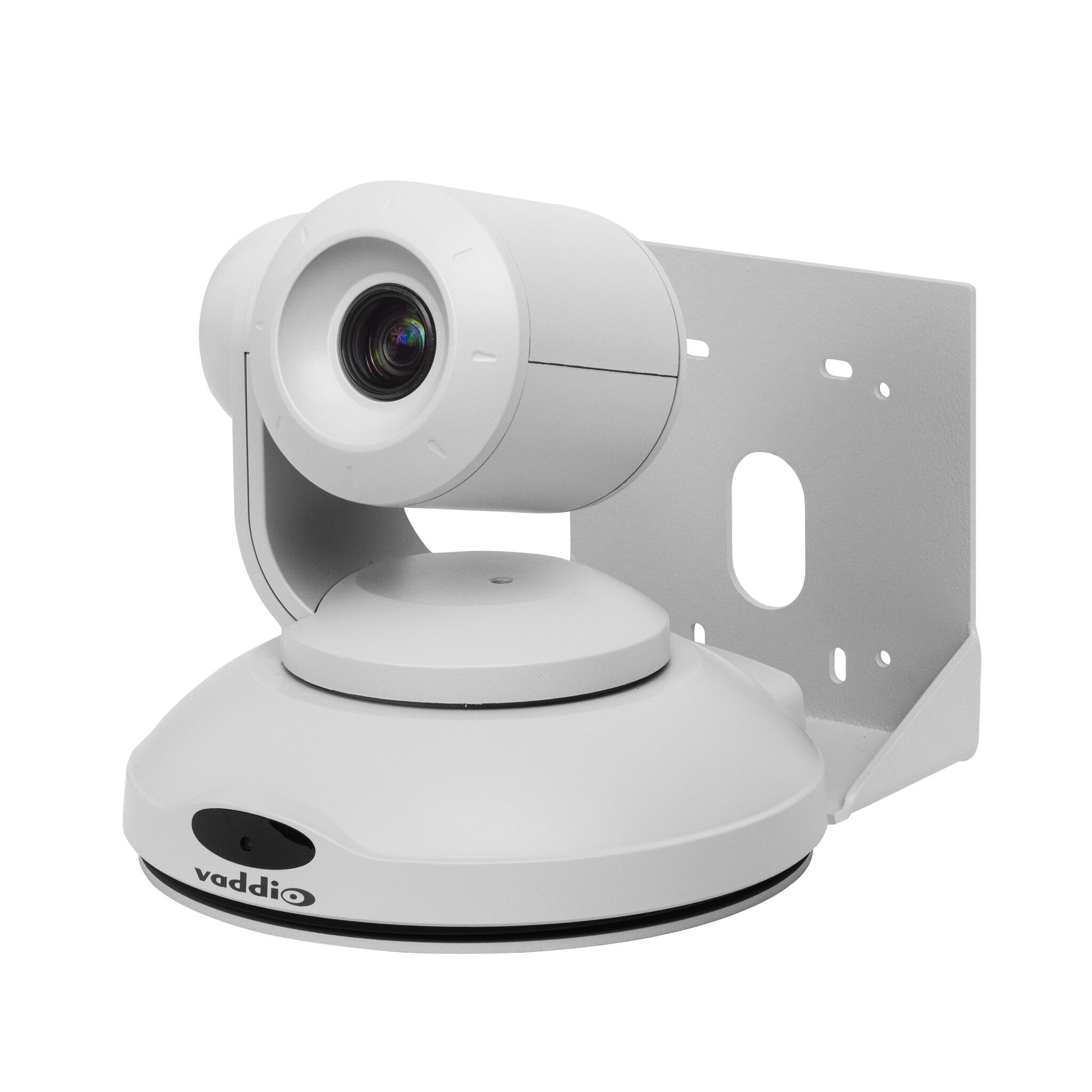

Mounting kit
Yes
Speaker included
Yes
Microphone included
Yes
Camera included
Yes
Remote control included
Yes
