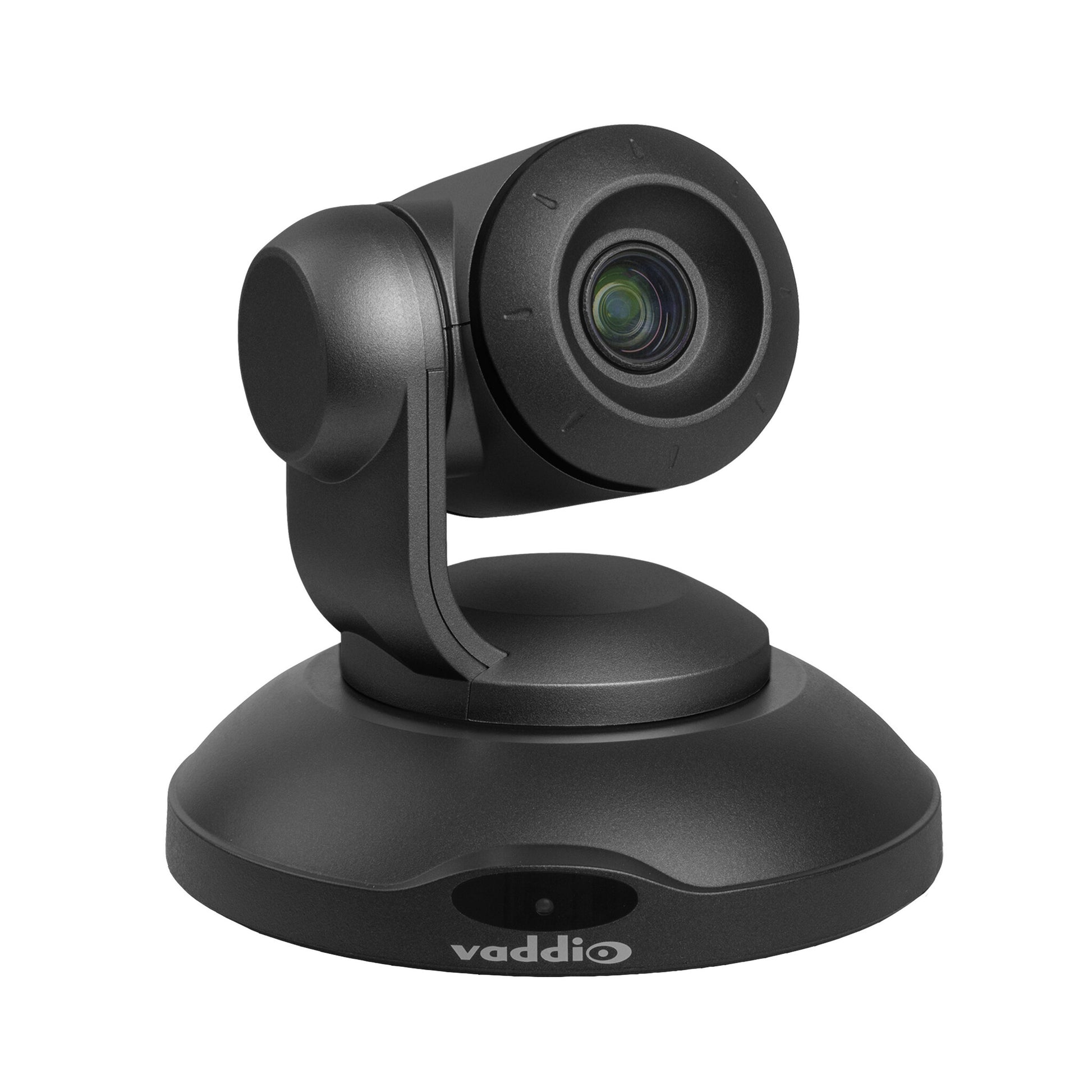

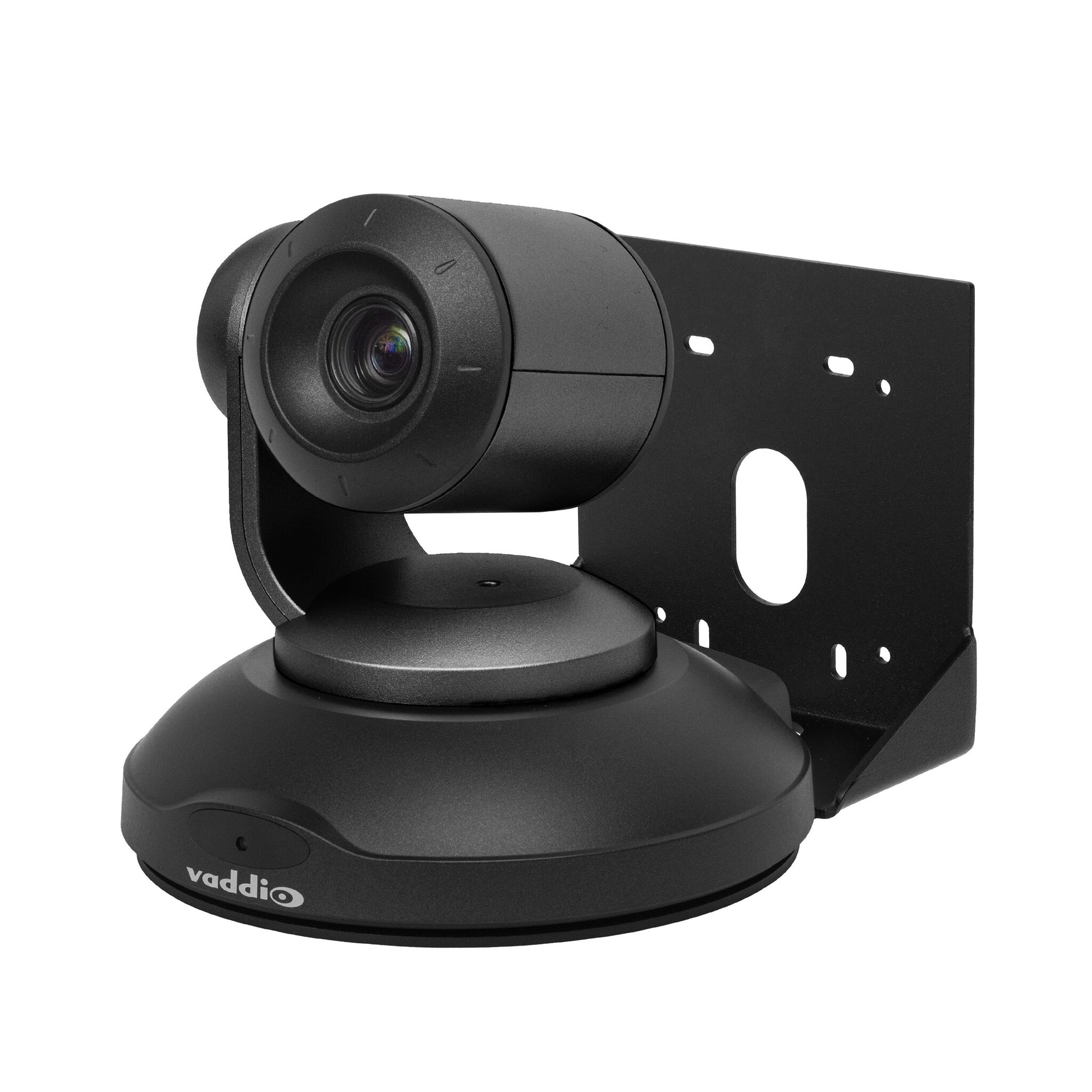

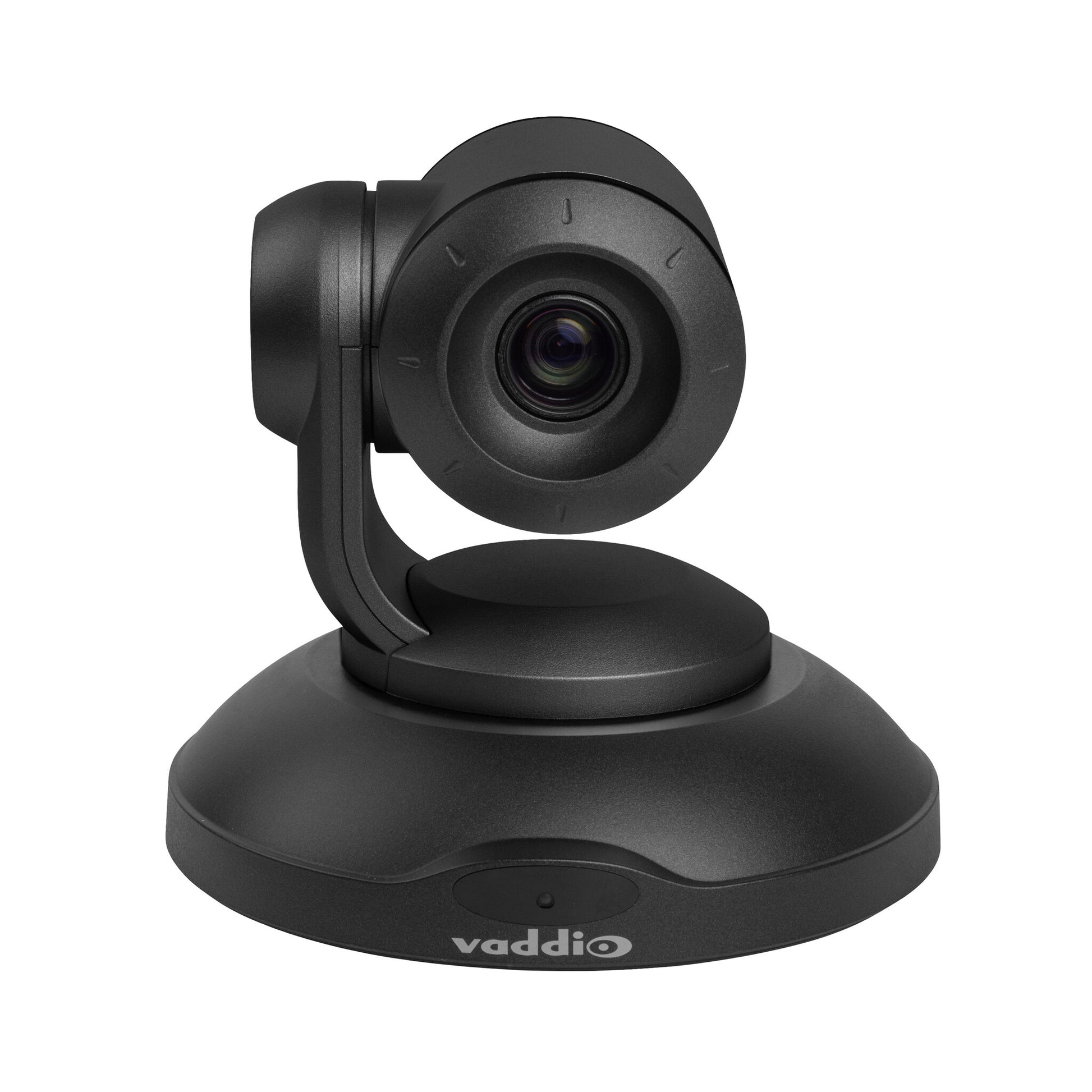

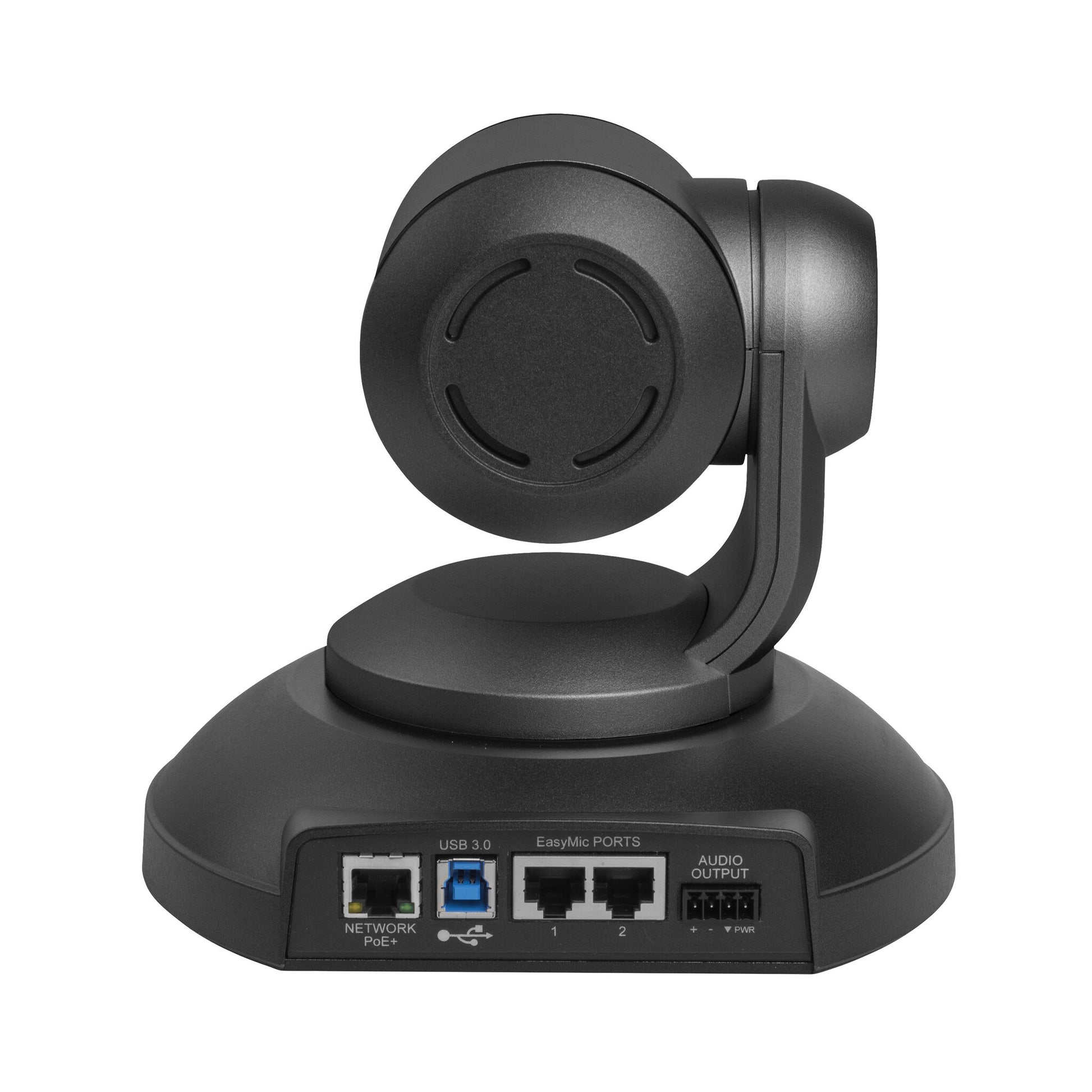

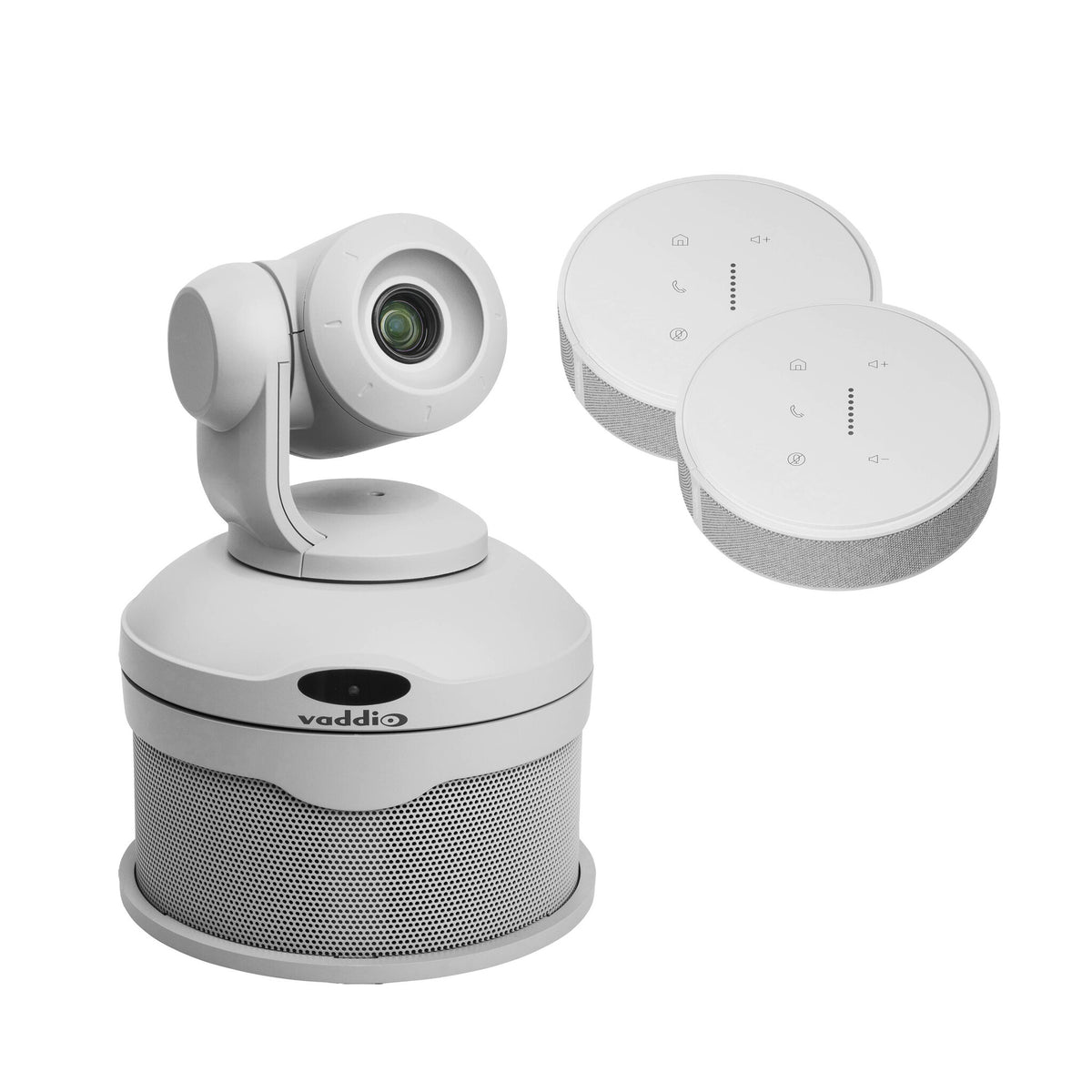

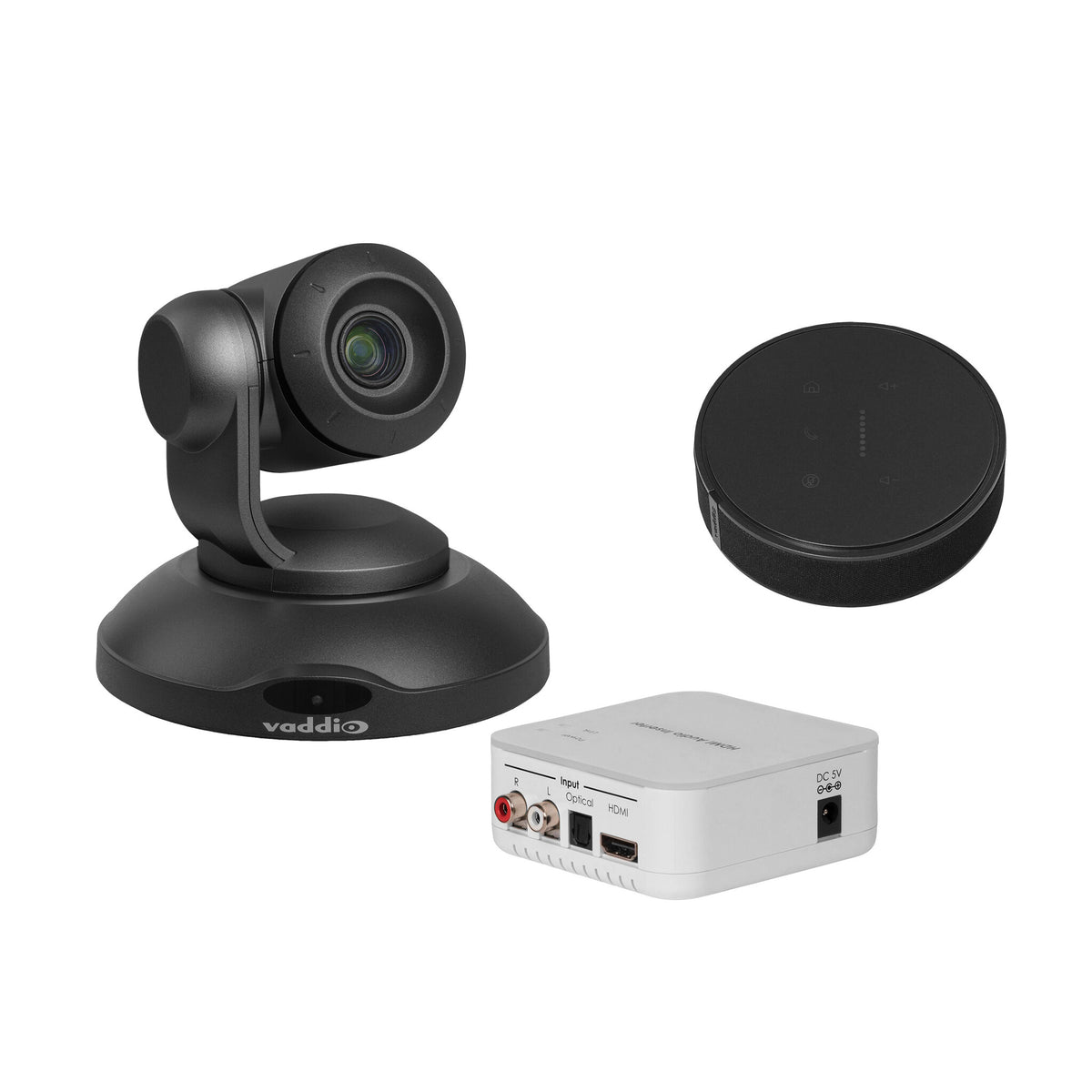

Vaddio ConferenceSHOT AV HD Conference Room System

Vaddio ConferenceSHOT AV HD Conference Room System

PTZ, 2.14 Mp, 1080p, 60 fps, PoE+, 14 x 16 x 15.5 cm, 1.4 kg, black

  • HD PTZ camera with 10x optical zoom and 74° field of view
  • Supports up to two high-fidelity microphones with independent acoustic echo cancellation and gain control
  • Audio output for optional matching 20W speaker or integrate with existing speakers
  • Plug and play – a single USB connection for access to video and audio
  • Works with your favorite conferencing software like Microsoft Teams, Google Meet, and Zoom
  • Simultaneous 1080p/60 video streaming via IP and USB
  • Remote management, monitoring and updates via IP enabled web services
  • SKU:0840077506346
  • GTIN/EAN:0840077506346
  • MPN:999-9995-001B

You need to login to view the price.

View full details

Vaddio ConferenceSHOT AV HD Conference Room System. Megapixel (approx.): 2.14 MP, Sensor type: CMOS. HD type: Full HD, Maximum video resolution: 1920 x 1080 pixels, Maximum frame rate: 60 fps. Optical zoom: 10x. Product colour: Black

Ideal for video conferencing rooms, ConferenceSHOT AV integrates a PTZ camera and audio conferencing mixer into a single USB 3.0 device, so you can easily connect up to two microphones and an external speaker directly to the camera. Easy plug and play functionality with all major UCC soft clients such as Microsoft Teams, Google Meet and Zoom.

3 years

Camera
Megapixel (approx.)
2.14 MP
Camera type
Single camera
Sensor type
CMOS
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Optical zoom
10x
Signal-to-Noise Ratio (SNR)
50 dB
Aperture number of steps
16
White balance
Auto, Manual, One push
Auto focusing (AF) modes
Auto, Manual
Maximum working distance (tele)
100 cm
Minimum working distance (wide)
1 cm
Video
Maximum video resolution
1920 x 1080 pixels
Maximum frame rate
60 fps
HD type
Full HD
Design
Product colour
Black
Tilt angle range
-30 - 90°
Pan range
-165 - 165°
Tilt speed (max)
90 °/sec
Pan speed (max)
90 °/sec
Country of origin
United States
Ports & interfaces
Line-out
Yes
Power
Power source type
PoE
Power over Ethernet (PoE) voltage
12 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-5 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
20 - 80%
Packaging content
USB cable length
1.8 m
Mounting kit
Yes
Quick start guide
Yes
Weight & dimensions
Width
155 mm
Depth
145 mm
Height
163 mm
Weight
1.36 kg
Packaging data
Package width
360 mm
Package depth
460 mm
Package height
360 mm
Package weight
5.4 kg
