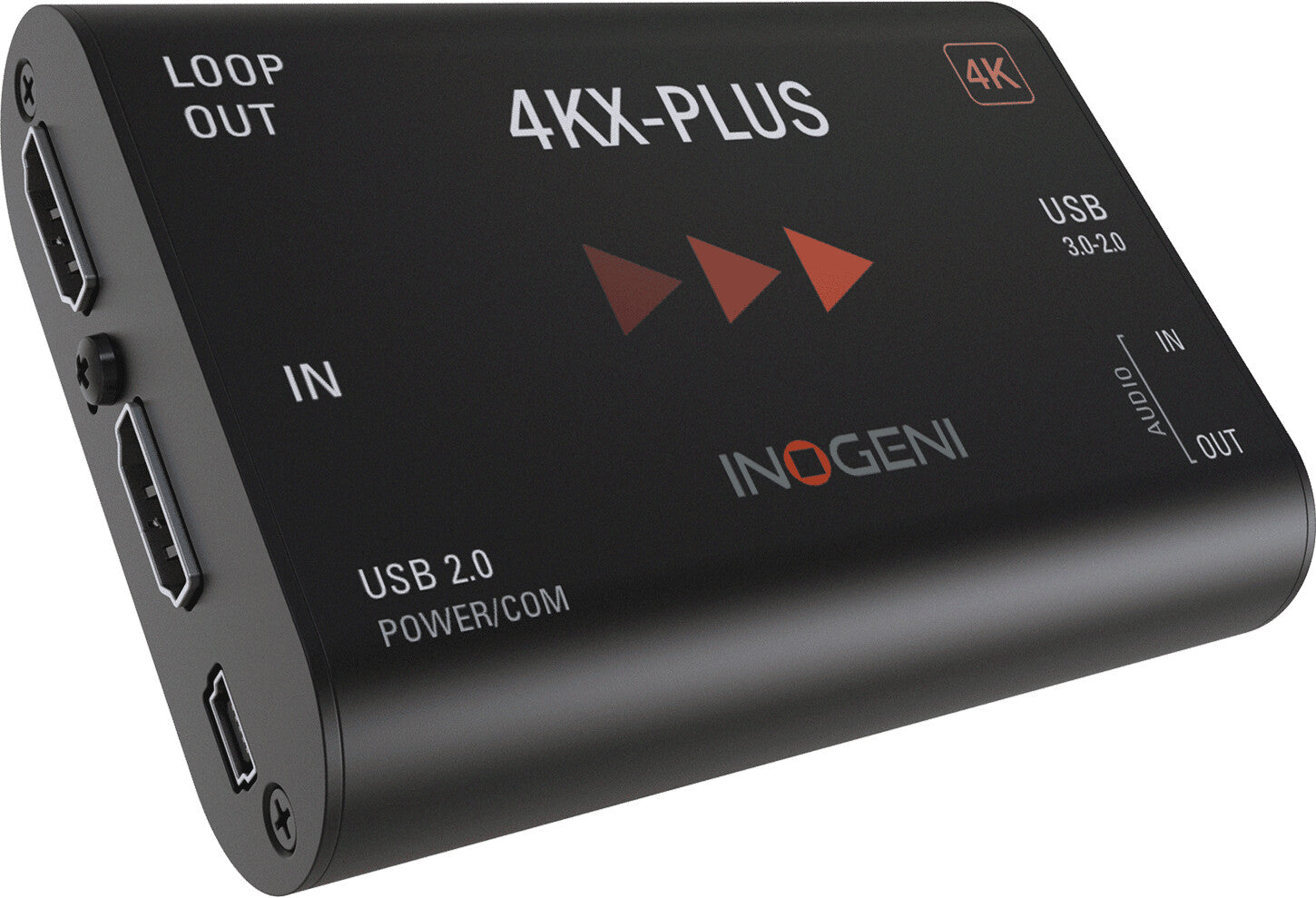

INOGENI 4KX-PLUS — 4K HDMI to USB 3.0 capture converter with HDMI loop
The INOGENI 4KX-PLUS is a professional-grade 4K HDMI-to-USB 3.0 capture converter designed for AV integrators deploying BYOD and BYOM (Bring Your Own Meeting) conference room solutions. It bridges room-installed HDMI cameras, CODECs and video sources to any Windows, macOS or Linux laptop — with no driver installation required. The device is purpose-built for Cisco Webex Room Series environments but works equally well with Microsoft Teams, Zoom, Google Meet and BlueJeans. Its powered HDMI loop output keeps the room display connected at all times, even when no laptop is attached — a critical advantage for multi-display Webex rooms. TAA-compliant and engineered in Canada, the 4KX-PLUS is a compact, robust solution backed by a 5-year warranty.
Permanently Active HDMI Loop Output
The 4KX-PLUS includes a 4K HDMI loop output that remains active as long as external power is connected — regardless of whether a laptop is plugged into the USB port. This is a decisive advantage over simpler capture devices that drop the loop signal the moment the laptop disconnects. In Cisco Webex rooms with two displays, the room CODEC must maintain a connection to the second screen at all times; losing that link when a guest's laptop goes to sleep or is unplugged disrupts the entire room setup. With the 4KX-PLUS, the room display stays live, the CODEC stays happy, and the meeting experience is uninterrupted even during laptop swaps — which is exactly the scenario BYOM rooms are designed for.
Driver-Free UVC Operation Across All Platforms
The 4KX-PLUS is UVC-compliant, meaning every operating system — Windows 7 and above, macOS 10.10 and above, and Linux (kernel v2.6.38+) — recognises it as a standard USB camera the instant it is plugged in. No driver installation, no IT-department approval process, no version conflicts after OS updates. Any conferencing software built on DirectShow, AVFoundation or V4L2 — which covers Teams, Zoom, Webex, Google Meet and BlueJeans — picks it up automatically. This matters enormously in BYOD environments where guests arrive with their own laptops and unknown system configurations: the device just works, every time, for every user.
Up to 4K@30fps or 1080p@60fps Capture
The converter captures uncompressed HDMI video at up to 4K UHD (3840×2160 or 4096×2160) at 30 fps over USB 3.0, and full 1080p at up to 60 fps. On USB 2.0 connections it falls back to high-quality MJPEG compression, maintaining usable quality without requiring USB 3.0 on the host. Hardware-based automatic scaling, frame rate conversion, and colour space conversion mean the host application always receives a clean, correctly formatted stream — no software processing overhead and no manual configuration needed when the source camera changes resolution or frame rate.
Integrated Analog Audio Mixing
Beyond HDMI audio passthrough, the 4KX-PLUS adds a 3.5 mm analog audio input (MIC or line-level) and a 3.5 mm line-level output. Both HDMI-embedded audio and the analog mic input are mixed and delivered together over the USB audio interface to the laptop — so a room microphone can be combined with the CODEC audio without any external mixer. Conversely, USB audio from the laptop and HDMI audio from the source are mixed and sent out via the analog output to room speakers. Audio routing can be fine-tuned using INOGENI's free Control App. This built-in flexibility removes the need for a separate audio interface in many single-room BYOM deployments.
Cisco Webex BYOM Integration with Multi-Display Support
The 4KX-PLUS is specifically engineered to work with Cisco Webex Room Series devices via USB passthrough — including macro-based and native USB mode on Room Kit, Room Kit Plus/Pro, Room 55, Room 70 and others. Crucially, it is the only INOGENI converter that supports Webex deployments with multiple displays; the simpler 4K2USB3 model is limited to single-display rooms. The Webex Room Kit Plus in particular requires the 4KX-PLUS to carry audio, as that CODEC does not output audio over HDMI. Integrators deploying dual-screen Webex rooms — boardrooms, training rooms, large meeting spaces — will find the 4KX-PLUS to be the correct product choice, not just a premium alternative.
Broad Ecosystem Compatibility — Zoom, Logitech, Barco
Beyond Cisco Webex, the 4KX-PLUS carries Zoom Certification for Zoom Rooms HDMI camera workflows and is compatible with Barco ClickShare Conference (CX-20, CX-30 and CX-50). On the camera side, Logitech has tested and confirmed compatibility with Rally and Rally Bar series cameras, MeetUp, MeetUp 2, Scribe and consumer cameras, as well as Rally Bar appliance-mode and Roommate CODECs for MTR and Zoom Rooms. This breadth of validated compatibility significantly reduces integration risk: the installer can specify the 4KX-PLUS with confidence across a wide range of customer room ecosystems, and INOGENI publishes a full compatibility matrix for reference.
TAA-Compliant, 5-Year Warranty, Made in Canada
The 4KX-PLUS is designed and manufactured in Canada, carries full TAA (Trade Agreements Act) compliance, and holds certifications including FCC, CE, RoHS, IEC62368, SoV, RCM, BSMI, CB, KC and NOM. For end-users in US federal, state or government-adjacent sectors, TAA compliance is often a non-negotiable procurement requirement. The 5-year warranty — applying to products purchased after August 1, 2024 — gives both integrators and end-users long-term confidence in the device. At 130 g and 7.0 × 9.7 × 2.3 cm, it is compact enough to mount behind a display or tuck into a cable raceway, keeping the room installation clean.
