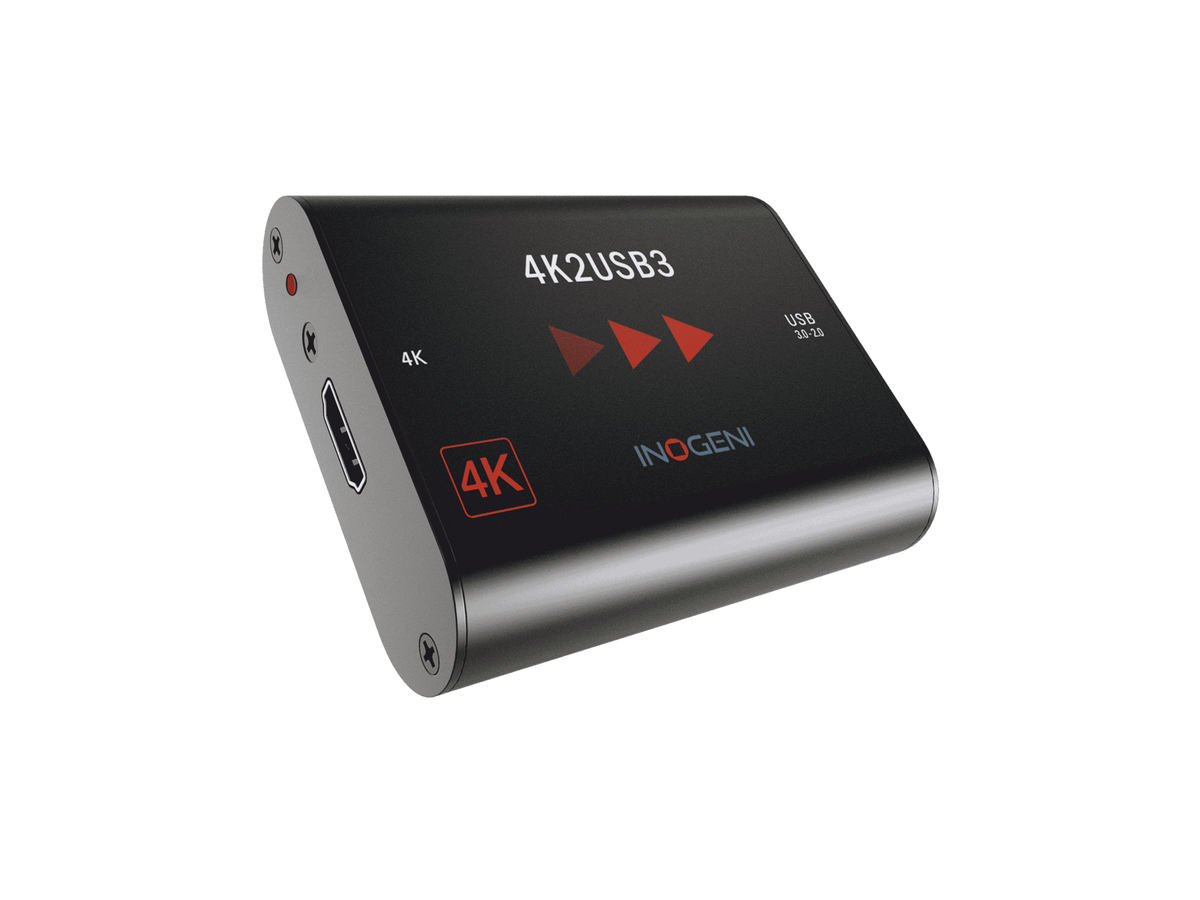

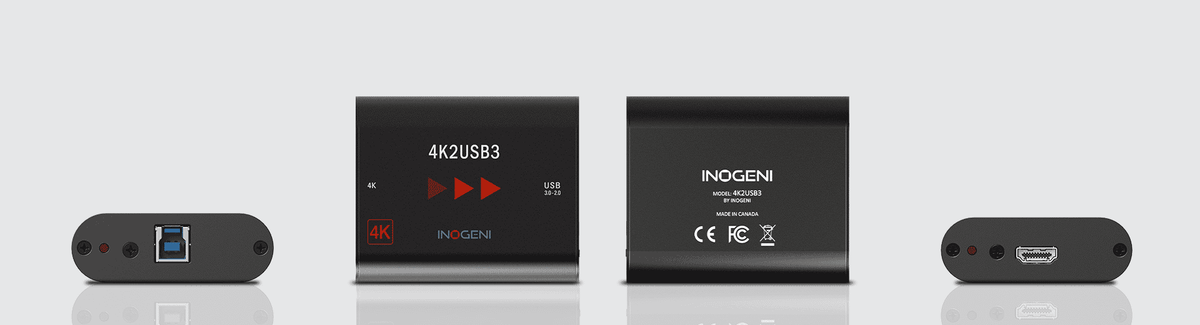

INOGENI 4K2USB3

INOGENI 4K2USB3

4K2USB3, 4K UHD, HDMI 1.4a, USB 3.0, 5V, 81.2x73.6x19 mm

  • HDMI capture to USB 3.0
  • Direct Show Compatible
  • Supports Ultra HD 4K, 1440p, 1080p, 1080i, 720p, 480p, and 576p video formats
  • Supports 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480 graphic formats
  • Up to Ultra HD 4K (3840/4096x2160) at 30 fps and 1080p at 60 fps
  • HDMI audio support - embedded audio in the HDMI signals are extracted and output as two-channel LPCM
  • Digital Fluid technology - Internal frame buffers maximize frame rate with any PC
  • Hardware-based color space and sampling conversion
  • Automatic scaling and frame rate conversion (UHD up-scaling not supported)
  • Customizable video processing functions
  • Image controls: Brightness, contrast, saturation and hue settings. These controls work on all formats below 4K but not 4K
  • Supports multiple devices on the same PC
  • Powered from USB 3.0 port
  • Compatible with Windows, Mac OSX, Linux and Android
  • SKU:040232164873
  • GTIN/EAN:040232164873
  • MPN:4K2USB3

You need to login to view the price.

View full details

INOGENI 4K2USB3. Converter type: Active video converter, Product colour: Black, Silver. Maximum video resolution: 4096 x 2160 pixels, Video resolutions: 640 x 480,800 x 600,1024 x 768,1280 x 1024,1280 x 800,1280 x 960,1920 x 1200,3840 x 2160,4096 x 2160, Supported video modes: 480p, 576p, 720p, 1080p, 1440p. Audio output channels: 2.0 channels. Host interface: USB 3.2 Gen 1 (3.1 Gen 1), Output interface: HDMI. Operating voltage: 5 V, Operating current: 0.58 A

4K HDMI to USB 3.0 Converter requires no drivers. It is the most reliable and convenient PC input to capture uncompressed video with audio from your camera's HDMI output for recording, editing, videoconferencing and streaming applications. It is compatible with Windows, Mac OSX, Linux and Android operating systems.

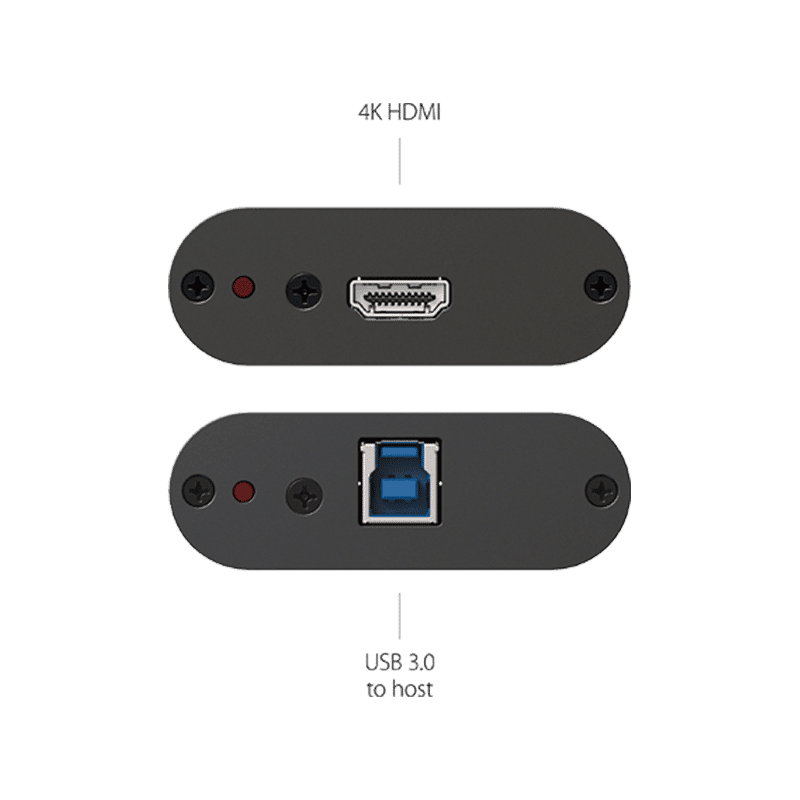

It features a single HDMI input and USB 3.0 output, and supports SD and HDTV video formats, up to Ultra HD 4K (4096x2160), and most computer graphic formats. Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OSX, Linux and Android operating systems and is UVC-compliant, so it will work with all DirectShow compatible software.

2 years

Features
Converter type
Active video converter
Product colour
Black, Silver
Video
Maximum video resolution
4096 x 2160 pixels
Video resolutions
640 x 480,800 x 600,1024 x 768,1280 x 1024,1280 x 800,1280 x 960,1920 x 1200,3840 x 2160,4096 x 2160
Supported video modes
480p, 576p, 720p, 1080p, 1440p
Bandwidth
297 MHz
Audio
Audio output channels
2.0 channels
Ports & interfaces
Host interface
USB 3.2 Gen 1 (3.1 Gen 1)
Output interface
HDMI
Power
Operating current
0.58 A
USB powered
Yes
Operating voltage
5 V
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-40 - 105 °C
Operating relative humidity (H-H)
0 - 90%
Weight & dimensions
Width
81.2 mm
Depth
73.6 mm
Height
19 mm
Weight
120 g
Packaging data
Quantity
1
