Origin Acoustics D60SQ

The Origin Acoustics D60SQ is a 6" Director Collection in-ceiling loudspeaker fitted with a square paintable magnetic grille — the ideal choice for rooms where a rectangular ceiling aesthetic is preferred over a traditional round finish. At its core it is the same 2-way D60 driver assembly trusted by residential integrators worldwide, combining a 6.5" poly/rubber woofer with a 1" pivoting silk tweeter that can be aimed precisely toward the listening position. Suitable for whole-home audio, home theater fill channels, and hospitality installations, the D60SQ arrives pre-mounted in its bayonet ring for fast, tool-free installation. Its discreet low-profile grille can be painted to match any ceiling colour, making the speaker effectively invisible once installed.

Square Grille for a Modern Ceiling Aesthetic

The D60SQ differs from the standard D60 in one key respect: it ships with a square paintable magnetic grille instead of the conventional round design. This is a meaningful installation decision, not a cosmetic afterthought. Square-format grilles align naturally with coffered ceilings, rectangular recessed-light layouts, and contemporary interior schemes where circular speaker openings look out of place. The grille is perforated and paintable — it can be colour-matched to any ceiling using standard spray paint, making the speaker effectively disappear once installed. Removal and re-installation take seconds thanks to the magnetic attachment, which also means decorators or subsequent owners can repaint without tools. For integrators quoting premium residential or boutique hospitality projects, this is the specification detail that closes the sale with design-conscious clients.

Pivoting Silk Tweeter for Precise Sound Aiming

The 1" silk tweeter on the D60SQ is not fixed — it pivots a full 360° so the high-frequency output can be directed toward any listening position in the room, regardless of where the speaker is cut into the ceiling. This matters in real rooms: off-centre installations, angled rooms, or positions where the listening area is not directly below the speaker all benefit from the ability to physically redirect the tweeter. Silk dome construction keeps the treble smooth and fatigue-free over long listening sessions — well suited to background music in living spaces and hospitality environments. Aiming is done by thumb pressure after installation, with no additional tools required. The result is consistently better vocal intelligibility and stereo imaging from a ceiling position that would otherwise scatter high frequencies in every direction equally.

Square grille. Pivoting tweeter. Tool-free in minutes.

Limited Lifetime Warranty when purchased from an authorised Origin Acoustics dealer

Tool-Less Bayonet Mounting System

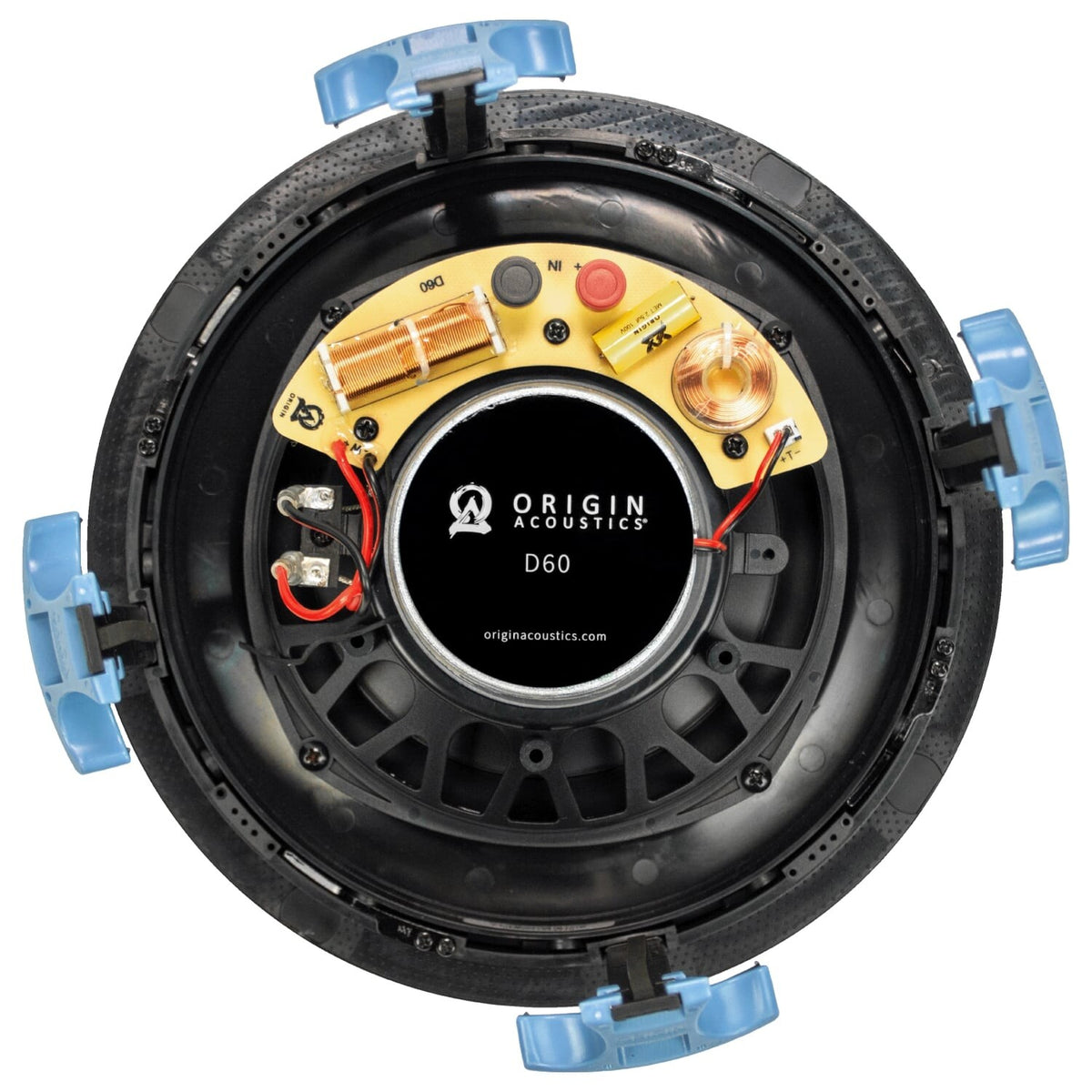

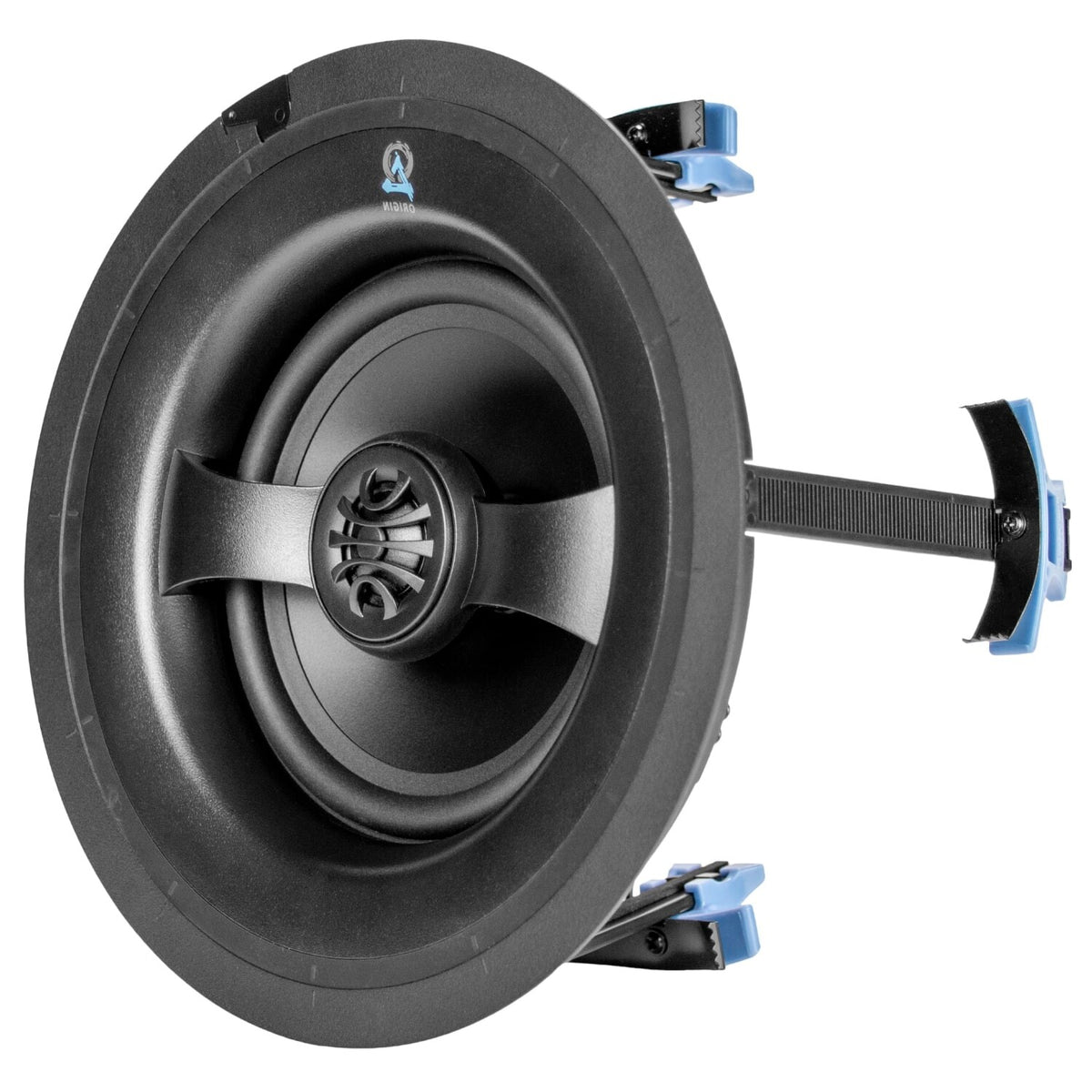

Origin Acoustics' patented Zip-Klip bayonet ring system allows the D60SQ to be fully secured in a drywall ceiling without a single screwdriver. The bayonet ring is inserted into the cut-out hole, the four spring-loaded Zip-Klip grips are pulled down by hand to clamp firmly against the drywall, and the speaker is then twisted 15° clockwise to lock into the ring. The entire sequence takes minutes per speaker. Spring-loaded clips distribute clamping force across multiple contact points — spreading the load more evenly than traditional single-point dog-ear clamps, which both protects the drywall surface and reduces mechanical vibration transfer from the basket into the ceiling structure. For multi-room projects with dozens of drops, this speed advantage compounds into significant labour savings and fewer ceiling repairs.

X-Wave Woofer Surround for Low Distortion Bass

Origin's proprietary X-Wave surround is the mechanical solution to a problem common in compact in-ceiling woofers: when the cone reaches the end of its travel and stops abruptly, unwanted resonance waves travel back up the cone and re-enter the audio signal as harmonic distortion. The X-Wave surround is progressively stiffer toward the outer edge, so it absorbs that impact rather than reflecting it — maintaining clean linear piston travel throughout the driver's excursion range. Paired with a compression-moulded woofer basket that is both acoustically neutral and structurally rigid, the 6.5" poly-rubber cone delivers tight, controlled bass down to 50Hz. In practice this means music and TV dialogue reproduce without the muddiness or boominess that plagues cheaper in-ceiling designs installed in reflective plaster or concrete ceilings.

Limited Lifetime Warranty via Authorised Dealers

Origin Acoustics backs the D60SQ with a limited lifetime warranty for the original retail purchaser, covering defects in materials and workmanship. The warranty is conditional on purchase through an authorised dealer — a detail that protects the integrator's position in the supply chain and gives end customers a strong reason to buy through certified channels rather than grey-market sources. If a unit needs replacement and the model is discontinued, Origin Acoustics substitutes a product of equal or greater value. For integrators this translates to a low-risk long-term support promise to pass on to their clients, supporting after-sales relationships and reducing the cost of warranty administration on multi-room installations.
