Origin Acoustics D80SQ

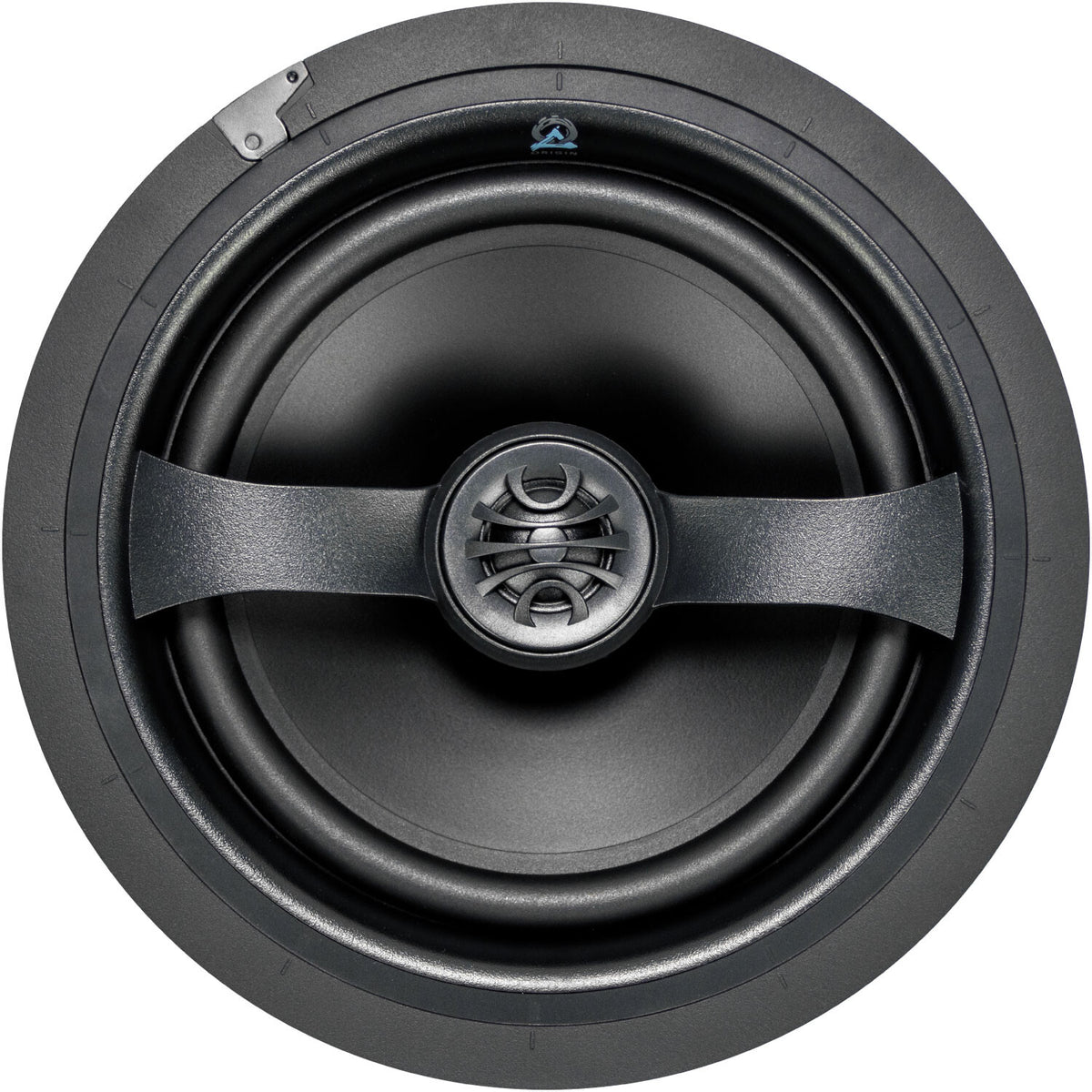

The Origin Acoustics D80SQ is an 8-inch in-ceiling loudspeaker from the Director Collection, designed for high-performance residential and light-commercial audio installations where both sonic quality and aesthetic discretion matter. Featuring a pivoting silk dome tweeter with Multi-Motion Pivot for precise sound aiming and an 8-inch poly-rubber woofer in a compression-molded basket, the D80SQ delivers full-bodied bass and smooth high-frequency reproduction from a ceiling cut-out no larger than that required by a standard 6-inch speaker. The "SQ" designation indicates an included square paintable magnetic grille, making it an ideal fit for installations where a square ceiling profile is preferred. Designed and voiced in Eugene, Oregon, the D80SQ is built for integrators who demand installation efficiency without compromising audiophile-grade performance.

Tool-Less Mounting Saves Installation Time

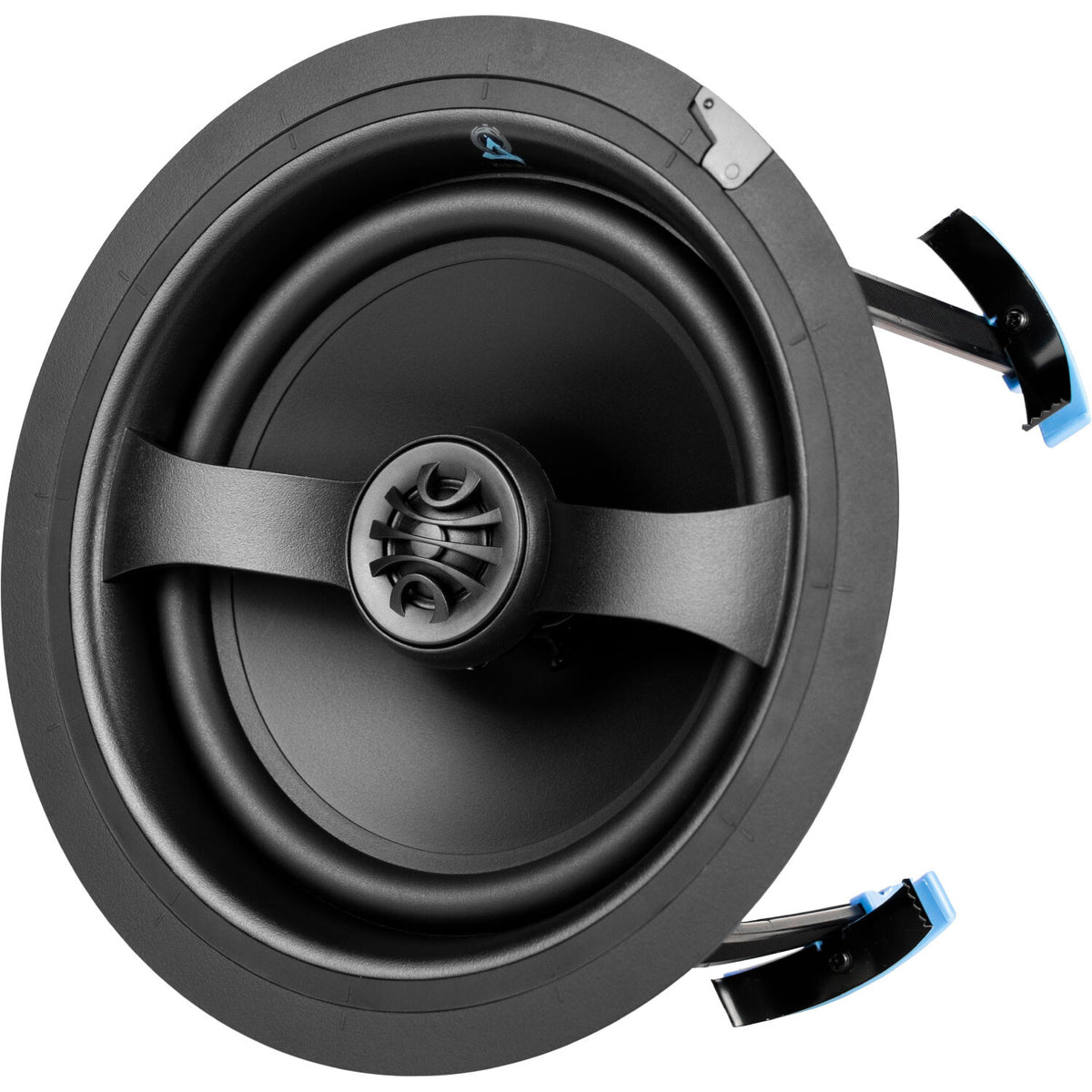

The D80SQ uses Origin Acoustics' patented tool-less spring-clip mounting system, which replaces traditional dog-leg screws with spring-loaded clips that self-distribute clamping force across multiple contact points. This significantly speeds up the install process — no screwdriver required once wiring is done — while also reducing the risk of cracking or denting drywall from over-tightened single-point dog-ears. For integrators running multiple rooms in a single day, the time saved per speaker compounds quickly. For the end user, the result is a securely seated speaker with less vibration transfer into the ceiling structure, which keeps sound clean and prevents rattling during high-volume playback.

8-Inch Performance in a 6-Inch Footprint

The D80SQ requires only an 8 3/4-inch (222mm) ceiling cut-out, which is comparable to what many competing brands need for a 6-inch driver. Yet inside that compact footprint sits a full 8-inch poly-rubber woofer — a driver size that produces meaningfully more low-frequency output and extension than a 6-inch can achieve. This matters in open-plan spaces, kitchens, and bedrooms where ceiling joists or fixtures limit where speakers can go: installers can place the D80SQ in locations previously reserved for smaller, lower-performance units and still deliver the bass response clients expect. The frequency response extends down to 40Hz, which is well below what most architectural 6-inch speakers can manage.

8-inch bass. 6-inch footprint. Zero compromise.

Director Collection · Designed and voiced in Eugene, Oregon

Pivoting DPSD Tweeter for Precise Sound Aiming

The D80SQ's 1-inch silk dome tweeter is mounted on Origin's Multi-Motion Pivot system, allowing it to be aimed independently of the speaker baffle after installation. In practice, this means the high-frequency energy — which is the most directional part of the audio spectrum — can be pointed directly at a seating area or listening position rather than firing straight down. This is especially valuable in rooms where ceiling speakers cannot be placed directly above the listener due to joists, lighting, or HVAC obstructions. The silk dome material provides a smooth, fatigue-free high-frequency character that works well for extended listening sessions in living rooms, bedrooms, and dining areas.

X-Wave Surround Reduces Cone Resonance

At high playback volumes, a woofer cone that reaches its physical travel limit generates backward-reflecting waves that ripple across the cone surface — adding audible distortion to the output. Origin's X-Wave woofer surround is engineered with a progressive absorption profile that dissipates this energy before it can reflect, rather than the uniform-stiffness surrounds found on most architectural speakers. The practical outcome is lower harmonic distortion at higher volumes: the D80SQ sounds cleaner during parties, movie playback, or background music at social levels than speakers of similar size and price that use conventional surround designs.

Square Magnetic Grille for Discreet Aesthetics

The 'SQ' variant ships with a square, perforated, paintable magnetic grille that snaps on and off without tools or visible fasteners. Square grilles are preferred in rooms with rectilinear ceiling tile layouts, coffered ceilings, or where the homeowner simply prefers the look of a square ceiling fixture over a round one. The micro-bezel profile keeps the visible footprint minimal. Because the grille is paintable, it can be colour-matched to virtually any ceiling finish — white, off-white, or custom colours — so the speaker essentially disappears once installed. Magnetic attachment means grilles can be removed for service or repainting without any risk of clip breakage.
