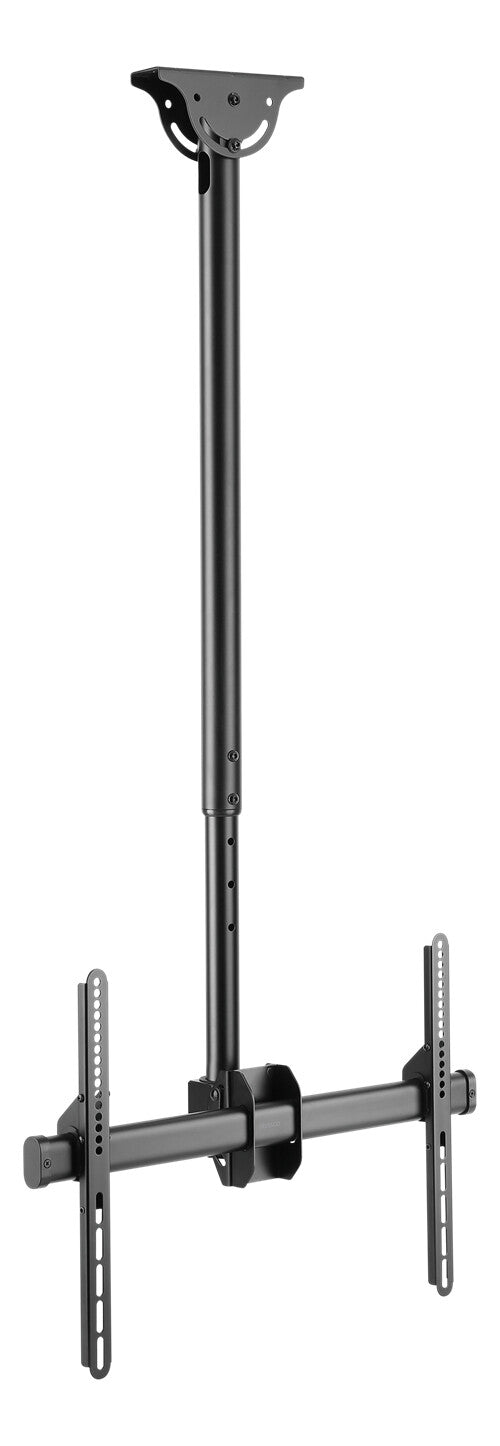

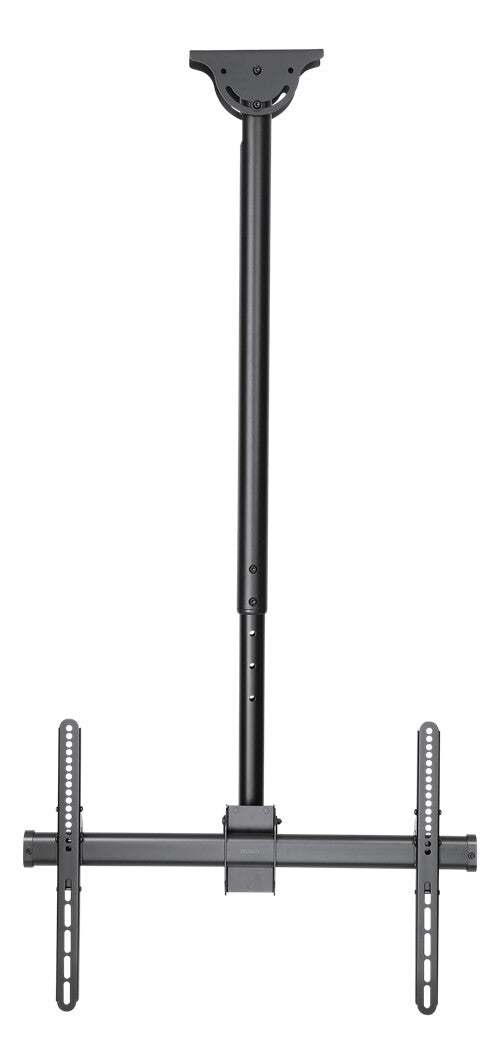

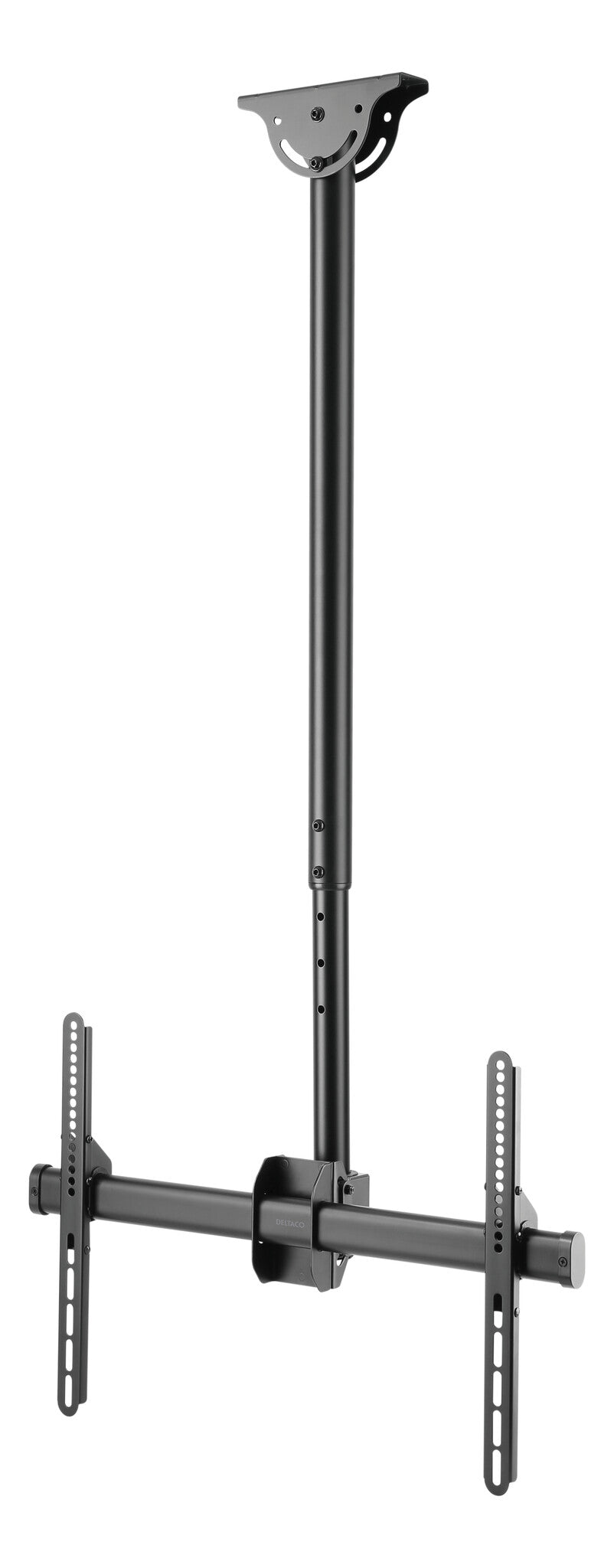

Deltaco ARM-0401 TV mount/stand 177.8 cm (70") Black

Deltaco ARM-0401 TV mount/stand 177.8 cm (70") Black

OFFICE Telescopic full-motion LED/LCD ceiling mount, 37-70", 1060 - 1560 mm, black

  • Tool-free adjustment
  • Mount on flat or sloping ceilings
  • Compatible with displays between 32-70" up to 50 kg
  • Built-in level adjustment: ensures perfect positioning
  • Telescoping height adjustment: for the optimal viewing height
  • Cable Management: elegantly hides any cables that are attached to displays
  • SKU:BES/DT/ARM-0401
  • GTIN/EAN:7333048047953
  • MPN:ARM-0401
Add To Favorite

You need to login to view the price.

View full details

Deltaco ARM-0401. Maximum weight capacity: 50 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 177.8 cm (70"). Height adjustment range: 1060 - 1560 mm, Tilt angle range: -25 - 0°, Swivel angle range: -180 - 180°. Product colour: Black

ARM-0401 is a fully articulated ceiling mount from DELTACO OFFICE for LED / LCD screens between 37-70 "up to 50 kg, made to offer the highest possible freedom of movement and universal compatibility. Mount the ceiling mount on flat or sloping ceilings and connect roughly which LED / LCD (37-70 ") screen with the included VESA bracket for tilting and turning around the mounting post, which can also be raised and lowered between 1060 - 1560 mm. ARM-0401 is also equipped with built-in level adjustment for perfect positioning of the screen and a cable management system for organized and nicely hidden cables.

Mounting
Number of displays supported
1
Panel mounting interface
200 x 200,300 x 300,400 x 200,400 x 400,600 x 400
Mounting type
Ceiling
Maximum screen size
177.8 cm (70")
Minimum screen size
94 cm (37")
Maximum weight capacity
50 kg
Ergonomics
Swivel angle range
-180 - 180°
Swivelling
Yes
Tilt adjustment
Yes
Height adjustment range
1060 - 1560 mm
Height adjustment
Yes
Design
Product colour
Black
Technical details
Quantity per pack
1 pc(s)
Country of origin
China
Pallet net height
114 cm
Pallet net length
15 cm
Pallet net width
94 cm
Weight & dimensions
Weight
6.36 kg
Height
1778 mm
Depth (max)
43.5 cm
Width
680 mm
Packaging data
Package weight
7.78 kg
Package height
310 mm
Package depth
150 mm
Package width
940 mm
Logistics data
Products per shipping (inner) case
2 pc(s)
Shipping (inner) case gross weight
15.8 kg
Shipping (inner) case height
33 cm
Shipping (inner) case length
15 cm
Shipping (inner) case width
94 cm
Pallet gross weight
302 kg
Harmonized System (HS) code
85299097
Products per pallet
18 pc(s)
Products per master (outer) case
2 pc(s)
Master (outer) case gross weight
15.8 kg
Master (outer) case height
330 mm
Master (outer) case length
150 mm
Master (outer) case width
940 mm
