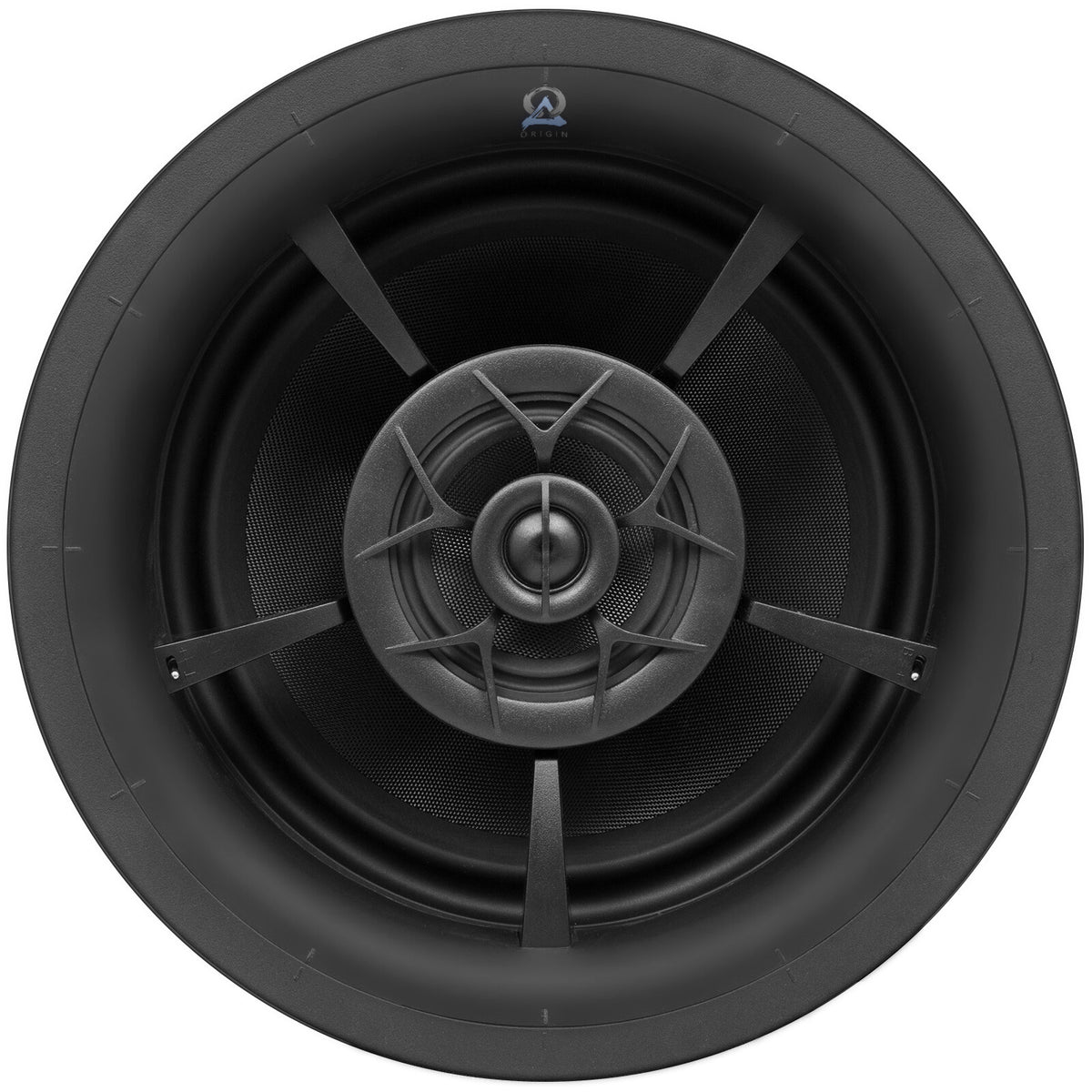

Origin Acoustics D107

The Origin Acoustics Director D107 is a flagship 3-way in-ceiling loudspeaker from the acclaimed Director Collection, designed for custom AV integrators and serious whole-home audio or home theater installations. Built around a 10-inch glass fiber woofer paired with a 4-inch glass fiber midrange and a patented silk DPSD tweeter, it delivers a full frequency range from 28 Hz to 20 kHz. The Tri-Linear Configuration (TLC) allows the mid-tweeter assembly to pivot and aim sound precisely at the listening position, while the tool-less bayonet mounting system speeds up clean, professional installations. A paintable magnetic micro-bezel grille ensures the speaker blends seamlessly into any ceiling finish.

10-Inch Bass in an 8-Inch Footprint

The D107 houses a 10-inch glass fiber woofer inside a housing that requires only the same 10.375-inch cutout as a conventional 8-inch in-ceiling speaker. A 10-inch driver has 60% more cone surface area than an 8-inch equivalent, which translates directly into substantially deeper, more dynamic bass output. In practice, this means an integrator can specify a genuinely full-range speaker for a project without requiring larger ceiling openings — a decisive advantage when retrofitting existing homes or working in architecturally sensitive spaces where minimal cutting is essential.

Tri-Linear Configuration — Aim the Sound, Not the Speaker

The Tri-Linear Configuration (TLC) stacks the woofer, midrange, and tweeter in a single pivoting assembly that can be aimed toward any listening position after the speaker is installed. This is critical for in-ceiling applications: ceiling mounts are almost never directly above the primary listening area, so a fixed-axis speaker always compromises the soundstage. The D107's fully pivoting FocalPoint mid-tweeter module eliminates that compromise. In a home theater setup, this means the front soundstage can be correctly aimed at the seating row even when the speakers are installed several meters off-axis — resulting in proper imaging and vocal clarity without repositioning the speaker.

10-inch woofer. 8-inch cutout. Zero compromise on bass.

Limited Lifetime Warranty · Authorized dealer purchase required

Patented DPSD Tweeter — Lower Crossover, Less Distortion

The Dual Plane Stabilized Diaphragm (DPSD) tweeter is an Origin Acoustics patent that attaches the suspension at both the voice-coil and the peak of the dome — unlike conventional tweeters where the suspension is fixed only at the outer edge. This dual anchoring allows the tweeter to be crossed over at a significantly lower frequency than a standard dome tweeter of the same size. The result is broader high-frequency dispersion, reduced intermodulation distortion, and a smoother handoff from the midrange driver. Listeners experience cleaner, more detailed treble at realistic listening volumes, without the harshness that lesser in-ceiling tweeters exhibit when pushed.

X-Wave Woofer Surround — Controlled Low-End Dynamics

When a woofer cone reaches the limit of its travel and abruptly stops, mechanical energy ripples back up the cone as unwanted resonance — a major source of low-frequency coloration. Origin Acoustics' X-Wave surround is engineered to progressively absorb that impact rather than reflecting it. The practical effect is measurably lower distortion at high playback levels, which matters particularly in open-plan rooms or home theaters where the D107 may be driven hard. For integrators, this means the speaker can be rated for up to 175 watts without the bass smearing that is common in comparably priced competing products.

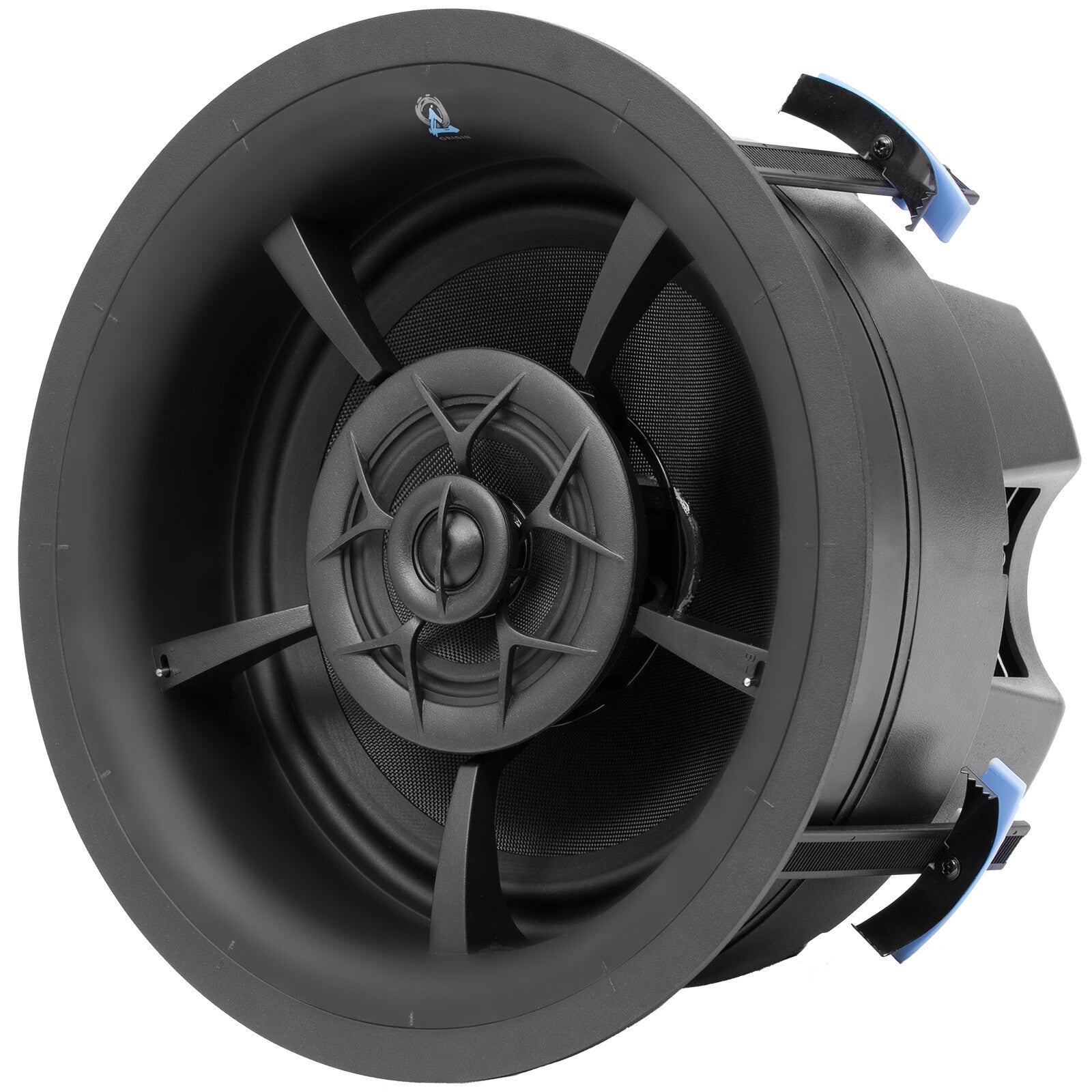

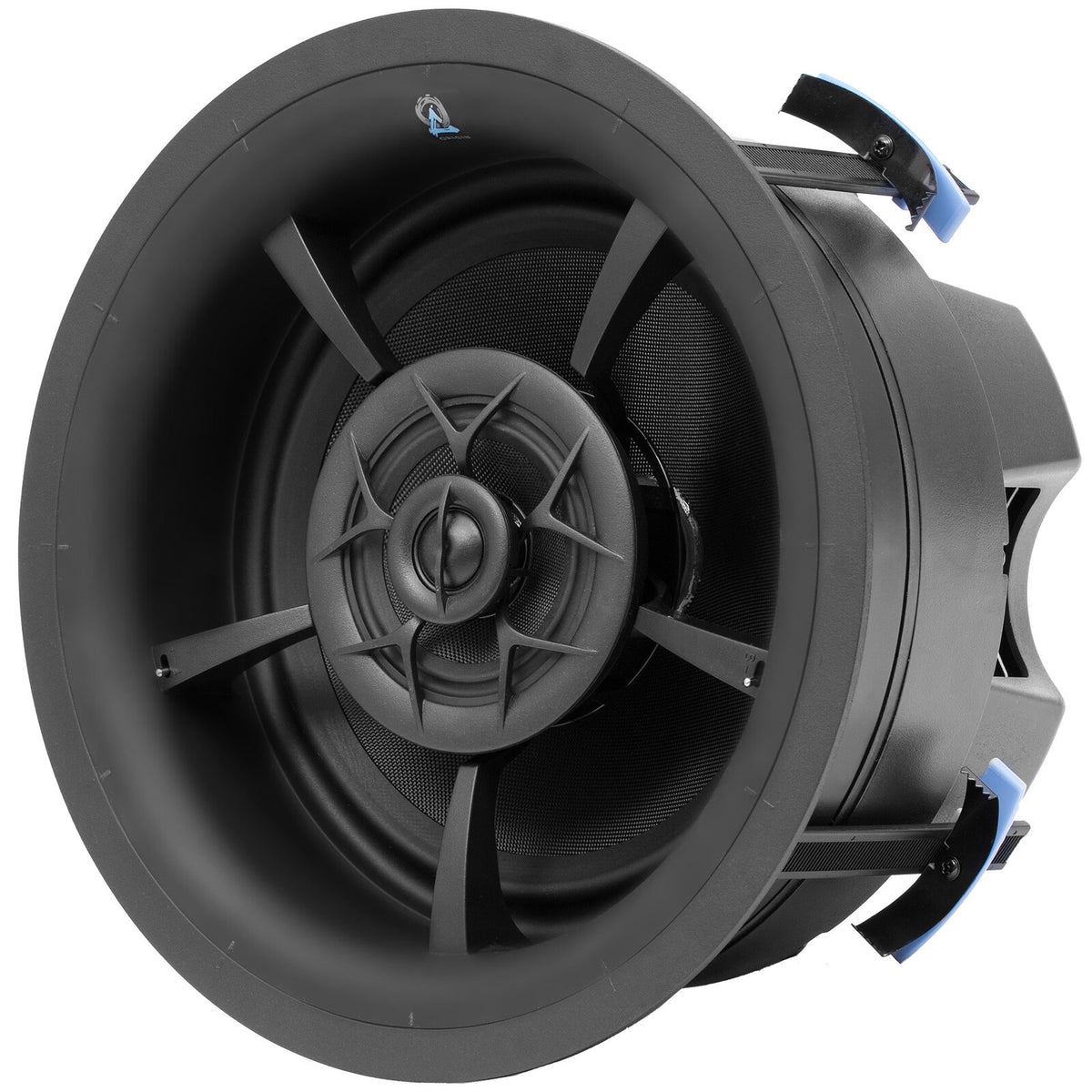

Tool-Less Bayonet Mounting — Fast, Secure, Damage-Free

The D107 uses Origin Acoustics' proprietary bayonet ring and twist-lock system: the ring is inserted into the ceiling cutout, spring-loaded clips seat against the drywall without dog-leg pressure points, and the speaker body locks in with a quarter-turn. No driver, no screwdriver, no ceiling damage. The distributed clamping force reduces vibration transfer from the speaker basket to the ceiling structure — a common cause of rattle in conventional in-ceiling designs. For the integrator this means faster labour per speaker on multi-room jobs, and for the end user it means easier future removal for access or replacement without leaving visible damage.

Paintable Magnetic Micro-Bezel Grille — True Architectural Finish

The perforated grille is designed to be painted with standard spray paint to match any ceiling colour, and attaches magnetically — no clips, no visible fixings, and no tools required to remove or refit it. The micro-bezel profile keeps the visible frame extremely slim once installed, so the speaker barely registers visually in a finished room. This matters particularly in high-end residential projects where clients expect audio performance without compromising interior design. The grille can be pre-painted off-site before installation, saving time and protecting the surrounding ceiling finish.
