Origin Acoustics D105

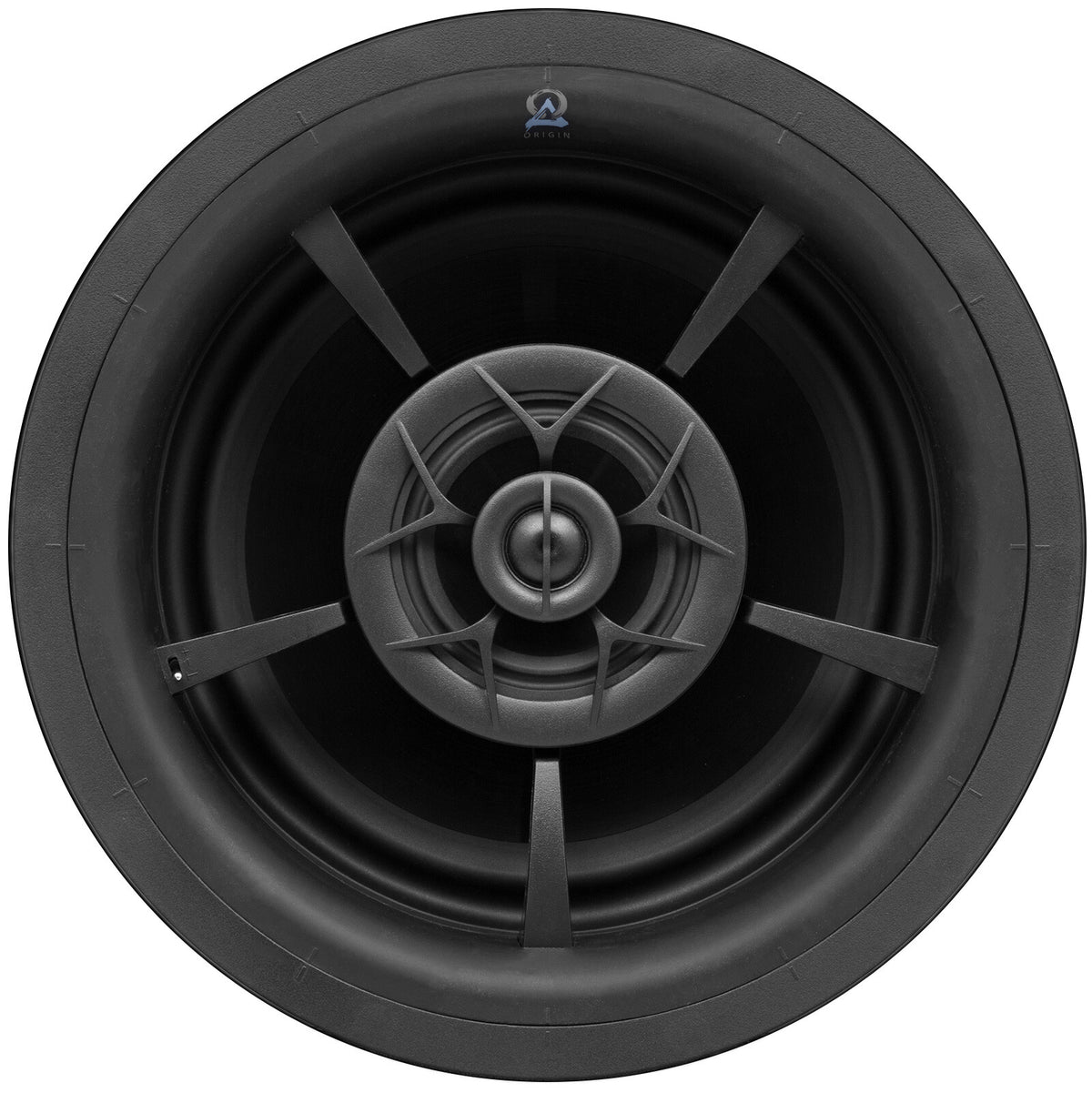

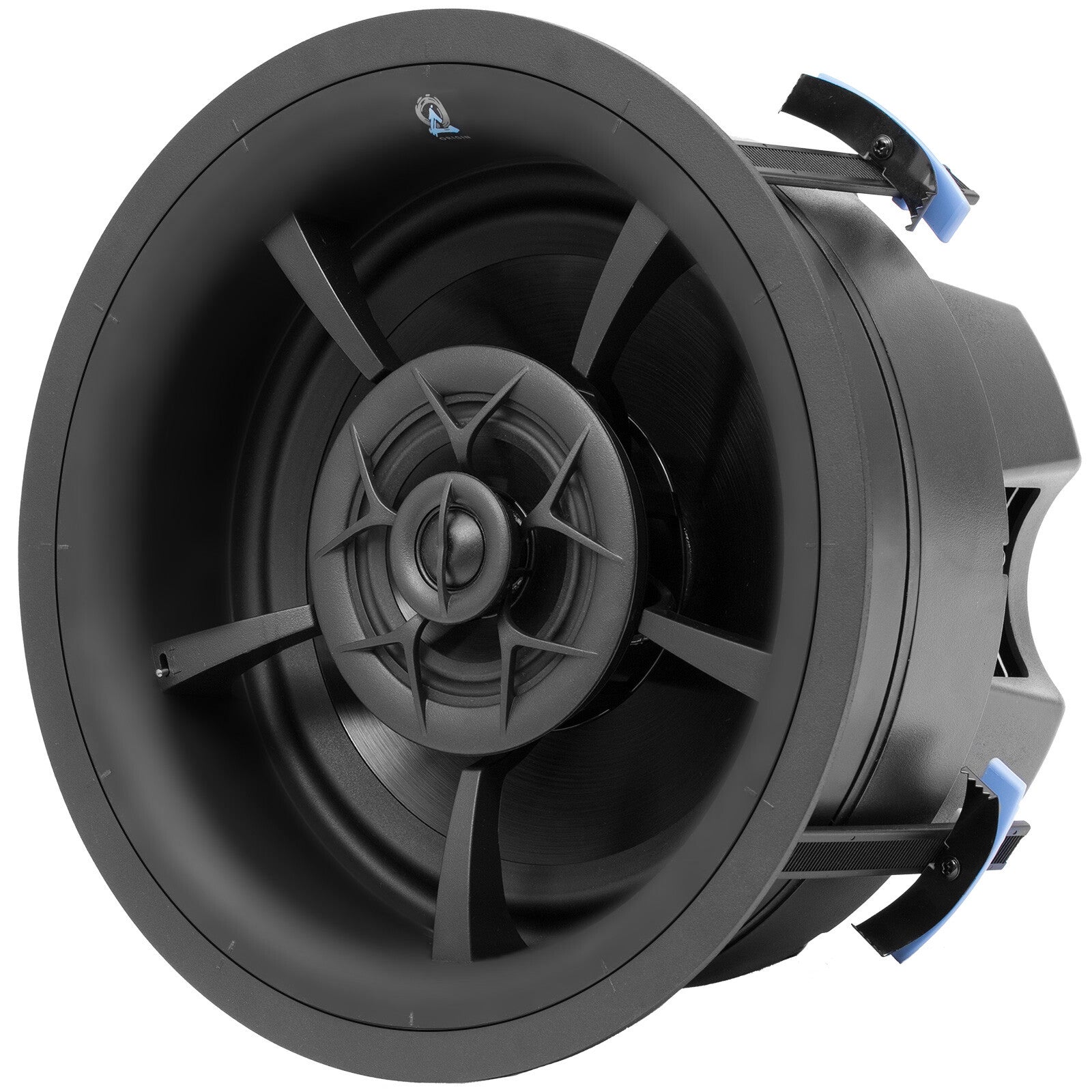

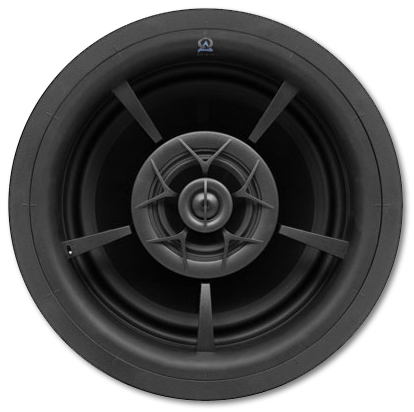

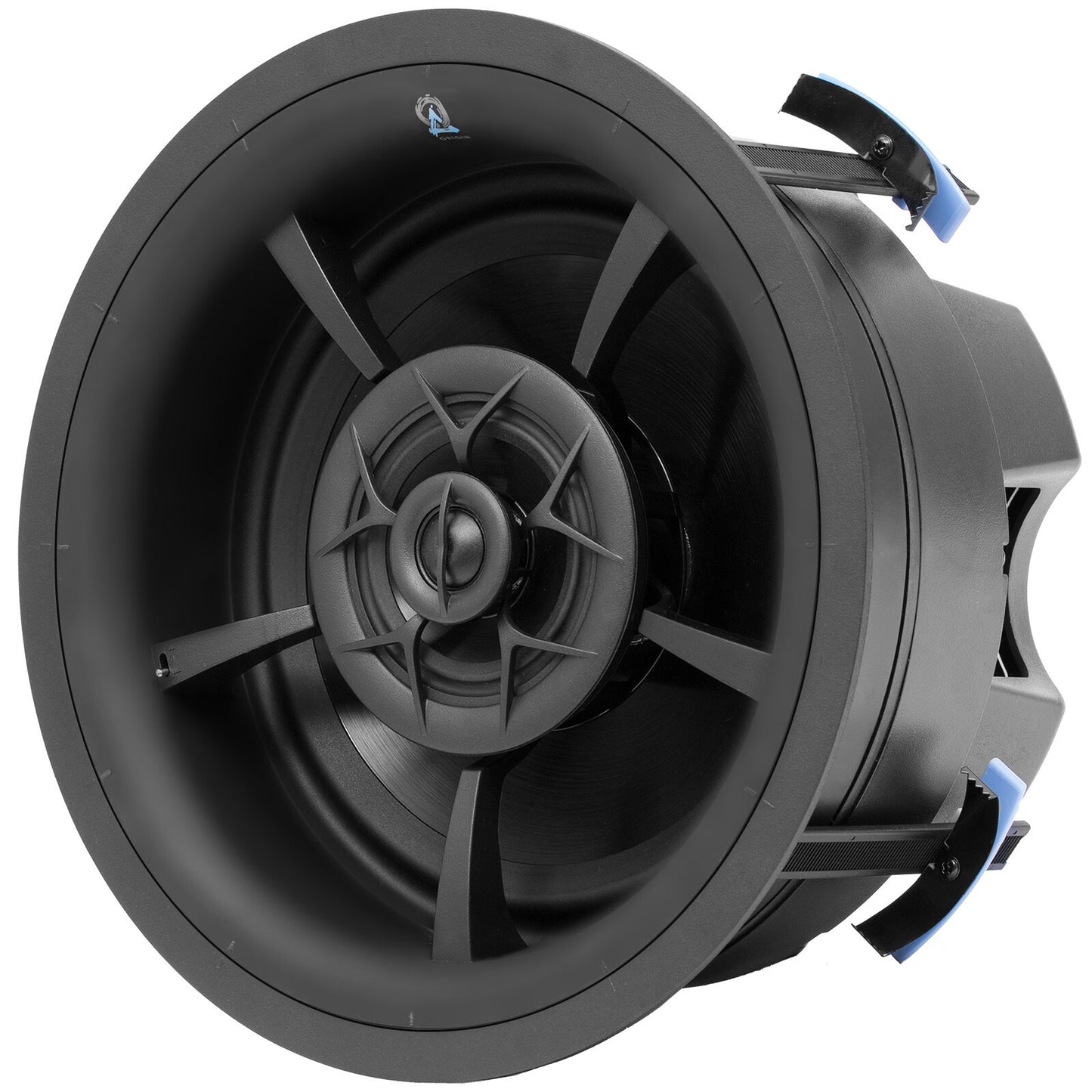

The Origin Acoustics Director D105 is a flagship 3-way in-ceiling loudspeaker designed for integrators who demand full-range, audiophile-grade performance without a visible speaker in the room. Part of the acclaimed Director Collection, it targets premium residential installs — dedicated home theaters, whole-home audio systems, and high-end hospitality environments — where sonic accuracy and architectural discretion must go hand in hand. A 10-inch IMG woofer is combined with a 4-inch IMG MMP midrange and a patented 3/4-inch Silk DPSD tweeter in a stacked Tri-Linear Configuration that pivots to aim sound precisely at the listening position. The result is deep, controlled bass, natural midrange clarity, and extended high-frequency detail — all from a single flush-mount ceiling driver that disappears behind a paintable, magnetic micro-bezel grille.

More Bass in Less Ceiling Space

The D105 achieves something unusual in architectural audio: a genuine 10-inch woofer housed in an enclosure that requires only the same ceiling cutout as a conventional 8-inch speaker (264mm diameter). This matters on every project where ceiling joists, HVAC runs, or acoustic tiles constrain opening size. Installers can specify a full 10-inch woofer — with its meaningfully lower bass extension (28Hz) and greater cone area — without asking the builder to cut a larger hole. For the end user, this translates to audibly deeper, more authoritative bass from music and film soundtracks, with no architectural compromise.

Tri-Linear Configuration — Precision Sound Direction

The TLC stacks the midrange and tweeter linearly above the woofer in a single pivoting assembly, called the FocalPoint. Both the mid and tweeter can be angled — independently of the woofer — toward the primary listening position. In practice this means a ceiling speaker mounted off-centre in a room, or above a seating area off-axis, can still deliver its on-axis frequency response directly to listeners rather than straight down at the floor. For dedicated home theaters and media rooms where seat positions are fixed, this is the difference between a speaker that sounds 'in the ceiling' and one that sounds like it is right in front of you.

10-inch woofer. 8-inch cutout. Full-range performance.

Available through authorised integration partners only · Origin Acoustics Director Collection

Patented DPSD Tweeter — Lower Distortion, Wider Dispersion

The Dual Plane Stabilized Diaphragm (DPSD) tweeter is an Origin Acoustics patent that fundamentally changes how the tweeter dome is suspended. By attaching the suspension at both the voice-coil and the peak of the dome — rather than only at the outer edge — the driver can be crossed over at a significantly lower frequency than a conventional silk dome. The practical outcome is a wider handoff zone between the midrange and tweeter, reduced inter-driver distortion, and better high-frequency dispersion across a larger listening area. Rooms with multiple seated listeners — home cinemas, open-plan living spaces — benefit most, as off-axis positions still receive detailed, undistorted high frequencies.

X-Wave Woofer Surround — Clean Bass at High Levels

When a woofer cone reaches the limit of its travel and stops abruptly, unwanted standing waves ripple back across the cone surface, adding coloration and distortion — particularly noticeable at high playback levels or with bass-heavy content like film LFE tracks. Origin Acoustics' X-Wave Woofer Surround uses a progressively stiffened surround geometry that absorbs this reflected energy rather than allowing it to re-radiate. The result is tighter, cleaner bass during demanding passages — movie action sequences, bass-heavy music — without the muddy overhang that affects speakers with conventional rubber surrounds under stress. Compression-molded woofer baskets add to this by keeping the basket itself acoustically neutral.

Tool-Less Mounting with Ringlock Technology

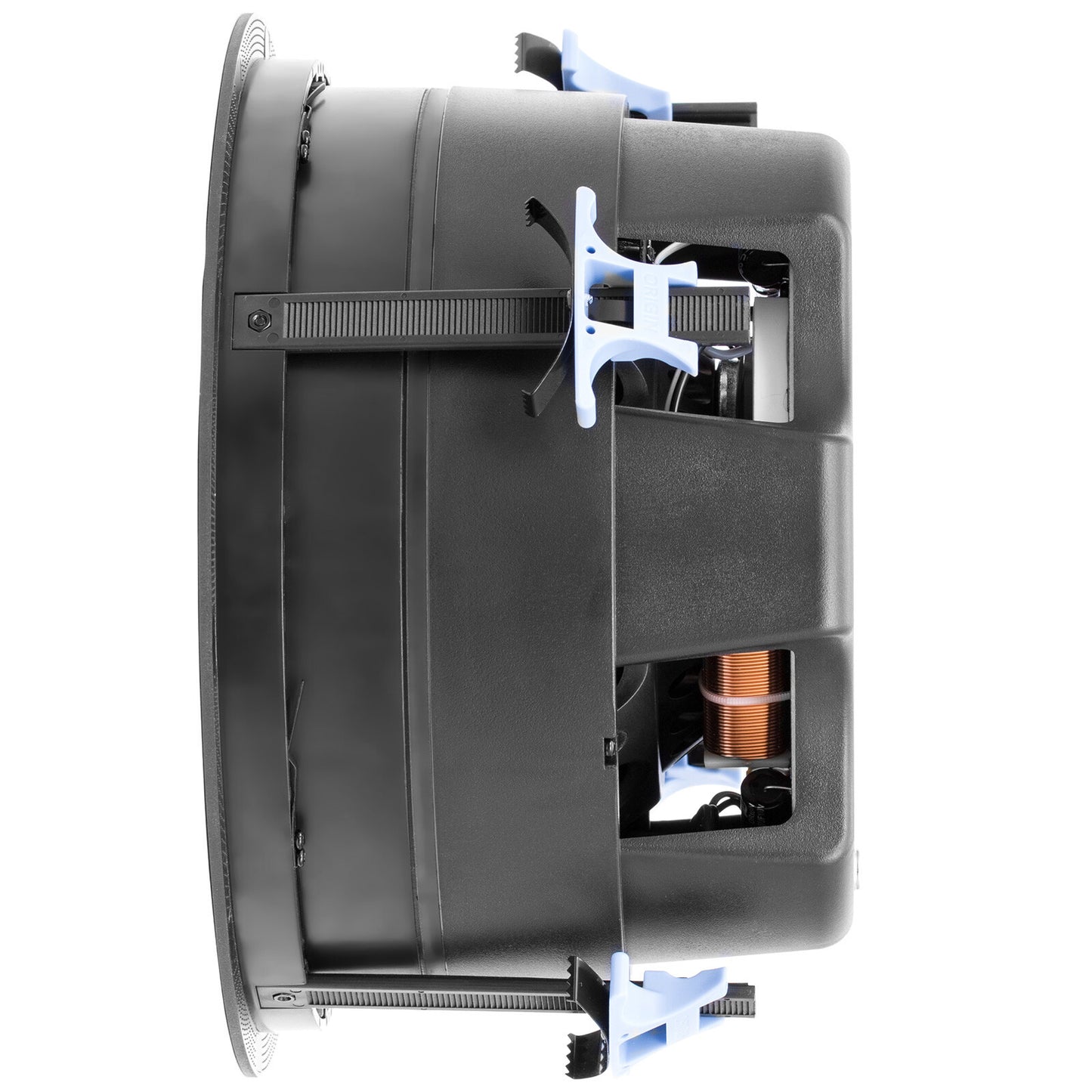

The D105 uses Origin Acoustics' tool-less spring-clip mounting system, updated with crossover integration and Ringlock technology. The spring-loaded clips engage directly from the front of the speaker using finger pressure — no screwdriver needed once the wire is connected. Ringlock adds a bayonet-style locking ring that positively secures the speaker body in the ceiling, preventing rotation or pull-out over time. Multiple contact points distribute the load more evenly than traditional dog-leg clips, reducing the risk of ceiling damage and lowering vibration transfer into the structure. For integrators with multiple units per project, the time saved per speaker adds up significantly, and callbacks for loose or rattling speakers are minimised.

Treble EQ Adjustment for Room Tuning

The D105 includes an onboard treble EQ switch that lets the installer tailor the high-frequency balance to the acoustic character of the room without external DSP or amplifier adjustments. Rooms with heavy soft furnishings absorb high frequencies and may benefit from a slight treble boost; highly reflective spaces (hard floors, glass) can be dialled back. This is a practical, low-complexity tool available at install time — no laptop or software required — meaning the system can be tuned correctly the first time and the end user receives a balanced, natural sound from day one.

Paintable Magnetic Micro-Bezel Grille

The grille is perforated and ships white, but accepts standard latex paint — meaning it can be colour-matched exactly to any ceiling finish, from pure white to custom tones. The magnetic attachment system means there are no grille clips to break or lose: the grille snaps on and off in seconds, without tools, making post-install access straightforward if adjustment is ever needed. The micro-bezel design keeps the visible frame around the grille as narrow as possible, resulting in a discreet ceiling appearance that is nearly invisible once painted. This is especially valued in high-end residential environments where visual minimalism is part of the design brief..
