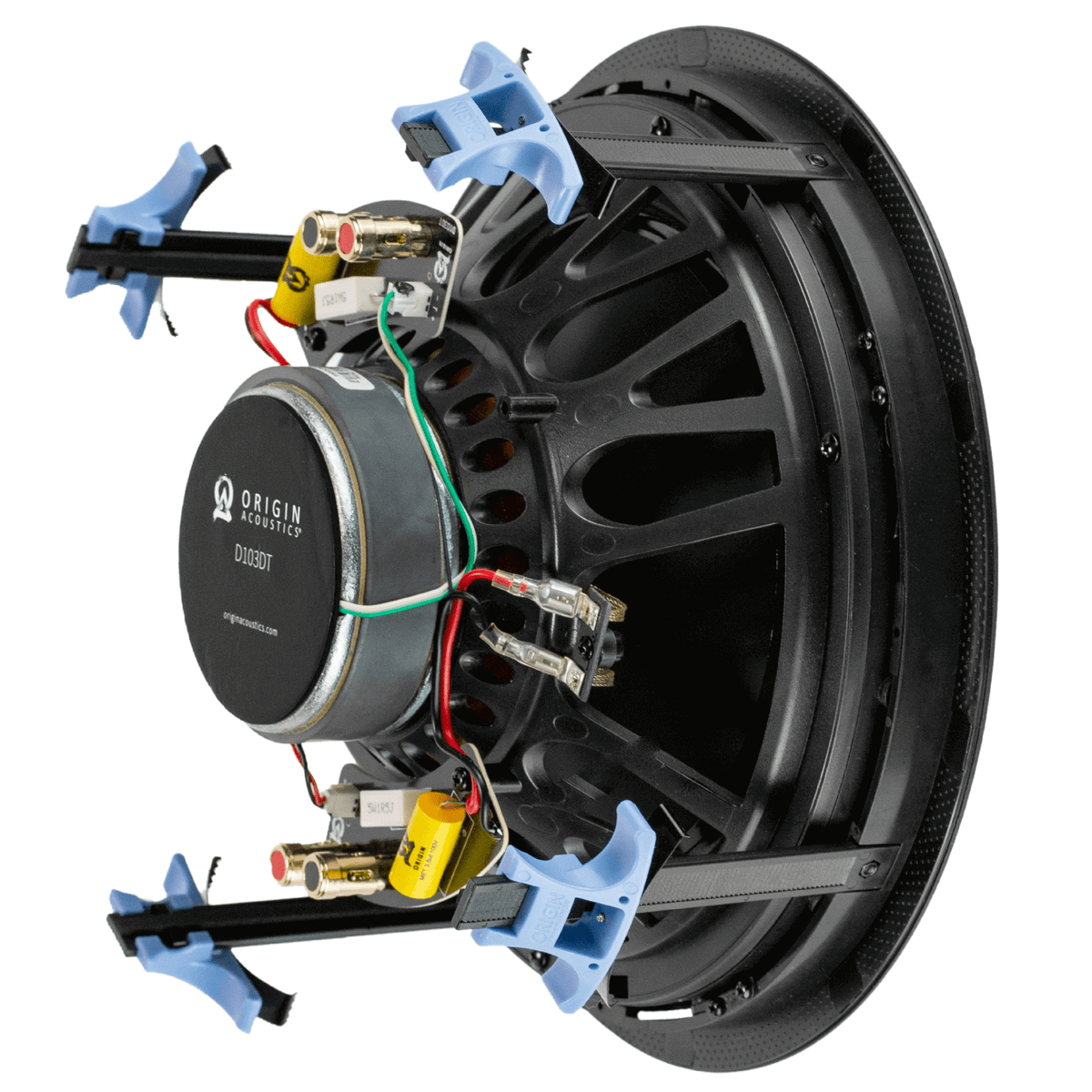

Origin Acoustics D103DT

The Origin Acoustics Director D103DT is a premium 10-inch in-ceiling loudspeaker built for installers who need genuine stereo performance from a single ceiling opening. Its dual 1-inch aluminum tweeter configuration delivers a true left-right stereo image from one speaker — ideal for bathrooms, corridors, kitchens, and any space where running a second speaker is impractical. The 10-inch IMG woofer reaches down to 37Hz, giving rooms with taller ceilings real, powerful bass that smaller drivers simply cannot match. Despite the 10-inch driver, the cutout is the same size as a standard 8-inch in-ceiling, making retrofits straightforward and ceiling damage minimal. The D103DT is part of Origin Acoustics' Director Collection, a line built around patented DPSD tweeter technology, X-Wave woofer surround, and a tool-less spring-clip mounting system favoured by professional integrators.

True Stereo from a Single Speaker

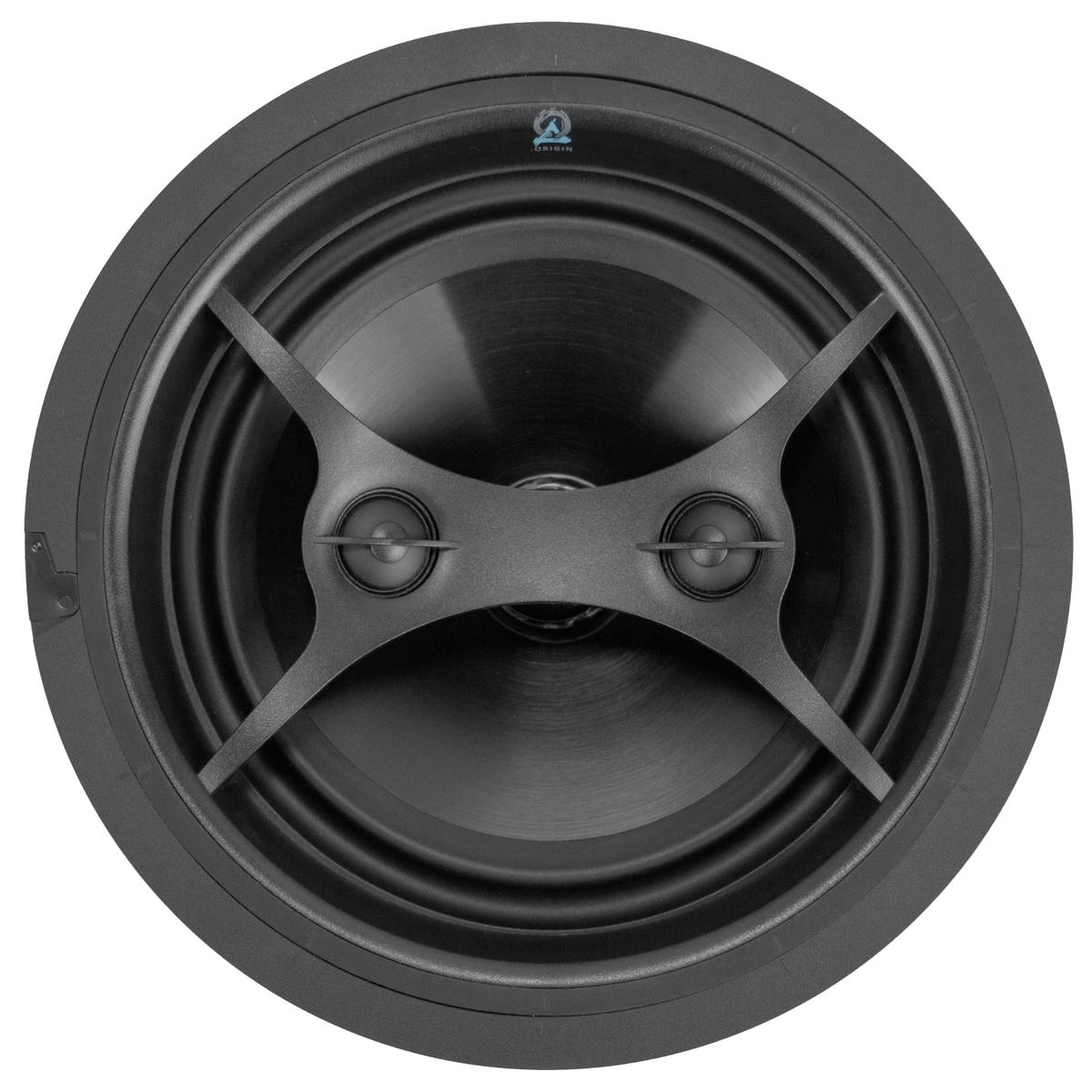

The D103DT carries two independent 1-inch aluminum tweeters — one angled left, one angled right — wired to the left and right channels of a stereo signal. This means a single ceiling cut-out can reproduce a proper stereo image, which is a fundamentally different proposition from a standard mono in-ceiling speaker. In practice this matters enormously in rooms where symmetrical speaker placement is impossible: bathrooms, galley kitchens, narrow hallways, stairwells, and open-plan areas where a second run of cable would be prohibitively expensive. End users get a genuinely musical, spatially convincing listening experience rather than the flat, mono background sound typical of single-point ceiling installations.

10-inch Bass in an 8-inch Footprint

Origin Acoustics engineered the D103DT to use the same 10.375-inch (264mm) ceiling cut-out that has been the standard for 8-inch in-ceiling speakers for decades. Despite the identical opening, the speaker hosts a full 10-inch IMG woofer with a frequency response down to 37Hz — a figure that competes with dedicated architectural subwoofers at the low end. For rooms with ceilings above ten feet, the larger woofer can leverage the additional air volume to produce bass extension that a smaller driver simply cannot achieve. For integrators, this means a 10-inch performance upgrade is possible in any existing 8-inch install without re-cutting, re-plastering or re-painting the ceiling — a significant labour and cost saving for retrofit projects.

Stereo from one hole. 10-inch bass. 8-inch footprint.

Part of the Director Collection · Available through authorized integration partners only

Patented DPSD Tweeter Technology

The Dual Plane Stabilized Diaphragm (DPSD) tweeter is an Origin Acoustics patent. Conventional dome tweeters are attached only at the voice-coil, which causes the suspension to flex unpredictably at higher output levels, increasing harmonic distortion. The DPSD design attaches the suspension at both the voice-coil and the peak of the dome, stabilising the diaphragm across two planes. This allows the tweeter to be crossed over at a lower frequency without distortion penalties, resulting in better dispersion in the upper midrange — the frequencies that carry vocal intelligibility and instrumental texture. For end users, this translates to detail and clarity that holds up at elevated listening levels, not just at polite background volumes.

X-Wave Woofer Surround Cuts Cone Distortion

When a woofer cone reaches its excursion limit and reverses direction, the energy in the cone does not stop instantly — it continues as a ripple wave travelling back toward the centre of the driver, creating unwanted harmonic distortion and colouring the bass. Origin Acoustics' X-Wave surround is progressively stiffer toward its outer edge, acting as an acoustic absorber that dissipates this reflected energy before it re-enters the listening band. The result is tighter, better-defined bass with less smearing at high SPL. This is particularly audible in the 60–150Hz region where male vocals, bass guitar, and kick drum reside — the frequencies most responsible for the sense of weight and impact in music and film.

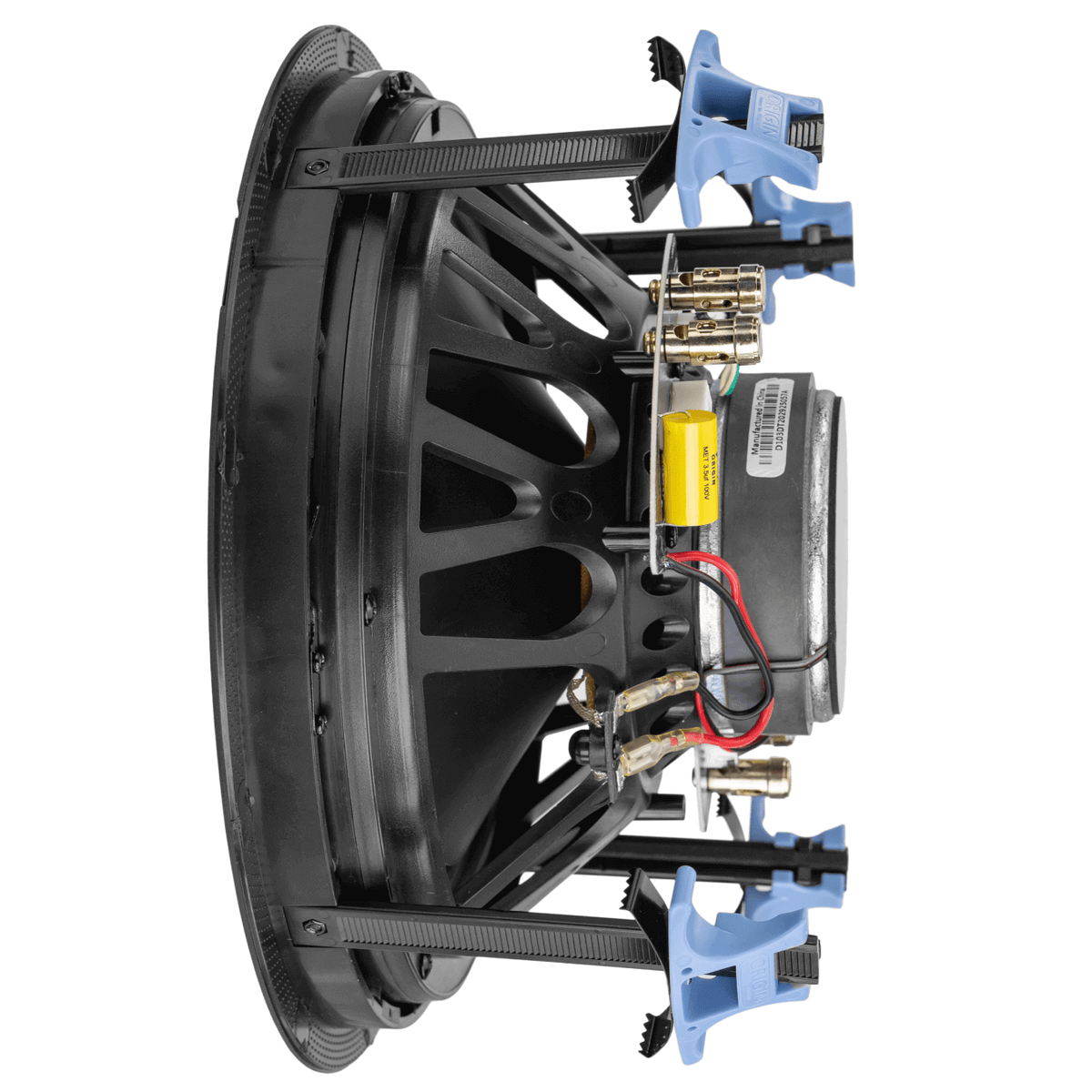

Tool-Less Mounting for Fast, Clean Installs

The Director Collection mounting system uses spring-loaded clips with multiple contact points that distribute clamping force evenly around the ceiling opening. No screwdriver is needed for the final lock-in — the mechanism engages by hand, then locks securely in place. Compared to traditional dog-leg brackets that concentrate force on two small points, this approach reduces the risk of ceiling cracking or paint damage over time, and makes single-person installation practical even in tight ceiling voids. Integrators working on multi-room or multi-speaker projects will notice the time saving across an install; end users benefit from a cleaner, more durable finished result that does not loosen or rattle over years of use.

Magnetic Paintable Grille for Seamless Aesthetics

The D103DT ships with a perforated micro-bezel grille that attaches magnetically — no visible clips or screws. The grille can be painted to match any ceiling colour, making the speaker functionally invisible once installed. Magnetic attachment also means the grille can be removed and replaced in seconds for touch-up painting or speaker servicing, with no tools and no risk of breaking plastic retaining tabs. The minimal bezel footprint is noticeably smaller than competitive 10-inch products, which is a meaningful advantage in design-conscious residential and hospitality environments where ceiling aesthetics are part of the specification discussion.
