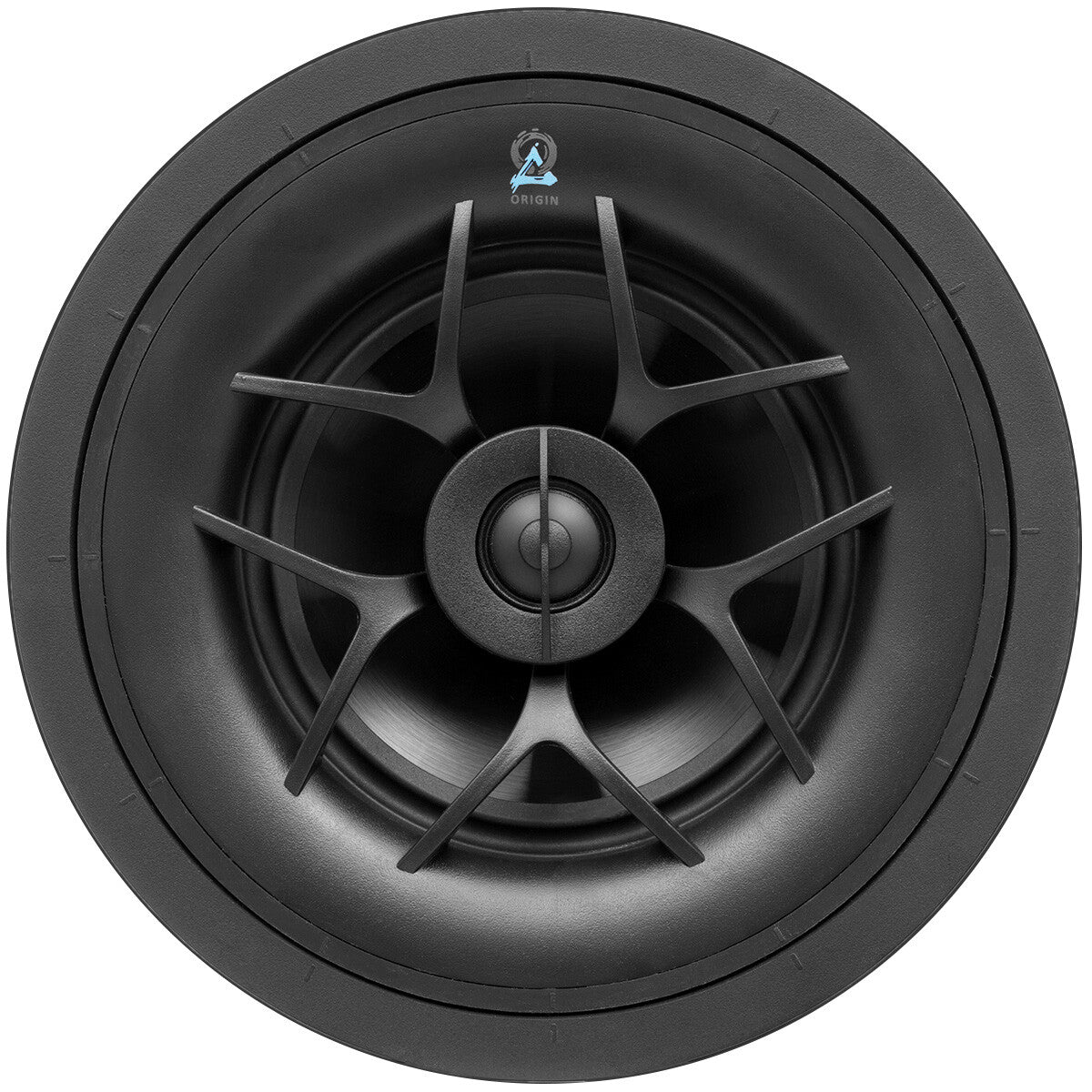

Origin Acoustics D63

The Origin Acoustics Director D63 is a 2-way, 6" series in-ceiling loudspeaker designed for residential whole-home audio, home theatre fill channels and premium multi-room installations. Part of the acclaimed Director Collection — developed by the team credited with inventing the in-ceiling speaker category — the D63 targets integrators who demand genuine audiophile performance from an architectural form factor. Its 6.5" Injection Molded Graphite (IMG) woofer and 1" pivoting aluminium tweeter deliver a wide, controlled soundstage, while Origin's proprietary X-Wave surround and compression-moulded basket technology keep distortion exceptionally low. Tool-less spring-clip mounting and a magnetic snap-on grille make installation fast and tidy, even in challenging ceiling voids.

X-Wave Surround: Cleaner, Deeper Bass

When a woofer cone reaches the limit of its travel and comes to a hard stop, unwanted pressure waves ripple back and forth along the cone — a form of harmonic distortion that muddies bass frequencies. Origin Acoustics' X-Wave Woofer Surround is engineered to progressively absorb that impact rather than let it reflect, so the cone returns to rest without producing spurious resonances. In practice this means bass in the D63 is tighter and better defined than competing speakers of the same driver size, and the effect is audible on transient-heavy content like percussion and low-frequency room fill in a home theatre. For the end user, the payoff is music and movie audio that stays clear and controlled even at higher listening levels.

Compression-Moulded Basket: Structurally Neutral Sound

The basket — the rigid frame that holds the woofer cone and voice coil in alignment — is a frequently overlooked source of colouration. Origin Acoustics uses a computer-designed, compression-moulded basket on the D63 that is both dimensionally precise and acoustically inert. Because the basket does not flex or resonate at audible frequencies, the woofer cone moves exactly as the signal dictates, without the structural 'ringing' that plastic or thin-stamped-steel alternatives can introduce. The result is a measurable reduction in distortion that is audible as greater midrange transparency — voices and instruments have more natural timbre, and the low-mid frequencies that define the body of acoustic instruments are reproduced more faithfully.

Architectural audio. Audiophile performance. Zero compromise.

Designed and voiced in Eugene, Oregon by the pioneers of in-ceiling speaker technology.

Pivoting Aluminium Tweeter for Precise Aiming

A fixed tweeter in a ceiling speaker must rely on its dispersion pattern alone to cover the listening area — an inevitable compromise when the installation point is not directly above the primary seating position. The D63's 1" aluminium tweeter pivots freely on its mount, allowing the installer to aim high-frequency energy precisely toward the listening zone after the speaker is fitted. Aluminium is stiffer than soft-dome materials at the frequencies the tweeter operates in, which raises its break-up point and keeps treble detail cleaner across the operating range. For the end user, this combination of adjustability and driver rigidity means dialogue, vocals and instrument detail arrive as a focused, directed image rather than a diffuse wash from the ceiling.

Tool-Less Spring-Clip Mounting — Fast, Damage-Free Install

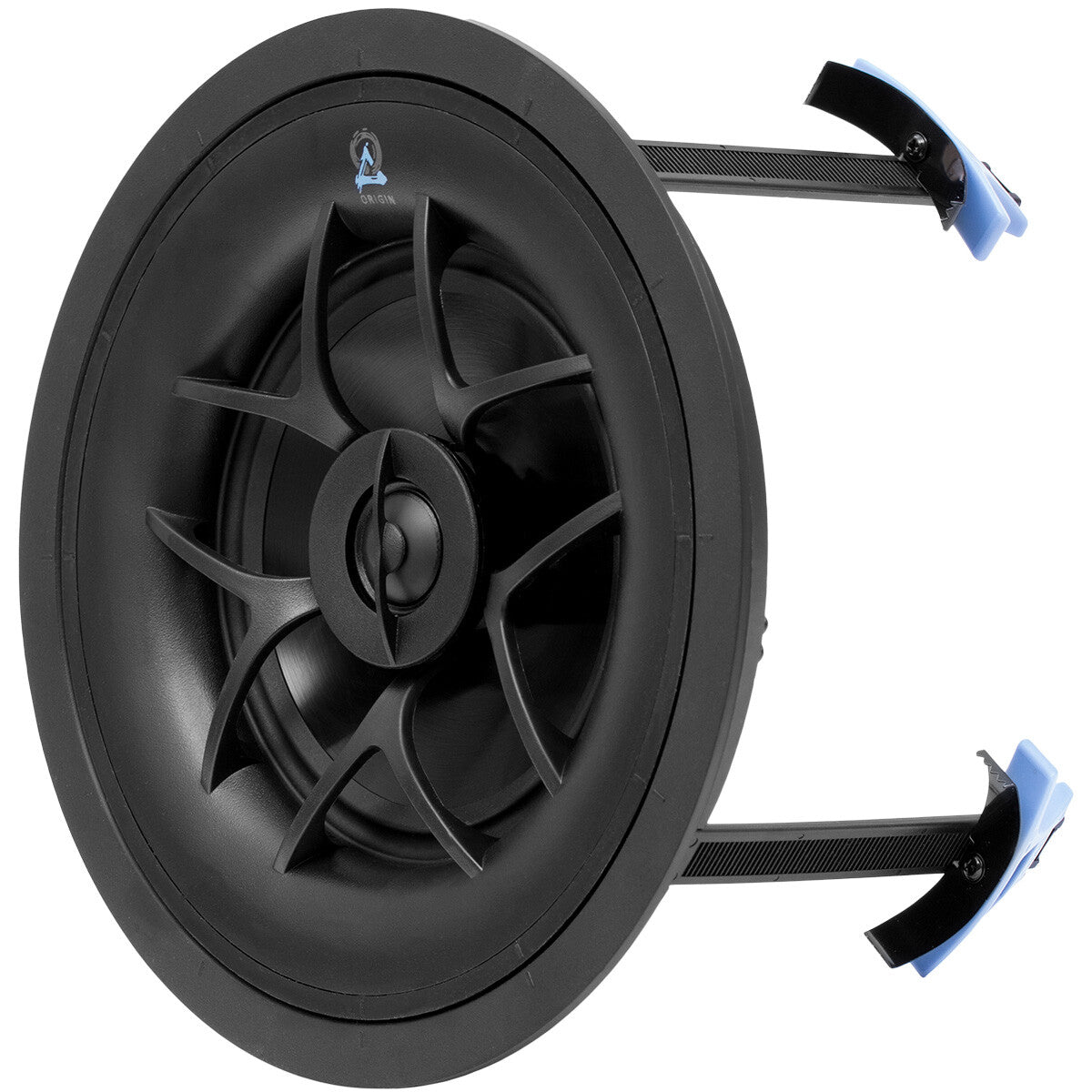

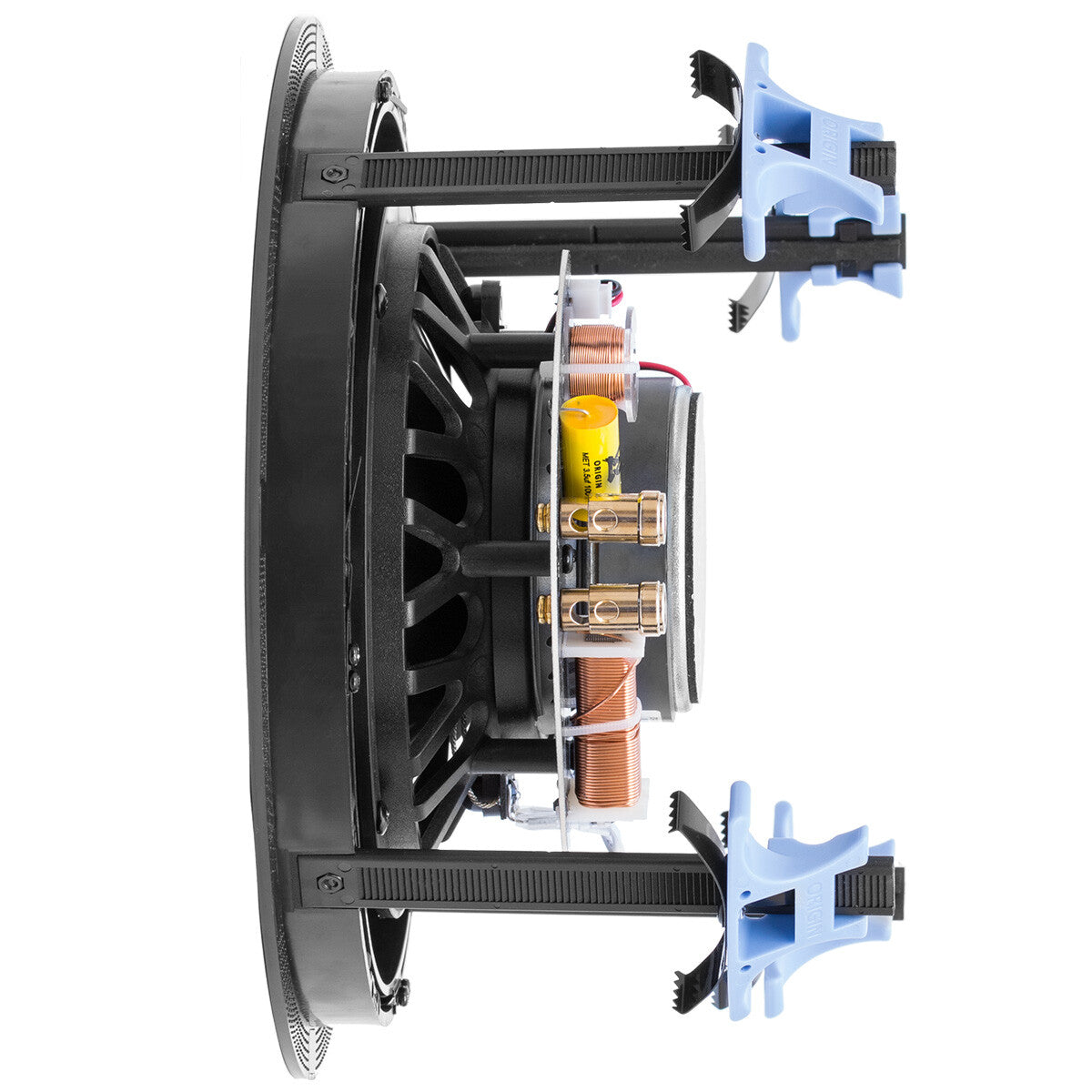

The Director D63 uses Origin Acoustics' tool-less mounting system: spring-loaded clips with multiple points of contact that engage the ceiling substrate when the speaker is twisted into position. No screwdriver is required for the final lock-down, which speeds up installations significantly when fitting multiple speakers in a home. Critically, the multi-point contact distributes clamping force more evenly than traditional single-point dog-leg clips, reducing the risk of cracking or marking plasterboard ceilings and minimising vibration transfer from the speaker chassis into the structure. The cutout diameter is 8.75" (222mm) and mounting depth is 3.5" (89mm), making the D63 compatible with standard residential ceiling voids.

Magnetic Paintable Grille for a Discreet Finish

The D63 ships with a perforated grille that attaches and detaches magnetically — no bayonet clips to crack or lose, and no tool required for removal. The grille is designed with a micro-bezel that keeps its visual footprint as small as possible, and it can be painted to match virtually any ceiling colour before or after installation. This matters in premium residential environments where occupants are acutely aware of anything that breaks the ceiling plane. The magnetic attachment also makes future maintenance or repositioning of the tweeter straightforward without disturbing the ceiling finish.
