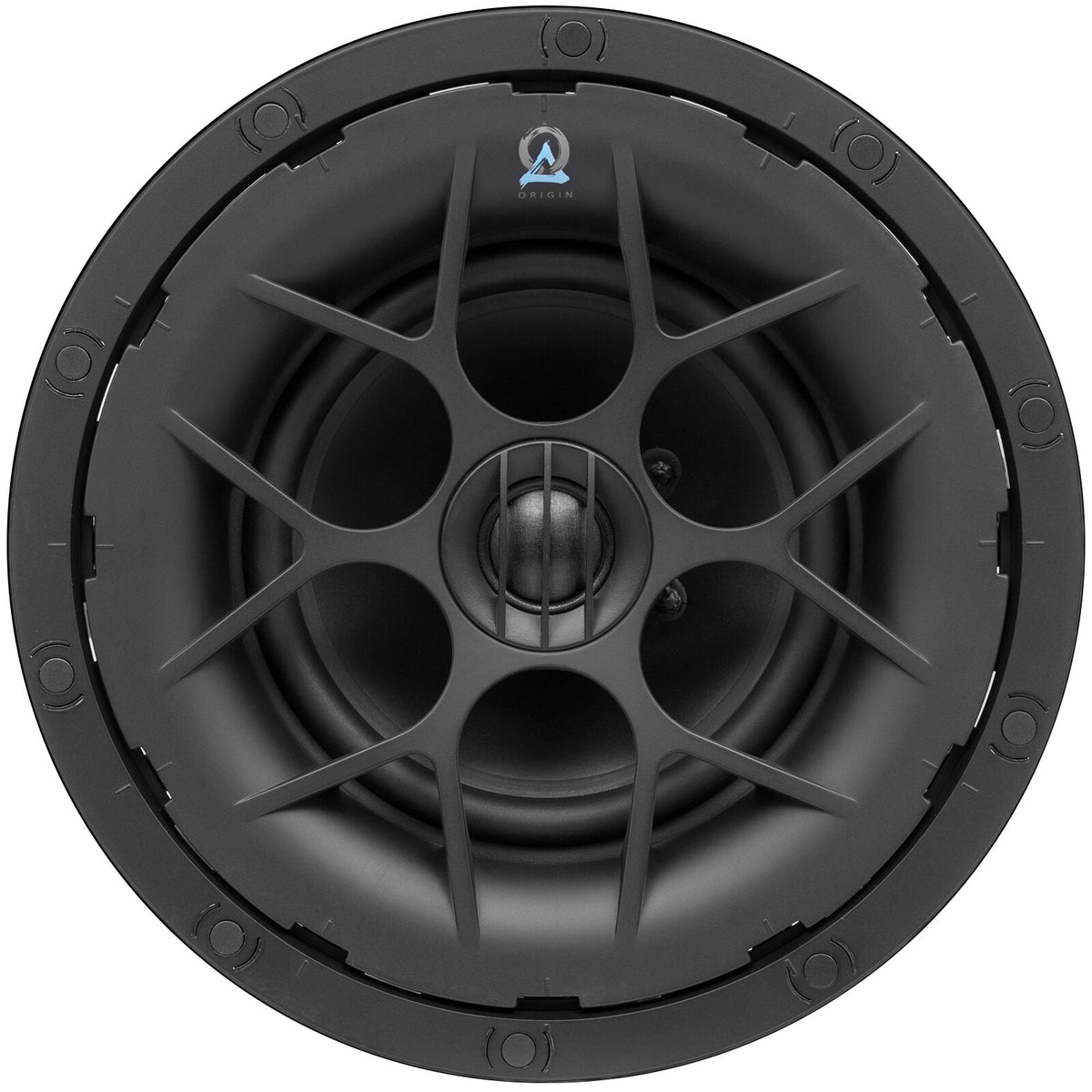

Origin Acoustics D61-6

The Origin Acoustics Director D61-6 delivers a complete six-speaker package from the acclaimed Director Collection — purpose-built for residential multi-room audio, home theater surrounds, and Dolby Atmos height channels. Each D61 is a 2-way in-ceiling loudspeaker pairing a 6.5-inch poly-rubber woofer with a pivoting 1-inch silk dome tweeter, enabling precise high-frequency aim toward any listening position. Engineered with proprietary X-Wave surround technology, compression-molded woofer baskets, and progressive suspension, the D61 achieves low distortion and clean output across its full dynamic range. The tool-less Zip-Klip mounting system makes installation straightforward for integrators, and the paintable magnetic grille disappears cleanly into any ceiling finish. Backed by a Limited Lifetime Warranty when purchased through an authorized dealer.

Pivoting Silk Dome Tweeter for Precise Aim

The D61's 1-inch silk dome tweeter can be pivoted in any direction after the speaker is installed in the ceiling. This matters practically: when a ceiling mounting point is off-center relative to the listening zone — common in rooms with asymmetric furniture layouts or open-plan spaces — the installer can angle the tweeter to direct high-frequency energy directly toward the listeners rather than simply firing straight down. Silk dome material produces a smooth, natural high-frequency response without the metallic harshness of aluminium alternatives, which is important for long listening sessions in living rooms or home theaters. The result is that critical dialogue, vocals, and transient detail land where the end user actually sits, not where the speaker happened to be cut in.

X-Wave Surround Reduces Mid-Cone Distortion

Between 700 Hz and 1,400 Hz, resonant energy typically travels up the woofer cone and reflects back from the dust cap, creating harmonic distortion that colors the sound. Origin's proprietary X-Wave surround geometry is shaped to absorb these reflections before they can build up, keeping the cone stable throughout the driver's travel. In practice this produces cleaner vocal reproduction and more accurate midrange tonality — the frequency range where music and speech intelligibility are most sensitive. As a bonus, the X-Wave profile maximises usable cone area by keeping the surround itself narrow, which contributes to the speaker's extended bass response (48 Hz) from a compact 6.5-inch frame.

Six speakers. One box. Zero tools needed.

Limited Lifetime Warranty · Authorized dealer purchase required

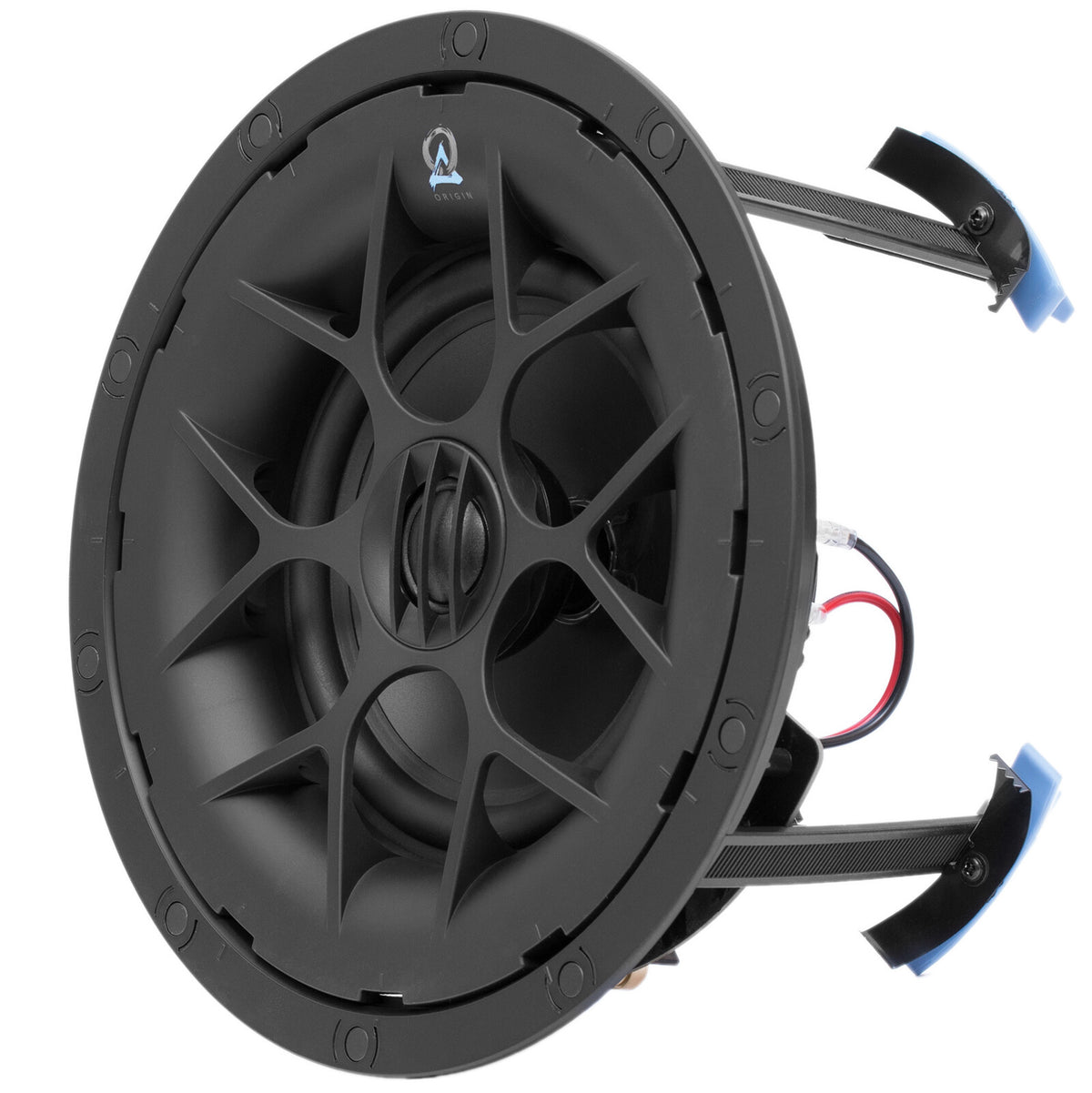

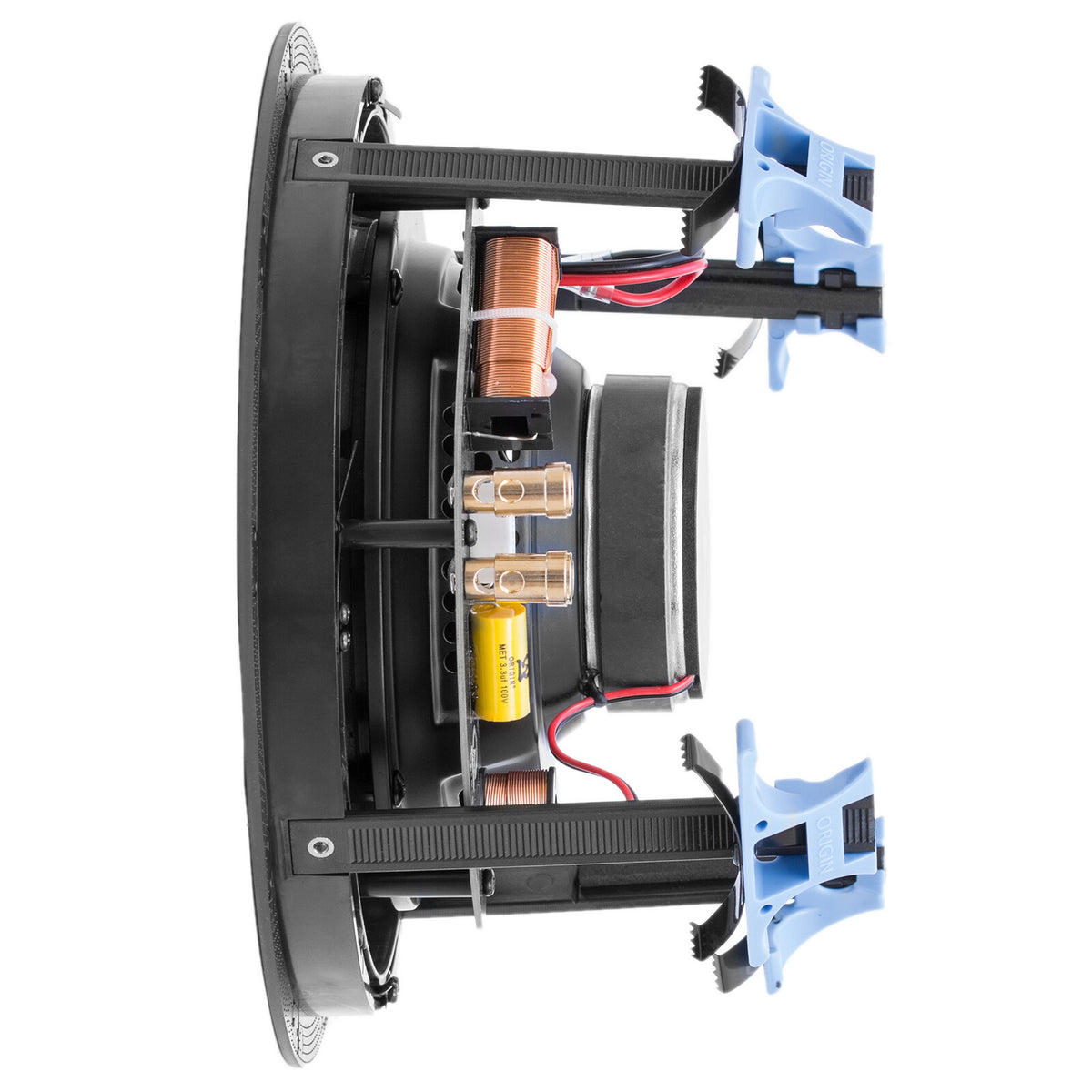

Tool-Less Zip-Klip Mounting — Fast, Secure, Repeatable

Origin Acoustics' patented Zip-Klip system (Patent #9591390) replaces traditional dog-leg spring clips with four spring-loaded grips that ride along bayonet rails in the included mounting ring. The installer pushes the ring into the cut-out, pulls the Zip-Klips down by hand until they grip the drywall face, and locks the speaker in with a 15-degree clockwise twist — no screwdriver required. The multi-point contact distributes the speaker's weight over a larger surface area than a conventional two-point dog-leg, reducing vibration transfer into the ceiling structure and protecting the drywall from stress cracks over time. For a six-speaker installation this translates directly to faster fit-out and fewer callbacks for a loose or rattling grille.

Compression-Molded Basket for Acoustic Neutrality

The woofer basket is made using compression molding — a technique that produces a highly rigid structure with very precise geometry and no flex under dynamic loading. An acoustically neutral basket does not add its own resonances to the signal; it simply holds the driver assembly in position and lets the cone, spider, and surround do their job without interference. The practical result is lower coloration in the midrange — music sounds like music, not like a speaker — and improved linearity at higher output levels. This is especially relevant in the D61's target applications: background music zones where speakers run continuously at moderate levels, and home cinema surrounds where accurate timbre matching across all channels matters.

Paintable Magnetic Grille for Discreet Aesthetics

The D61's perforated grille attaches magnetically, requires no screws, and can be painted with standard spray paint to match any ceiling colour — white, off-white, or a custom shade mixed at a hardware store. Removing the thin acoustic cloth before painting and reattaching it afterward maintains the acoustic transparency of the grille. The micro bezel minimises visible frame, so from a normal viewing distance the speaker is essentially invisible once painted. This is a meaningful selling point for residential clients who have invested in interior design: the audio system simply does not intrude on the room's appearance. Square replacement grilles are also available for clients who prefer a geometric aesthetic.

Progressive Suspension for Clean High-Output Performance

As the woofer cone moves toward the limits of its excursion, Origin's progressive suspension — combining the spider and the surround — progressively stiffens, applying increasing restoring force to the cone. This prevents the abrupt hard stop that causes intermodulation distortion and audible clipping at higher playback levels. The D61 is rated at 40 W RMS and 150 W peak, and the progressive suspension is what allows the driver to actually deliver usable output up to those levels without audible breakup. For integrators specifying speakers for rooms that will see high-volume use — entertaining spaces, large open-plan areas — this characteristic ensures the D61 holds together dynamically instead of hardening or distorting when pushed.
