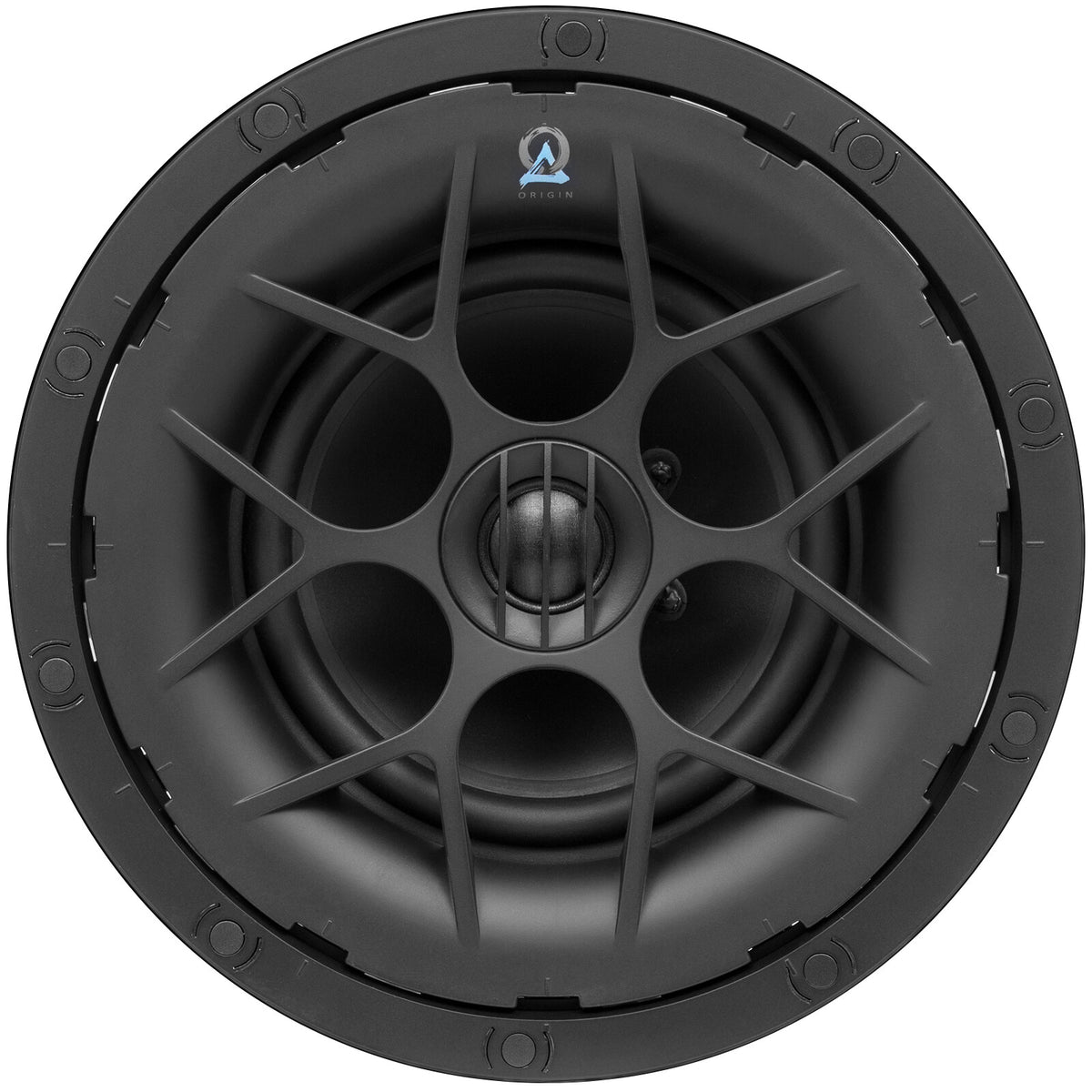

Origin Acoustics D61SQ-6

The Origin Acoustics Director D61SQ-6 is a six-pack of 2-way in-ceiling loudspeakers designed for residential whole-home audio, Dolby Atmos installations, and multi-room projects where consistent, high-quality sound is required across multiple listening zones. Featuring a 6.5-inch poly-rubber woofer and a 1-inch pivoting silk dome tweeter, the D61 delivers clear, full-range audio from a discreet ceiling-flush form factor. The square magnetic grille option makes this variant particularly suited to installations where a square ceiling aesthetic is preferred. Backed by Origin Acoustics' patented tool-less mounting system and an IPX6 moisture rating, it is engineered for professional, long-term installations with minimal servicing effort.

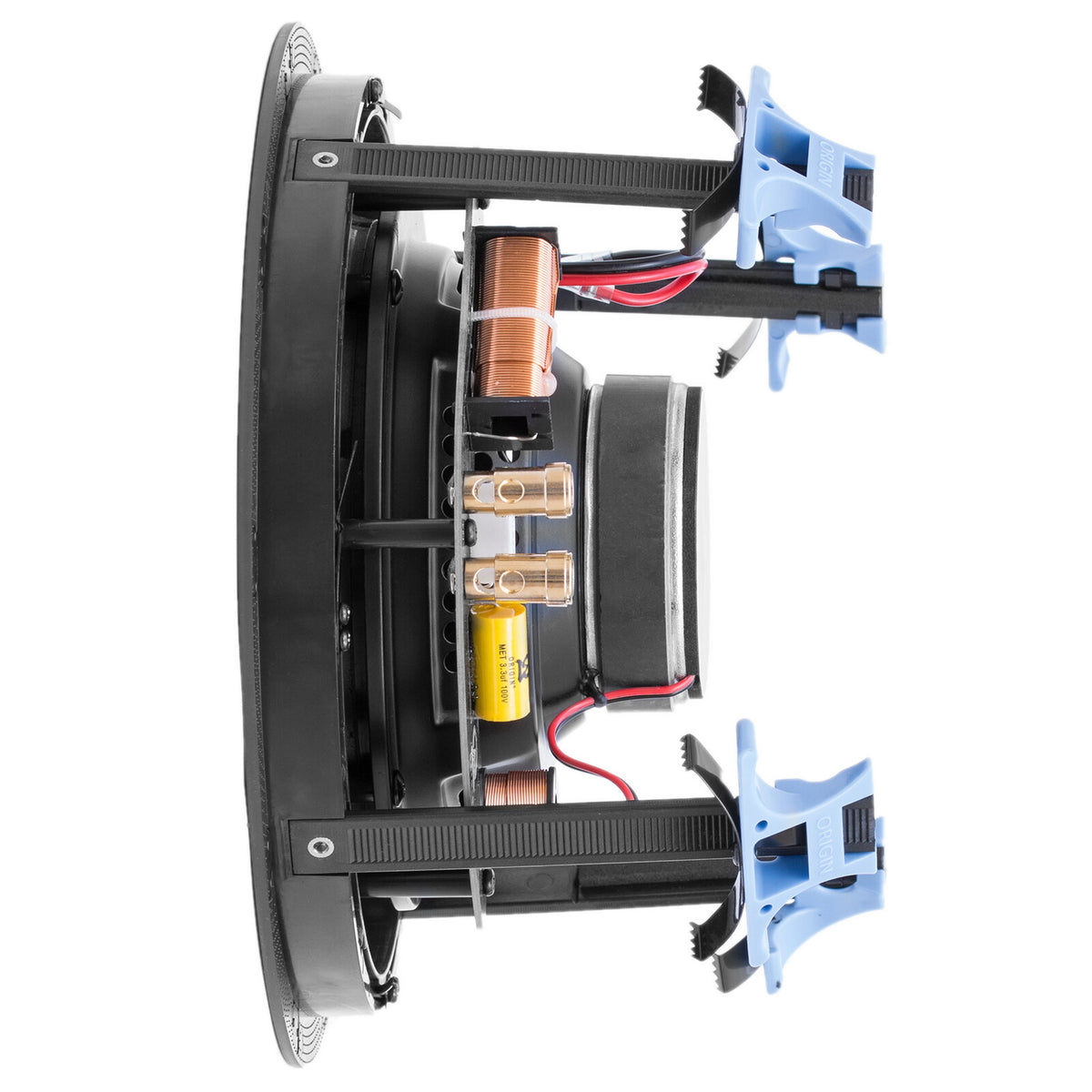

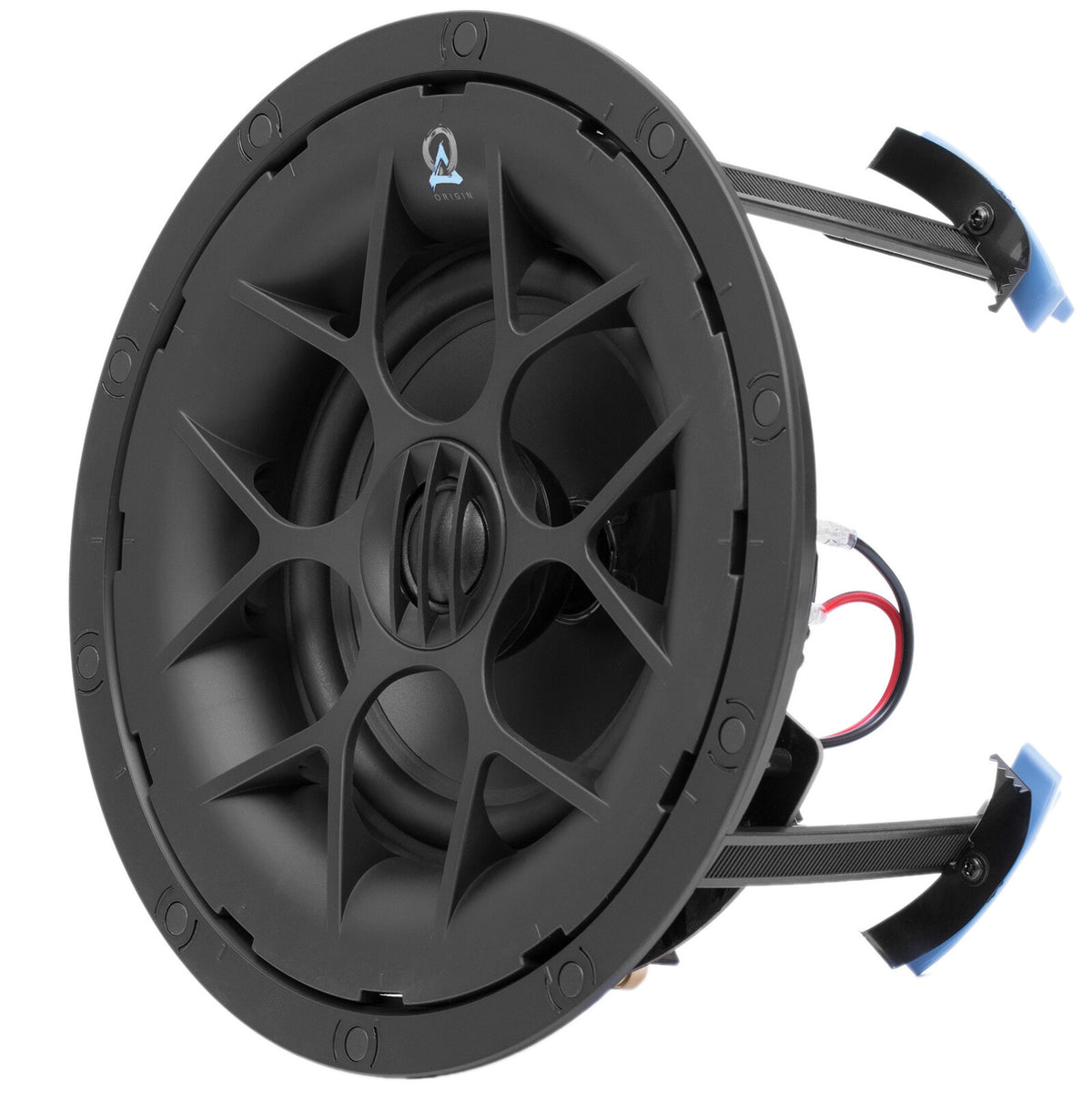

Patented Tool-Less Zip-Klip Mounting

The Zip-Klip mounting system (Patent #9591390) replaces traditional dog-leg brackets with spring-loaded clips that grip drywall at multiple contact points. This distributes the speaker's weight more evenly across the ceiling surface — protecting the ceiling material and reducing the risk of vibration transfer into the structure. In practice, an installer can secure each speaker firmly without reaching for a screwdriver or special tool, and can also remove it just as easily if repositioning is needed. For multi-speaker projects like a 6-pack installation, this time saving across all six positions is significant. The even clamping pressure also prevents the baffle from warping over time, which maintains acoustic alignment and long-term audio quality.

Pivoting Silk Dome Tweeter for Precise Aim

The 1-inch silk MMP tweeter is mounted on a pivot mechanism that allows the installer to angle it independently from the woofer after the speaker is in the ceiling. This means high-frequency energy can be directed toward the primary listening position — the sofa, dining table, or bed — even when the speaker cannot be placed directly above that spot due to ceiling joists or other obstructions. Silk dome construction keeps the tweeter smooth and natural-sounding without the hardness or ringing that can occur with aluminium or titanium domes, making it well suited to long listening sessions in living areas and bedrooms. The result for the end user is consistently clear dialogue and treble wherever they sit, without needing the speaker to be perfectly centred overhead.

Six speakers. One box. Zero tool headaches.

IPX6 moisture rated · Patented Zip-Klip mounting · Lifetime warranty

X-Wave Surround for Cleaner Bass

Between 700 Hz and 1,400 Hz, standing waves can travel up a woofer cone and reflect back toward the centre, generating harmonic distortion that muddies mid-bass and male vocal frequencies. Origin Acoustics' X-Wave surround is shaped specifically to absorb these internal reflections before they can propagate, while also acting as a progressive suspension that stiffens as the cone approaches its excursion limit. The combined effect is tighter, cleaner bass and better control at higher playback volumes — audible as reduced boominess and improved definition on acoustic bass and kick drum. For residential installations where background music and speech intelligibility both matter, this translates to a more effortlessly listenable system that clients are unlikely to complain about.

IPX6 Moisture Rating for Demanding Locations

The entire Director Collection carries an IPX6 moisture resistance rating, which means the driver assembly is protected against powerful water jets from any direction. This makes the D61 a viable choice for bathrooms, covered patios, saunas, and kitchens — locations where standard in-ceiling speakers would be at risk from steam, condensation, or splashing. When paired with Origin Acoustics' optional EX Grille, the system is rated for direct wet-area use. For integrators, offering a single speaker family that covers both dry living areas and high-humidity zones simplifies procurement, reduces stock complexity, and allows a consistent sound signature throughout a property. End users benefit from uninterrupted audio performance in spaces where music matters most during daily routines.

Square Magnetic Grille for a Tailored Aesthetic

The SQ suffix distinguishes this variant by its square grille profile, which suits installations where square ceiling features — recessed lighting trims, coffered panels, or tile grids — make a round grille look out of place. The grille is perforated and paintable to match any ceiling colour, and attaches magnetically with no visible clips or screws, leaving a clean micro-bezel finish. Magnetic attachment also means the grille can be removed and repainted or replaced without tools, which is useful after a ceiling repaint. For project integrators, being able to specify a square-grille variant from the same driver platform means the acoustic performance is identical to the standard D61-6 — no separate tuning or trade-offs.
