Origin Acoustics D67

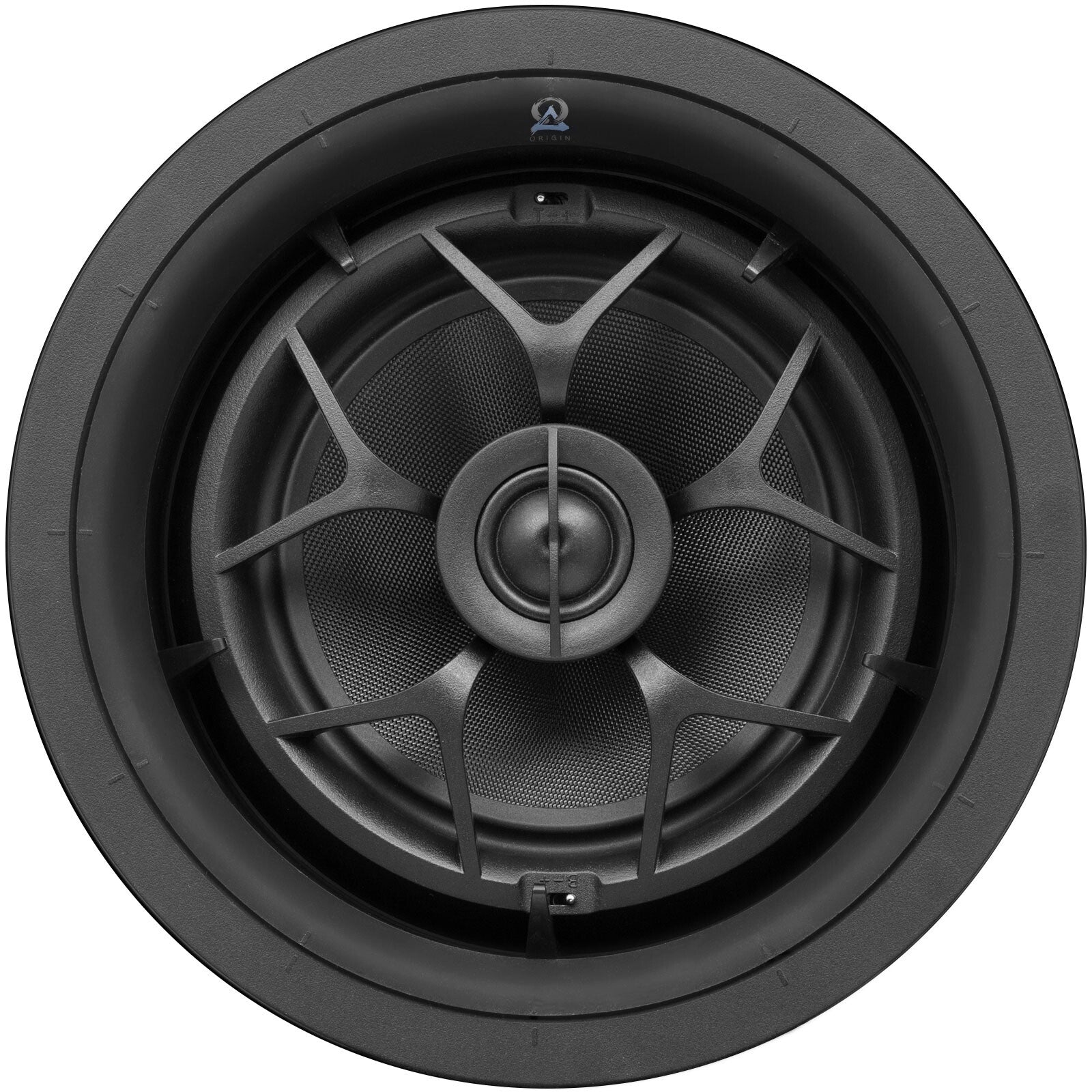

The Origin Acoustics Director D67 is a premium 2-way in-ceiling loudspeaker designed for residential whole-home audio, home theater, and custom installation projects. Part of the Director 6" Series, it combines a 6.5-inch glass fiber woofer with Origin's patented Silk DPSD tweeter technology and a fully pivoting driver assembly that lets installers direct sound precisely at the listening position. With an IPX6 moisture rating, the D67 is equally suited for bathrooms and covered outdoor spaces. The tool-less mounting system, magnetic micro bezel grille, and paintable finish make it a go-to choice for integrators who demand both sonic performance and a discreet, professional result.

Patented DPSD Tweeter Technology

The Dual Plane Stabilized Diaphragm (DPSD) tweeter is an Origin Acoustics patent, and it fundamentally changes how high frequencies are reproduced in an in-ceiling speaker. Unlike a conventional dome tweeter where the suspension is attached only at the voice-coil, the DPSD design anchors the suspension at both the voice-coil and the peak of the dome. This allows the driver to be crossed over at a significantly lower frequency than standard tweeters, which means better integration with the woofer, improved high-frequency dispersion across the room, and measurably lower distortion at higher listening levels. In practical terms, the result is a speaker that sounds smoother and more open than its form factor and price point would suggest — an argument that holds up in direct comparisons during showroom demonstrations.

Fully Pivoting Driver Assembly

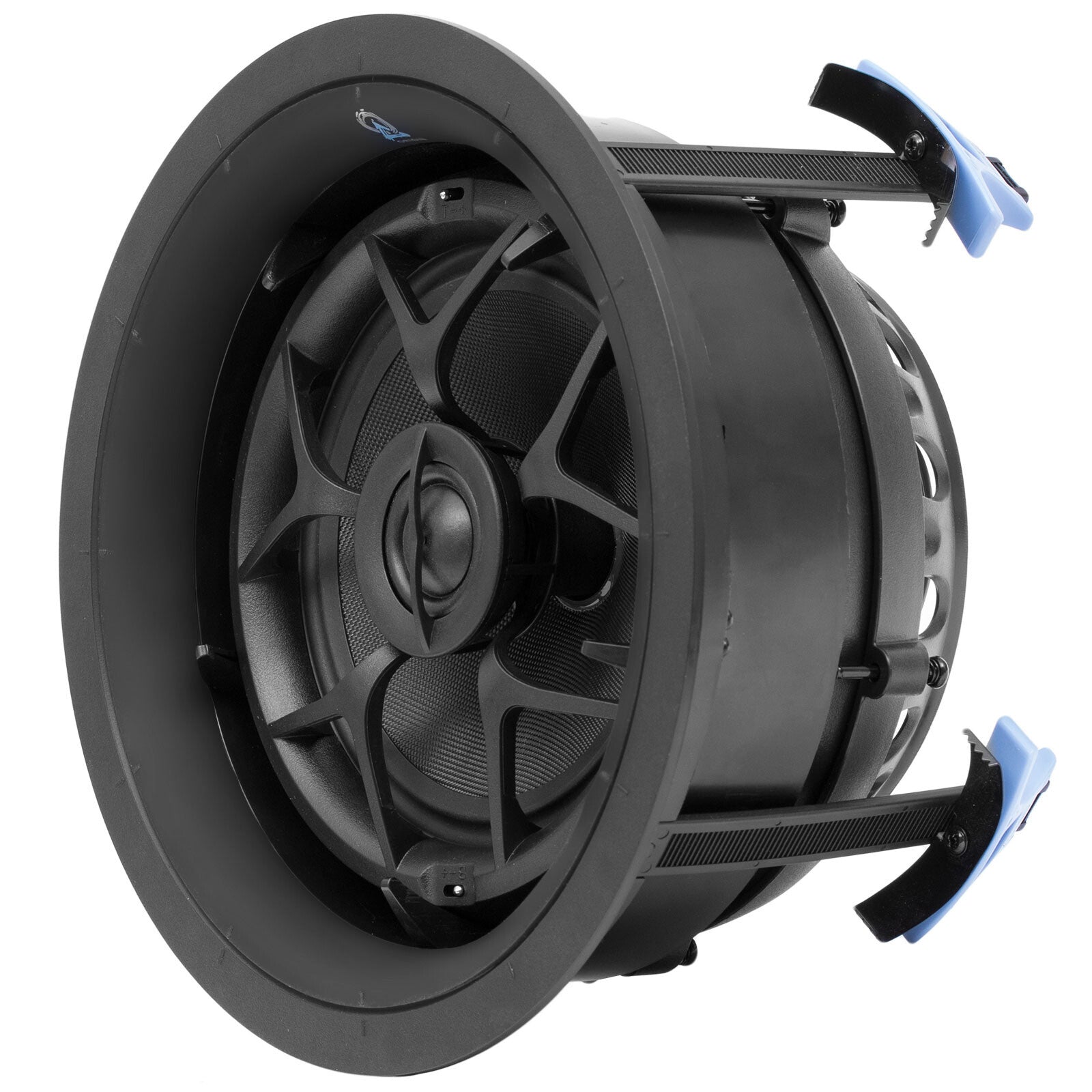

The entire woofer-and-tweeter assembly of the D67 pivots freely inside its enclosure, not just the tweeter dome. This is a decisive advantage in real-world installations where the speaker cannot always be positioned directly above the primary listening area — a common constraint in open-plan living rooms, hallways, and home theaters where structural elements dictate speaker placement. By rotating the driver toward the seating position, the installer ensures the listener receives on-axis sound rather than reflected or diffused energy. The audible difference — tighter imaging, more detail, stronger center fill — is immediately noticeable, and it is the kind of result that generates repeat business and referrals for integrators.

Pivoting drivers. Patented tweeter. Zero visible screws.

IPX6 moisture rated · Designed and voiced in Eugene, Oregon

X-Wave Woofer Surround — Low Distortion Bass

When a speaker cone reaches the limit of its travel and abruptly stops, reflected mechanical energy propagates back up the cone as resonance — audible as coloration and distortion, particularly in the upper bass and lower midrange. Origin Acoustics addresses this with the X-Wave Woofer Surround, a progressive-stiffness surround that absorbs the kinetic energy of the cone at its travel limit rather than reflecting it back. The practical result is cleaner, more accurate bass reproduction with less mid-bass smear, which matters when the D67 is used at elevated listening levels in home theater or background music applications. Combined with the compression-molded woofer basket — designed to be both rigid and acoustically neutral — the woofer system contributes very little of its own sonic character, leaving the music or film soundtrack uncolored.

Tool-Less Mounting for Fast, Professional Installation

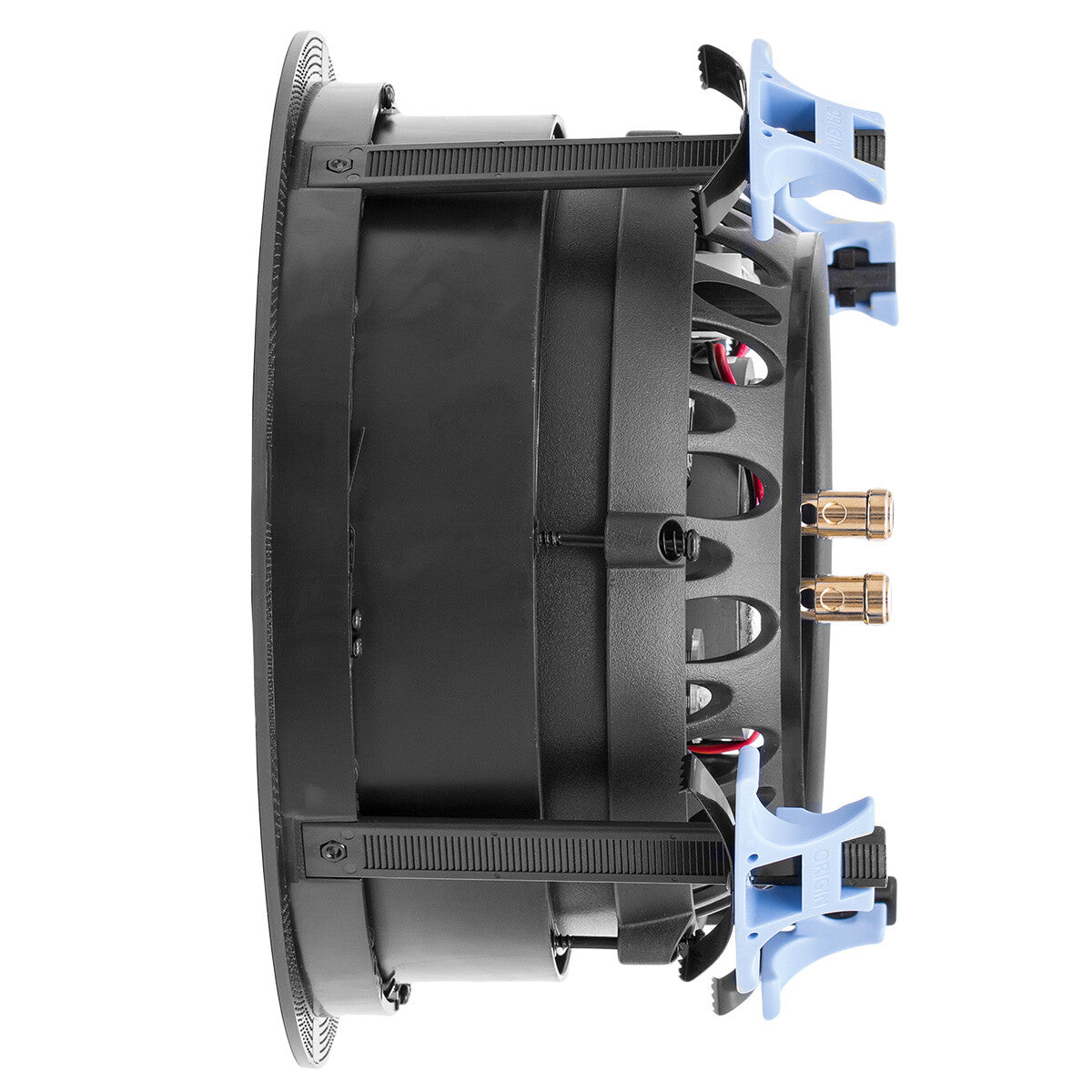

The Director Collection's bayonet-style mounting system eliminates the need for a screwdriver during speaker installation. Once the wiring is connected, the speaker body is placed into the pre-installed cradle ring and twisted to lock — spring-loaded clips with multiple contact points then secure it firmly against the ceiling. This distributes clamping force more evenly than traditional dog-leg brackets, reducing the risk of ceiling damage and minimizing unwanted vibration transfer from the enclosure to the ceiling structure. For an integrator running multiple rooms in a single day, the time savings are real: no juggling a screwdriver while holding the speaker overhead, no stripped threads, no second visits for loose units. The paintable magnetic micro bezel grille then snaps into place without tools, completing the installation with a finish that is genuinely discreet.

IPX6 Rating Expands Placement Options

The D67 carries an IPX6 moisture resistance rating, meaning it is tested to withstand powerful water jets from any direction. This opens up installation locations that would be off-limits to standard in-ceiling speakers: bathrooms (including directly above a shower or bath), pool houses, covered outdoor patios, and spa rooms. For integrators, this eliminates the need to stock a separate SKU for wet-area applications within a 6-inch budget tier — the D67 handles both dry and moisture-exposed zones from a single product. End users benefit from coherent, matched sound throughout a home, including spaces where audio is often an afterthought.
