Origin Acoustics D69

The Origin Acoustics Director D69 is a high-performance 6-inch series in-ceiling loudspeaker from the Director Collection, designed for custom residential AV installations where sonic quality and discreet aesthetics are equally important. Aimed at integrators specifying whole-home audio, home theatre, and multi-room music systems, the D69 combines a 6.5-inch Kevlar woofer with the brand's patented Dual Plane Stabilized Diaphragm (DPSD) silk tweeter. Both drivers pivot independently inside the enclosure, allowing sound to be aimed directly at the listening position — even when the speaker is not installed directly overhead. A tool-less mounting system with spring-loaded clips and a paintable magnetic micro-bezel grille make for a fast, clean installation.

Patented DPSD Tweeter Technology

The Dual Plane Stabilized Diaphragm (DPSD) is an Origin Acoustics patent that sets this tweeter apart from standard silk domes. Rather than suspending the diaphragm only at its outer edge, the DPSD attaches the suspension at both the voice-coil and the peak of the dome. This dual-point anchoring prevents the diaphragm from distorting under excursion, allowing the driver to cross over at a significantly lower frequency than a conventional tweeter — expanding the driver's bandwidth and improving dispersion across a wider area. In practice, listeners anywhere in the room hear consistent, detailed high-frequency reproduction rather than a narrow sweet spot directly below the speaker. For installations with open-plan layouts or multiple seating positions, this is a meaningful sonic advantage.

X-Wave Woofer Surround — Less Distortion at the Limits

Most woofer surrounds are designed to handle typical cone travel, but at the extremes of excursion — when the cone hits its physical limit and rebounds — unwanted waves ripple back through the cone and add coloration to the sound. Origin Acoustics addresses this with the X-Wave Woofer Surround, which progressively absorbs that impact energy rather than letting it reflect. Combined with a compression-moulded woofer basket that is both highly rigid and acoustically inert, the net result is a woofer that plays louder and deeper (40Hz lower limit) with lower distortion than its 6.5-inch format would suggest. For home theatre and music rooms where bass clarity matters, this translates to a tighter, more controlled low end without requiring a larger cutout or enclosure.

Aim it. Mount it. Forget it's there.

Director Collection · Designed and voiced in Eugene, Oregon

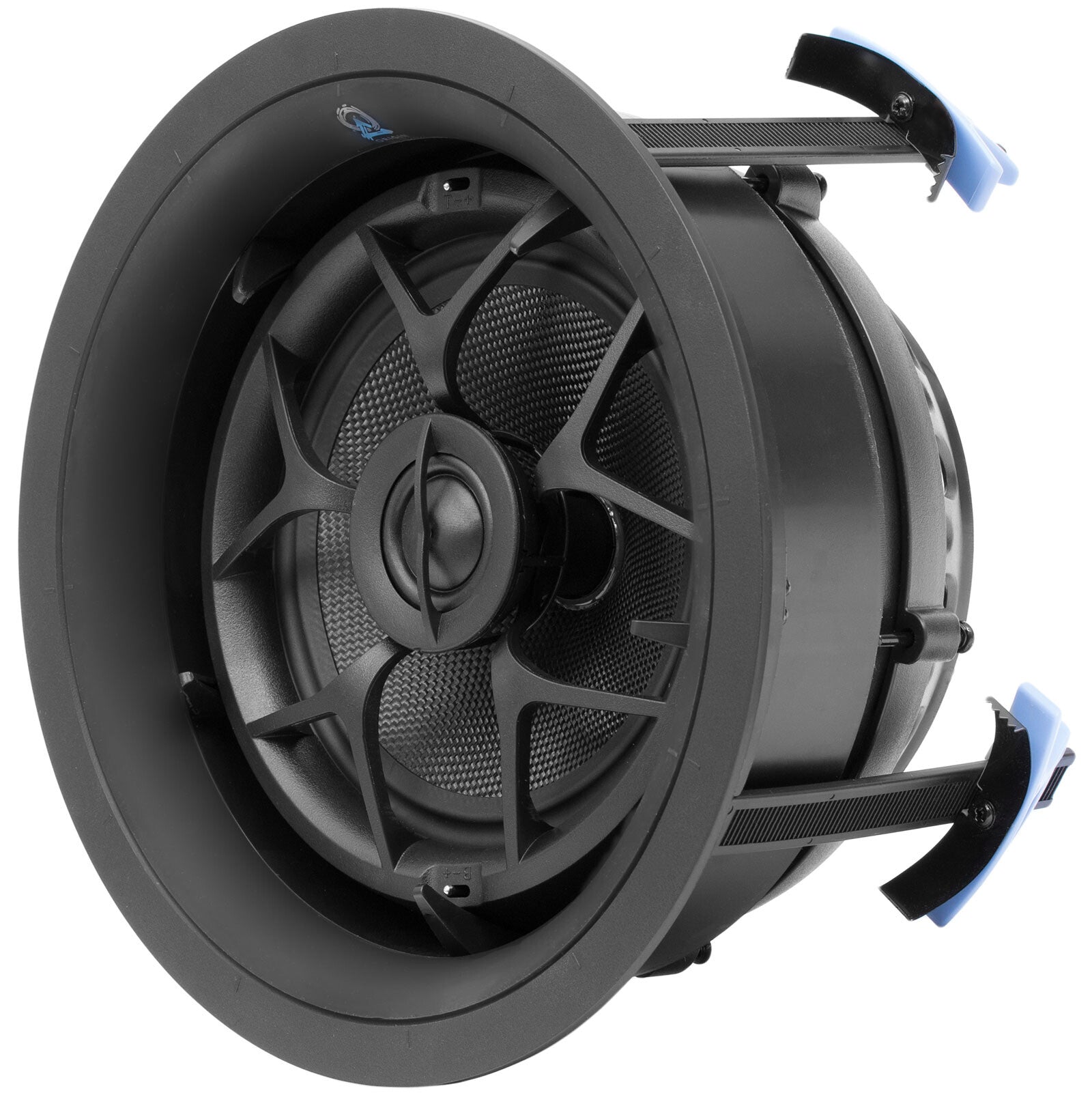

Fully Pivoting Two-Way Design for Off-Axis Installations

Unlike most in-ceiling speakers where the drivers fire straight down, the D69 allows the entire woofer — and the tweeter independently — to pivot within the enclosure. This is especially valuable in rooms where structural constraints prevent centering a speaker directly above the listening position, or in home theatre setups where overhead Dolby Atmos channels need to be steered toward specific seats. The pivot range means integrators have genuine flexibility during installation, and end users get focused, on-axis sound quality that would normally only be achievable with a direct-fire speaker aimed straight at the listener.

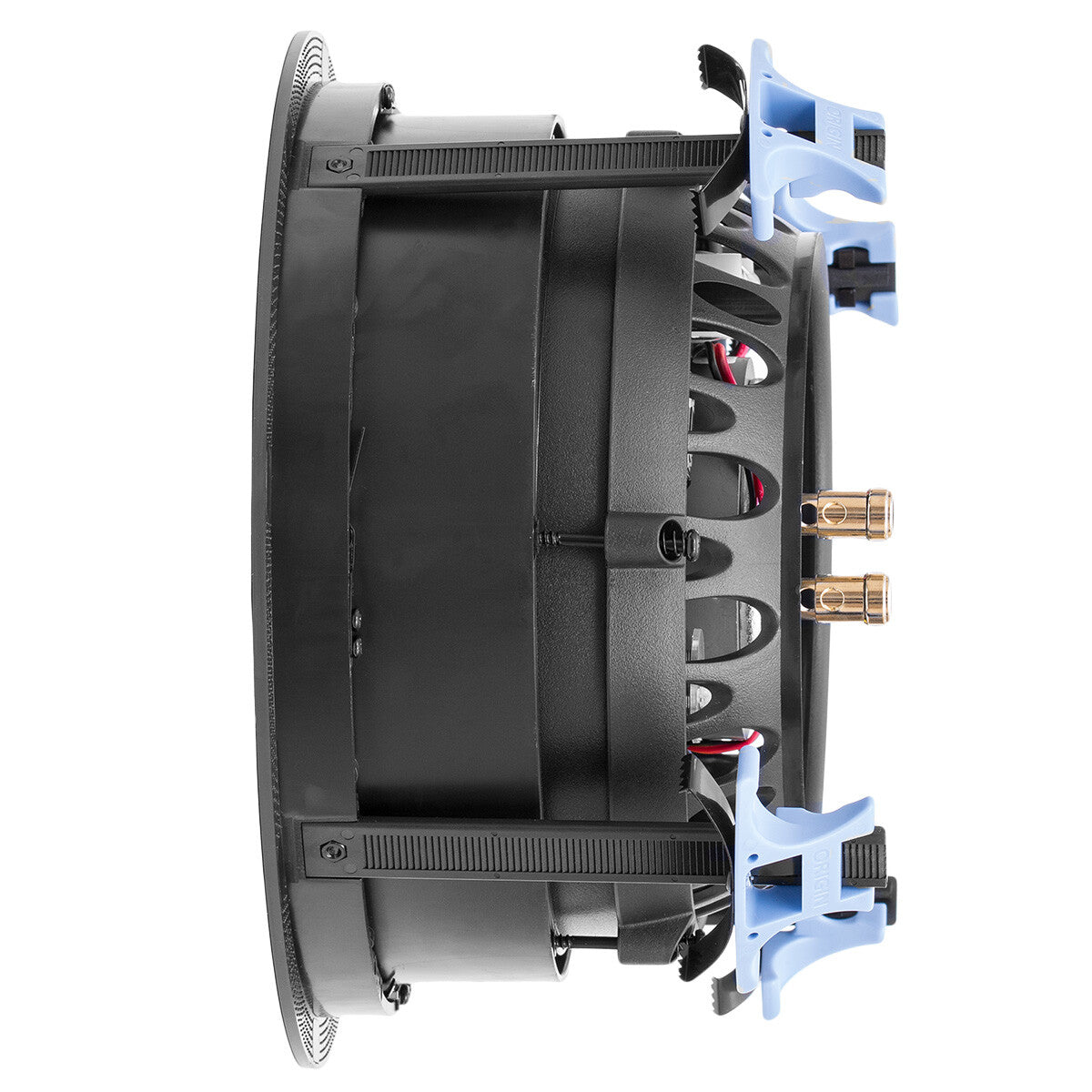

Tool-Less Zip-Klip Mounting System

The patented Zip-Klip mounting system (Patent #9591390) replaces the traditional dog-leg clamps used on most in-ceiling speakers. Spring-loaded clips engage automatically as the speaker is seated into the bayonet ring, distributing clamping force across multiple contact points rather than a single clamp. This spreads the load more evenly across the ceiling material, reducing the risk of drywall damage over time and virtually eliminating the vibration transfer that dog-leg mounts can introduce. For installers, the practical benefit is faster commissioning — the speaker locks and unlocks without a screwdriver, which matters when fitting out a multi-room project with many drops.

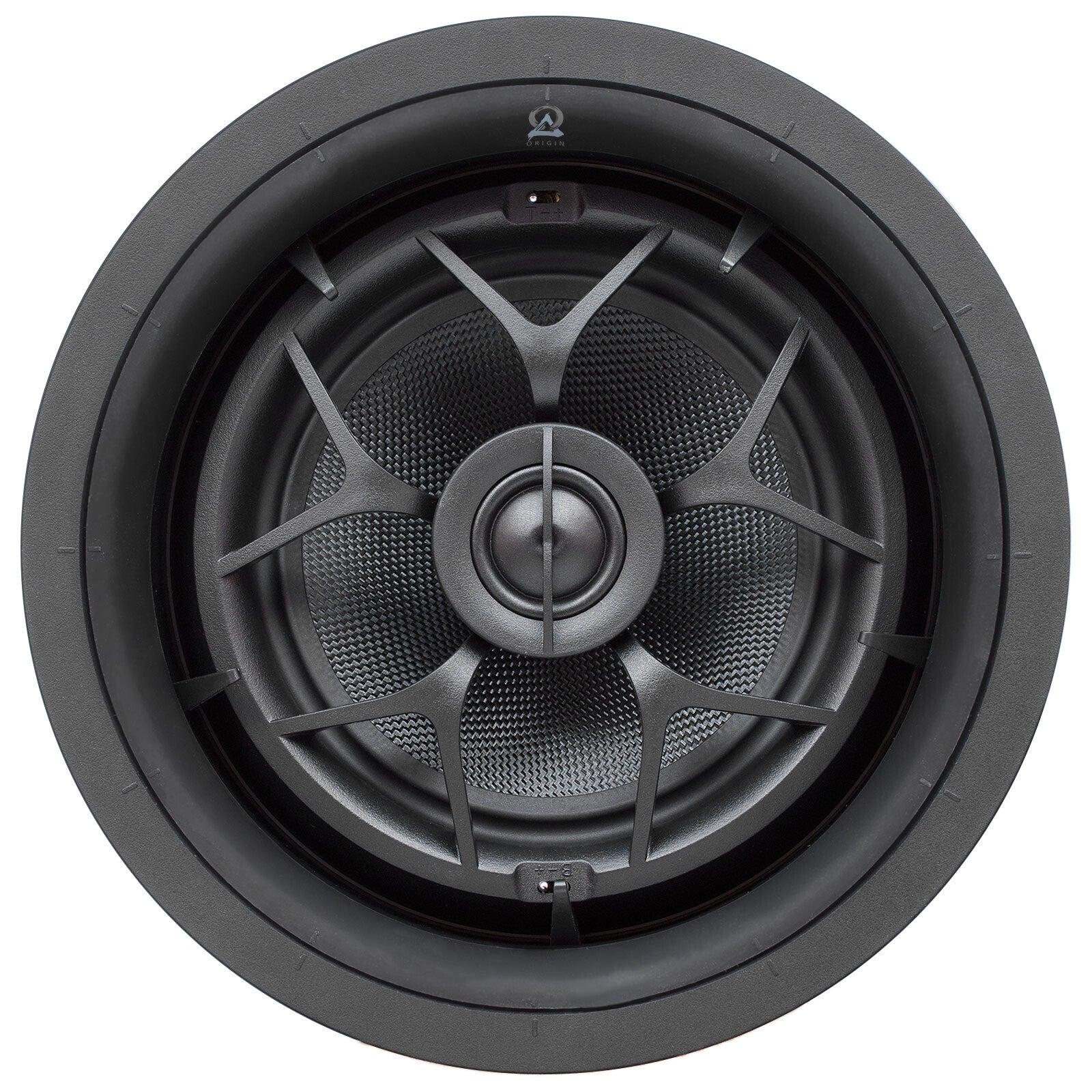

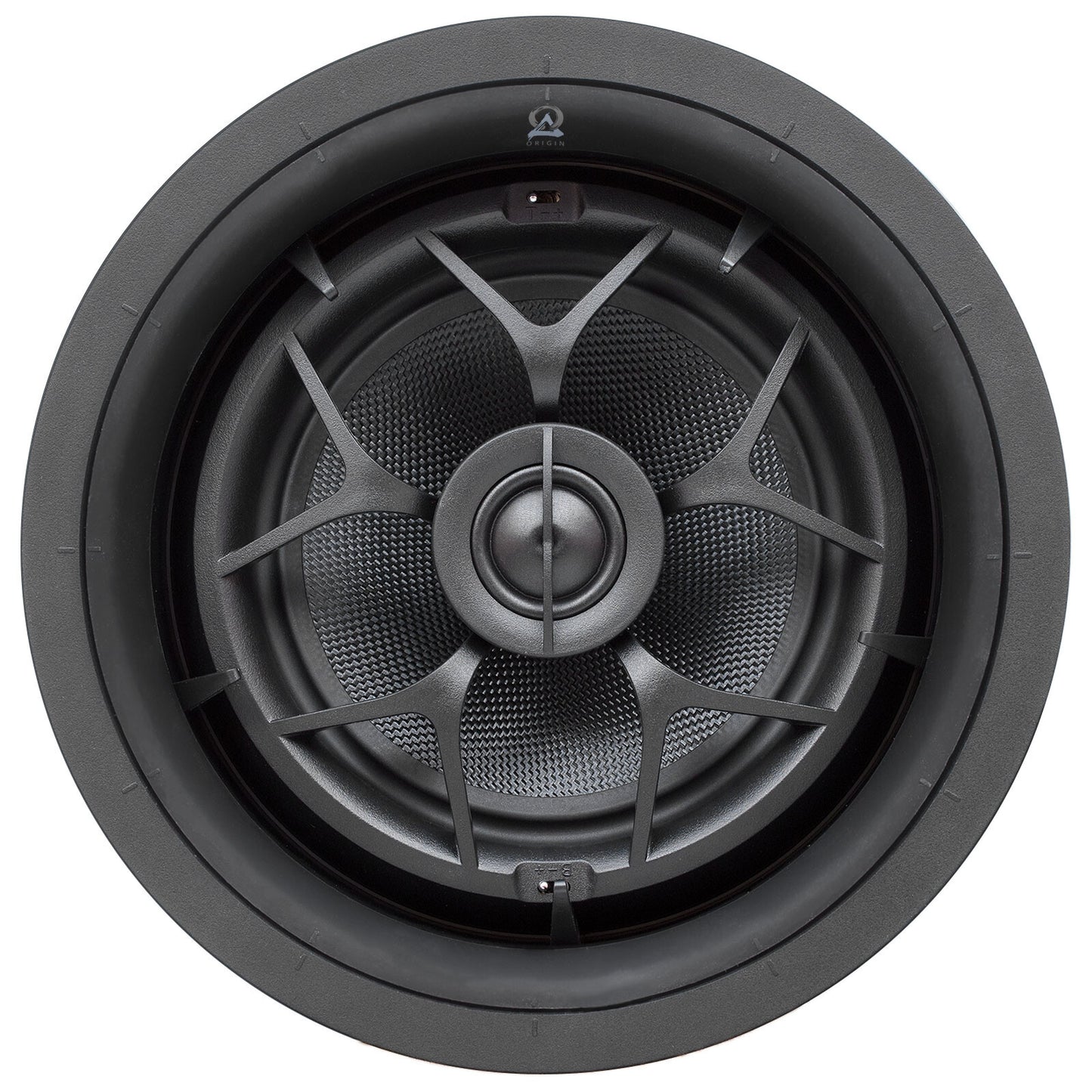

Paintable Magnetic Micro-Bezel Grille

The D69 ships with a perforated grille that covers the entire speaker assembly and is designed to disappear into the ceiling. The micro bezel — the visible ring around the grille — is deliberately minimal, leaving a near-flush appearance after installation. The grille can be painted to match any ceiling colour using standard latex paint, and its magnetic attachment means it can be removed and reattached without tools or risk of scratch damage. For end customers in premium residential settings where visual discretion is as important as audio performance, this is an easy point to sell: the speaker genuinely looks like part of the ceiling once installed.
