Origin Acoustics D63DT/SUR

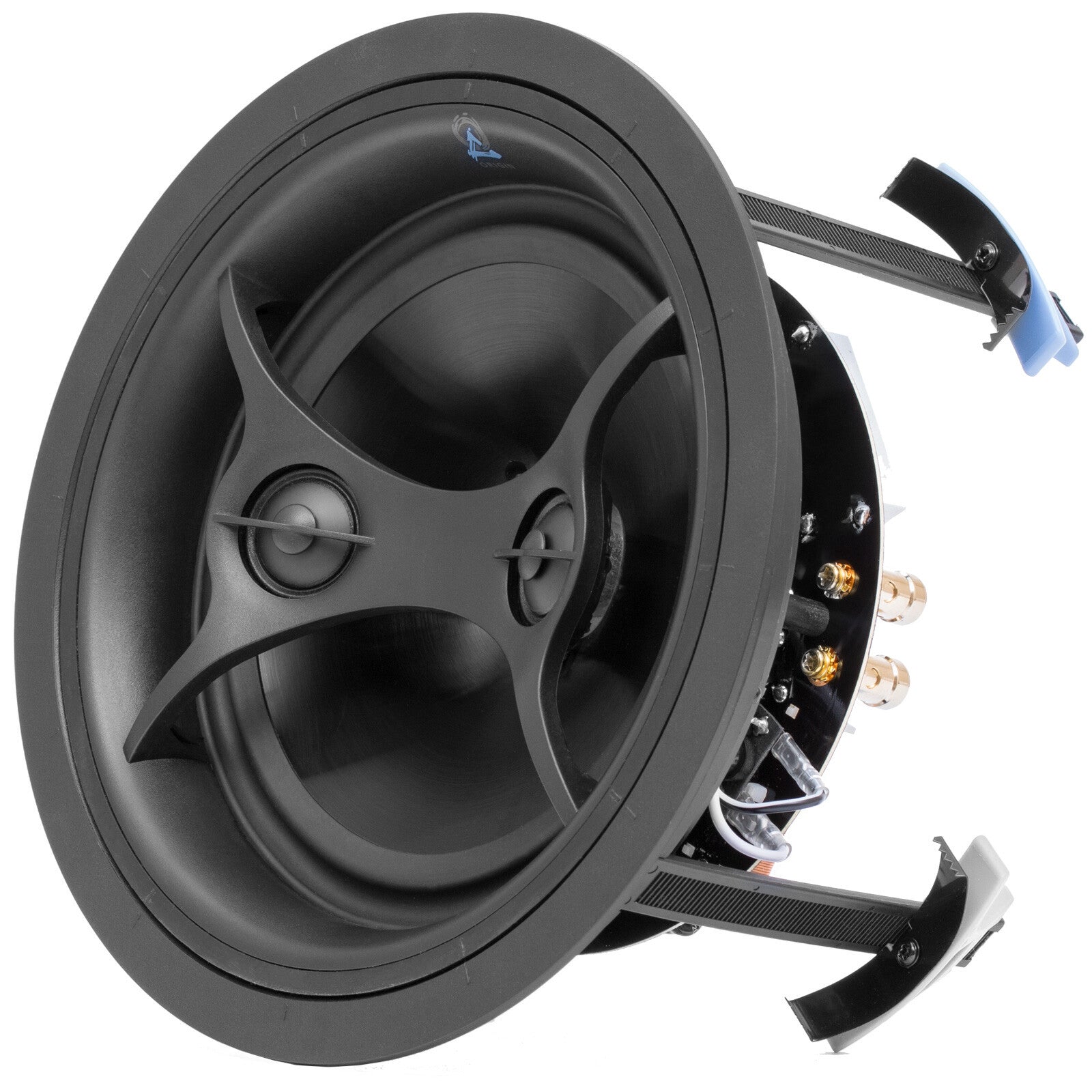

The Origin Acoustics Director D63DT/SUR is a high-performance in-ceiling loudspeaker designed for residential custom installations where flexibility, discretion, and sonic quality are all required. Part of Origin Acoustics' flagship Director 6" Series, it is engineered for integrators who need a single ceiling location to serve double duty — delivering genuine stereo playback for music listening and switching instantly to bipole surround coverage for home theater. Featuring a 6.5" IMG woofer, dual 1" aluminum tweeters, X-Wave woofer surround technology, and a tool-less spring-clip mounting system, the D63DT/SUR suits living rooms, media rooms, and open-plan spaces where ceiling runs are limited but performance expectations are not.

Stereo or Bipole Surround — One Location

The D63DT/SUR carries two independently driven tweeters mounted at opposing angles alongside a single 6.5" woofer. A physical switch on the speaker body toggles between stereo mode — where both channels are reproduced from a single ceiling point — and bipole surround mode, where the two tweeters radiate in phase in opposite directions to create wide, enveloping surround coverage. This dual-mode capability is decisive in rooms where running a traditional four- or six-speaker surround layout is impractical: open-plan areas with limited ceiling access, retrofits in existing homes, or single-drop installations above a seating area. The end user gains genuine stereo width for music and convincing rear-channel immersion for film, all from one cut in the ceiling.

X-Wave Woofer Surround — Controlled Bass, Less Distortion

At high excursion levels, a conventional woofer surround (the flexible ring connecting cone to basket) reflects energy back through the cone, creating unwanted resonances that blur the bass and midrange. Origin Acoustics' proprietary X-Wave surround is profiled to progressively absorb that reflected energy rather than bounce it, keeping the cone moving cleanly even at the limits of its travel. In practice this means the D63DT/SUR maintains composure at elevated listening volumes — movie soundtracks with demanding LFE content or music with sustained bass lines stay controlled rather than turning muddy. For an integrator, this translates to fewer post-install callbacks about distortion at normal household listening levels.

One speaker. Stereo today. Surround tomorrow.

Director 6" Series — designed and voiced in Eugene, Oregon

Compression-Molded Woofer Basket — Acoustically Neutral Structure

The woofer basket — the rigid frame holding the cone, voice coil and surround — is compression-molded rather than stamped from sheet metal. Compression molding allows Origin to shape a basket that is simultaneously stiffer (reducing flex-induced vibration) and acoustically inert (not adding its own coloration to the sound). The practical result is a lower noise floor from the mechanical assembly itself, so subtle detail in music — ambience, instrument decay, spatial cues — comes through more clearly. This matters most in quiet-listening environments like dedicated listening rooms or bedrooms, and it is a differentiator that justifies the Director series' positioning above entry-level architectural speakers.

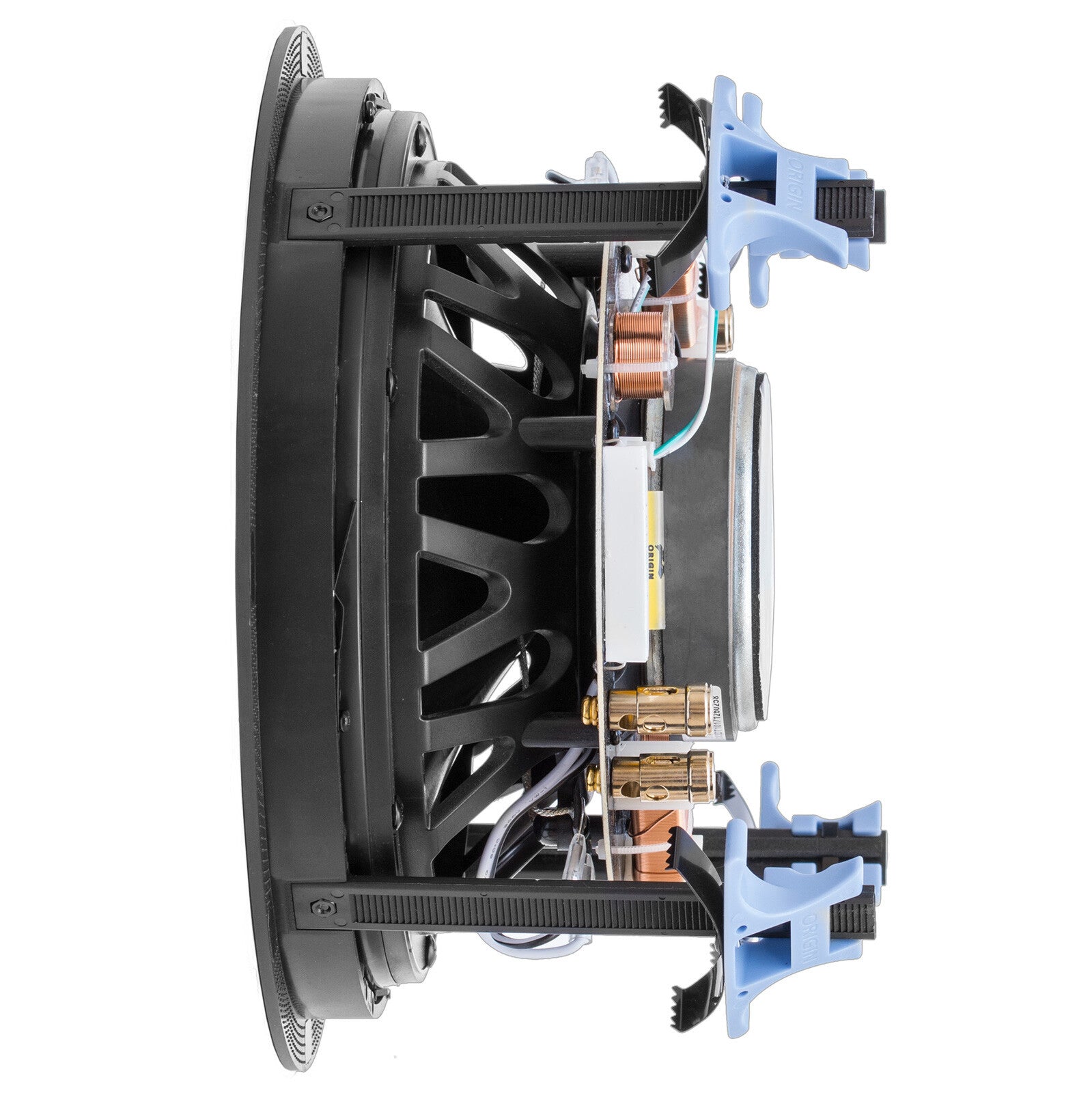

Tool-Less Spring-Clip Mounting System

The Director series uses spring-loaded retention clips that engage automatically as the speaker is pressed into the cutout — no screwdriver required once the speaker is positioned. Multiple contact points distribute the load more evenly around the cutout edge than conventional dog-leg brackets, which helps prevent ceiling material from cracking or deforming over time and reduces vibration transfer from the speaker body into the ceiling structure. For installers, this means faster fit-out on multi-room jobs and cleaner work in finished ceilings where tool access is awkward. The 8.75" cutout diameter and 3.99" mounting depth are compatible with standard timber-joist and light steel-frame ceiling cavities.

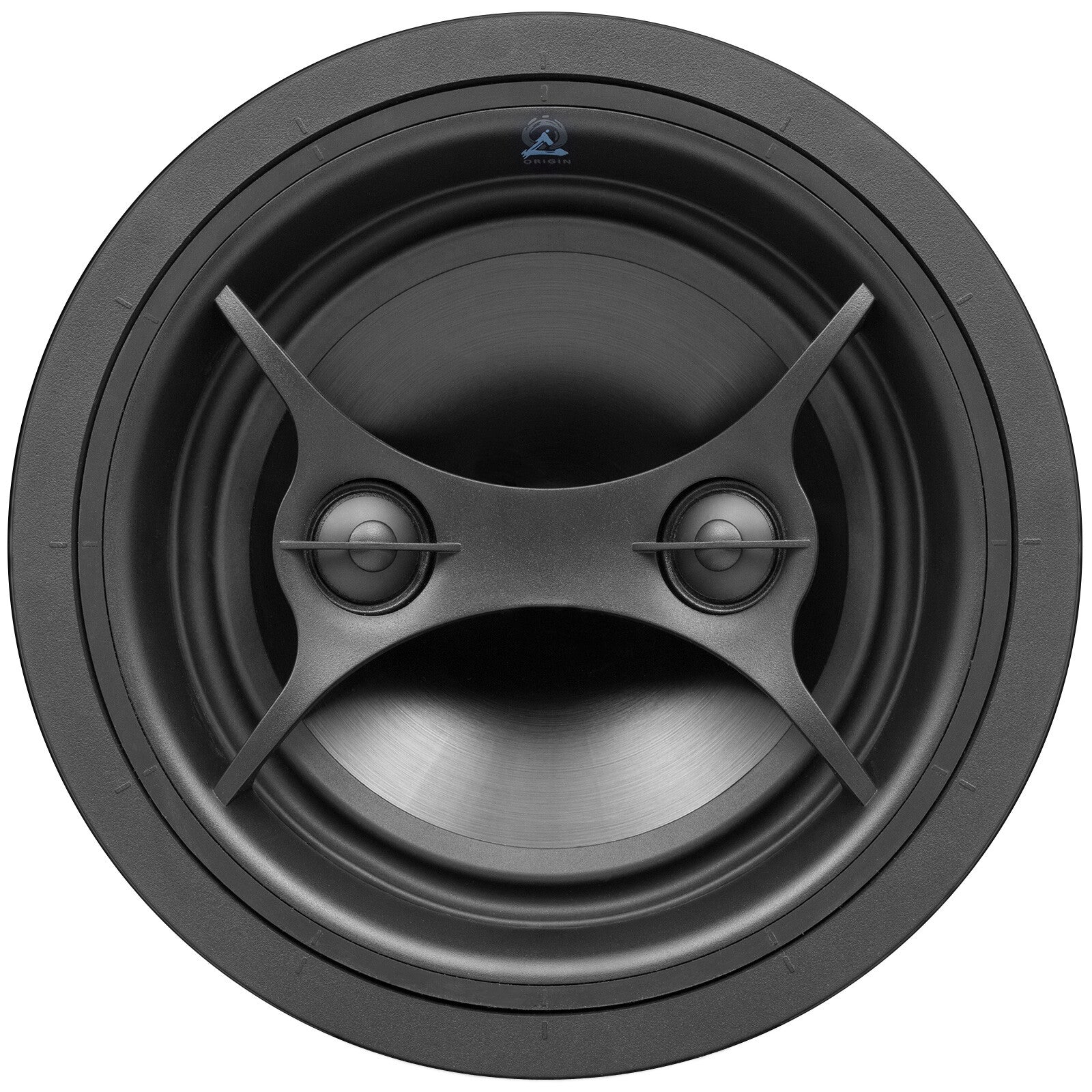

Paintable Magnetic Micro-Bezel Grille

The grille attaches and detaches magnetically with no visible fixings, which means it can be removed for painting to match any ceiling colour and re-seated perfectly without screw holes or clip marks. The perforated grille covers the entire speaker opening and the micro-bezel profile keeps the visible frame as small as possible — ideal for high-specification residential projects where interior designers require flush, near-invisible speaker placement. The magnetic retention also makes future access for inspection or adjustment quick and clean, without risk of surface damage from repeated removal.
