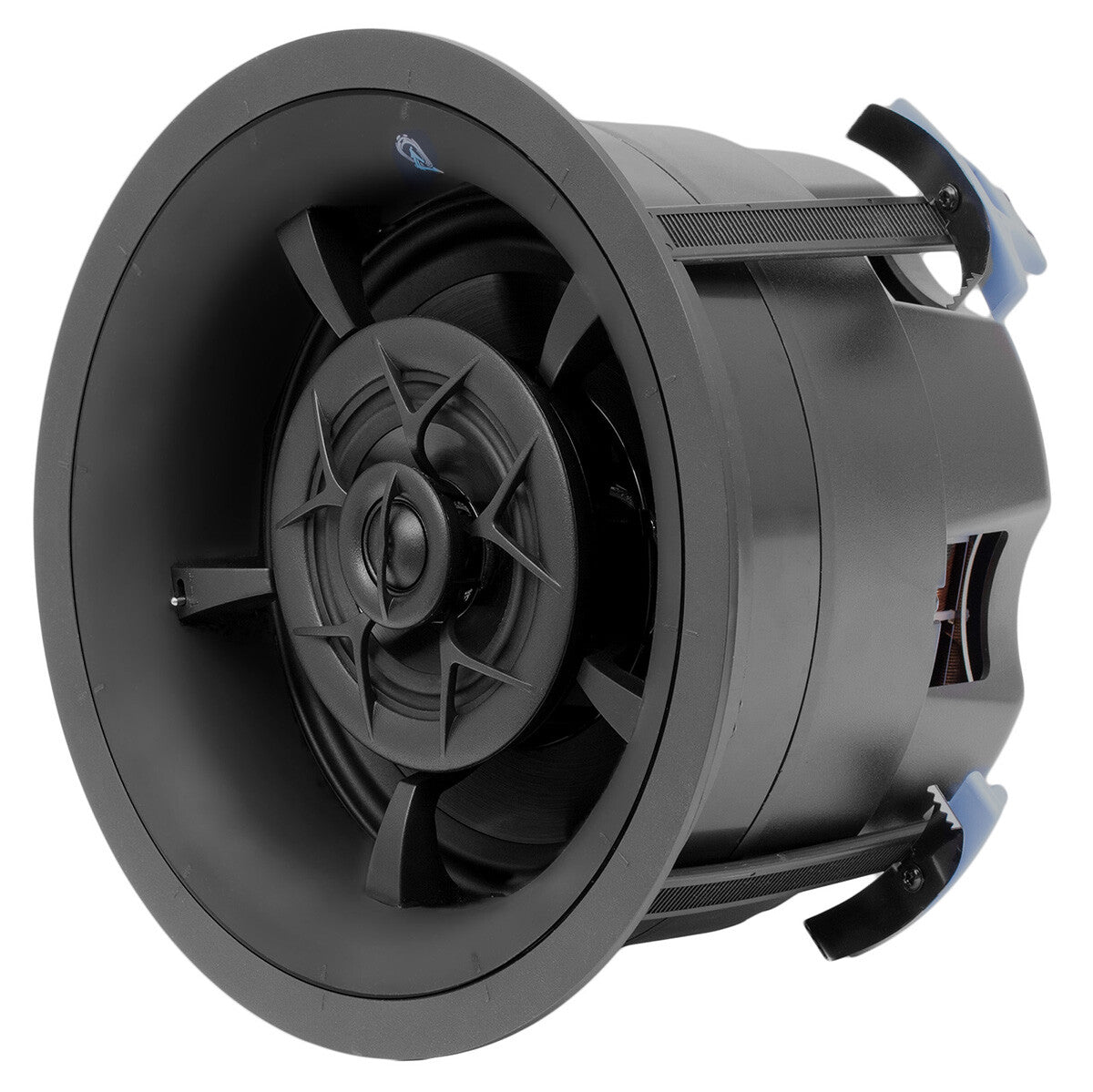

Origin Acoustics D87

The Origin Acoustics Director D87 is a flagship-tier 3-way in-ceiling loudspeaker from the Director Collection, designed for integrators who need exceptional sound performance in an architecturally discreet package. It targets high-end residential whole-home audio, dedicated listening rooms, home theatre surrounds, and any project where acoustic excellence and ceiling aesthetics must coexist. Featuring an 8-inch woven glass fiber woofer and matching 4-inch glass fiber midrange, paired with Origin's patented DPSD silk tweeter and a fully pivoting Tri-Linear Configuration, the D87 delivers deep, accurate bass and precise stereo imaging from a ceiling aperture no larger than a typical 6-inch competitor speaker. Its tool-less Zip-Klip bayonet mounting system and magnetic paintable grille make installation fast, clean, and virtually invisible.

Tri-Linear Configuration: Fully Pivoting 3-Way Design

The D87 uses Origin Acoustics' Tri-Linear Configuration (TLC) — a stacked, 3-way driver arrangement where the 4-inch glass fiber midrange and the silk DPSD tweeter form a combined module that pivots independently of the woofer. This 360-degree aimable mid-tweeter assembly lets the installer direct high and mid frequencies precisely at the primary listening area, which is critical when speakers cannot be placed directly above the listening position — a common real-world constraint. In practice, this means sound arrives at the listener from the correct angle rather than diffusing uniformly across the ceiling, producing a more natural stereo image and significantly better vocal clarity. In home theatre installations, the same pivoting capability makes the D87 equally effective as a front channel, surround, or overhead Atmos speaker depending on aim angle, giving the integrator genuine flexibility across project types.

Patented DPSD Silk Tweeter for Cleaner Highs

The Dual Plane Stabilized Diaphragm (DPSD) tweeter is an Origin Acoustics patent that fundamentally changes how the silk dome is suspended. By anchoring the suspension at both the voice-coil and the peak of the dome — rather than just the edge — the diaphragm can be crossed over at a much lower frequency than a conventional silk dome. This wider operating range means the tweeter handles more of the mid-to-high frequency transition, resulting in improved dispersion across the room and measurably lower distortion at high listening levels. For end users, the audible result is a smoother, more extended high-frequency presentation without the harshness or sibilance that lower-quality in-ceiling tweeters exhibit at elevated volumes. It is a meaningful differentiator in the premium residential segment where clients are comparing the D87 against budget alternatives with generic dome tweeters.

8-inch bass. 6-inch hole. Zero compromise.

Limited Lifetime Warranty · IPX6 Moisture Rating · Available through authorized dealers

More Bass in Less Space: Compact 8-Inch Baffle

A core engineering achievement of the Director 80 Series is fitting an 8-inch woofer into a cutout diameter of only 8 3/4 inches (222 mm) — the same ceiling footprint as many competing 6-inch speakers. A 6-inch woofer is physically incapable of reproducing the low-frequency output of an 8-inch driver; the D87 eliminates that trade-off entirely. For integrators, this matters most in retrofit projects where ceiling joists or existing conduit constrain the available cut-out diameter, or in rooms where aesthetics demand the smallest visible grille. End users enjoy genuine low-end extension down to 34 Hz without the need for a supplemental subwoofer in smaller or mid-sized rooms — a straightforward value argument that is easy to demonstrate during a sales presentation.

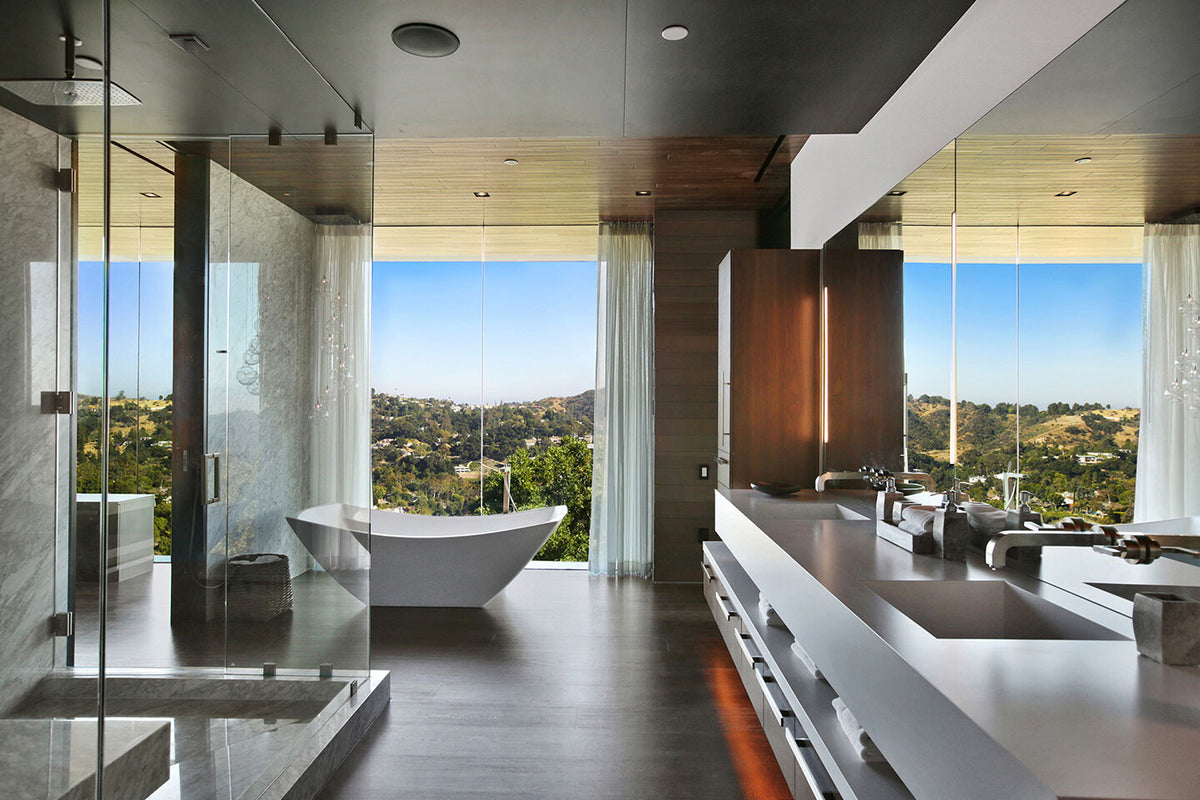

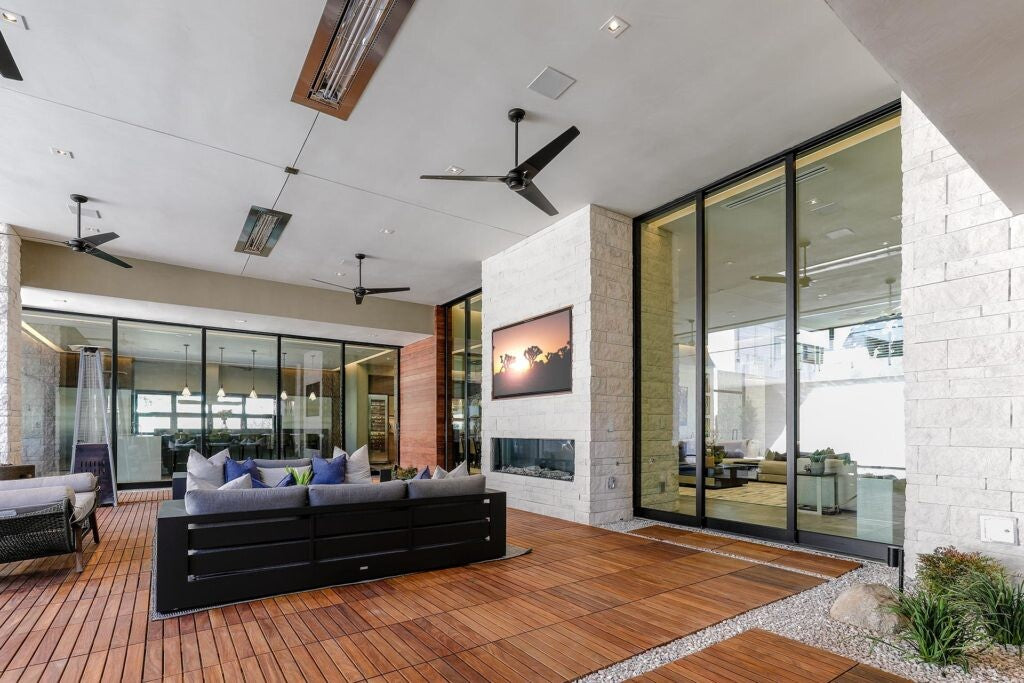

IPX6 Moisture Rating for Wet-Area Installations

The D87 carries an IPX6 moisture resistance rating, certifying it against powerful water jets from any direction. This opens the speaker to a wide range of installation environments that standard residential in-ceiling speakers cannot safely enter: bathrooms with steam showers, covered pool terraces, screened patios, spa rooms, and hospitality wet areas. For integrators, having a single premium speaker model that qualifies for both dry and wet-area applications reduces SKU complexity — the same product specified for a living room can be extended into a master bathroom without substituting a dedicated outdoor or marine model. End users benefit from consistent sound quality and aesthetics throughout the entire home rather than a visible downgrade in moisture-prone spaces.

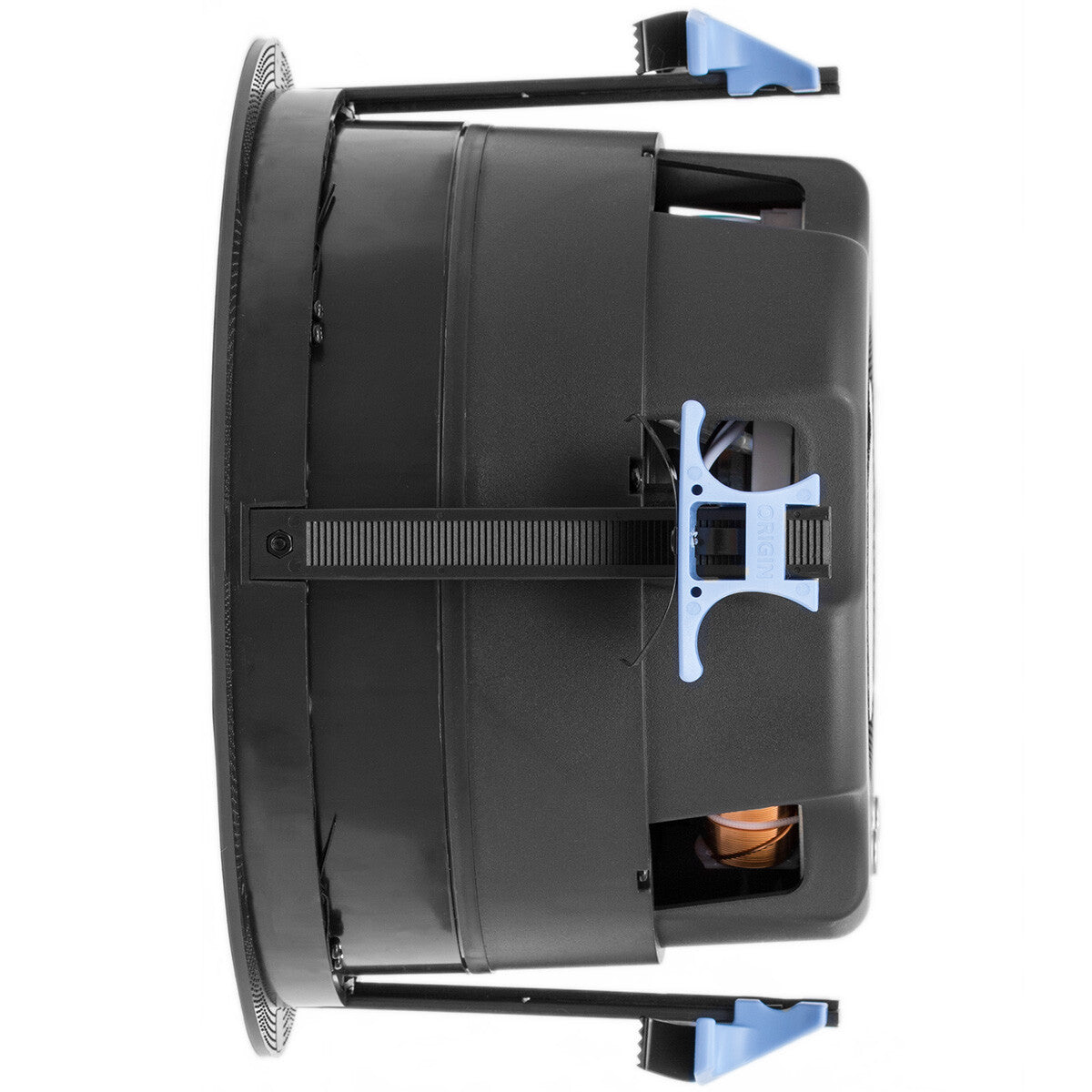

Tool-Less Zip-Klip Bayonet Mounting System

The Director Collection's proprietary Zip-Klip bayonet mounting system (Patent #9591390) eliminates screwdrivers entirely from the installation process. The Bayonet Ring is inserted into the cut-out and secured by pulling spring-loaded Zip-Klip grips down along internal rails until they clamp firmly against the drywall. The speaker itself then drops into the ring and locks with a 15-degree clockwise twist. This multi-point contact distributes clamping force more evenly than traditional dog-leg clips, reducing the risk of ceiling damage over time and minimising mechanical vibration transfer into the ceiling structure. For busy integration teams, the speed benefit is real: no drilling, no tightening, and no risk of over-torquing. The magnetic grille snaps on last, and replacement or repositioning of the speaker body — without disturbing the ring — is equally quick if post-installation adjustments are needed.

X-Wave Woofer Surround for Lower Distortion

When a woofer cone reaches its maximum excursion and abruptly stops, residual energy propagates back up the cone surface as standing waves — a well-documented source of coloration and distortion at high output levels. The D87's X-Wave surround uses a progressively stiffening profile that absorbs this energy before it can reflect, effectively damping cone breakup at the limits of travel. Combined with the compression-molded woofer basket — which is both dimensionally stable and acoustically inert — the result is a woofer that stays controlled under dynamic music content at realistic listening volumes. For end users playing back demanding program material (live music, cinematic soundtracks, bass-heavy genres), the D87 maintains composure where simpler designs become audibly stressed.

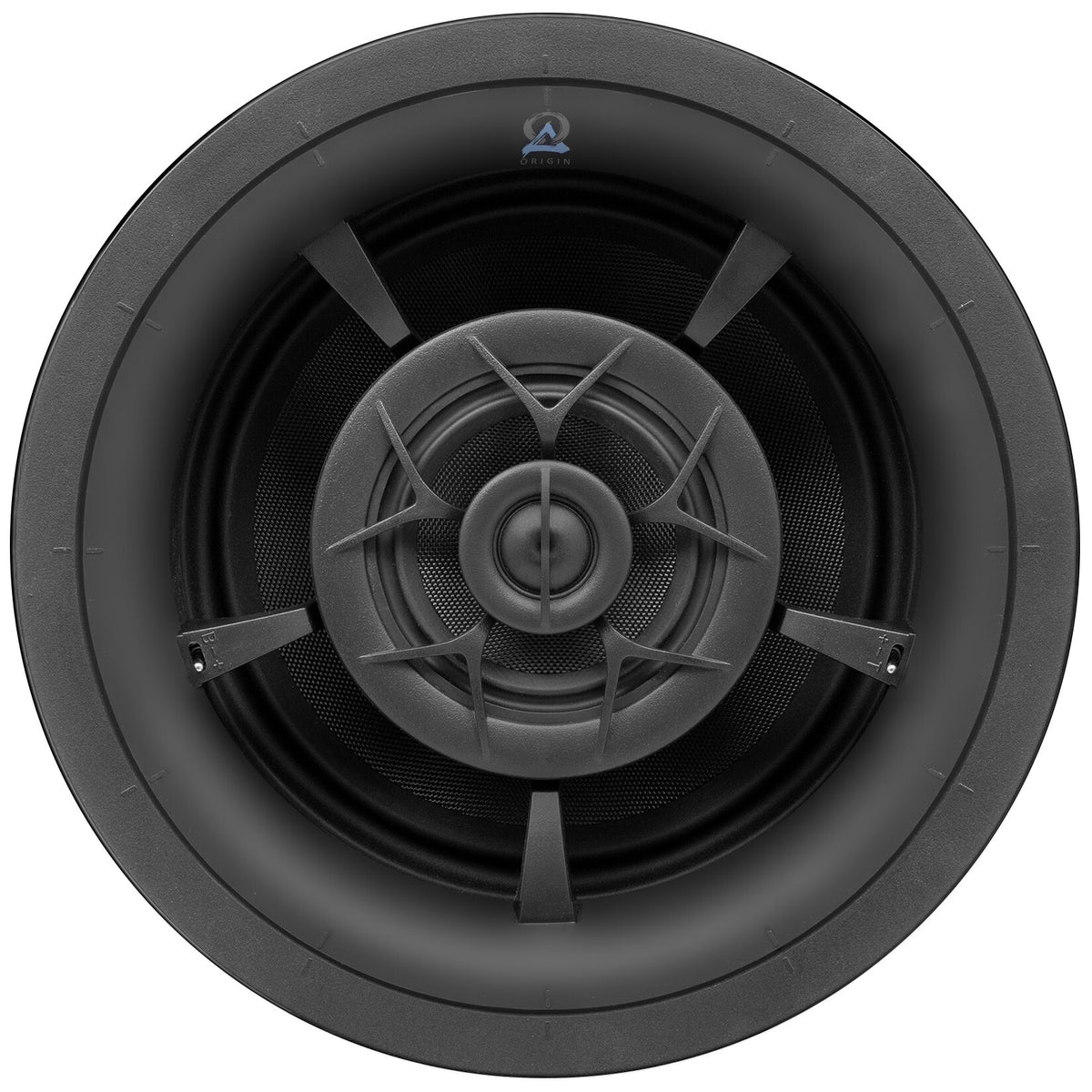

Paintable Magnetic Grille with Micro Bezel

The perforated grille attaches magnetically and features a micro bezel that keeps the visible ceiling footprint minimal. It is designed to be spray-painted to match any ceiling or trim colour — the cloth backing is removable for painting, then replaced before installation to preserve acoustic transparency. Square grille variants are also available separately for design environments where a round grille would be inconsistent with the room's geometry. For interior designers and discerning residential clients, the ability to make the speaker effectively disappear into the ceiling finish is frequently a deciding factor. The magnetic snap-on-off mechanism also means the grille can be removed and re-painted if the room is redecorated, without disturbing the installed speaker.
