Origin Acoustics D89

The Origin Acoustics Director D89 is the flagship model of the 8-inch Director Collection — a fully pivoting 3-way in-ceiling loudspeaker engineered for residential home theater, dedicated listening rooms, and high-end multi-room audio installations. Combining an 8-inch Kevlar woofer, a 4-inch Kevlar midrange, and a patented 1-inch Silk DPSD tweeter in the brand's Tri-Linear Configuration, the D89 delivers a wide 30 Hz–20 kHz frequency range with 92 dB sensitivity. It is designed to fit an 8.75-inch cutout — the same opening used by competing 6-inch models — making it ideal for retrofits and aesthetics-conscious builds where maximum bass output must coexist with minimal ceiling disruption.

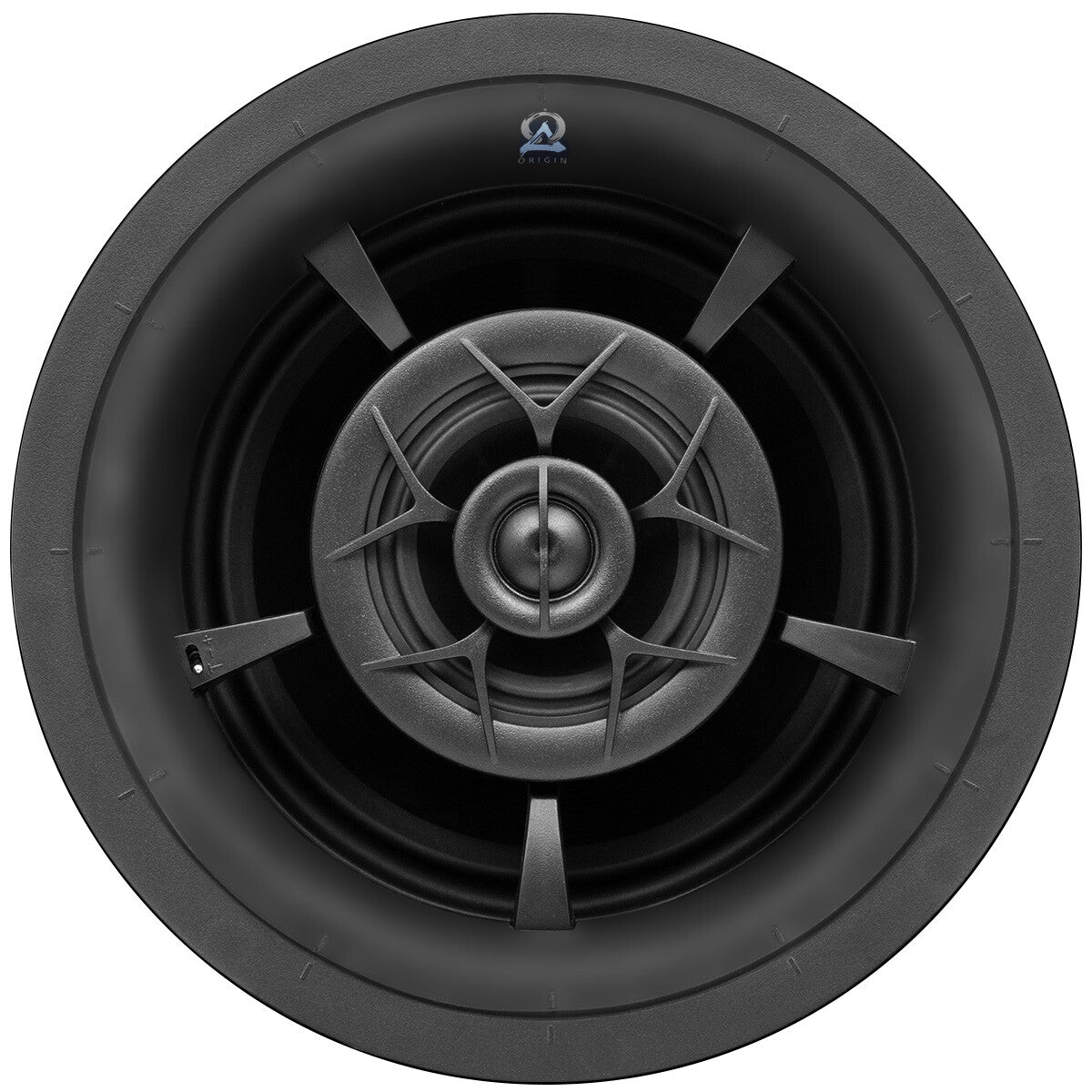

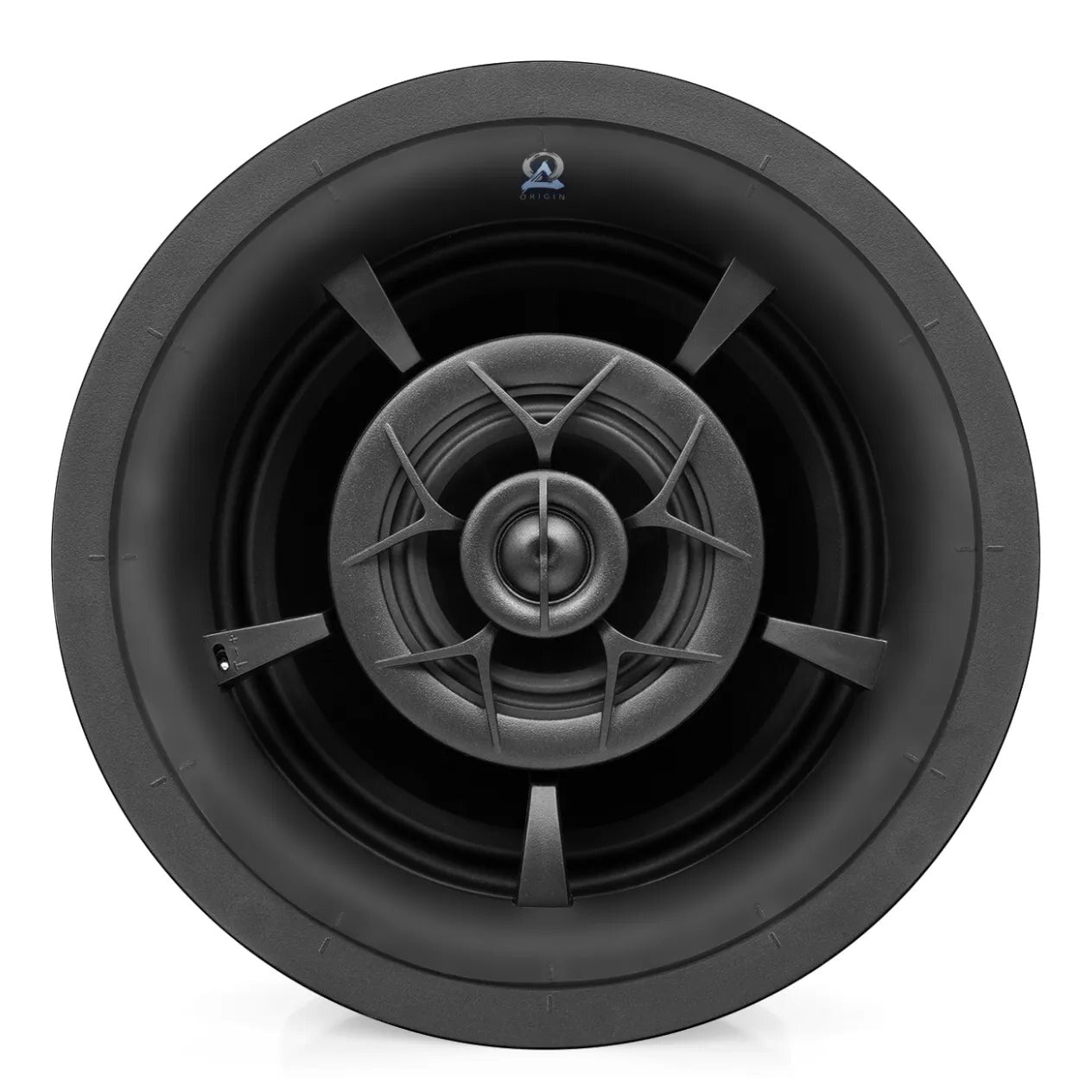

Tri-Linear Configuration (TLC) with Full Pivot

The D89's Tri-Linear Configuration stacks all three drivers — woofer, midrange and tweeter — in a single, elegantly aligned assembly, with the mid-tweeter module able to pivot freely in two planes. This means the high-frequency energy can be aimed directly at the listening position regardless of where in the room the speaker sits. In open-plan spaces, off-center furniture layouts, or rooms where the sweet spot simply can't be directly beneath the speaker, the result is dramatically better stereo imaging and dialogue intelligibility compared to fixed-driver alternatives. For a home theater or dedicated listening room, this is the difference between a system that sounds 'like it comes from the ceiling' and one that genuinely sounds like a front-stage loudspeaker.

Patented DPSD Silk Tweeter

The Dual Plane Stabilized Diaphragm (DPSD) tweeter is an Origin Acoustics patent that attaches the suspension at both the voice-coil and the peak of the silk dome. This dual-anchor design prevents the diaphragm from flexing unevenly under excursion, which means it can be crossed over at a lower frequency than a conventional dome tweeter — extending the tweeter's useful range and reducing the burden on the midrange driver at the crossover point. The practical outcome for the listener is noticeably cleaner high frequencies, higher maximum output before distortion becomes audible, and smoother overall tonal balance. In critical listening applications — music, film soundtracks, dialogue — this precision pays dividends across the entire listening session.

8-inch bass. 6-inch footprint. Zero compromise.

SKU: SCD89000 · Part of the Origin Acoustics Director Collection

8-Inch Bass in a 6-Inch Cutout

The D89 requires an 8.75-inch (222 mm) ceiling cutout — the same opening that many competing brands use for their 6-inch speakers. Despite this compact footprint, it houses a long-throw 8-inch Kevlar woofer capable of reaching down to 30 Hz. For integrators working on renovations or ceiling-tile environments where making a larger hole is disruptive or impossible, this means clients do not have to choose between bass depth and aesthetics. The speaker delivers genuine low-frequency extension — rare at this cutout size — without requiring structural ceiling modifications or supplementary subwoofers in smaller rooms.

X-Wave Woofer Surround

When a woofer cone reaches the end of its travel and comes to a sudden stop, reflected energy ripples back through the cone as unwanted distortion — audible as harshness or muddiness on transient-heavy material. Origin Acoustics' proprietary X-Wave surround progressively absorbs this impact rather than letting it rebound, acting as a mechanical damper at the cone's outer edge. The result is measurably lower distortion at high excursion levels and a cleaner, more natural bass character even when the speaker is pushed hard. For installers specifying speakers for rooms where content ranges from background music to movie soundtracks at elevated volumes, this resilience is directly relevant to long-term customer satisfaction.

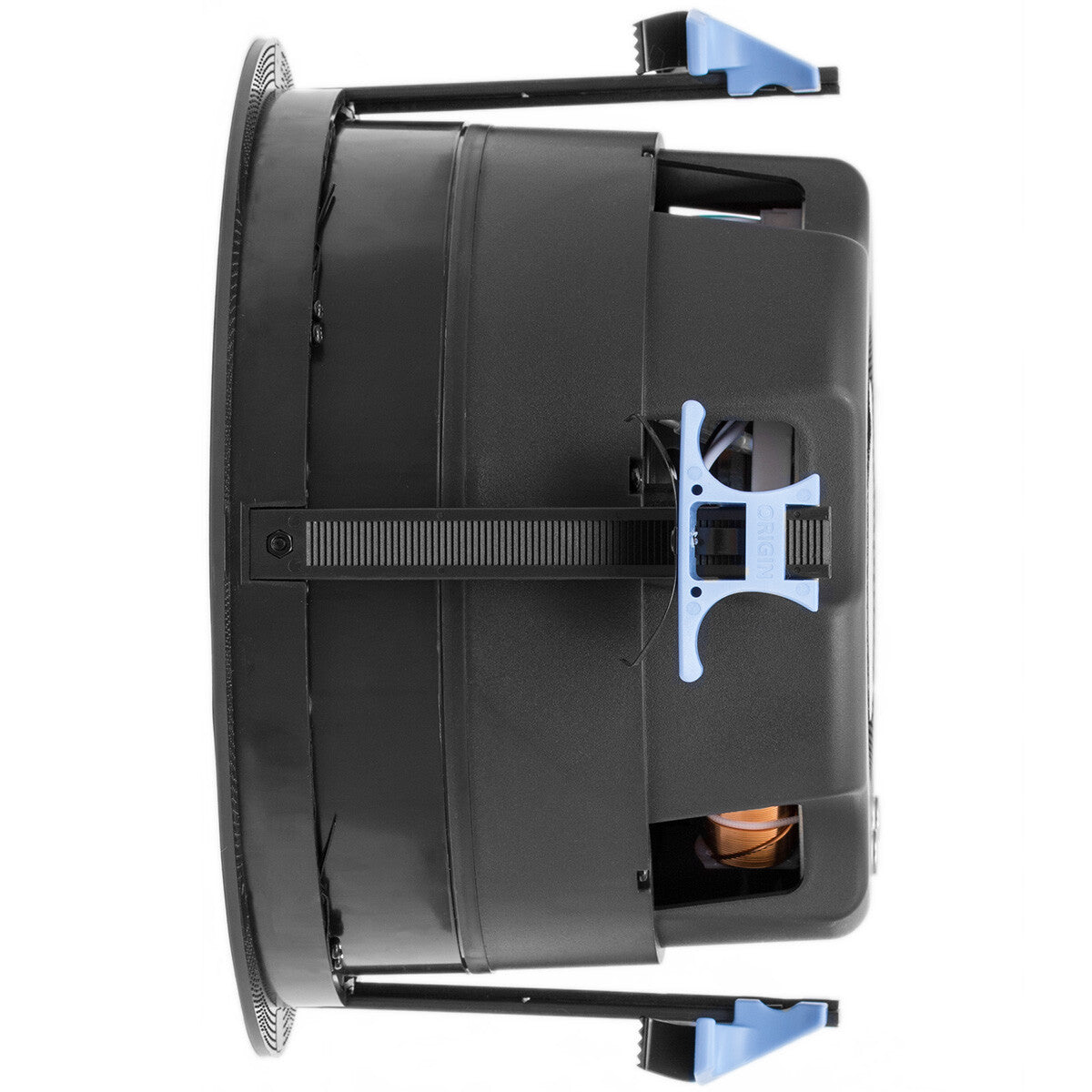

Tool-Less Spring-Clip Mounting System

The Director Collection's tool-less mounting system uses spring-loaded clips with multiple contact points that engage the ceiling material without needing a screwdriver or any dedicated installation tool beyond the speaker itself. The multi-point contact distributes clamping force more evenly than traditional single dog-leg designs, which reduces vibration transfer from the speaker basket into the ceiling structure — a common source of low-level buzz in installations with drywall ceilings. Practically, this shortens installation time on large multi-room projects and makes future servicing or repositioning far less disruptive. The speaker drops in, locks, and connects; the magnetic grille clips on last without tools.

Bass and Treble EQ Adjustment

The D89 (along with the D87) includes onboard bass and treble EQ adjustment switches, allowing the installer to tune the speaker's frequency response to the room's acoustics after installation. This is particularly useful in rooms with highly variable acoustic conditions — heavy furnishings that absorb high frequencies, hard tile floors that emphasize bass, or listening positions that are close to a wall boundary. Being able to compensate at the speaker level eliminates the need for additional DSP hardware in straightforward installations and gives the integrator a practical finishing tool during commissioning, without requiring a return visit or third-party equalizer.
