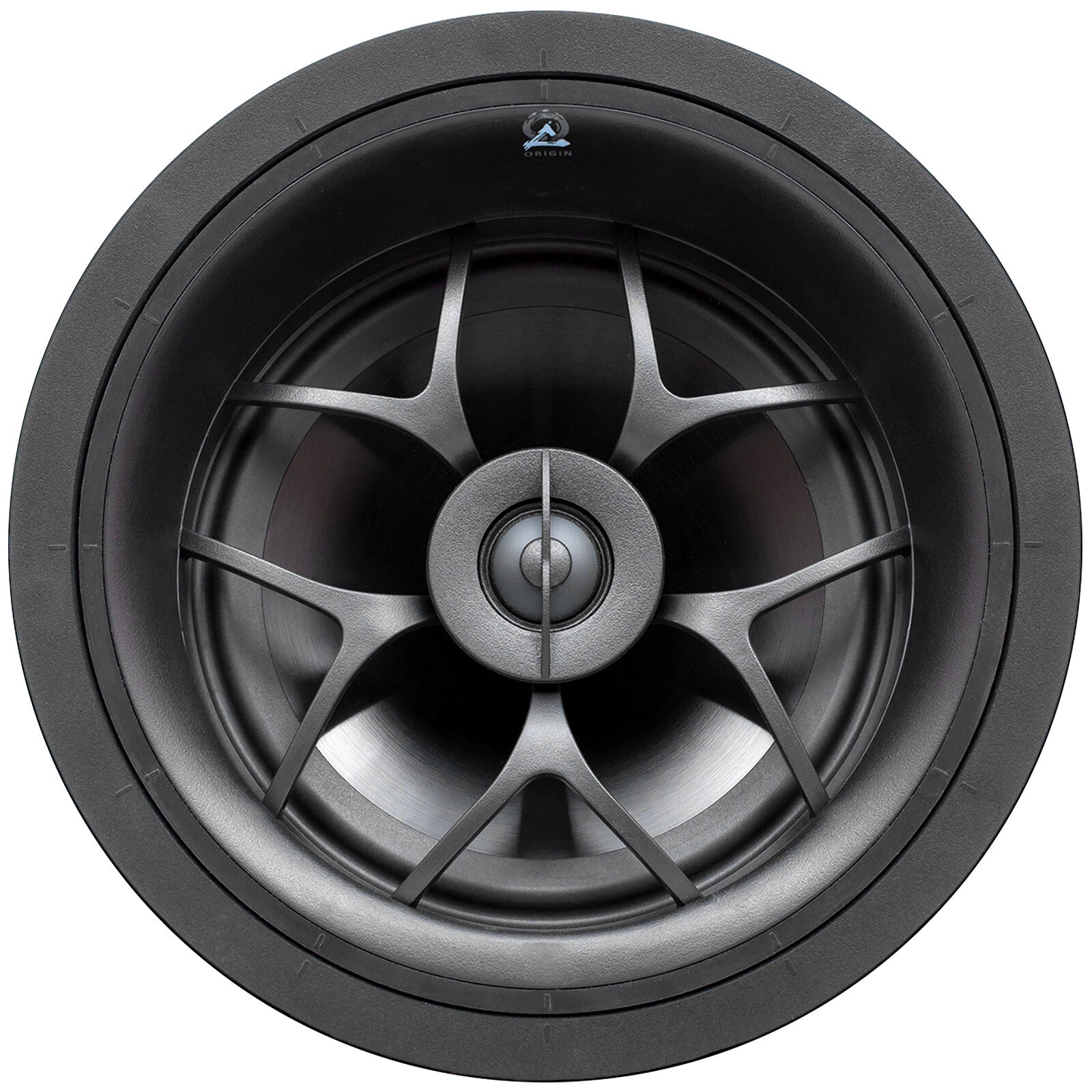

Origin Acoustics D83A

The Origin Acoustics Director D83A is an 8-inch two-way in-ceiling loudspeaker engineered specifically for installations near walls, where conventional speakers suffer from imaging problems. Its pre-angled woofer redirects sound away from reflective surfaces so the listener hears properly focused, directional audio regardless of placement. Built for custom integrators, the D83A combines an IMG woofer and a pivoting aluminum dome tweeter in a compact footprint that fits a standard 6-inch ceiling cut-out — delivering genuine 8-inch bass with minimal ceiling intrusion. An IPX6 weatherproof rating extends its versatility to covered outdoor and humid indoor zones, while a magnetic paintable grille and tool-less spring-clip mounting keep installation clean and fast.

Pre-Angled Woofer for Wall-Adjacent Installs

The D83A's defining engineering choice is its pre-angled woofer, which physically tilts the driver toward the listening position rather than firing straight down. In standard in-ceiling speakers, placement close to a wall causes the direct sound to bounce off the wall before reaching the listener, blurring stereo imaging and muddying dialogue. The angled woofer bypasses this problem entirely — sound is directed toward the seating area from the moment it leaves the driver. For installers, this means confident speaker placement in architecturally constrained rooms (hallways, alcoves, near feature walls) without acoustic compromises or the need for costly acoustic treatment. The end result is naturally focused, precise sound wherever the listener is seated.

8-Inch Performance in a 6-Inch Cutout

Origin Acoustics has engineered the D83A's 8-inch driver into a chassis that requires only an 8.75-inch (222 mm) ceiling cutout — comparable to competitors' 6-inch models. This is a meaningful practical advantage: retrofits into ceilings with existing 6-inch cutouts become viable, and new installs avoid the structural disruption of large-diameter holes. Despite the compact opening, the 8-inch IMG woofer delivers genuine bass extension down to 38 Hz — well below what a true 6-inch driver can produce. Customers in rooms where low-frequency impact matters (home cinema rows, open-plan living areas) get full-range sound with no trade-off on ceiling aesthetics or structural integrity.

8-inch bass. 6-inch cutout. Near-wall imaging solved.

IPX6 weatherproof · Tool-less installation · Director Collection

Compression-Molded IMG Woofer with X-Wave Surround

The woofer basket is compression-molded — a manufacturing process that produces a basket with exceptional dimensional stability and acoustic neutrality, so the basket itself does not add coloration to the audio signal. The surround uses Origin's X-Wave technology: instead of a conventional surround that abruptly stops cone movement at its limit of travel, the X-Wave design progressively absorbs the impact, damping the ripple waves that would otherwise travel back up the cone and introduce distortion. Together these two technologies produce a woofer that remains clean and controlled at high output levels — important in larger rooms or where the speaker is driven hard by a powerful amplifier.

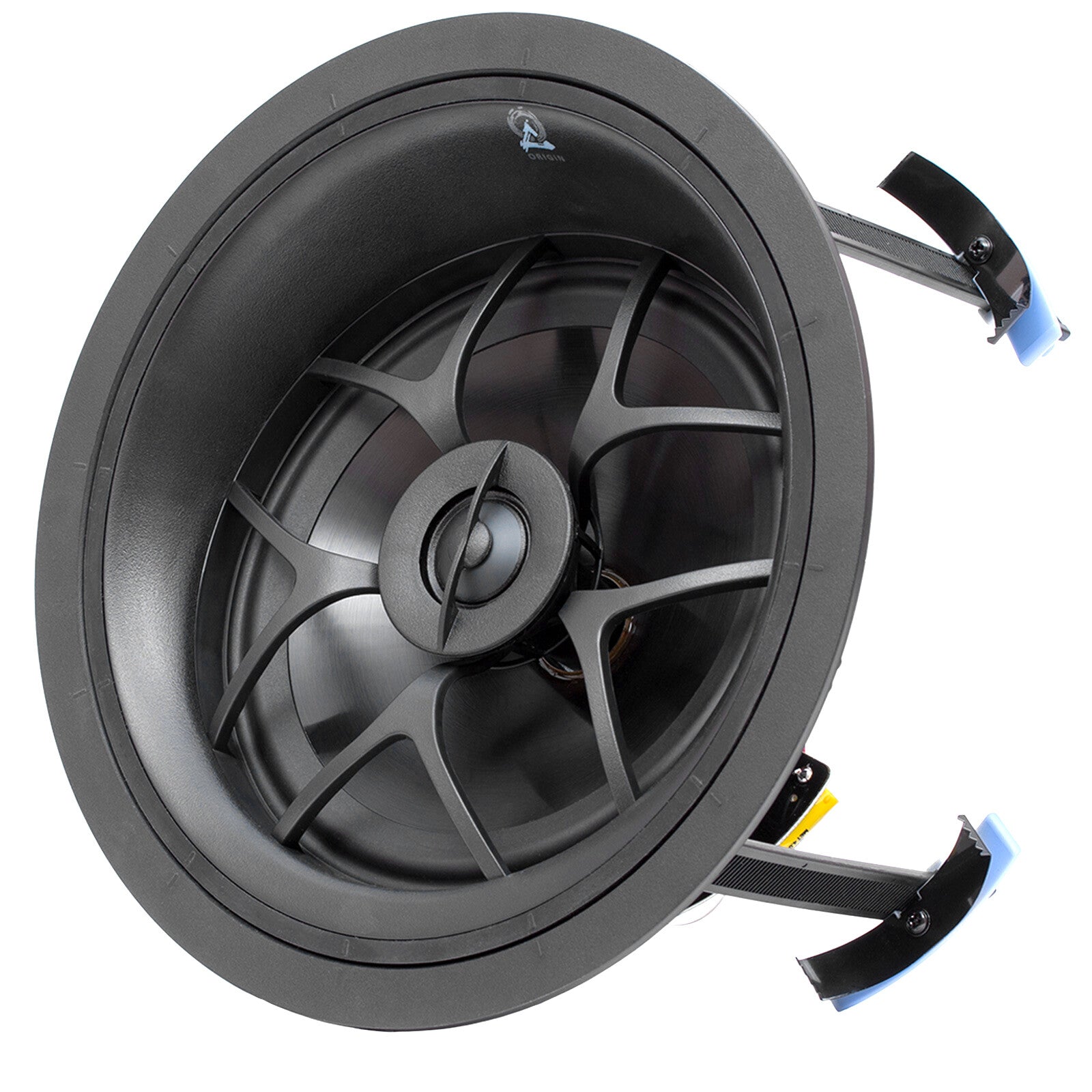

Pivoting Aluminum Dome Tweeter

The 1-inch aluminum dome tweeter is mounted on a pivoting mechanism, allowing the installer to physically aim the high-frequency output independently of where the speaker sits in the ceiling. This is especially useful in rooms with asymmetric seating or raked ceilings, where a fixed tweeter would direct high frequencies away from listening positions. Aluminum dome tweeters are valued for their stiff, lightweight diaphragm that tracks transient audio signals accurately with low distortion — delivering crisp, detailed high-frequency reproduction that remains consistent across the listening area. Installers can fine-tune the aim during commissioning without reopening the ceiling.

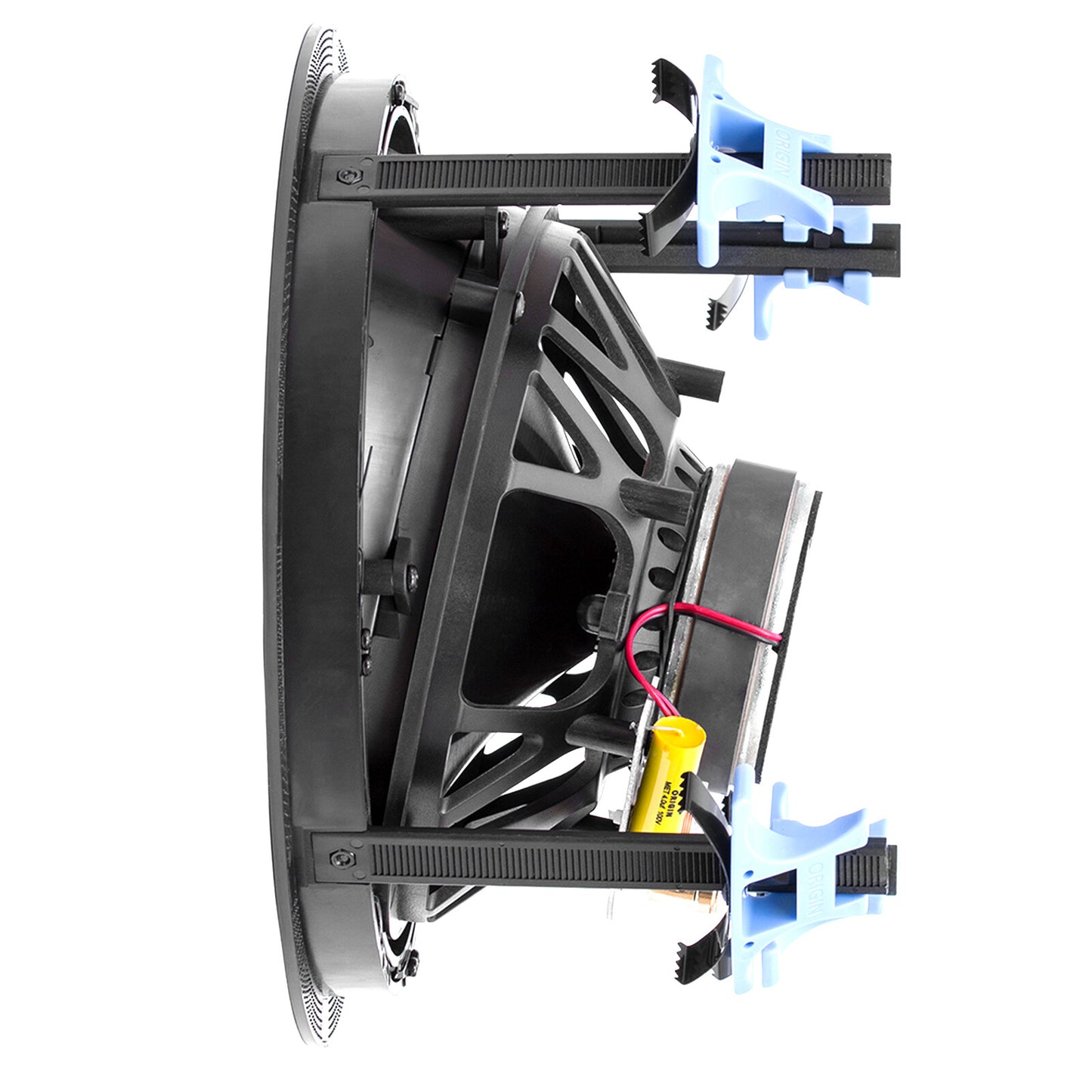

Tool-Less Spring-Clip Mounting System

Origin Acoustics' tool-less mounting relies on spring-loaded clips with multiple contact points around the speaker backcan. Unlike traditional dog-leg clips that concentrate force at two points, multi-point spring clips spread the clamping load evenly across the ceiling cutout edge. This protects plasterboard from stress fractures over time and reduces the transmission of vibration from the speaker into the ceiling structure — meaning less audible buzzing or rattling in adjacent rooms. Installation is entirely handwork: no screwdrivers, no drill, no risk of over-tightening. For dealers servicing multiple units in a single session, the time saving is significant.

IPX6 Weatherproof Rating

The D83A carries an IPX6 weatherproof rating, meaning it is protected against powerful water jets from any direction — a standard well beyond what typical residential in-ceiling speakers achieve. This opens the speaker to covered outdoor ceilings (pergolas, verandas, carport ceilings), bathrooms, wet-area spas, and commercial kitchens where humidity and splashback are unavoidable. Installers do not need to stock a separate outdoor model for these zones; the D83A covers both interior and sheltered exterior use from a single SKU, simplifying procurement and installation planning.

Magnetic Paintable Grille with Micro Bezel

The included perforated grille features a micro bezel profile and attaches magnetically — no visible fixings, no screw holes in the ceiling, no tools required for removal. The grille can be painted to match any ceiling colour, making the speaker effectively invisible once installed. The magnetic system means the grille can be removed and reattached in seconds for speaker servicing or re-aiming the tweeter post-install, without marking or damaging the ceiling surface. For interior designers and high-end residential clients where aesthetics are as important as performance, this level of finish integration removes one of the common objections to in-ceiling audio.
