Origin Acoustics D57

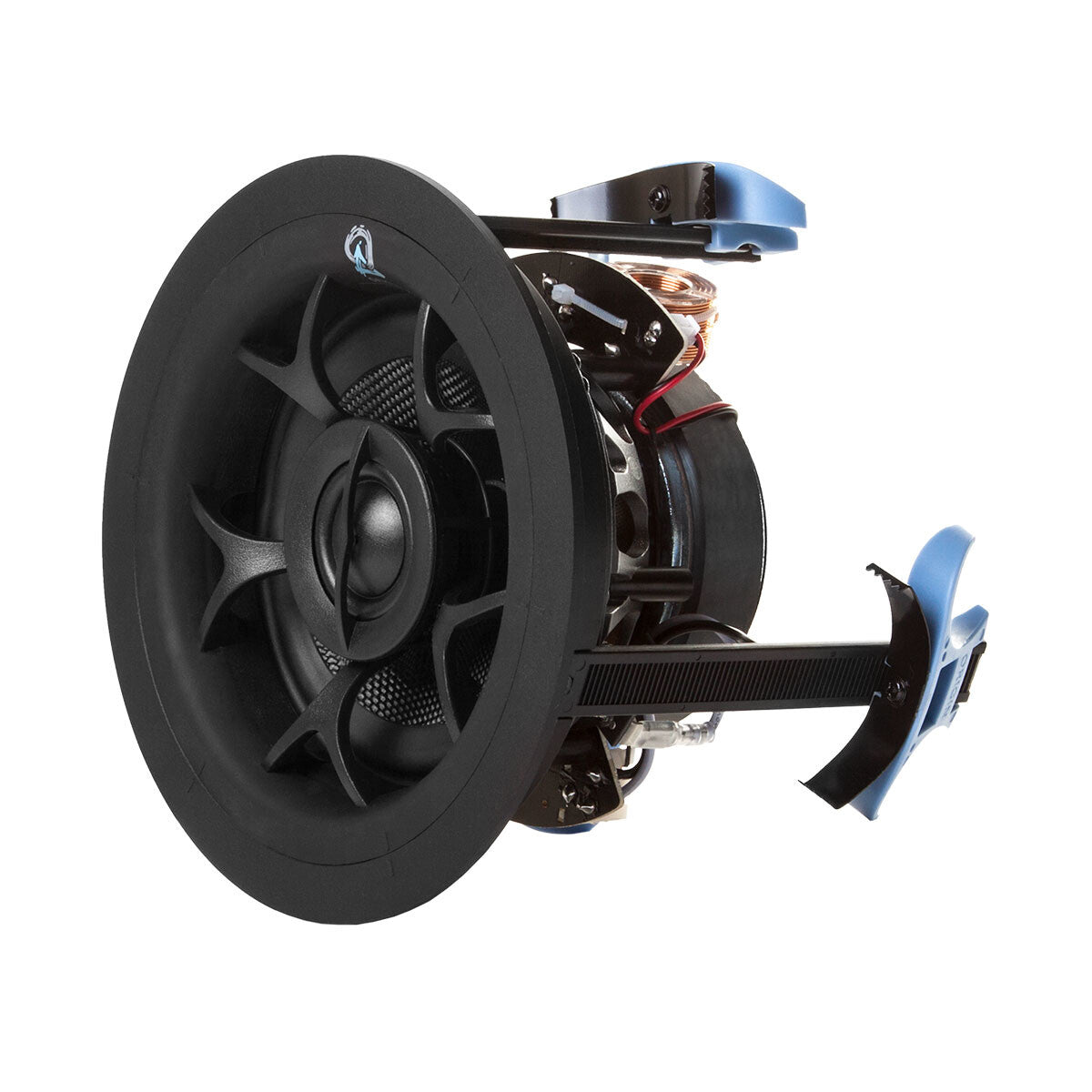

The Origin Acoustics Director D57 is a premium 5-inch in-ceiling loudspeaker from the Director Collection, engineered for integrators and custom installers who demand both sonic performance and installation efficiency. Designed to align aesthetically with 5-inch recessed can lights, it is ideal for whole-home audio distribution, multi-room music systems, and home theater front or surround applications. The D57 combines a woven glass fiber woofer, a patented Silk DPSD pivoting tweeter, and a tool-less Zip-Klip bayonet mounting system — producing clear, well-defined sound while minimizing installation time on every job.

Patented DPSD Tweeter for Superior Highs

The D57 features Origin Acoustics' proprietary Dual Plane Stabilized Diaphragm (DPSD) tweeter — a patented design that attaches the suspension at both the voice-coil and the peak of the dome. This allows the driver to cross over at a significantly lower frequency than a conventional tweeter, which widens the transition zone between woofer and tweeter and reduces the harmonic distortion that typically occurs in that range. The result is improved high-frequency dispersion and noticeably increased loudness without harshness. In practice, listeners benefit from an open, airy top end that resolves fine detail in vocals and acoustic instruments — qualities that matter in demanding home cinema or audiophile music installations where sonic accuracy is non-negotiable.

360-Degree Aimable MMP Tweeter

The 1-inch Silk DPSD tweeter on the D57 is mounted on Origin Acoustics' Multi-Motion Pivot (MMP) system, allowing it to be physically aimed in any direction through a full 360-degree sweep after installation. This is a critical practical advantage in rooms where ceiling placement cannot always be perfectly centred above the listening area — a common real-world constraint in retrofit projects. Rather than compromising by splitting the difference, the installer can direct the high-frequency energy precisely at the primary seating position. End users experience sharper stereo imaging, better vocal presence, and more consistent coverage across asymmetric room layouts — without requiring repositioning of the speaker itself.

Big sound. Small footprint. Zero tools needed.

Limited Lifetime Warranty · Authorized dealer purchase required

Tool-Less Zip-Klip Bayonet Installation

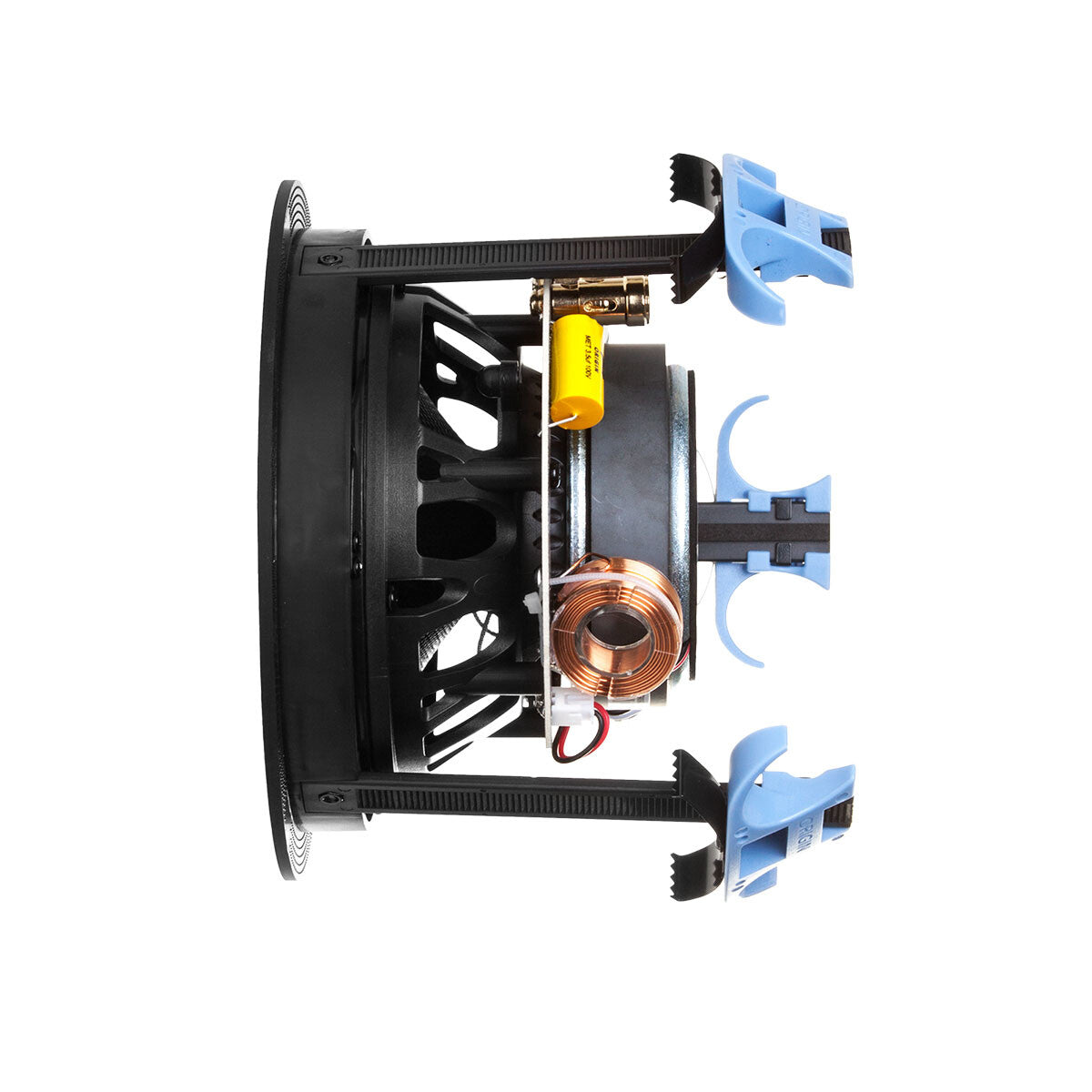

The Director Collection's patented Zip-Klip bayonet mounting system (Patent #9591390) eliminates the need for a screwdriver during installation. The bayonet ring is inserted into the ceiling cutout, the spring-loaded Zip-Klip grips are pulled down to clamp the drywall, and the speaker body is twisted 15 degrees clockwise to lock into place — no tools required at any stage. The spring-loaded grips make contact with the ceiling at multiple points, distributing clamping force more evenly than traditional dog-leg clips. This protects the drywall from cracking and reduces mechanical vibration transfer from the speaker basket into the ceiling structure. For integrators running large multi-room installations, the cumulative time savings across dozens of speakers are significant, and the reduced risk of callback due to loose or vibrating speakers translates directly into lower service costs.

Minimal Opening Design — Matches 5" Can Lights

The D57 requires only a 5-7-8 inch (150 mm) ceiling cutout, making it part of Origin Acoustics' Minimal Opening Series. This is specifically engineered to align visually with the aperture of premium 5-inch architectural recessed light fixtures — a growing standard in high-end residential interiors where uniformity between lighting and audio elements is an aesthetic requirement. For architects and interior designers specifying whole-home audio, this means the speaker grid can follow the lighting layout without creating visually inconsistent hole sizes in the ceiling. End users gain a clean, coherent ceiling plane where audio and lighting appear as a single, designed system rather than an afterthought.

X-Wave Woofer Surround Reduces Distortion

When a woofer cone reaches the mechanical limit of its travel and stops abruptly, a ripple effect propagates back up the cone — introducing audible distortion at higher playback levels. Origin Acoustics' X-Wave Woofer Surround is a progressively stiffened surround geometry that absorbs this impact energy gradually rather than reflecting it back into the cone. The effect is most audible during dynamic musical peaks and movie soundtrack transients, where conventionally designed surround systems can introduce a subtle but fatiguing roughness. For integrators, this translates into a speaker that remains clean-sounding at the elevated listening levels common in home cinema environments — a meaningful differentiator when presenting the system to a critical customer.

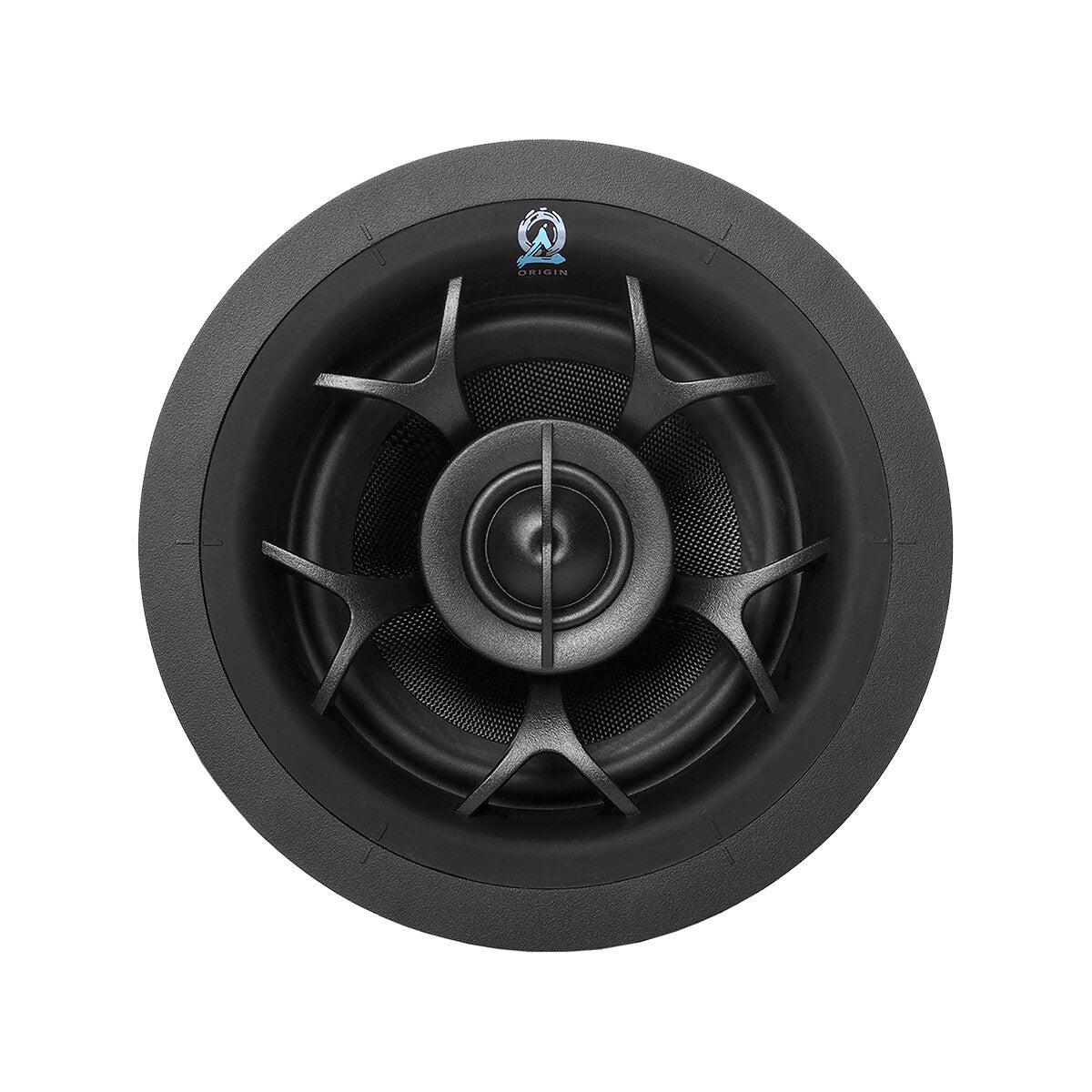

Paintable Magnetic Grille for Discreet Finish

The D57 ships with a perforated grille featuring a micro bezel — the narrowest possible visual footprint — that attaches magnetically and can be removed and refitted without tools. The grille is paintable with standard spray paint, allowing it to be colour-matched to any ceiling finish before installation. This is a practical finishing detail that removes a common source of friction in high-end residential projects: clients who want audio everywhere but do not want to see speakers. The magnetic attachment also means the grille can be removed for system servicing or tweeter repositioning at any time without leaving fastener marks or disturbing the ceiling surface.
