Audio DSP With AEC, 4-In/4-Out Analog, 4-In/4-Out Dante and USB

Audio DSP With AEC, 4-In/4-Out Analog, 4-In/4-Out Dante and USB

  • 4 analog inputs and outputs
  • 4 Dante inputs and outputs
  • USB for computer audio playback and recording
  • Powerful DSP processing with matrix and mixer
  • Advanced AEC (Acoustic Echo Cancellation)
  • External control from custom software or 3rd party control systems
  • External control from configurable PoE wall panel
  • Open API for external control via ethernet or RS-232/485
  • SKU:DSP-AEC-1010-DA
  • GTIN/EAN:
  • MPN:DSP-AEC-1010-DA
Add To Favorite

You need to login to view the price.

View full details

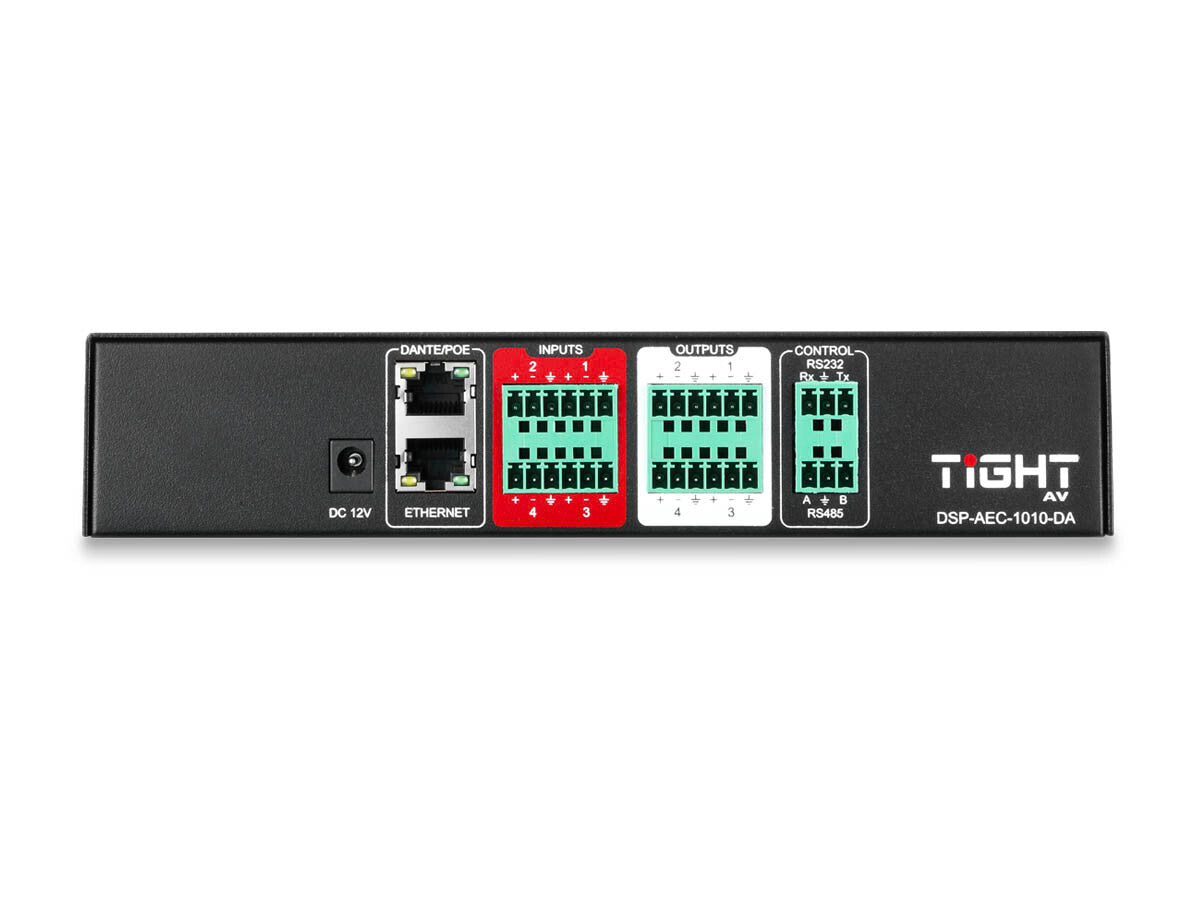

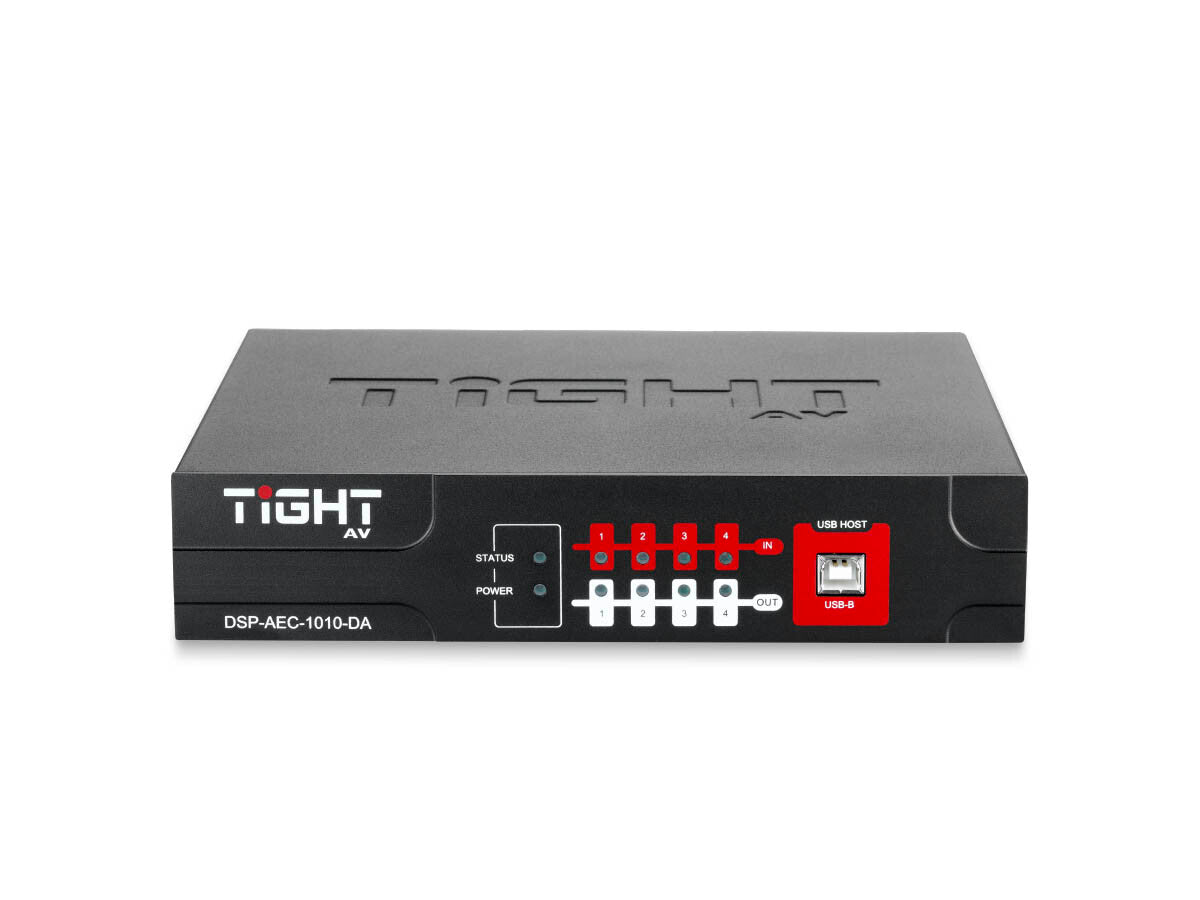

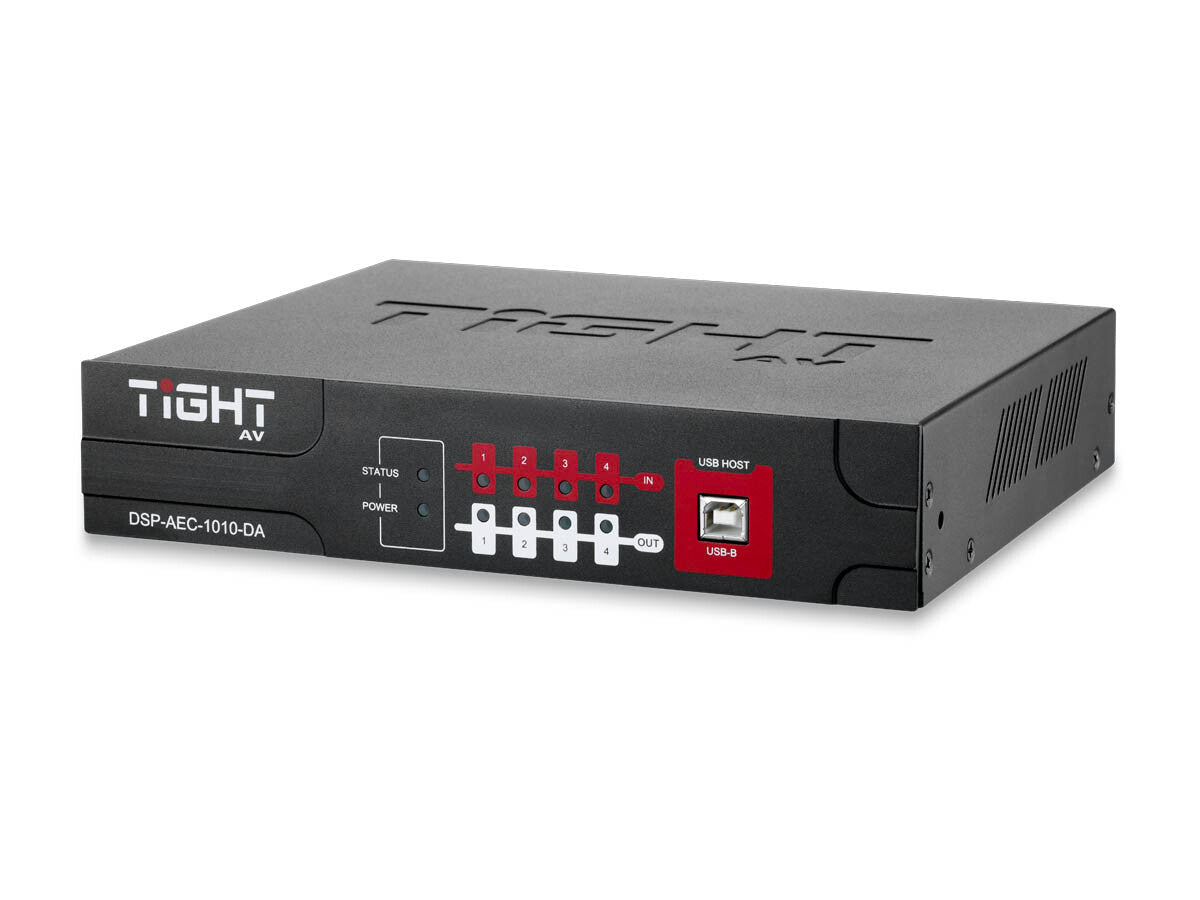

The DSP-AEC-1010-DA is an audio signal processing unit with analog and Dante interface, as well as a USB for computer audio.

The unit is configured and controlled from a Windows application that presents an easy to use GUI. Powerful processing with eq, dynamics, mixing and matrix combined with advanced acoustic echo cancellation (AEC) makes this unit suitable for a wide range of use cases.

A single network cable connected to a PoE network switch allows for both power, control and Dante audio. Analog audio inputs supports both microphone and line level sources. Phantom power is selectable individually for each channel.

USB connection to host computer works as a sound card for easy computer audio connectivity for both playback and recording.

SPECIFICATIONS

Processor

ADI SHARC 21489

Sample rate/bit depth

48kHz/24bit

Input gain steps

0/6/12/18/24/30/36/42/48dB

Phantom Power

48V

Frequency Response (20Hz~20KHz)

±0.5dB

Maximum Level

+18dBu

THD + Noise

0.003%@4dBu

Dynamic Range

110dB

Background Noise (A-weighted)

-91dB

Common Mode Rejection Ratio @60Hz

80dB

Channel Isolation @1KHz

108 dB

Input Impedance (Balanced Connection)

5.6kΩ

Output Impedance (Balanced Connection)

102Ω

System Delay

<3ms

Power Requirements

PoE or 12V

Power Adapter

AC110~240V 5Hz-60Hz, 12V DC / 2A output

Maximum Power Consumption

10W

Dimensions (Width x Depth x Height)

215 x 162 x 44mm

Shipping Weight

2 kg

Technical details
Product colour
Black
Weight & dimensions
Weight
1.50 kg
Height
44 mm
Depth
162 mm
Width
215 mm
Packaging data
Quantity
1
