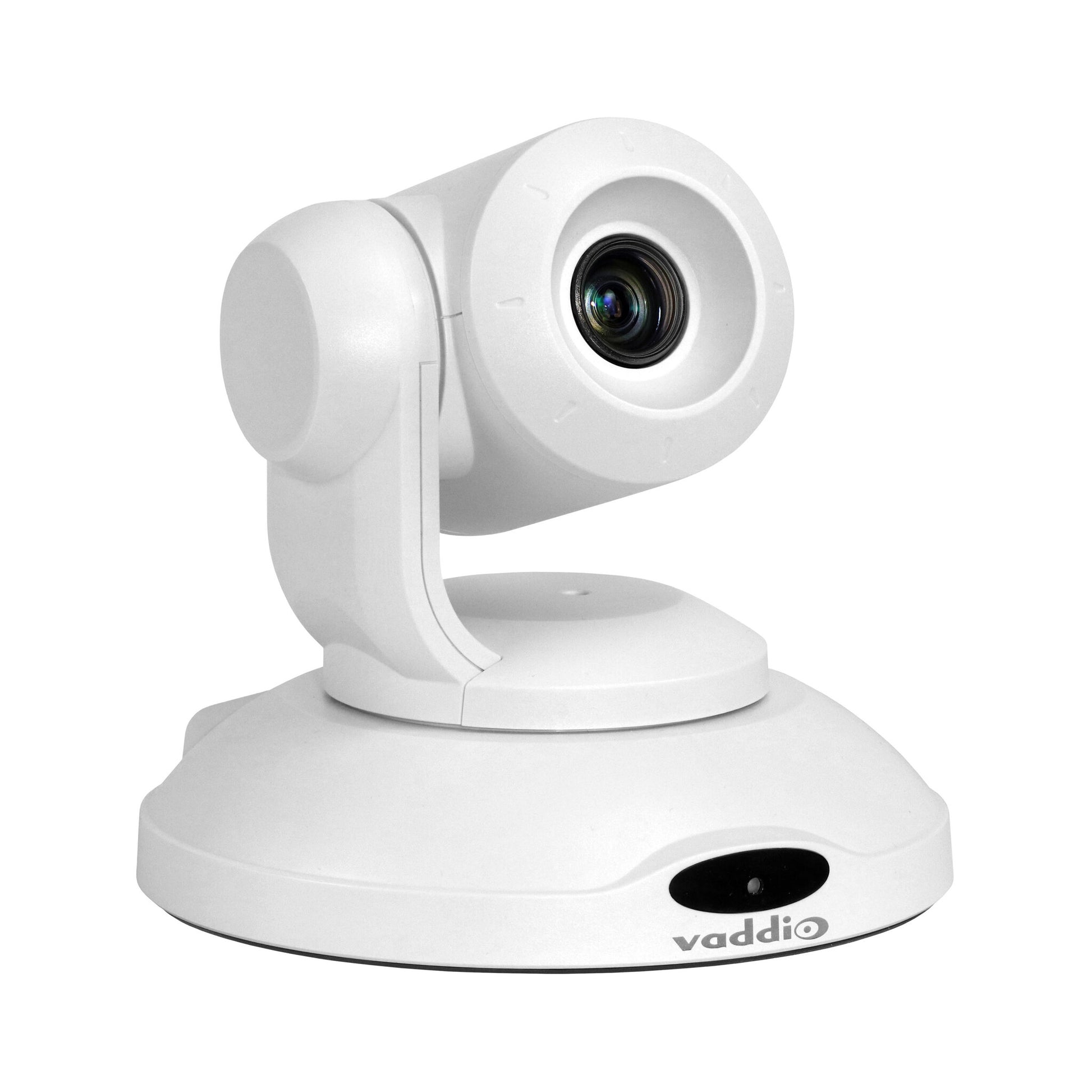

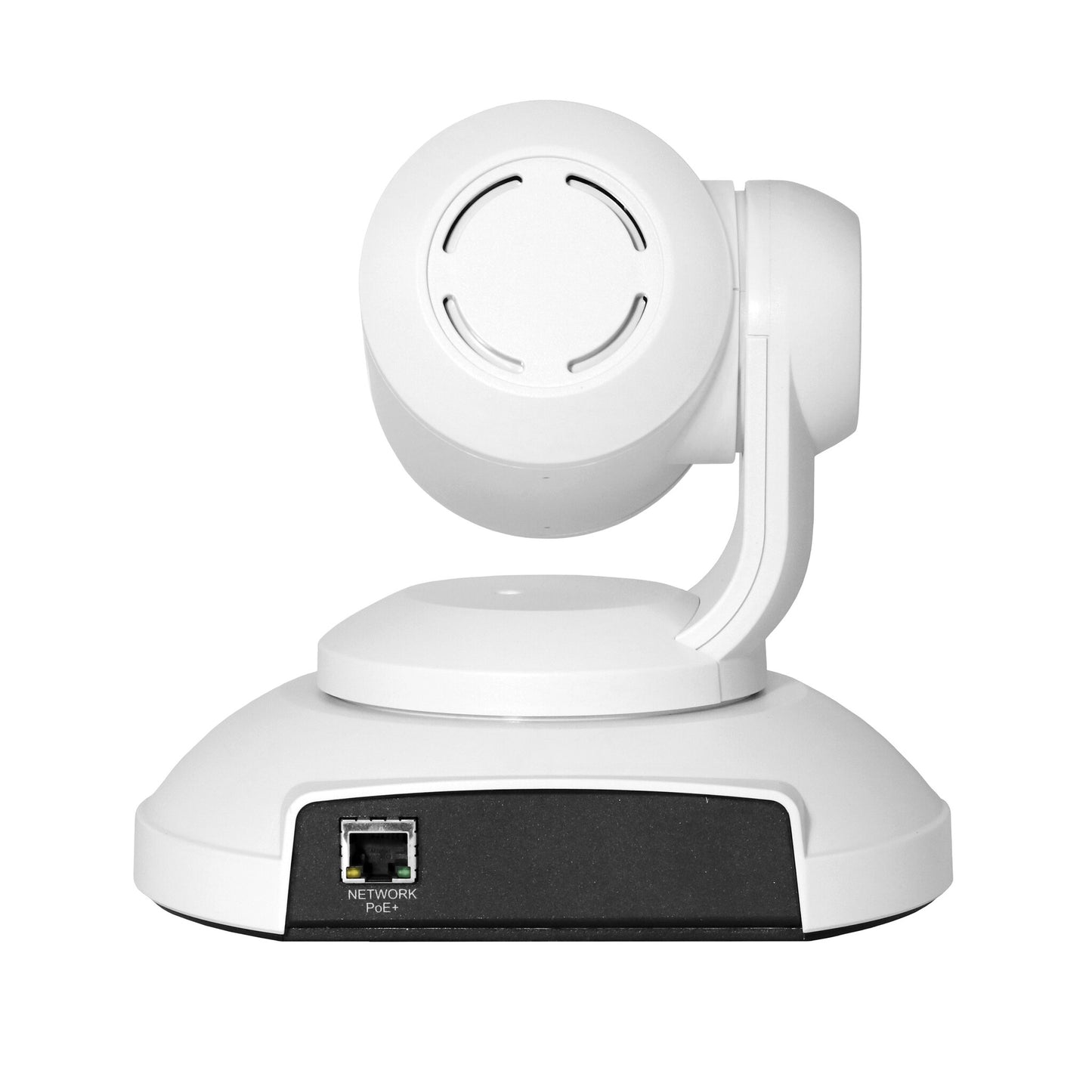

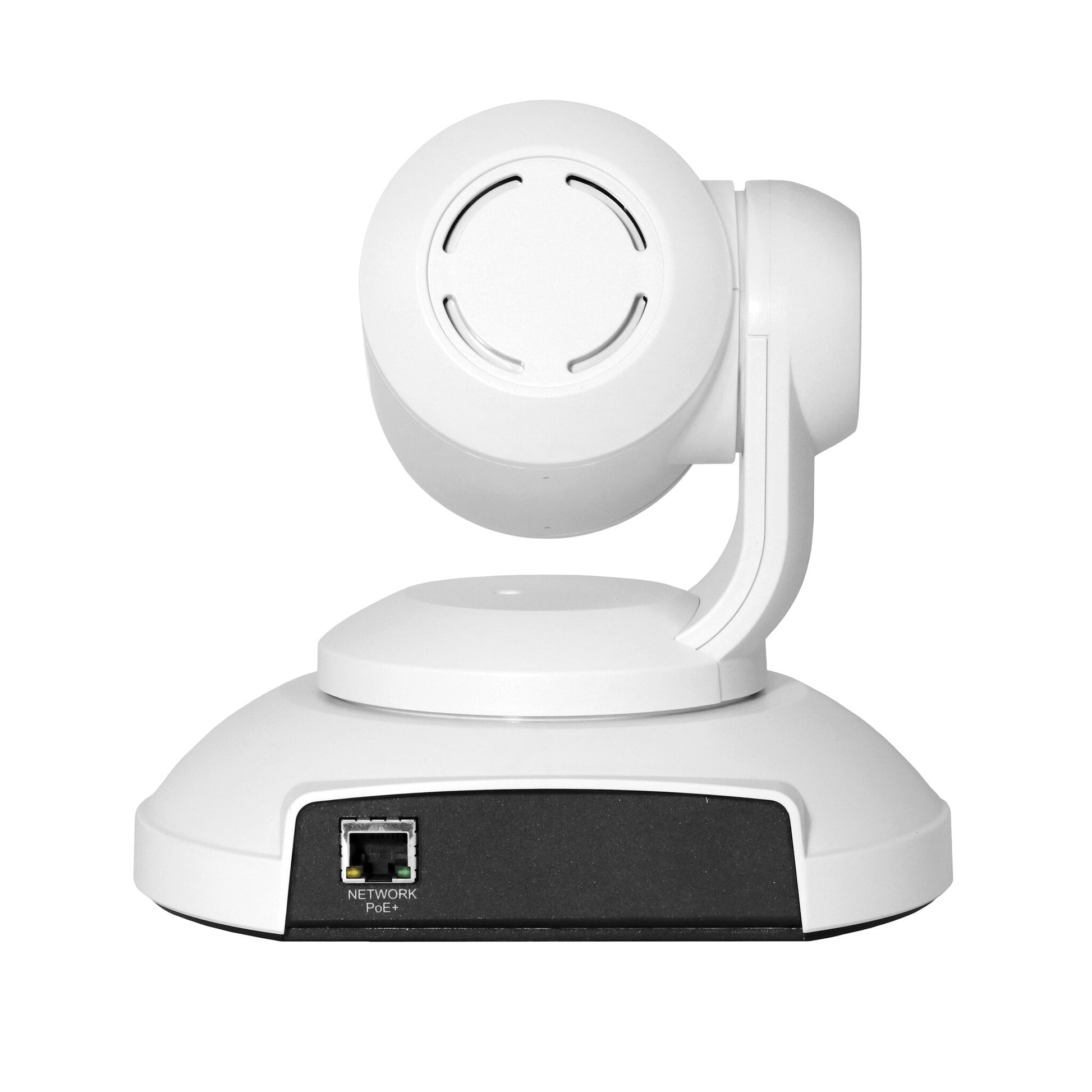

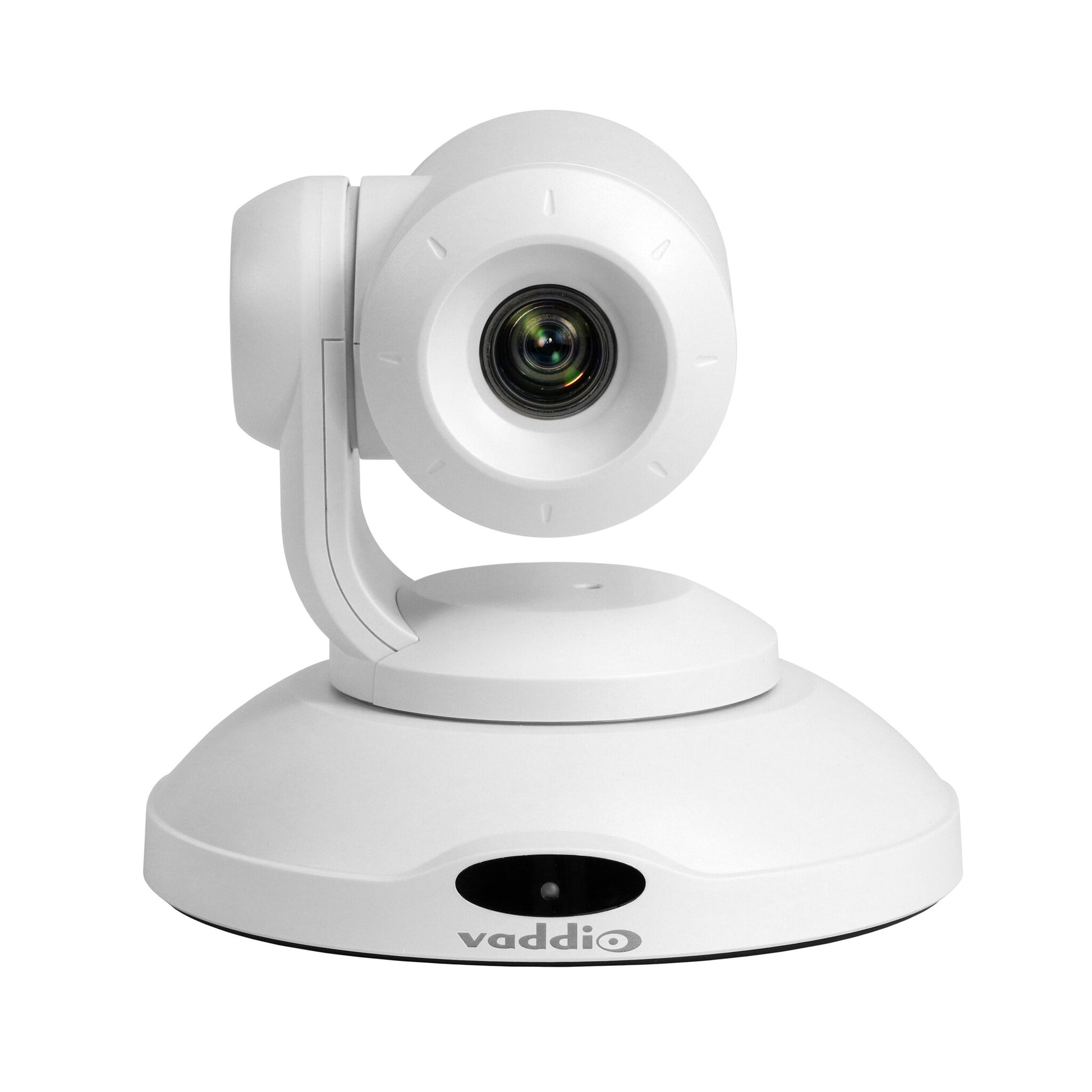

Vaddio EasyIP 10 Base Kit with Professional IP PTZ Camera

Vaddio EasyIP 10 Base Kit with Professional IP PTZ Camera

EasyIP, PoE+, 2.14 MP, 1/2.8 Exmor CMOS, 10x, White / Black

  • Designed for flexible configuration in small, medium and large conference rooms
  • Ideal for spaces with room dividers or partitions
  • Provides USB 3.0 connection to leading web services: Teams/Skype for Business, Zoom, WebEx, BlueJeans, Google Meet and others
  • SKU:0840077505813
  • GTIN/EAN:0840077505813
  • MPN:999-30201-001W

You need to login to view the price.

View full details

Vaddio EasyIP 10 Base Kit with Professional IP PTZ Camera. Product type: Group video conferencing system. Sensor type: CMOS. HD type: Full HD, Supported video modes: 720p, 1080i, 1080p, Maximum frame rate: 60 fps. Ethernet LAN. Product colour: Black, White

The EasyIP Ecosystem is an AV-over-IP conferencing system in a box. It delivers professional-quality conference feeds for UC soft clients and simplifies the BYOD conferencing experience by moving videoconferencing onto the network.

This networked videoconferencing system allows you to use up to four PTZ cameras in your meeting room, without needing a video switch. It’s a simple AV-over-IP solution for extended and networked conferencing in meeting rooms, boardrooms and training rooms alike.

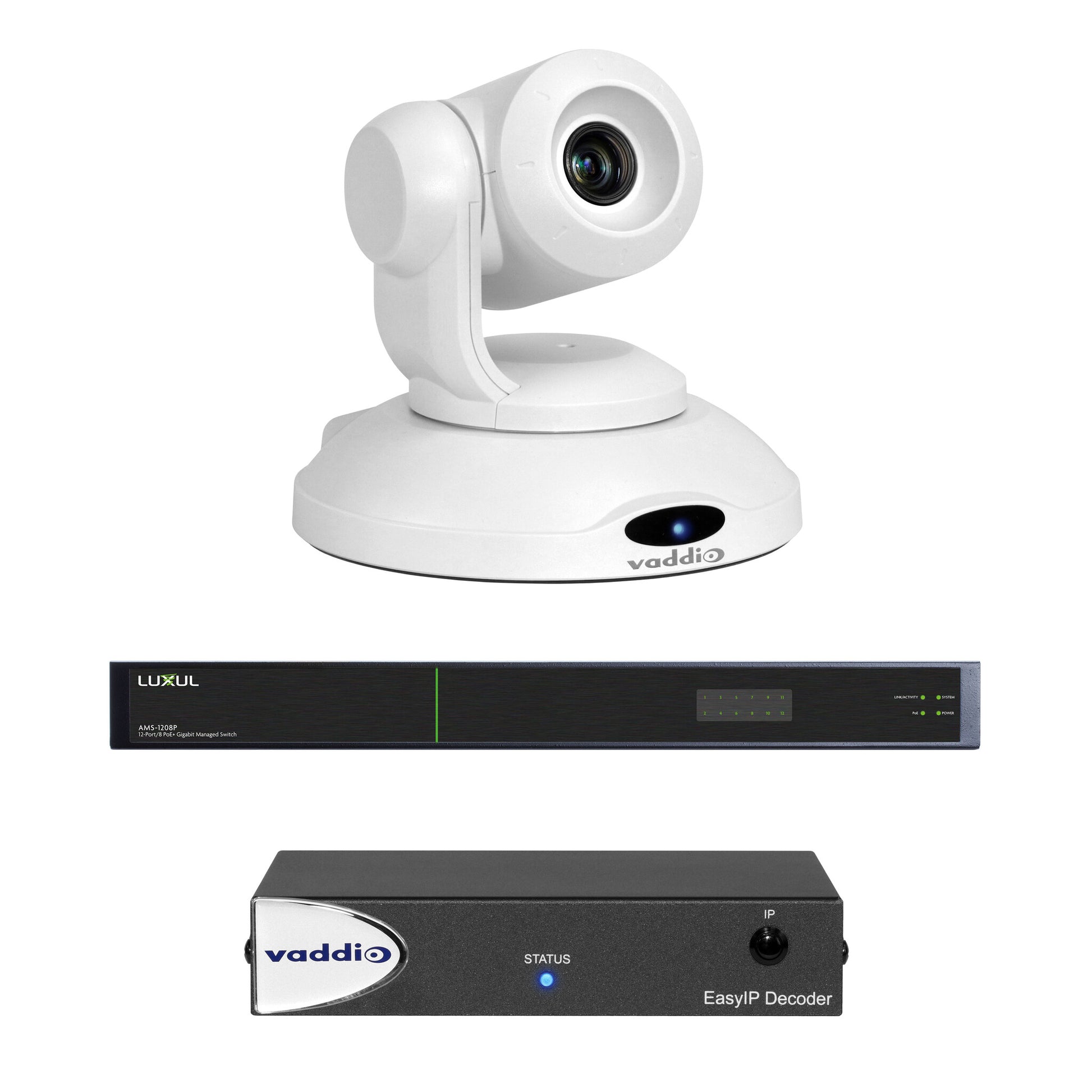

The Base Kit includes everything you need to get started with AV-over-IP conferencing in one easy-to-order bundle including one EasyIP Camera, one EasyIP Decoder and one Luxul AMS-1208p Switch.

The EasyIP Base Kit includes everything you need to get started with AV-over-IP conferencing in one easy-to-order bundle.

This Package Includes:
- EasyIP 10 Camera (black or white)

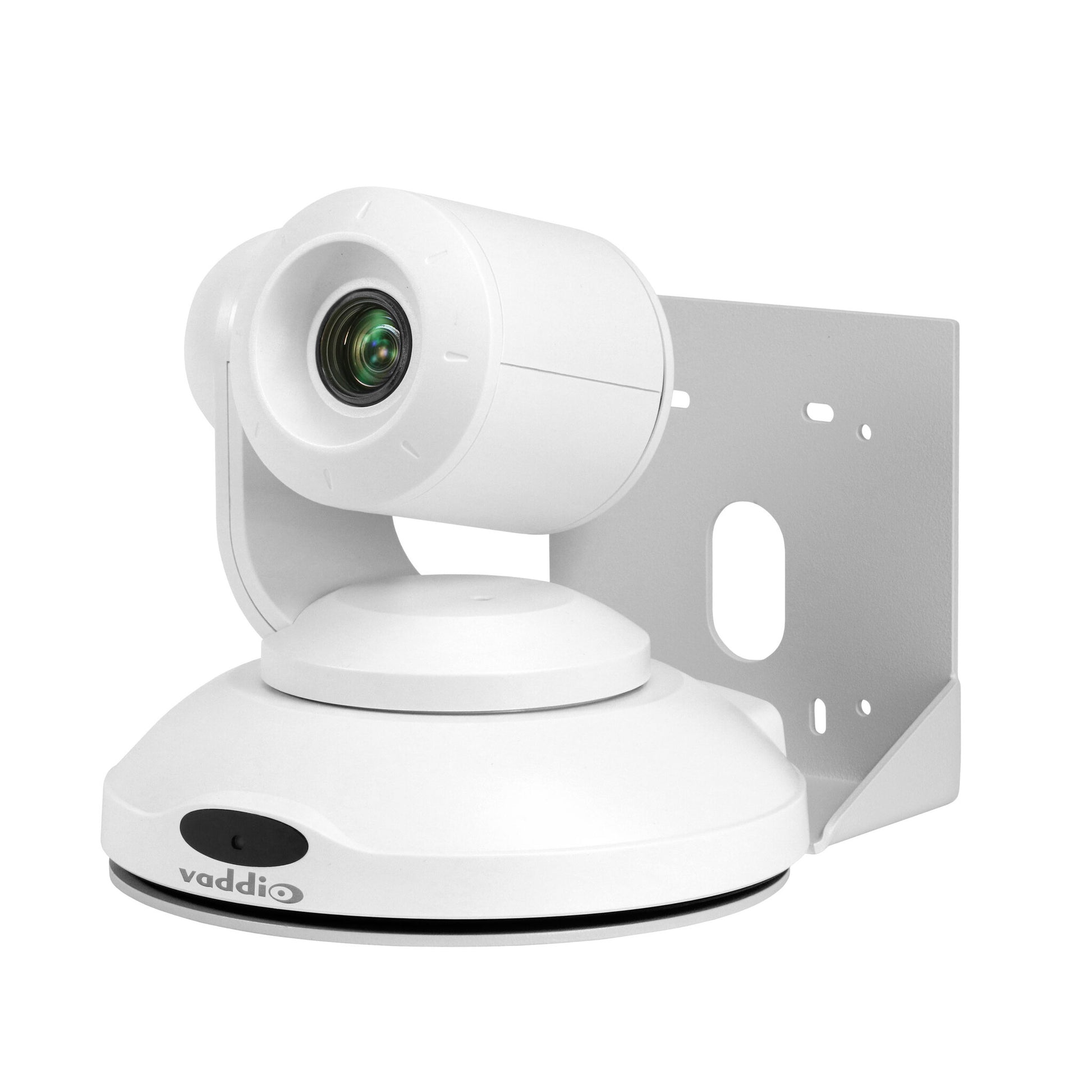

- Thin Profile Wall Mount with mounting hardware
- Vaddio IR Remote Commander
- EasyIP Switch
- Rack mount kit (for mounting the EasyIP Switch)

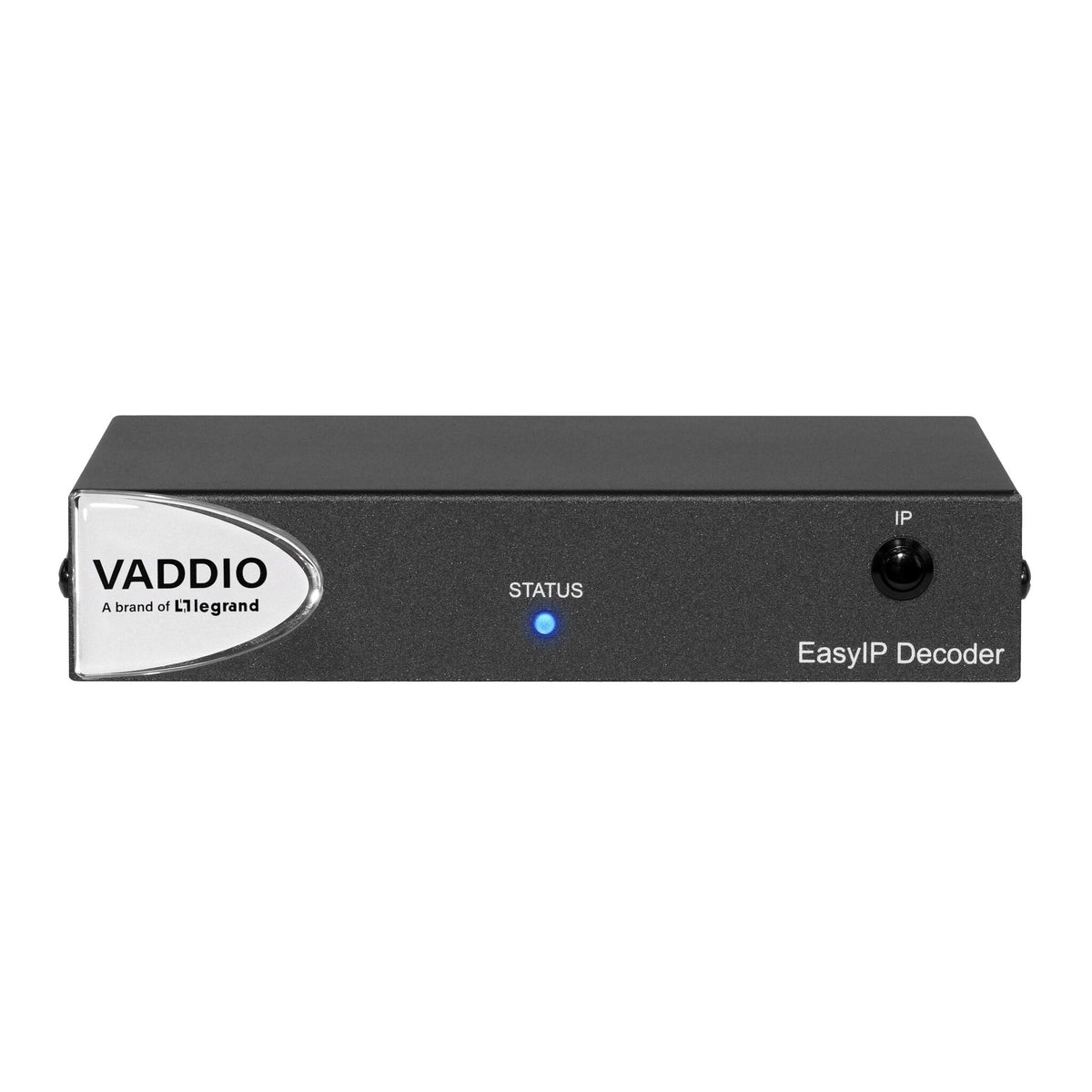

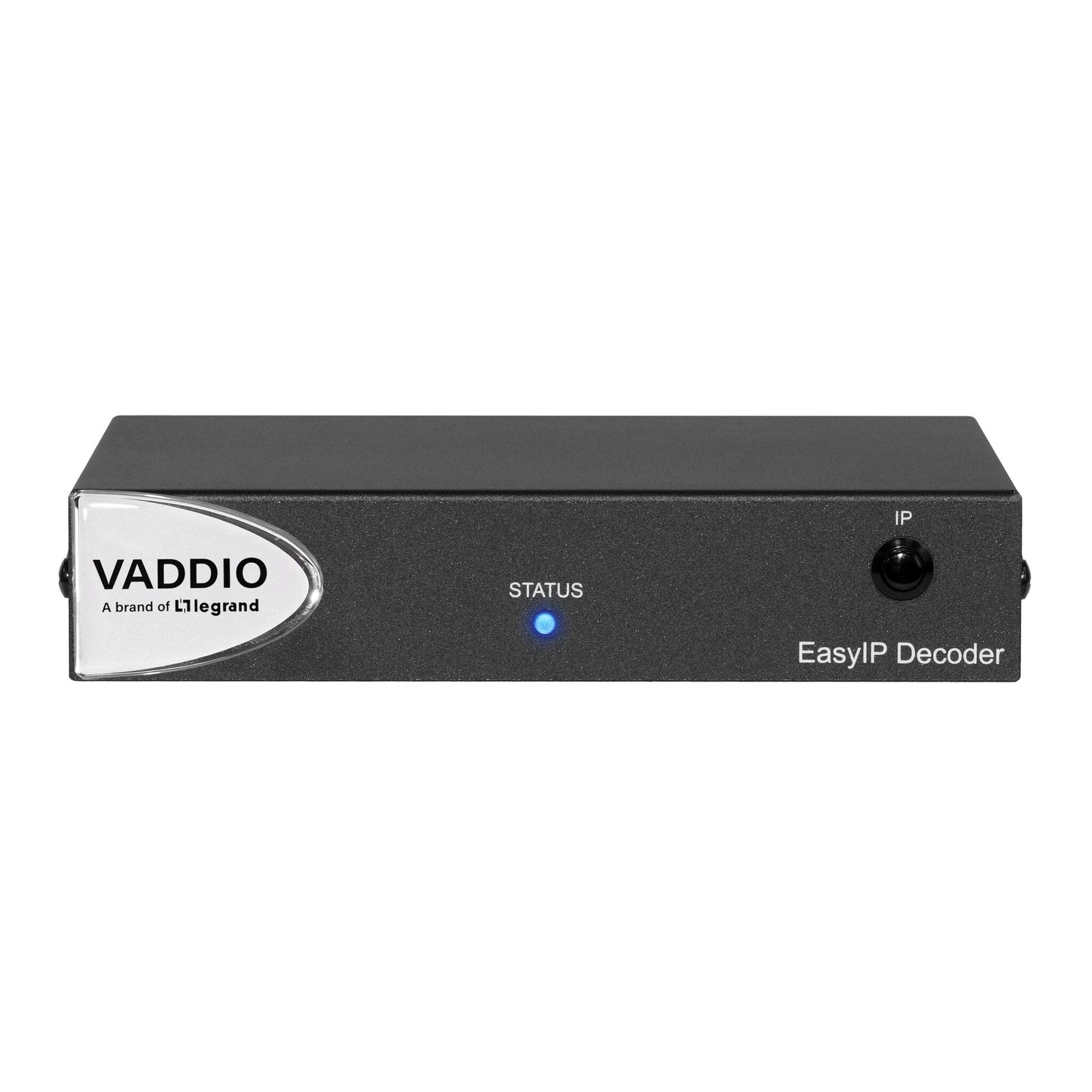

- EasyIP Decoder
- Half-Rack mounting kit (for mounting the EasyIP Decoder into a full rack space)
- 10 ft (3.05m) cat-5e snagless Cable, black
- 3 ft (0.91 m) cat-5e cable
- 6 ft (1.8 m) USB 3.0 cable
- 1 qty 4-position phoenix-style connector
- Power cord (for EasyIP Switch)
- Quick-Start Guides

2 years

Performance
Product type
Group video conferencing system
Product colour
Black, White
Signal-to-Noise Ratio (SNR)
50 dB
Pan range
-165 - 165°
Pan speed
90 °/sec
Tilt speed
90 °/sec
Tilt angle range
-30 - 90°
PTZ control
Yes
Video
HD type
Full HD
Supported video modes
720p, 1080i, 1080p
Maximum frame rate
60 fps
Aspect ratio
3:2, 4:3, 16:9
Resolution at capture speed
1280x720@50fps, 1280x720@59.94fps, 1280x720@60fps, 1920x1080@25fps, 1920x1080@29.97fps, 1920x1080@50fps, 1920x1080@59.94fps, 1920x1080@60fps
Audio
Noise reduction
Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
1
Power over Ethernet plus (PoE+) ports quantity
2
Ethernet LAN (RJ-45) ports
2
Interface module
Interface module RJ-45 ports quantity
16
Network
Ethernet LAN
Yes
Camera
Megapixel (approx.)
2.38 MP
Effective sensor resolution
2.14 MP
Sensor type
CMOS
Image sensor size
1/2.8"
Focal length range
3.8 - 38 mm
Optical zoom (normal mode)
10x
Horizontal field of view
67°
Wide Dynamic Range (WDR)
Yes
Number of camera presets
16
Aperture range (F-F)
1.8 - 3.4
Minimum illumination
100 lx
Aperture number of steps
16
White balance
Auto, Manual, One push
Back Light Compensation (BLC)
Yes
Logistics data
Harmonized System (HS) code
85176990
Features
Telepresence
No
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Interface module dimensions (W x D x H)
439.4 x 209.6 x 44.5 mm
Interface module weight
2.81 kg
Camera dimensions (WxDxH)
155 x 145 x 163 mm
Camera weight
1.36 kg
Width
213 mm
Depth
152 mm
Height
44 mm
Weight
1.26 kg
Packaging content
Cables included
AC, LAN (RJ-45), USB
Mounting kit
Yes
Packaging content
EasyIP 10 Camera (black or white)
Thin Profile Wall Mount with mounting hardware
Vaddio IR Remote Commander
EasyIP Switch
Rack mount kit (for mounting the EasyIP Switch)
EasyIP Decoder
Half-Rack mounting kit (for mounting the EasyIP Decoder into a full rack space)
10 ft (3.05m) cat-5e snagless Cable, black
3 ft (0.91 m) cat-5e cable
6 ft (1.8 m) USB 3.0 cable
1 qty 4-position phoenix-style connector
Power cord (for EasyIP Switch)
Quick-Start Guides
