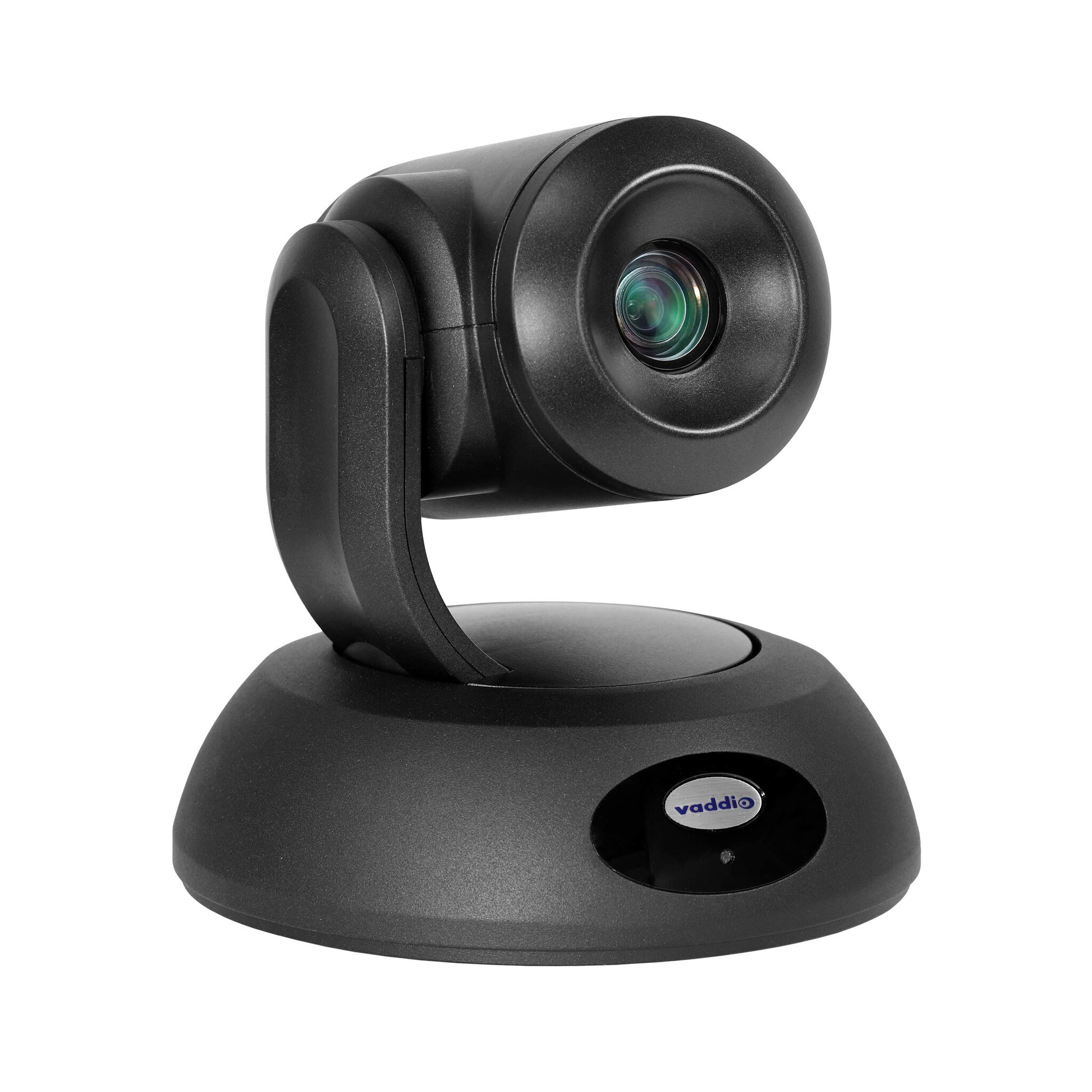

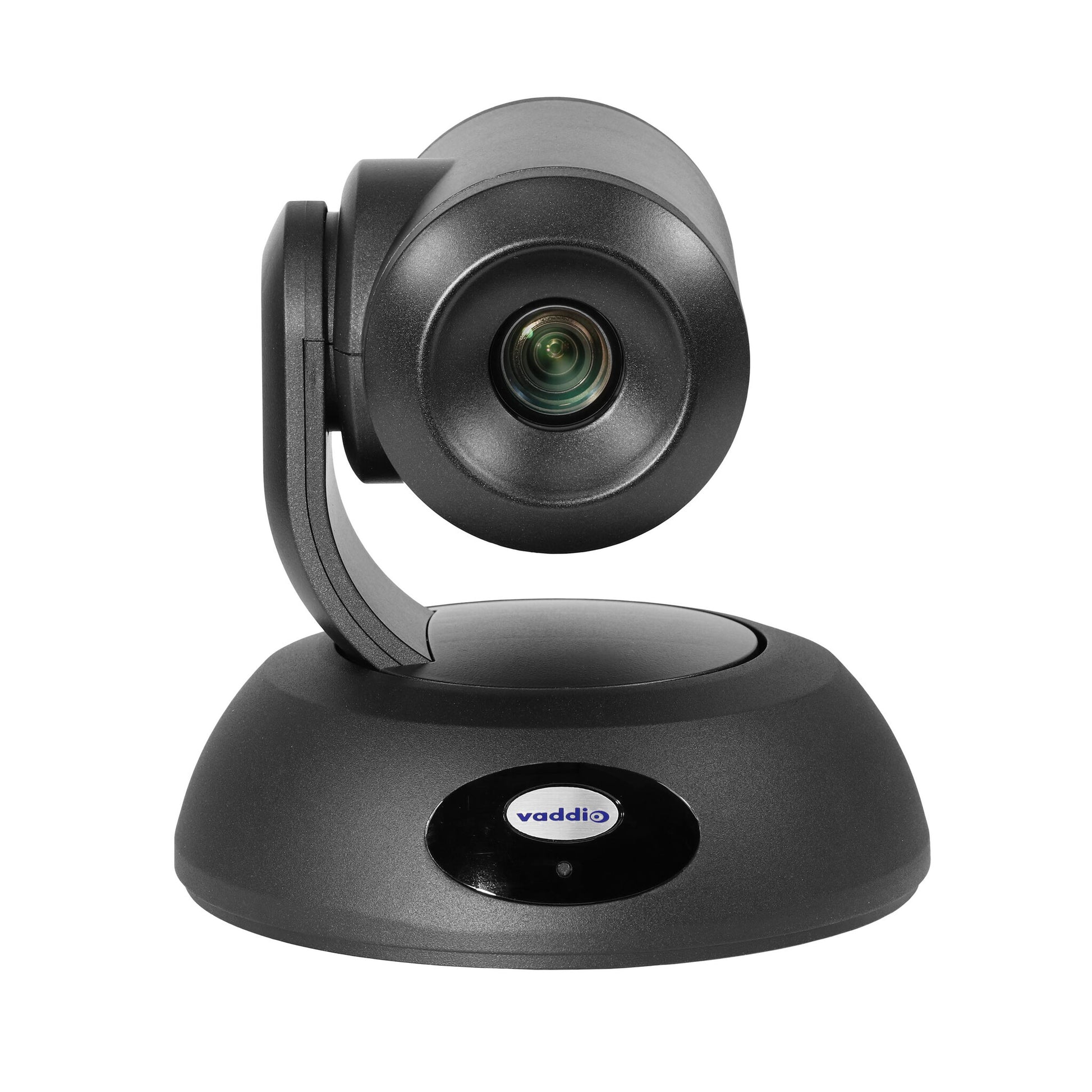

Vaddio EasyIP 20 Base Kit with Professional IP PTZ Camera

Vaddio EasyIP 20 Base Kit with Professional IP PTZ Camera

PTZ, 1/2.8 Exmor CMOS, 10X, 2.14 MP, FHD, EasyIP, HDMI, RS-232, RJ-45, USB 3.0, 12 VDC, PoE+, Black, Decoder, Switch, Black

  • Designed for flexible configuration in medium and large rooms
  • One EasyIP (Network PoE+) and one HDMI video output
  • 20x zoom, Tri-Synchronous Motion, Enhanced Wide Dynamic Range
  • Provides USB 3.0 connection to leading web services: Teams/Skype for Business, Zoom, WebEx, BlueJeans, Google Meet and others
  • SKU:0840077506711
  • GTIN/EAN:0840077506711
  • MPN:999-30232-001

You need to login to view the price.

View full details

Vaddio EasyIP 20 Base Kit with Professional IP PTZ Camera. Product type: Group video conferencing system. Total megapixels: 2.38 MP. Sensor type: CMOS. HD type: Full HD, Supported video modes: 1080p, Maximum frame rate: 60 fps. Optical zoom: 10x. Ethernet LAN. Product colour: Black

The EasyIP 20 Base Kit is an AV-over-IP professional PTZ camera system in a box. It delivers professional image quality for UC soft clients and simplifies the BYOD (bring your own device) conferencing experience by moving videoconferencing onto the network.

This networked video capturing system allows you to use up to four PTZ cameras in your meeting room, without needing a video switch. It’s a simple AV-over-IP solution for extended and networked video capture and streaming in medium and large spaces.

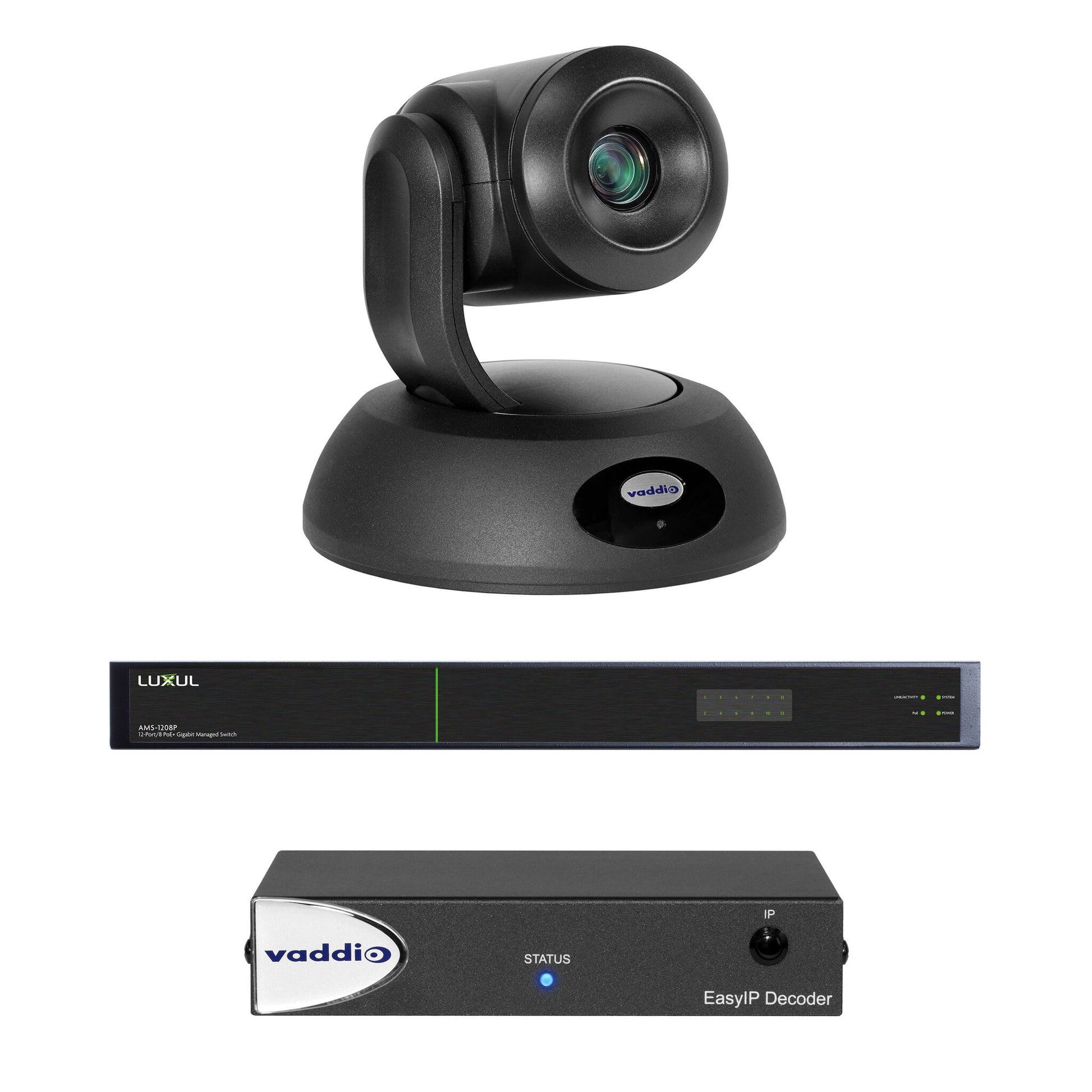

The EasyIP 20 Base Kit includes everything you need to get started with AV-over-IP video in one easy-to-order bundle including one EasyIP 20 Camera, one EasyIP Decoder and one EasyIP Switch.

3 years

Performance
Product type
Group video conferencing system
Product colour
Black
Signal-to-Noise Ratio (SNR)
60 dB
Pan range
-150 - 150°
Pan speed
0.35 °/sec
Tilt speed
90 °/sec
Tilt angle range
-30 - 90°
PTZ control
Yes
Video
HD type
Full HD
Total megapixels
2.38 MP
Supported video modes
1080p
Maximum frame rate
60 fps
Aspect ratio
16:9
Resolution at capture speed
1920x1080@60fps
Audio
Noise reduction
Yes

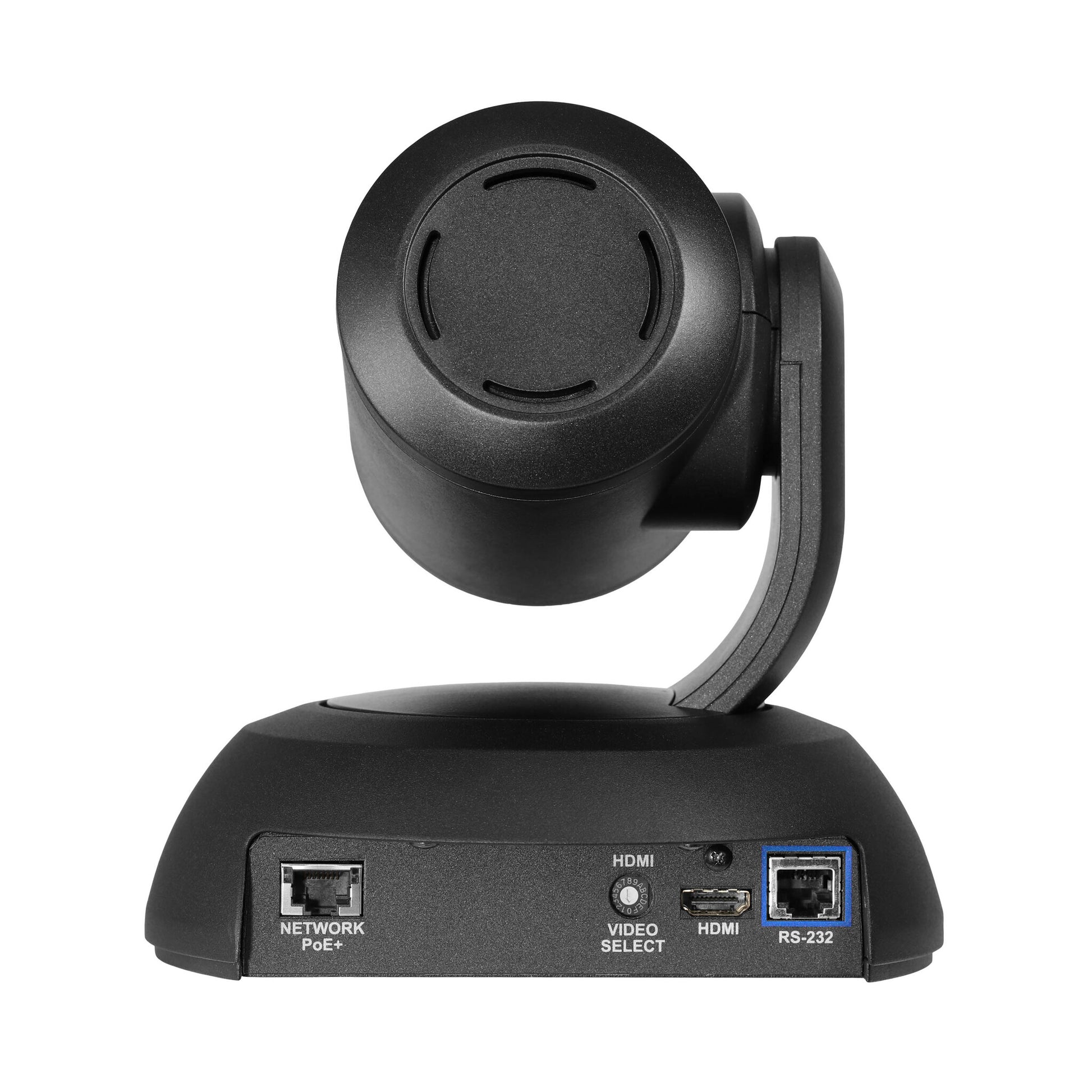

Ports & interfaces
HDMI ports quantity
1
Power over Ethernet plus (PoE+) ports quantity
2
RS-232 ports
1
Interface module
Interface module USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
1
Interface module RJ-45 ports quantity
19
Interface module Ethernet LAN (RJ-45) ports
3
Network
Ethernet LAN
Yes
Web-based management
Yes
Camera
Megapixel (approx.)
2.14 MP
Optical zoom
10x
Sensor type
CMOS
Image sensor size
1/2.8"
Wide end viewing angle (normal mode)
74°
Tele end viewing angle (normal mode)
7.6°
Noise reduction number of steps
16
Focus adjustment
Auto/Manual
Wide Dynamic Range (WDR)
Yes
Number of camera presets
16
PTZ motors
Stepper
Remote control interface
IR wireless/RS-232
Camera shutter speed
1/1 - 1/10000 s
Minimum illumination
100 lx
White balance
Auto, Manual, One push
Gain control type
Auto/Manual
Logistics data
Harmonized System (HS) code
85176990
Features
Invertible
Yes
Tri-Synchronous Motion Technology
No
Control method
IR remote, Joystick, RS-232, Telnet, Web UI
OneLink compatibility
No
Operational conditions
Operating relative humidity (H-H)
20 - 80%
Operating temperature (T-T)
0 - 40 °C
Certificates
Certification
CE, FCC, TAA
Weight & dimensions
Interface module dimensions (W x D x H)
439.4 x 209.6 x 44.5 mm
Camera dimensions (WxDxH)
154.9 x 139.7 x 160 mm
Width
213 mm
Depth
152 mm
Height
44 mm
Weight
1.26 kg
Packaging content
Cables included
AC, LAN (RJ-45), Serial, USB
Mounting kit
Yes
Packaging content
EasyIP 20 PTZ Camera (black or white)

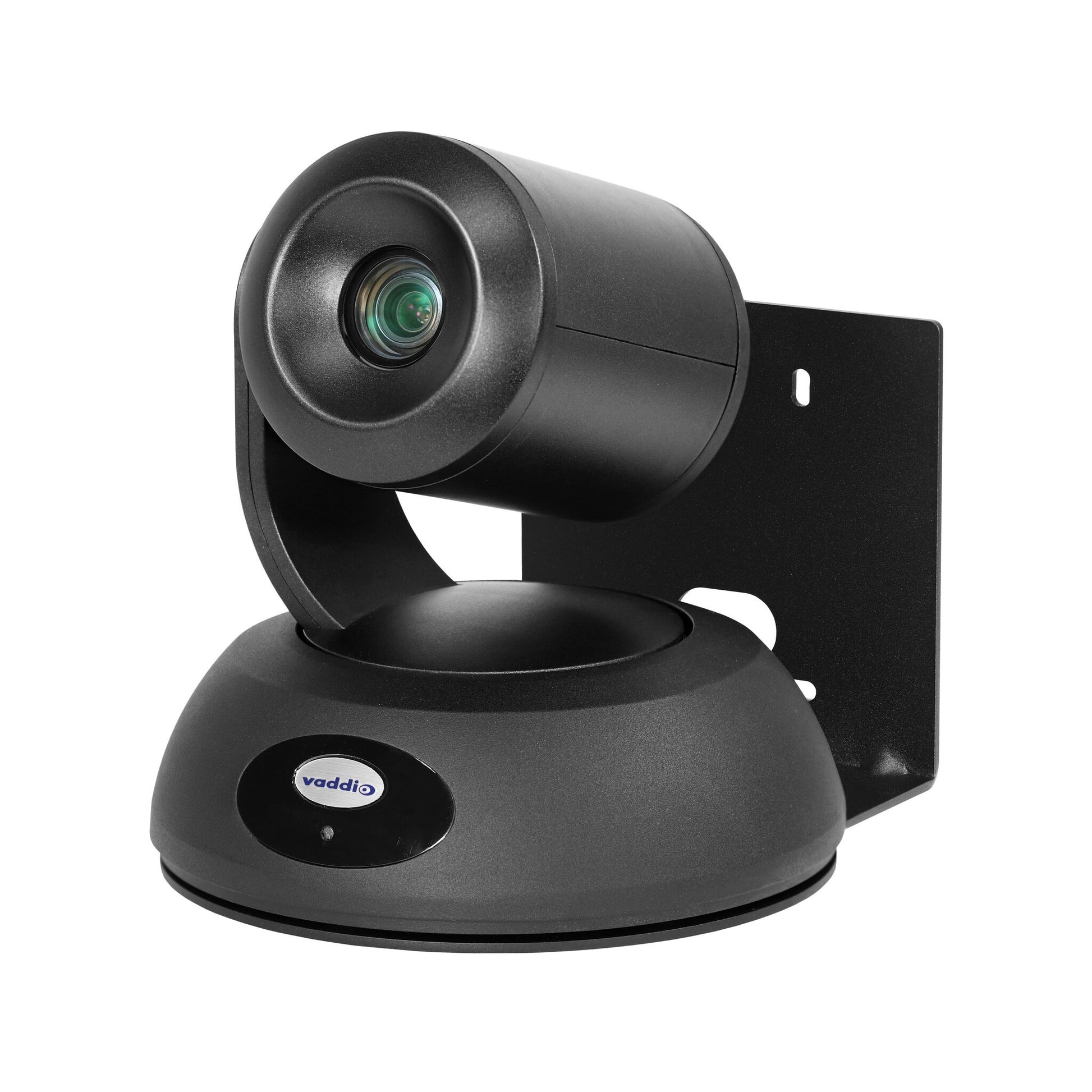

Thin Profile Wall Mount (black or white) with mounting hardware
Vaddio IR Remote Commander
EasyIP Switch
Rack mount kit (for mounting the EasyIP Switch)

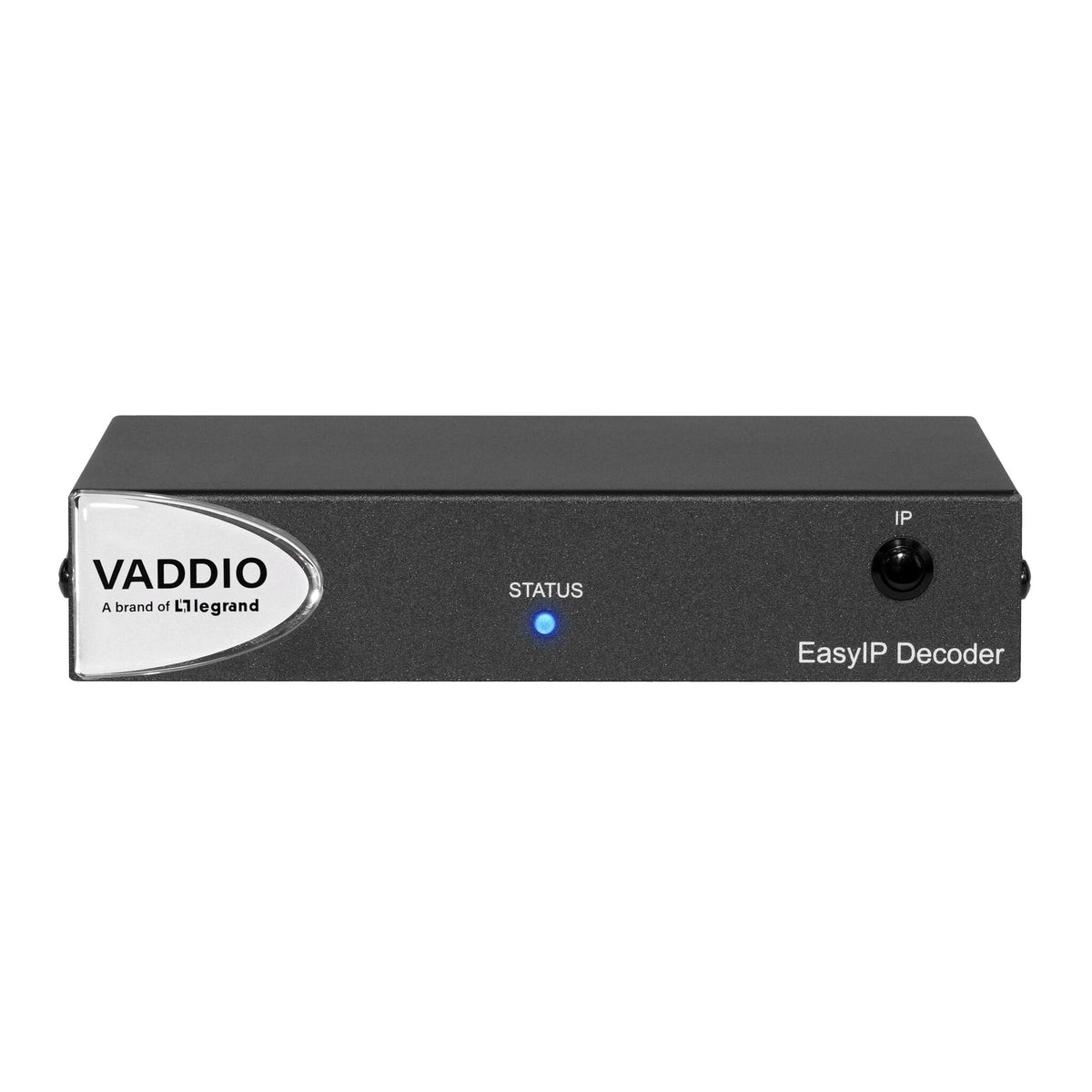

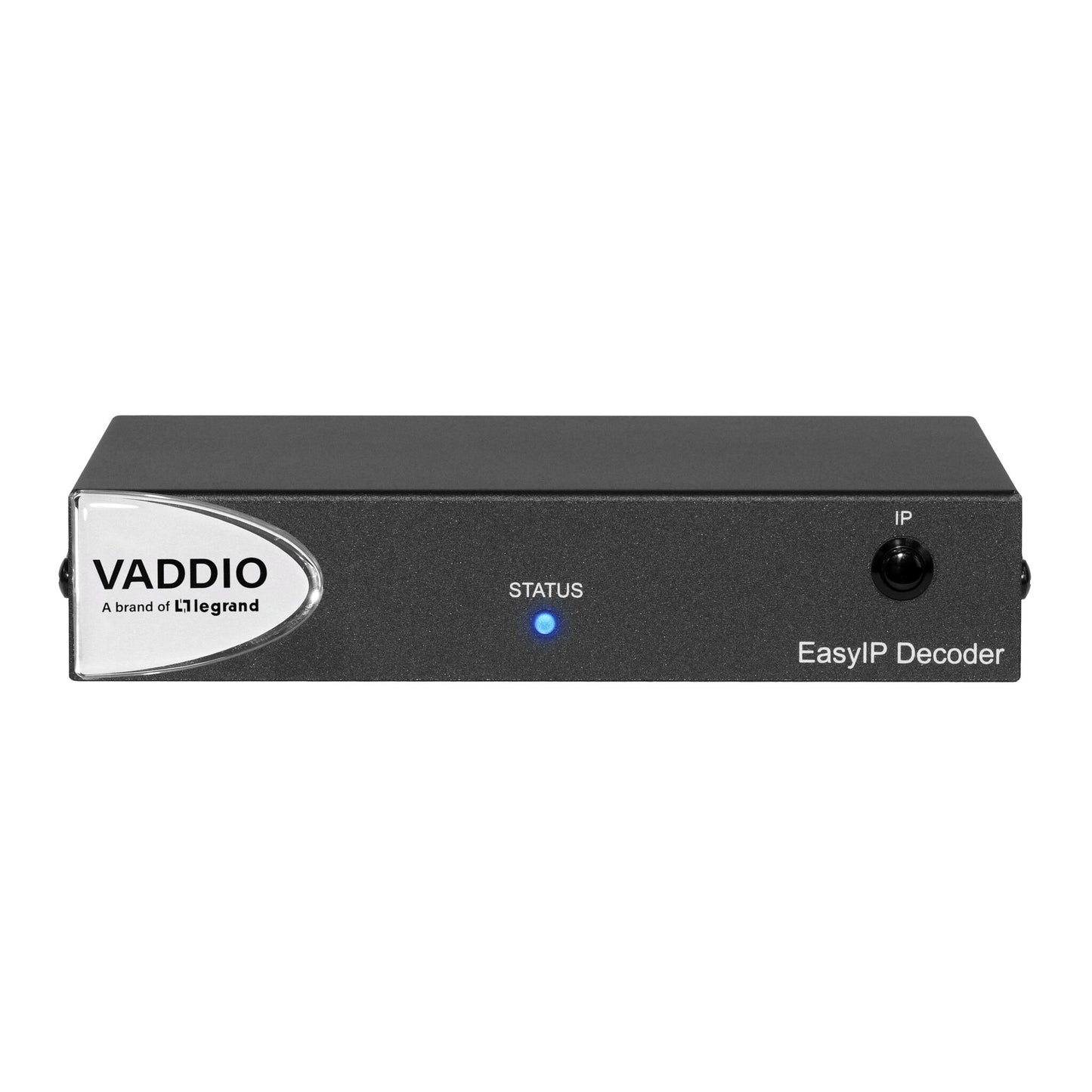

EasyIP Decoder
Half-Rack mounting kit (for mounting the EasyIP Decoder into a full rack space)
10 ft (3.05m) cat-5e snagless Cable, black
3 ft (0.91 m) cat-5e cable
6 ft (1.8 m) USB 3.0 cable
1 qty 4-position phoenix-style connector
Power cord (for EasyIP Switch)
Quick-Start Guides
