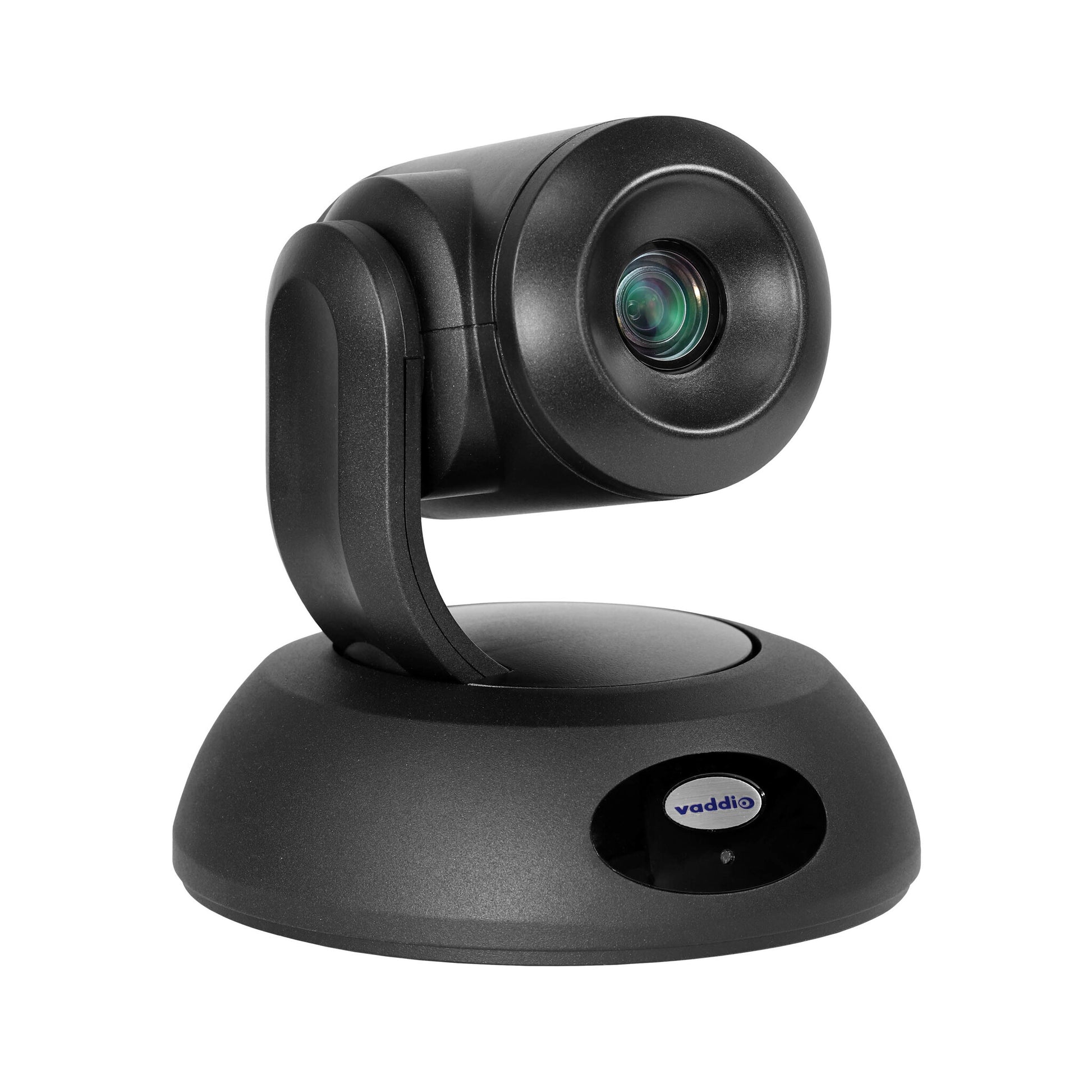

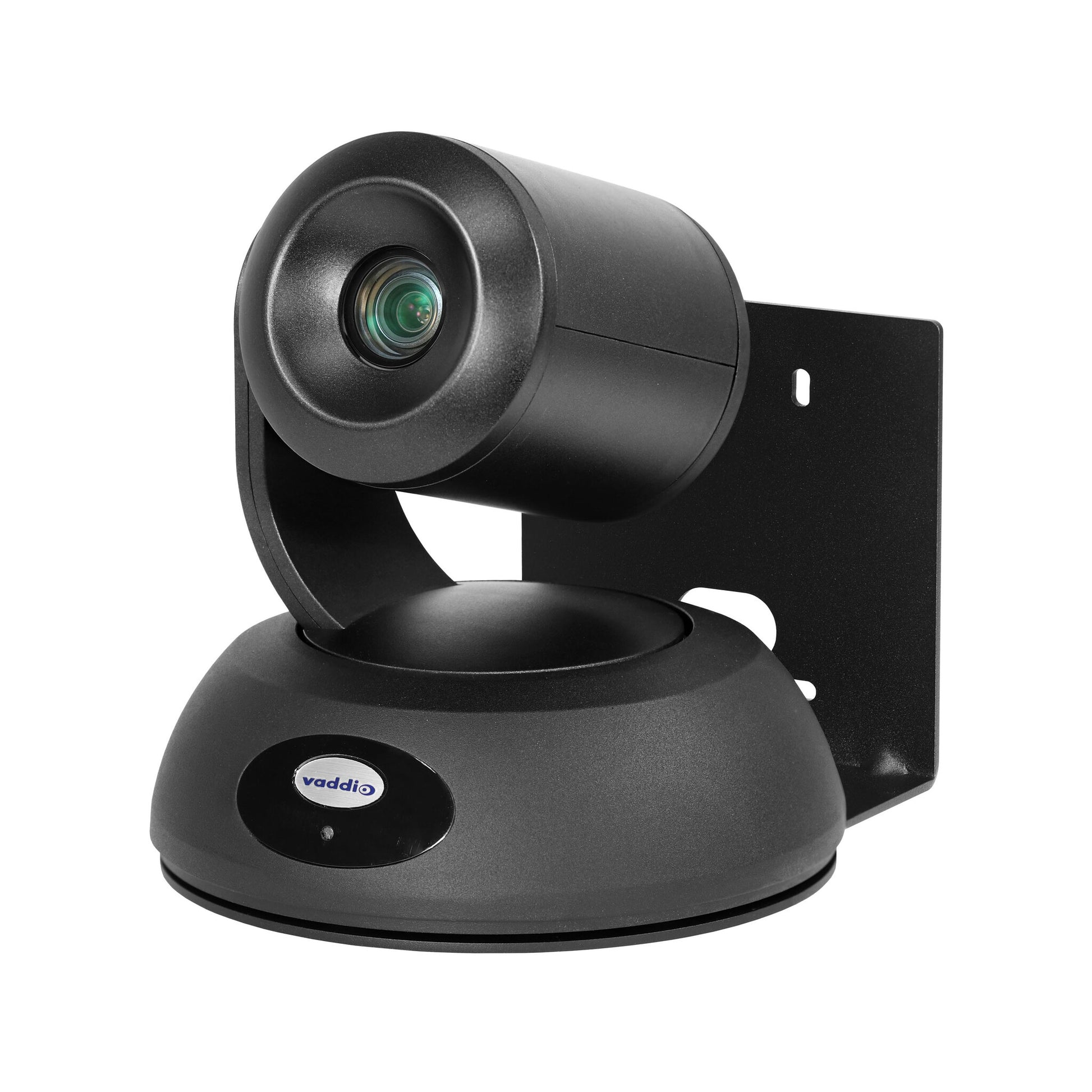

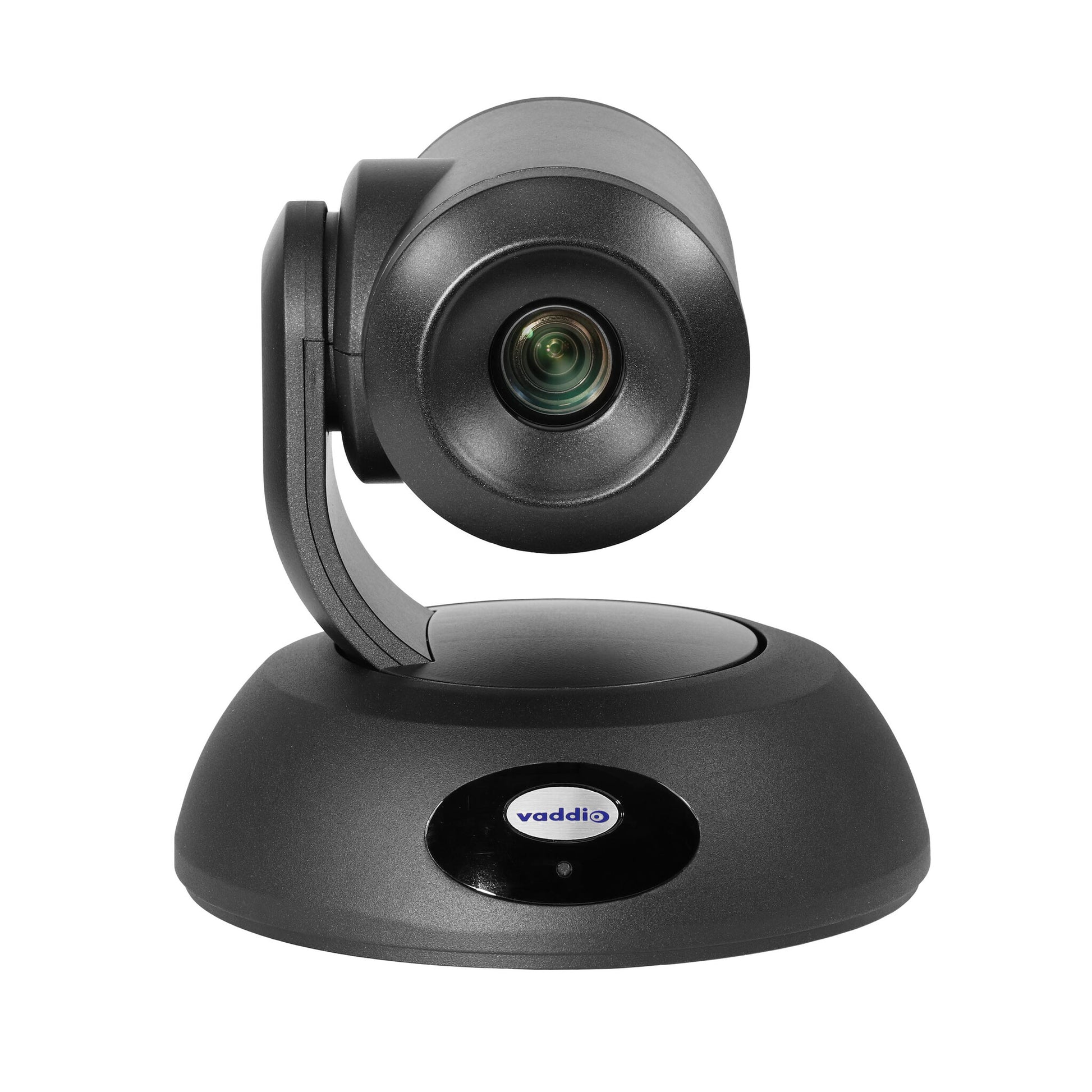

Vaddio EasyIP 20 Camera

Vaddio EasyIP 20 Camera

PTZ, 1/2.5 Exmor CMOS, 20X, 8.57 MP, FHD, EasyIP, HDMI, RS-232, 12 VDC, PoE+, Black

  • 20x Optical zoom
  • 1/2.5-type Exmor R CMOS sensor
  • 70.2° horizontal field of view

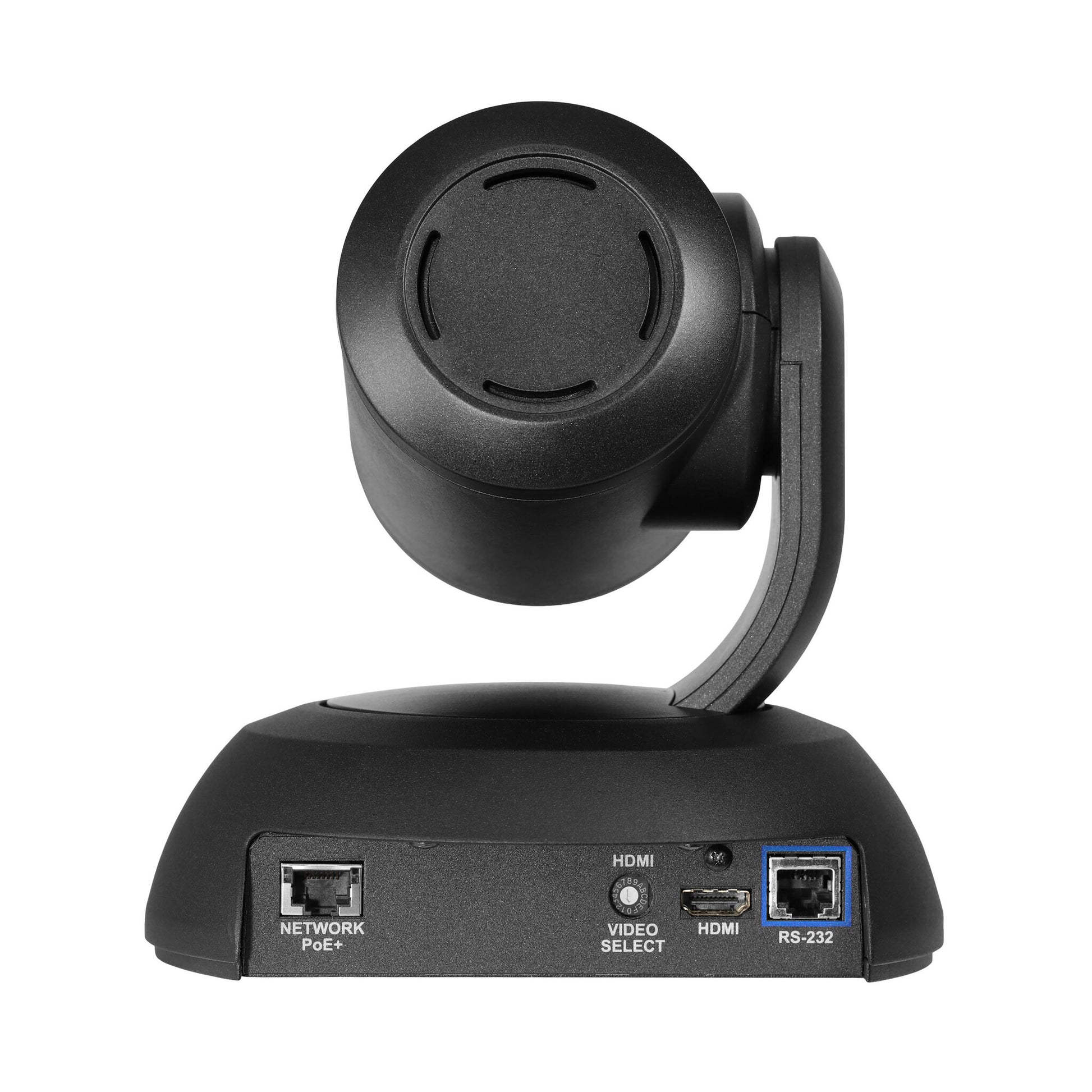

  • One EasyIP (Network PoE+) and one HDMI video output
  • Supports up to two EasyIP Mixers or Decoders simultaneously
  • SKU:0840077506629
  • GTIN/EAN:0840077506629
  • MPN:999-30230-000

You need to login to view the price.

View full details

Vaddio EasyIP 20 Camera. Megapixel (approx.): 8.57 MP, Sensor type: CMOS. HD type: Full HD, Maximum video resolution: 1920 x 1080 pixels, Supported video modes: 720p, 1080i, 1080p, Maximum frame rate: 60 fps. Optical zoom: 20x. Product colour: White

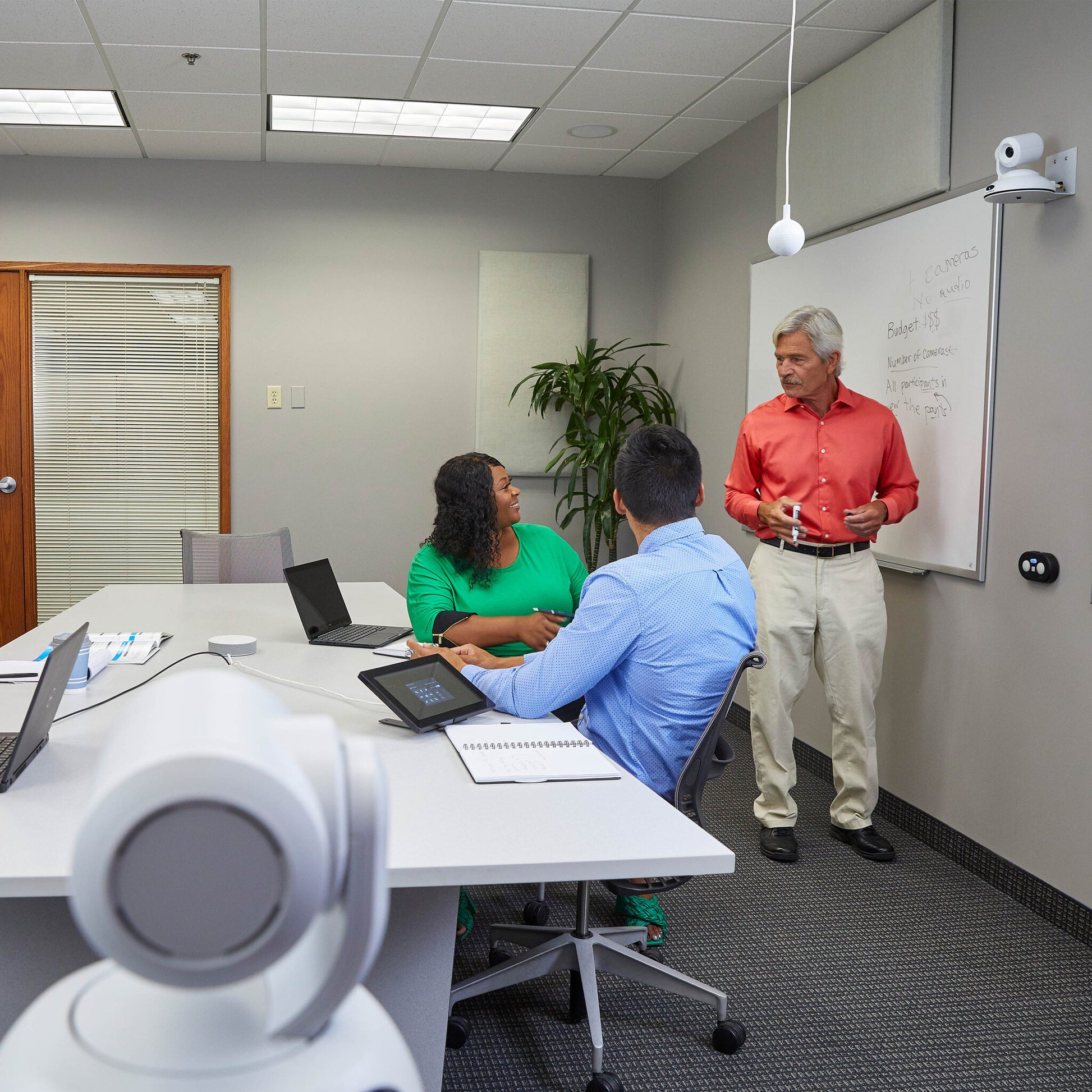

The EasyIP 20 Camera brings professional AV quality performance to the EasyIP Ecosystem, an AV-over-IP solution for lecture capture, remote learning and videoconferencing in large meeting rooms, lecture halls, and houses of worship. It delivers 1080p/60 resolution feeds to EasyIP endpoints and connects to a 1 GB PoE+ switch – eliminating the need for costly USB extensions. A local HDMI output allows for easy IMAG (image magnification).

3 years

Camera
Megapixel (approx.)
8.57 MP
Sensor type
CMOS
Effective sensor resolution
8.51 MP
Optical zoom
20x
Horizontal field of view (tele)
7.6°
Horizontal field of view (wide)
74°
Minimum illumination
100 lx
Signal-to-Noise Ratio (SNR)
60 dB
Aperture number of steps
16
White balance
ATW, Auto, Manual, One push, Outdoor
Focus adjustment
Auto/Manual
Auto focusing (AF) modes
Auto, Manual, One Push Trigger
Wide Dynamic Range (WDR)
Yes
Number of camera presets
16
Gain control type
Auto/Manual
PTZ control
Yes
Maximum working distance (tele)
80 cm
Minimum working distance (wide)
22.9 cm
Video
Maximum video resolution
1920 x 1080 pixels
Maximum frame rate
60 fps
HD type
Full HD
Resolution at capture speed
1920x1080@25fps, 1920x1080@29.97fps, 1920x1080@59.94fps, 1920x1080@60fps
Supported video modes
720p, 1080i, 1080p
Design
Product colour
White
Tilt angle range
-30 - 90°
Pan range
-150 - 150°
Web-based management
Yes
Tilt speed (max)
90 °/sec
Pan speed (max)
0.35 °/sec
Ports & interfaces
HDMI ports quantity
1
Power over Ethernet (PoE) ports quantity
1
Ethernet LAN (RJ-45) ports
1
Power
Power source type
PoE
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
20 - 80 °C
Technical details
Harmonized System (HS) code
85258900
Audio
Noise reduction
Yes
Performance
Remote control function
Yes
Remote control type
RF Wireless
Packaging data
Package width
179.1 mm
Package depth
171.6 mm
Package height
176.3 mm
Package weight
2.2 kg
