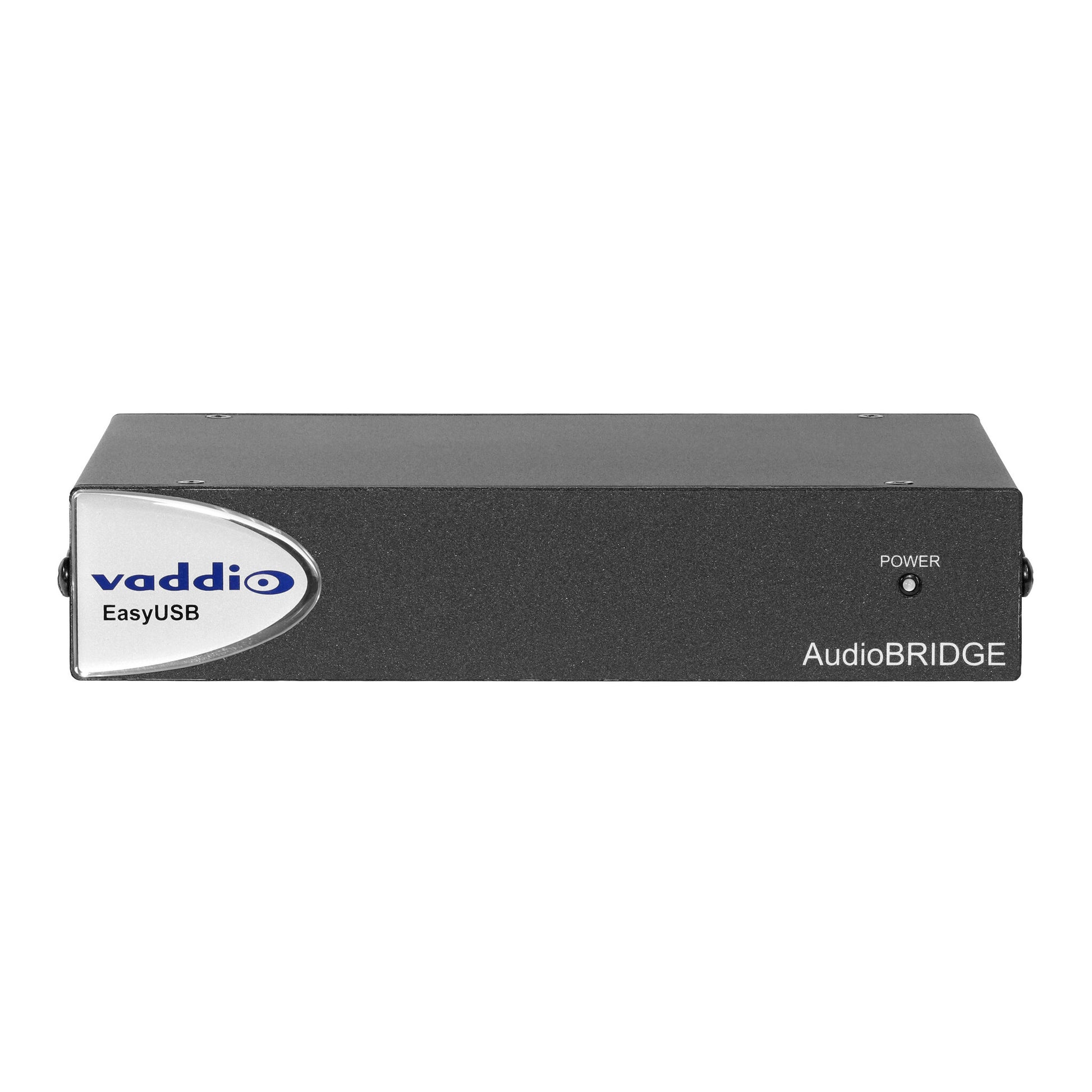

Vaddio EasyUSB AudioBRIDGE. Frequency range: 20 - 20000 Hz, Dynamic range: 90 dB, Total Harmonic Distortion (THD) + noise: 0.02%. Product colour: Black, LED indicators: Power. USB connector type: USB Type-B. Width: 212.7 mm, Depth: 152.4 mm, Height: 43.7 mm. Cables included: USB
- Balanced Line Input: Mono line level (+4dB) input on 3-Pin Euro terminal mapped to the USB record channel
- Unbalanced Line Input: Mono consumer level input (-10dB) on RCA mapped to the USB record channel
- Balanced Line Output: Mono line level output on 3-pin Euro mapped to the USB playback channel
- Unbalanced Line Output: Mono consumer level output on RCA mapped to the USB playback channel
- USB Audio: UAC compliant Speakerphone with configurable terminal type for use with PC-based soft client
The EasyUSB AudioBRIDGE for integrating professional audio equipment into USB-based PC applications – Unified Communications, lecture capture, recording or any other application that requires professional audio. Existing meeting room audio equipment can now be used with any UC soft client – Microsoft Lync, Cisco Jabber, Google+, etc.
Equipped with both balanced and unbalanced audio inputs/outputs for maximum flexibility, the AudioBRIDGE easily integrates with external audio mixers, wireless microphones, amplifiers, powered loudspeakers – any audio I/O devices that require USB integration.

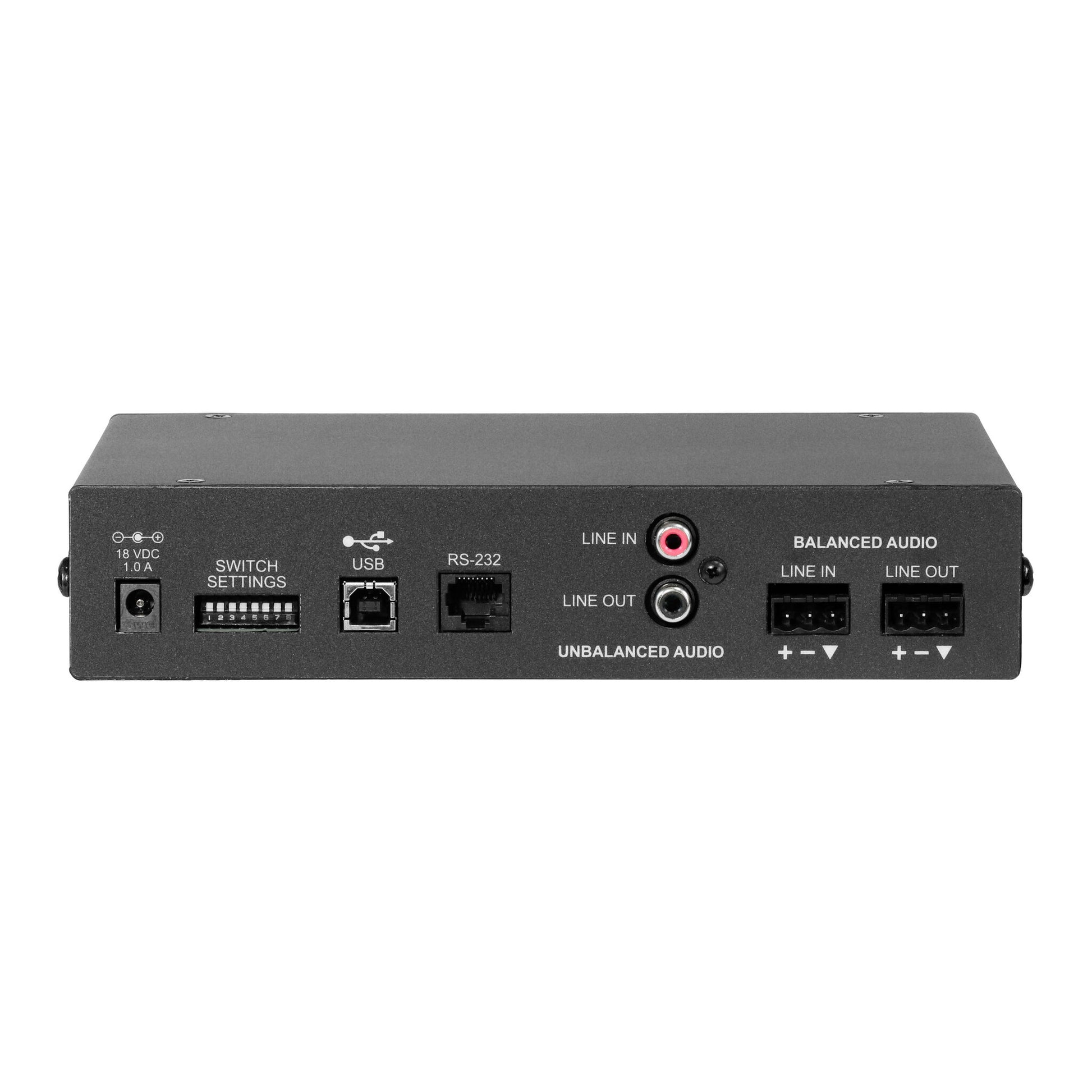

Professional audio equipment connects to the AV Bridge with balanced line level inputs/outputs on a 3-pin Euro Terminal block. Unbalanced audio inputs/outputs are supported with RCA connectors.
