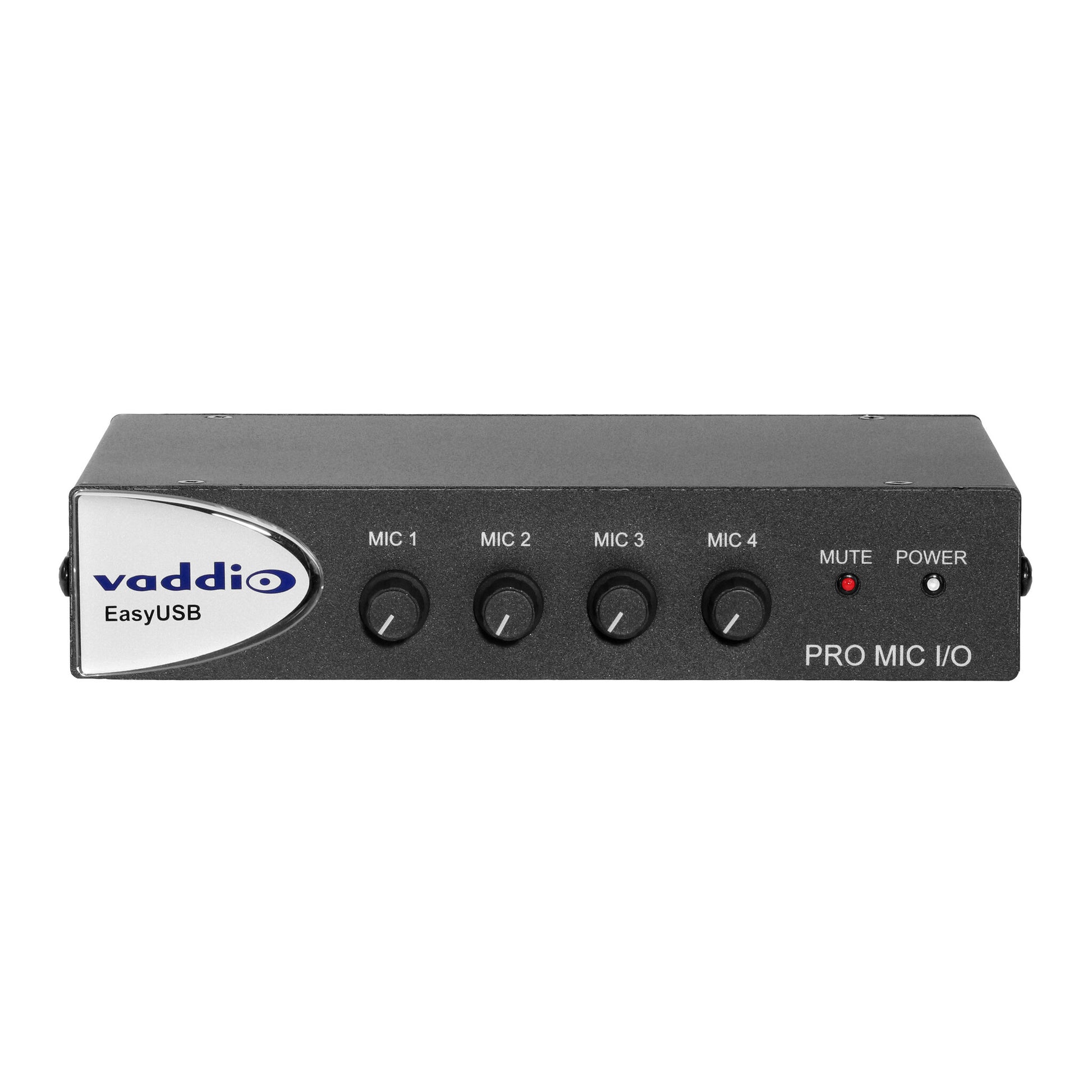

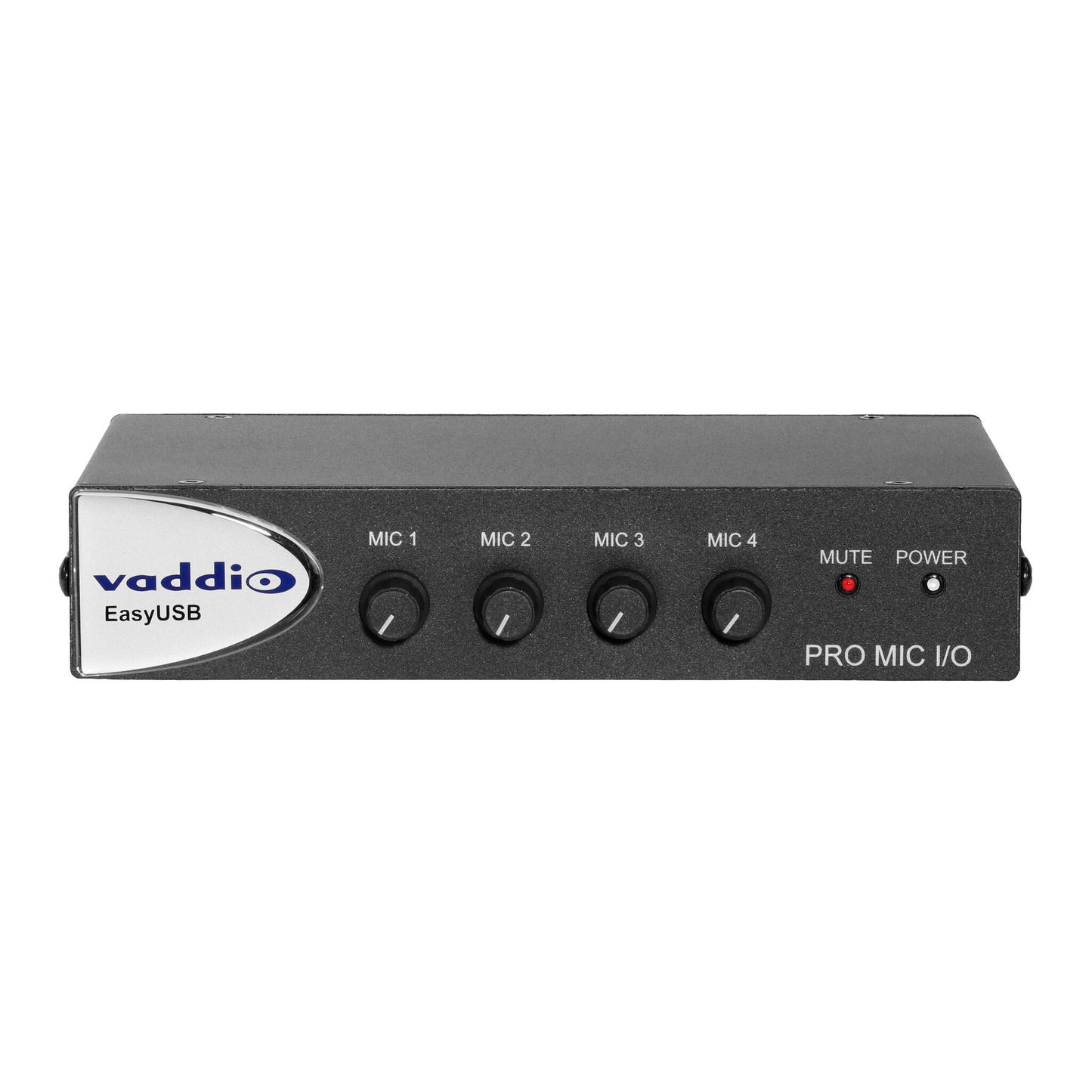

Vaddio EasyUSB PRO MIC I/O

Vaddio EasyUSB PRO MIC I/O

20 - 20000 Hz, 90 dB, 0.02 %, 4x XLR, RS-232, RJ-45, Cat 5, 212.9 x 152.4 x 43.7 mm, 650 g

  • Allows third-party professional microphones to be used with the EasyUSB Mixer/Amp
  • Features four built-in wide-band echo canceling channels

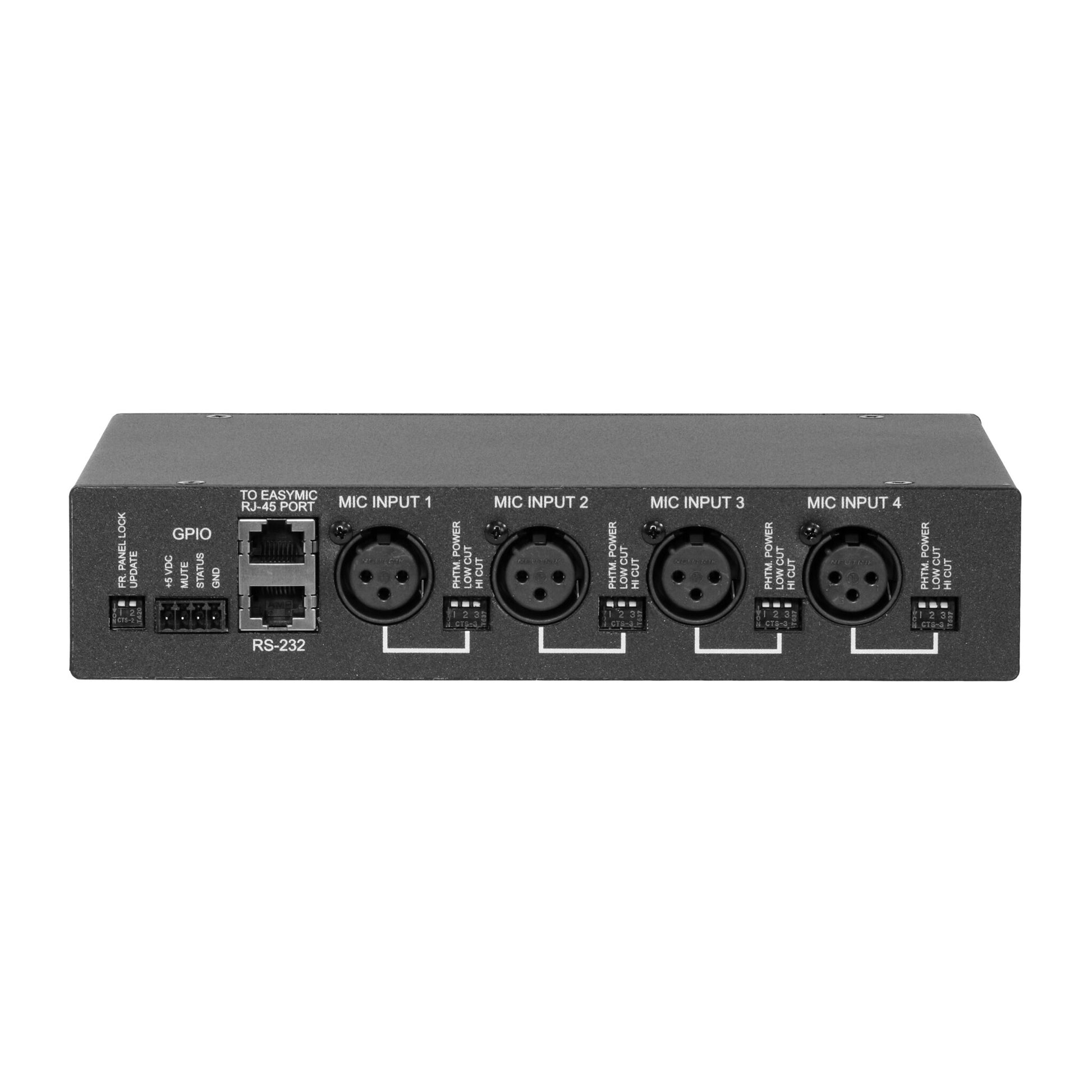

  • Four (4) XLR mic level inputs with assignable phantom power, high and low cut filters, GPIO and front panel lockout
  • EasyUSB Port Output plugs into one EasyUSB Port Input on EasyUSB Mixer/Amp (Compliant with UC clients that use UAC drivers for USB 2.0)
  • Up to eight microphones can be used on two EasyUSB Ports
  • SKU:0840077501846
  • GTIN/EAN:0840077501846
  • MPN:999-8520-000

You need to login to view the price.

View full details

Vaddio EasyUSB PRO MIC I/O. Frequency range: 20 - 20000 Hz, Dynamic range: 90 dB, Total Harmonic Distortion (THD) + noise: 0.02%. Product colour: Black. Width: 212.9 mm, Depth: 152.4 mm, Height: 43.7 mm

Four-Channel Professional Microphone Input Device with Built-in Acoustical Echo Cancelation.

The EasyUSB PRO MIC I/O is designed to integrate any professional microphone with Vaddio's™ EasyUSB audio solutions. The PRO MIC I/O incorporates Vaddio’s unique SmartMIC technology into the mixer, providing distributed multi-channel acoustical echo cancelation and automatic microphone mixing. Additional DSP/Digital Signal Processing technologies include noise reduction, microphone gating, equalization, filtering and AGC for automatically calibrating to the live requirements of the room.

The PRO MIC I/O comes equipped with four independent echo cancelation microphone inputs and one discreet output for interfacing to the Vaddio EasyUSB Mixer/Amp. The system can be expanded to support eight microphones by adding an additional PRO MIC I/O.

This Package Includes:
- EasyUSB PRO MIC I/O Interface
- Quick-Start Guide
- 1 qty 4-position phoenix-style connector
- 4 qty rubber feet for the bottom of EasyUSB MicPOD I/O unit if not rack-mounted

2 years

Audio
Frequency range
20 - 20000 Hz
Dynamic range
90 dB
Total Harmonic Distortion (THD) + noise
0.02%
Channels quantity
4 channels
Noise reduction
Yes
Echo cancellation
Yes
Automatic gain control
Yes
Low pass filter
Yes
High pass filter
Yes
Microphone mixing type
Auto
Design
Product colour
Black
Ports & interfaces
RS-232 ports
1
Ethernet LAN (RJ-45) ports
1
XLR input
4
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Network
Ethernet LAN
Yes
Weight & dimensions
Width
212.9 mm
Depth
152.4 mm
Height
43.7 mm
Weight
650 g
Packaging content
User guide
Yes
