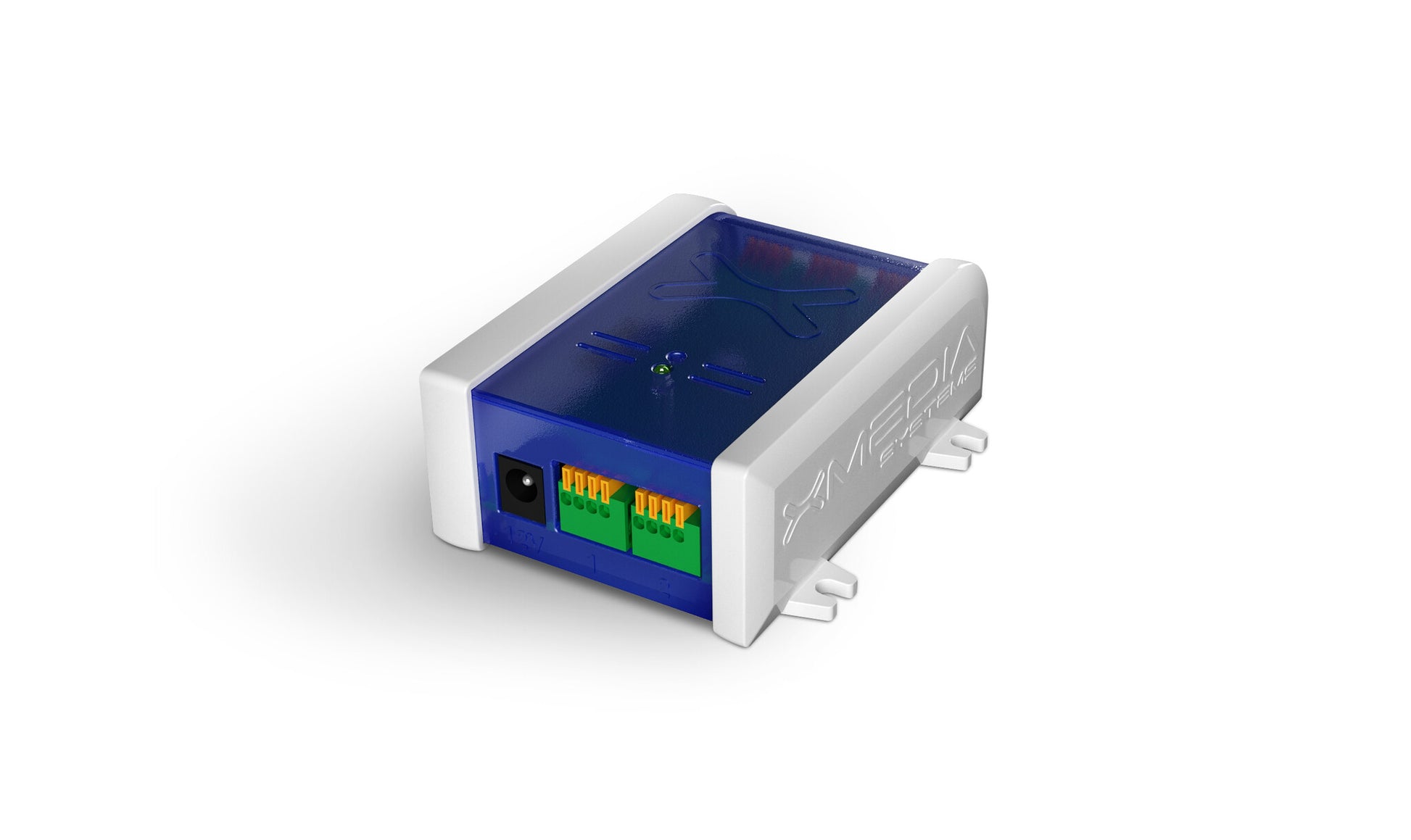

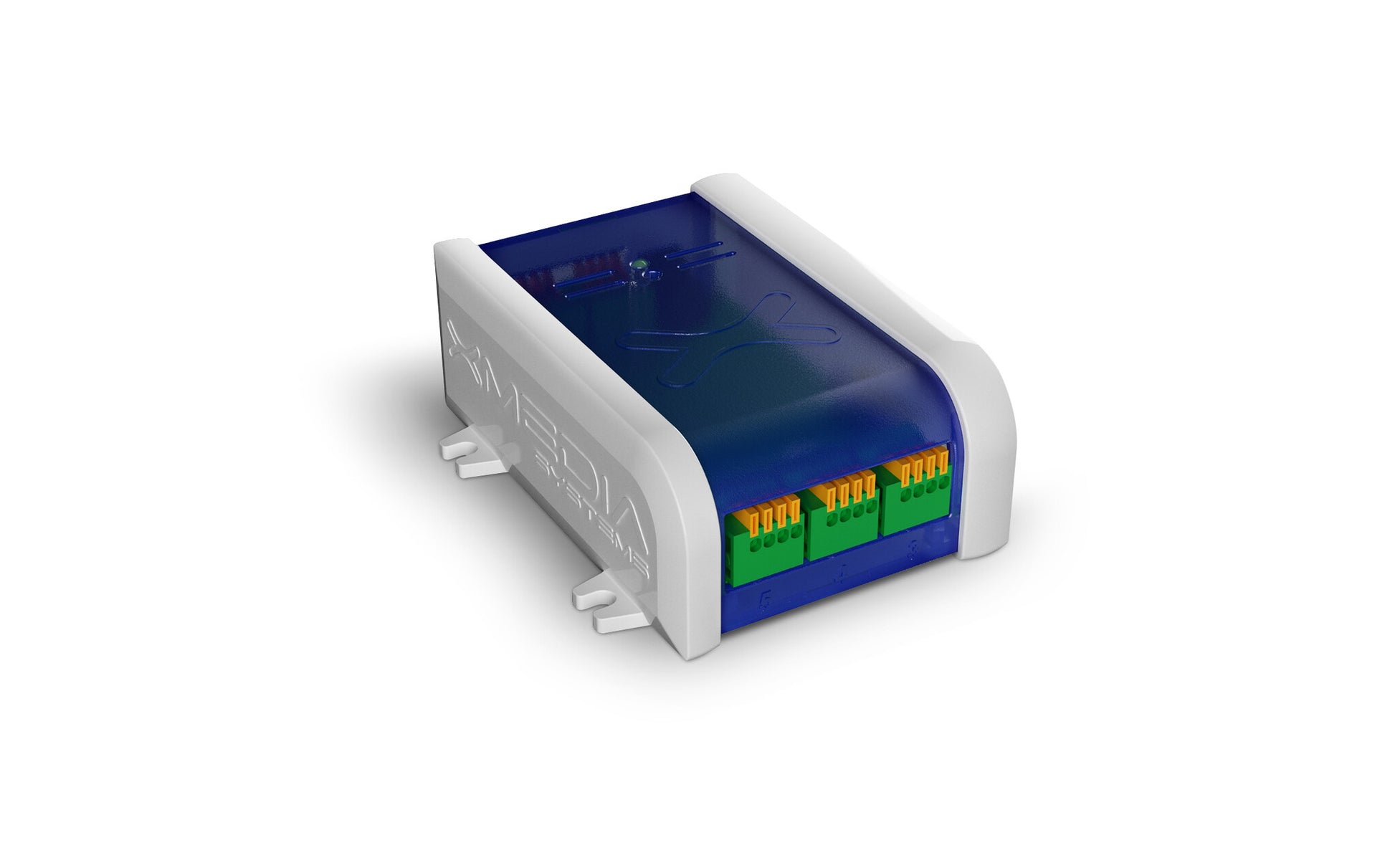

Nexmosphere Expansion module, 5 channel RGB LED output

Nexmosphere Expansion module, 5 channel RGB LED output

Expansion module, 5 channel RGB LED output

  • 5x Dimmable RGB LED output
  • Auto start-up and configuration for highly reliable stand-alone applications (24/7 operability)
  • Control multiple RGB LED strips from one single controller
  • Combine any of the EM and XM modules to make an exact fit for your application
  • SKU:40213
  • GTIN/EAN:8720064445303
  • MPN:EM-6
Add To Favorite

You need to login to view the price.

View full details

Nexmosphere Expansion module, 5 channel RGB LED output. Controller interface type: 1x VDC, 5x RGB Output. Country of origin: Netherlands

The EM modules define the exact specification of the complete XM Xperience controller. Combine any of the modules into one system to make it fit the exact application needs. Different functionalities such as LED control, audio switching or large numbers of Element connections through X-talk channels can all be combined on a single XM controller. The EM modules are pre-assembled onto the XM controllers at our production facilities.

Dimmable RGB LED interface
The RGB LED output allows connection and control of any standard 12-24V RGB LED strip to illuminate large surfaces. All outputs are fully dimmable and allow smooth fading between the different intensities and colors.

EM expansion
The EM modules define the exact specification of the complete XM Xperience controller. Combine any of the modules into one system to make it fit the exact application needs. Different functionalities such as LED control, audio switching or large numbers of Element connections through X-talk channels can all be combined on a single XM controller. The EM
modules are pre-assembled

Logistics data
Country of origin
Netherlands
Customs product code (TARIC)
8536501990
Technical details
Power consumption (typical)
24 W
Dimensions (WxDxH)
76 x 94 x 36 mm
Operating temperature (T-T)
10 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
Weight
82 g
Ports & interfaces
Controller interface type
1x VDC, 5x RGB Output
