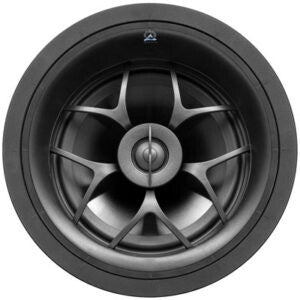

Origin Acoustics D83AEX

The Origin Acoustics D83AEX is an 8-inch 2-way in-ceiling loudspeaker from the Explorer Collection, purpose-built for marine and waterfront environments where standard speakers simply won't survive. Rated IPX6 and engineered to withstand saltwater exposure, extreme temperature swings, and airborne humidity, it brings audiophile-grade fidelity to yachts, waterfront patios, wet rooms, and luxury sea-craft. Its defining feature is a pre-angled graphite woofer that directs sound toward the listening area even when the speaker must be installed off-centre or near a wall — a situation common in tight marine ceiling cavities. Paired with a 1-inch aluminum tweeter and a fully weatherproofed crossover, the D83AEX delivers wide, 38 Hz–20 kHz frequency reproduction that holds its own against the acoustic challenges of open-water and outdoor environments.

Pre-Angled Woofer for Off-Centre Installs

Marine and waterfront ceilings rarely offer the luxury of centred speaker placement — structural frames, reinforcement ribs, and cable runs often dictate exactly where a speaker can go, regardless of where the listening position is. The D83AEX solves this with a factory pre-angled 8-inch graphite woofer that physically tilts the driver toward the listening area at installation. The result is a speaker that delivers focused, on-axis sound without needing a separate pivoting mechanism or secondary aiming hardware. For installers working in confined yacht cabins or sloped deck ceilings, this means accurate stereo imaging and consistent tonal balance even when the ideal mounting position is unavailable. End users hear properly directed sound rather than a diffuse, off-axis reflection — critical in hard-surfaced marine interiors where acoustic treatment is minimal.

IPX6 Marine-Grade Weather Protection

The Explorer Collection was designed from the ground up for marine environments, not retrofitted from a dry-land product. The D83AEX carries an IPX6 weatherproof rating, meaning it is protected against powerful water jets from any direction — a standard that goes well beyond typical outdoor speaker splashproofing. Every component is treated: the electro-mechanical driver elements and crossover networks receive a dedicated weatherproof coating, stainless steel fasteners and connectors replace standard hardware throughout, and extra gaskets seal the cabinet against airborne humidity and salt spray. This level of protection makes the speaker equally at home on exposed waterfront patios, pool decks, and wet rooms in residential or commercial settings, not only on boats. Integrators can specify it confidently in any location where moisture ingress would ordinarily cut a speaker's service life short.

Hi-fi fidelity. Marine-grade durability. Zero compromises.

IPX6 weatherproof · stainless steel hardware · water-sealed crossover

Patented Tool-Less Installation

Origin Acoustics holds Patent 9591390 for their Tool-Less Installation system, and the D83AEX benefits from it in full. Rather than requiring screwdrivers and multiple mounting clips to be individually tightened against the ceiling surface, the system uses spring-loaded clips that deploy automatically as the speaker is pushed into position, spreading the speaker's weight over a larger contact area than conventional mounting systems. This reduces the risk of the baffle warping or creating pressure points that degrade sound over time. In practice, it dramatically shortens installation time per speaker and reduces the complexity of working in awkward ceiling cavities — a genuine advantage on a yacht where access is limited. The uniform clamping pressure also means the speaker stays secure through vibration and movement, which matters in a moving marine vessel.

Treble Trim Switch for Fine-Tuned Performance

A small but professionally significant detail: a treble adjustment switch is located on the speaker baffle behind the grille, accessible after installation without removing the speaker from the ceiling. Different marine and waterfront environments — fiberglass hulls, hardwood cabin interiors, tiled pool decks — have very different acoustic signatures, and a one-size-fits-all high-frequency response rarely sounds right across all of them. This switch lets the installer or end user make a tonal correction on site, rolling off or boosting the high end to compensate for a bright or absorptive space. It is the kind of detail that separates a speaker sold on installation convenience from one engineered for real acoustic results, and it means the system can be calibrated per room rather than accepted as-is.
