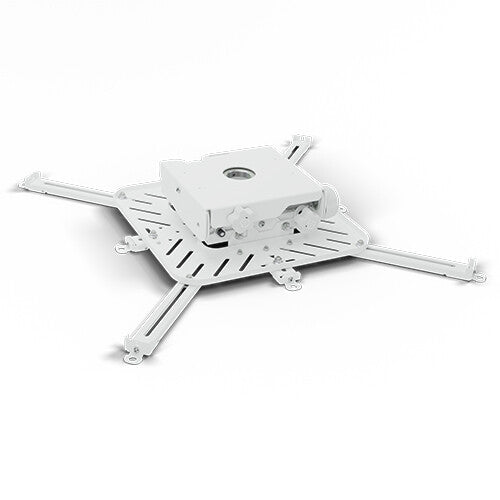

Chief VCTUW

Chief VCTUW

XL Universal Tool-Free Projector Mount

  • Low Profile
  • The new VCT is 30% slimmer than the VCM mount
  • Lightweight
  • The new VCT is 25% lighter than the VCM mount
  • Sleek Aesthetic
  • Matching knobs & hardware
  • Available in black and white finish options
  • Tool-free MicroZone+ Gearbox Pitch Adjustment
  • The fine tune pitch adjustment has a 100:1 gear ratio for precise image alignment
  • Can be hand adjusted using the tool-free knob or driven with a 1/2” (13mm) socket
  • PrecisionSet™ technology to lock in pitch adjustments
  • Tool-free MicroZoneTM Roll & Yaw Adjustments
  • Gear driven tool-free knob adjustments
  • Lockout nuts enable additional image lock security
  • New Universal Interface
  • Universal plate is sized to accommodate most patterns within footprint
  • Short attachment legs reduce clutter for smaller projector installation patterns
  • Long attachment legs extend reach for larger projector installation patterns
  • Custom interfaces also available
  • SKU:IM1_VCTUW
  • GTIN/EAN:841872172477
  • MPN:VCTUW
Add To Favorite

You need to login to view the price.

View full details

Chief VCTUW. Mounting type: Ceiling, Maximum weight capacity: 68 kg, Product colour: White

The VCTUW XL Universal Tool-free Projector mount was designed to install quickly while maintaining a sleek aesthetic. Lighter and slimmer than its predecessor, the VCM, the VCT works well with laser projectors between 50-150 lbs (22.7 – 68 kg). Tool-free MicroZone adjustment ensures accurate and reliable image registration.

Performance
Certification
TÜV, UL
Height adjustment
No
Adjustable arm
No
Cable management
No
Product colour
White
Maximum weight capacity
68 kg
Mounting type
Ceiling
Logistics data
Harmonized System (HS) code
83024190
