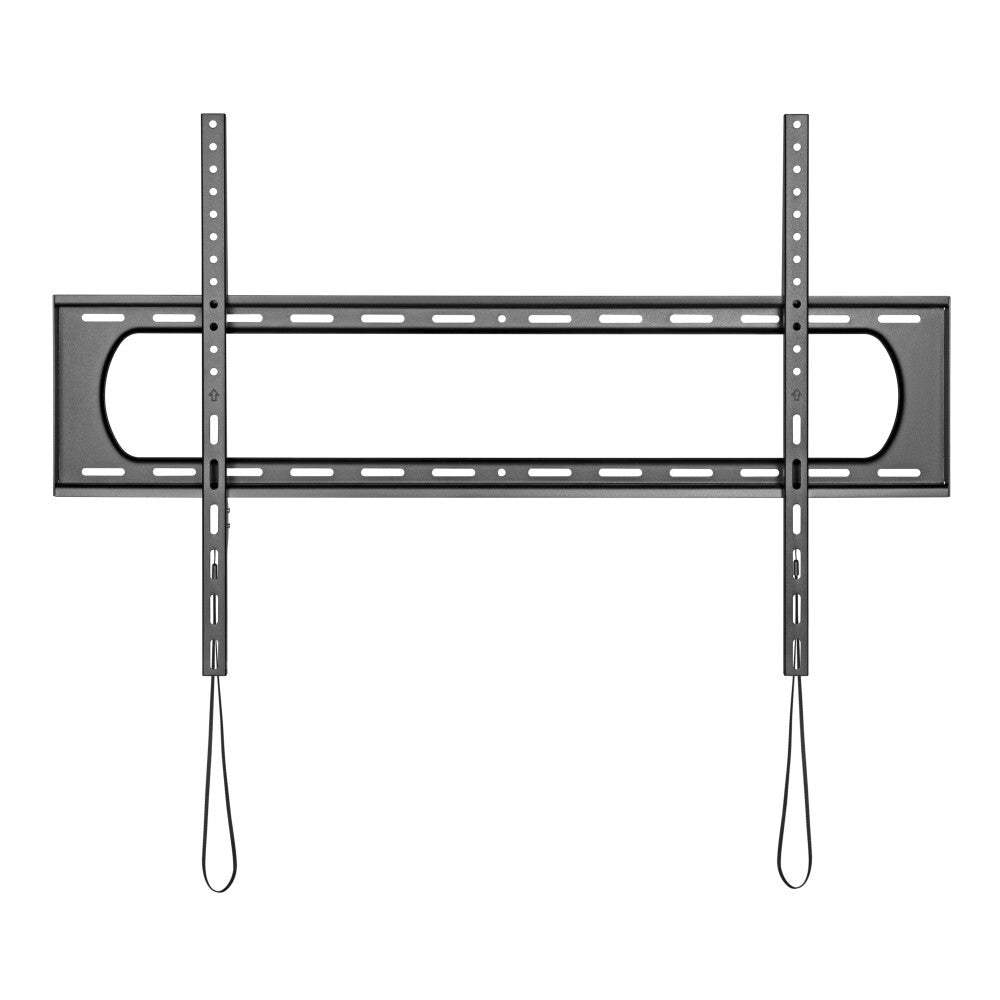

Fixed Wall Bracket, VESA 900x600, 60-120", 120kg

Fixed Wall Bracket, VESA 900x600, 60-120", 120kg

To fill the gap in the niche market of heavy duty large TV wall mounts, ICA-PLB 369F is a reasonable solution.

  • Heavy-duty, steel-constructed fixed TV bracket: Provides increased strength and durability
  • Open Architecture: Provides increased ventilation and easier cable access
  • Automatic spring latches with quick release cables - allow for quick and easy removal of the TV
  • Supports TVs from 60" to 120"; Compatible with curved TVs; Max VESA supported 900x600; Max weight supported: 120kg

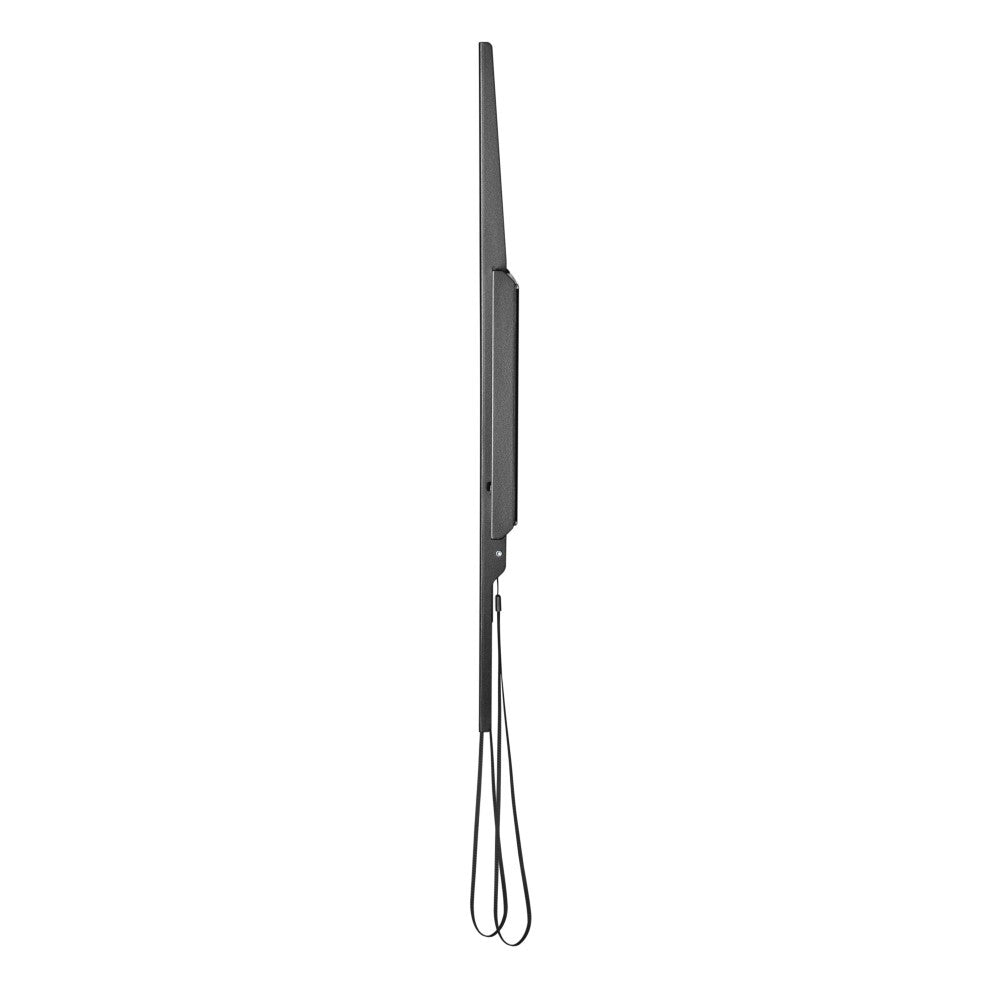

  • Dimensions: 35 x 1005 x 625 mm; Powder coating; Black colour
  • SKU:ICA-PLB 369F
  • GTIN/EAN:
  • MPN:ICA-PLB 369F
Add To Favorite

You need to login to view the price.

View full details

Collections:

  • MOUNTS
  • Mounts/WALL

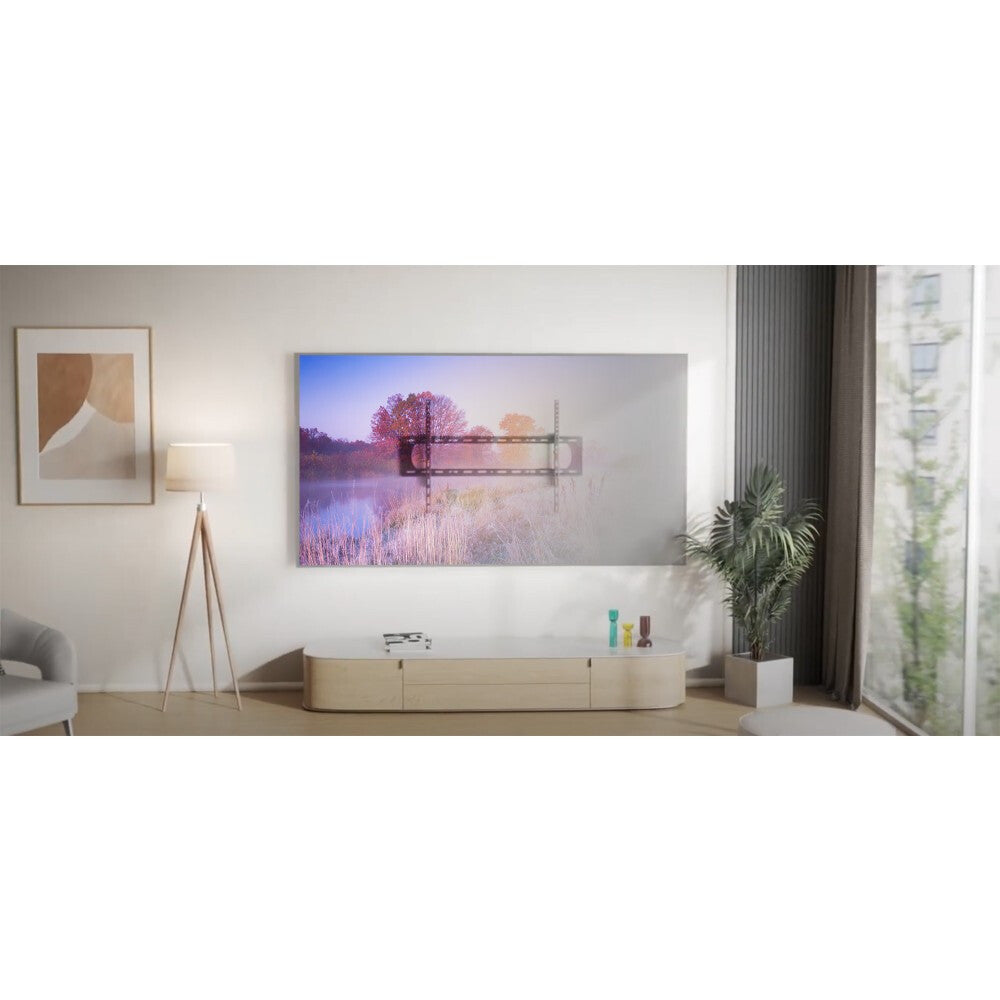

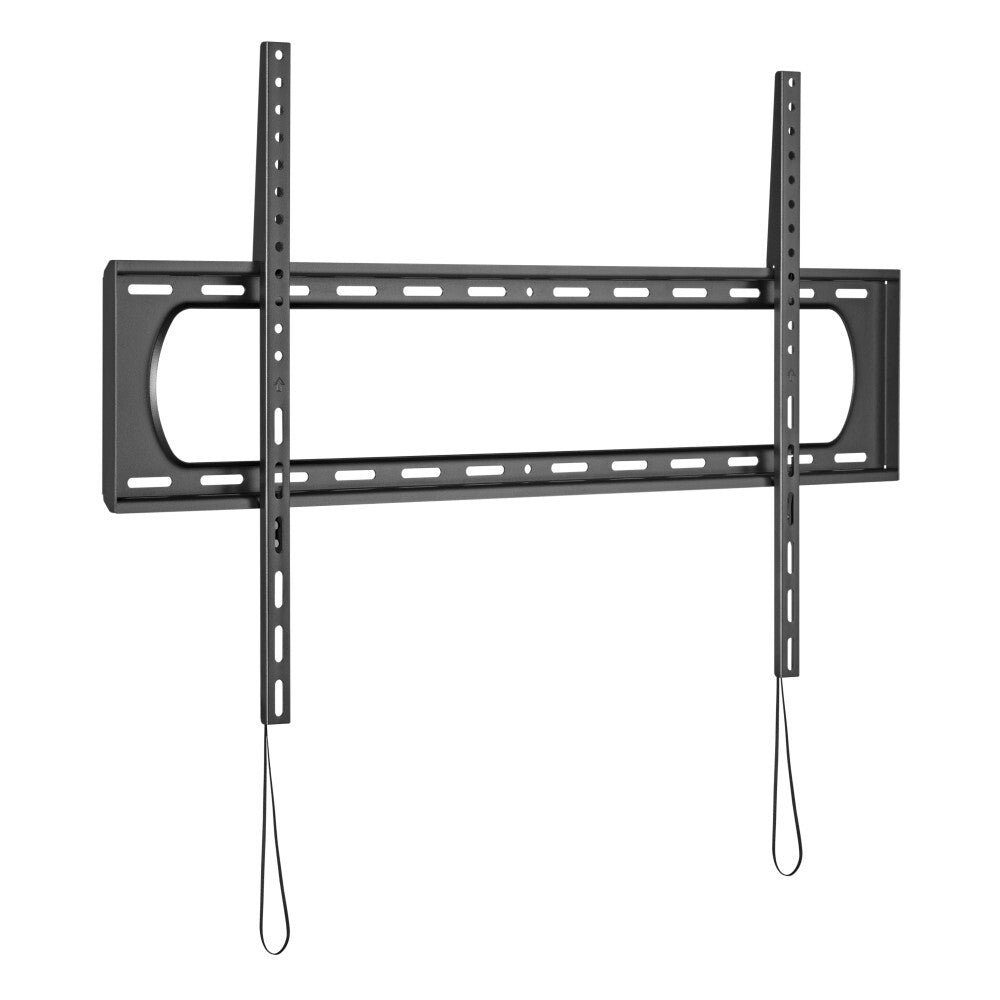

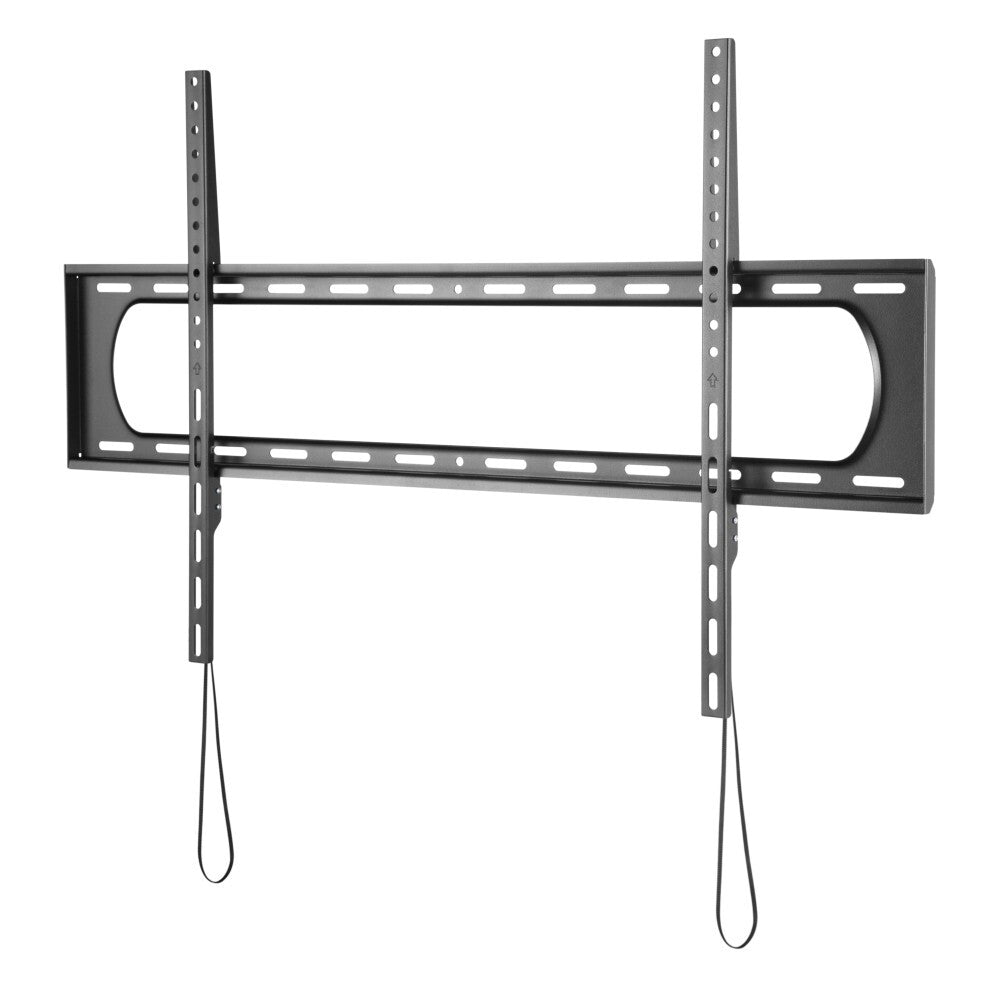

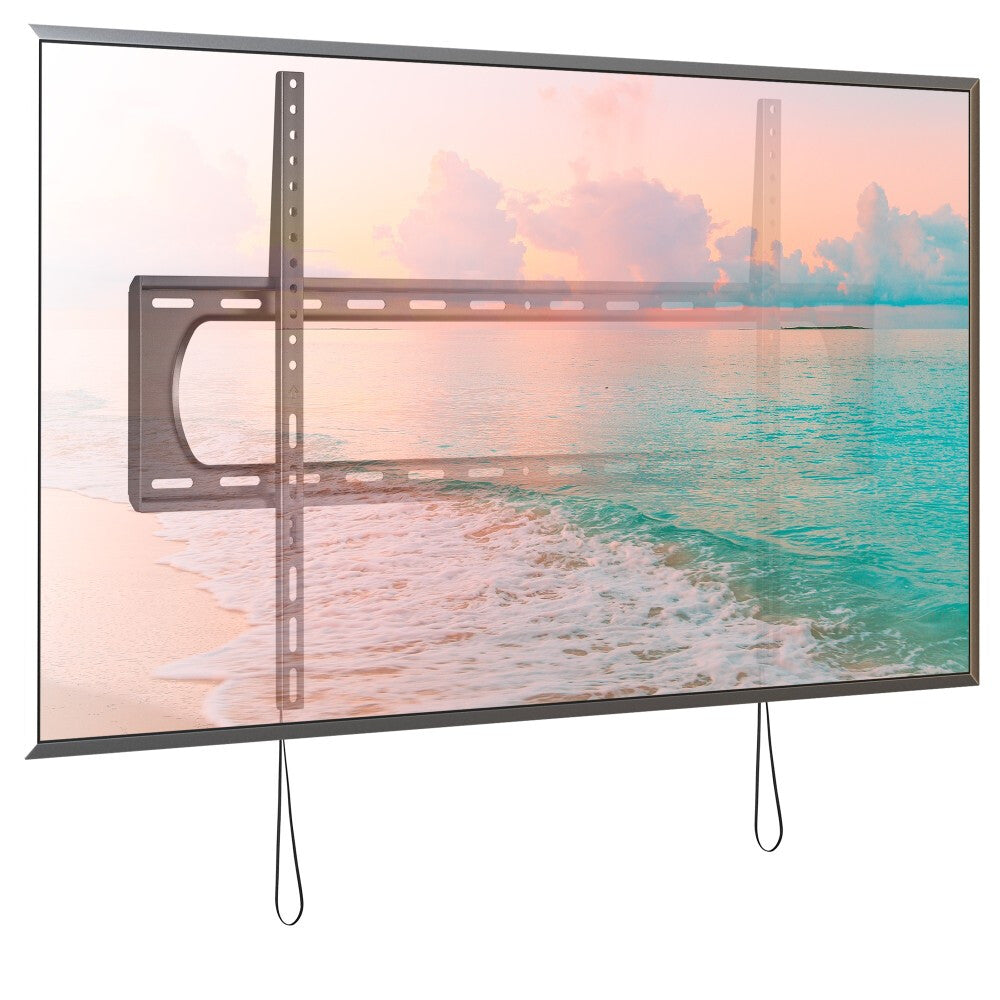

To fill the gap in the niche market of heavy duty large TV wall mounts, ICA-PLB 369F is a reasonable solution. A stiffening structure levels the weight capacity up to 120kg to firmly support 60"~120" TVs. The large space in the center is perfect for installing the socket and hiding all the messy cables. A quick release spring lock allows for quick and easy removal of the TV and takes only seconds to install.

Features

  • Heavy-Duty Steel Construction: Provides increased strength and durability
  • Open Architecture: Provides increased ventilation and easier cable access
  • Automatic spring latches with quick release cables - allow for quick and easy removal of the TV
  • Small package size: Relatively lower transportation costs and storage expenses

Technical specifications

  • Fixed TV bracket
  • Material: steel
  • Made of 2 mm cold rolled sheet
  • Powder coating
  • Fits 60"-120" TVs
  • Fits curved TVs
  • VESA compatible: 50x50,75x75,100x100,100x150,150x100,100x200,200x100,150x150,200x200,200x300,300x200,200x400,400x200,300x300,300x400, 400x300,600x200,400x400,600x300,400x600,600x400,700x400,800x400, 600x600,800x500,800x600,900x600
  • Max mounting hole: 974x602 mm
  • Maximum weight supported: 120 kg
  • Detachable panel
  • Attachable spirit level (included in the component package)

Size

  • Thickness: 35mm
  • Width: 1005mm
  • Height: 625mm

Box Contents

  • Wall bracket for TV
  • Attachable spirit level
  • User Manual
Mounting
Number of displays supported
1
Panel mounting interface
VESA
Maximum VESA mount
900 x 600 mm
Minimum VESA mount
50 x 50 mm
Mounting type
Wall
Maximum screen size
120"
Minimum screen size
60"
Maximum weight capacity
120 kg
Ergonomics
Suitable for curved screen
Y
Design
Product colour
Black
Packaging content
Manual
Y
Mounting kit
Y
