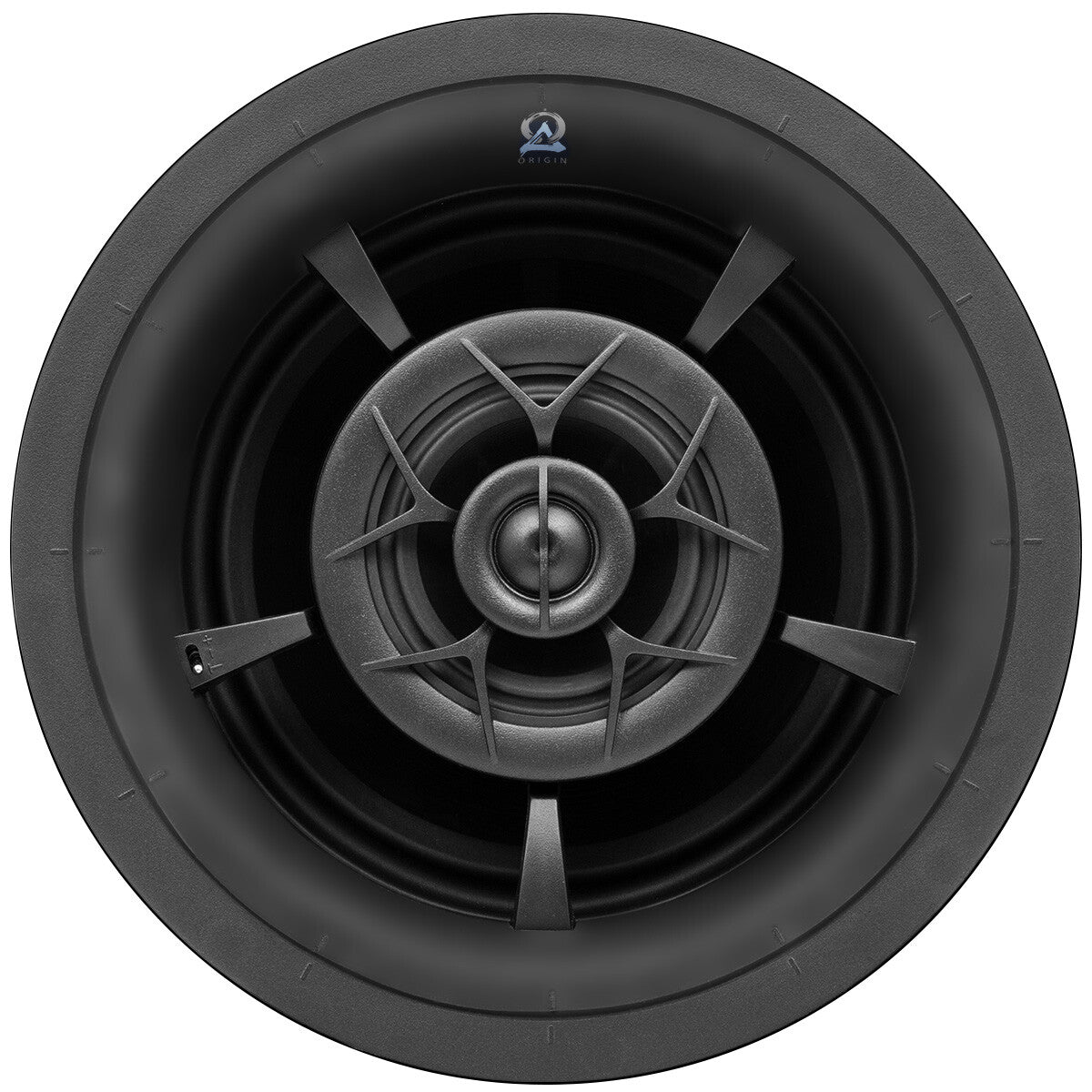

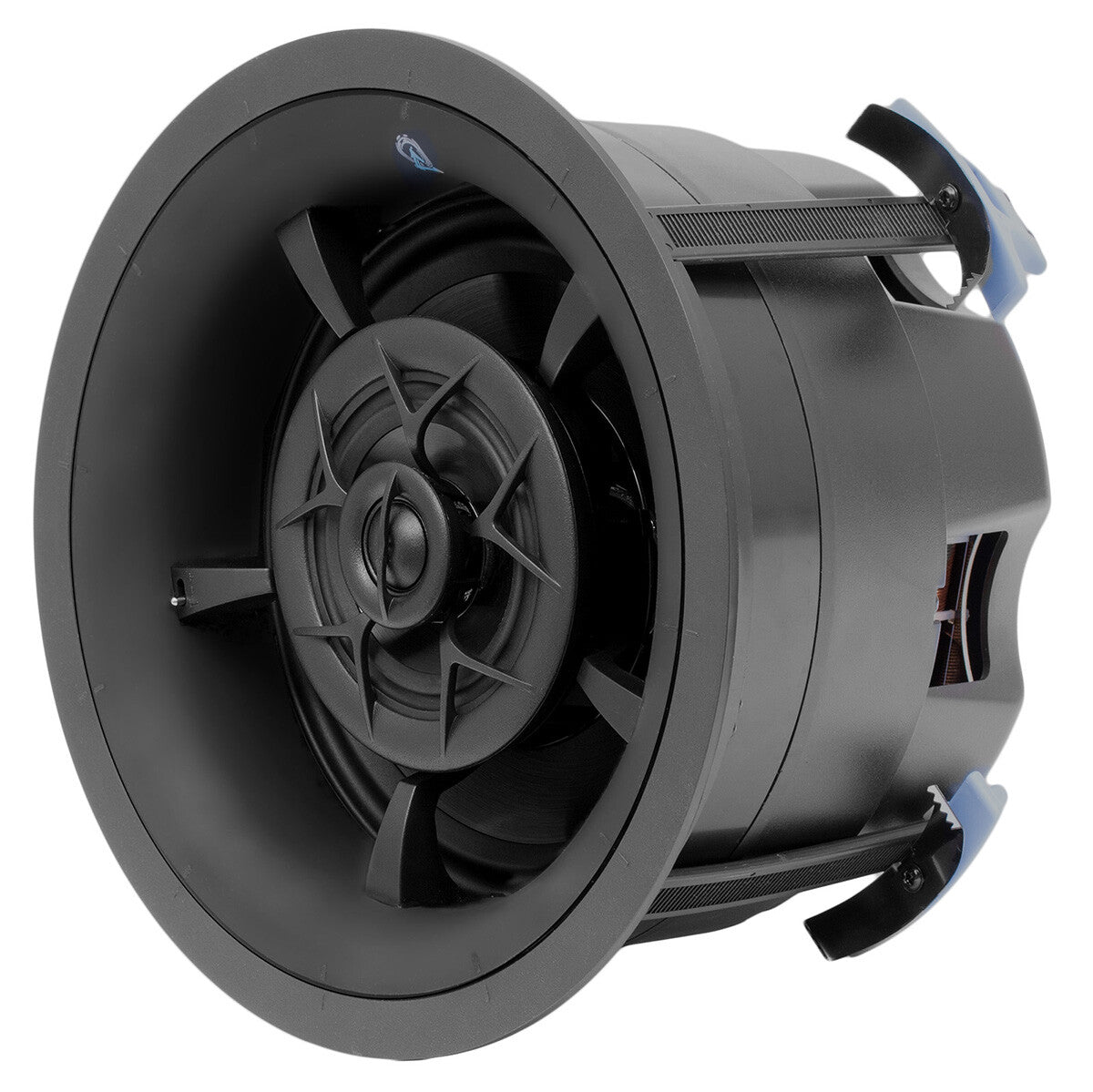

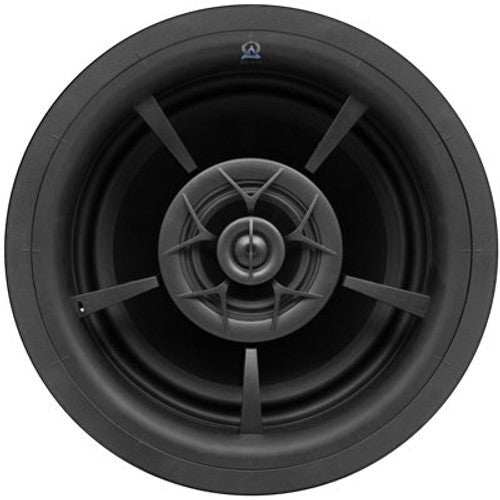

Origin Acoustics D85

The Origin Acoustics Director D85 is a flagship 8-inch, 3-way in-ceiling loudspeaker from the Director Collection — designed for discerning residential and light-commercial installations where uncompromising audio fidelity and a discreet, flush appearance are equally important. Built around Origin's proprietary Tri-Linear Configuration (TLC), the D85 stacks its 8" IMG woofer, 4" IMG midrange, and 3/4" Silk DPSD™ tweeter in a compact chassis that fits the same ceiling cutout as a standard 6-inch speaker. The pivoting FocalPoint mid-tweeter module lets installers aim the sound precisely at any listening position, making it ideal for home theatres, open-plan living rooms, and architecturally complex spaces where speakers cannot always sit directly overhead.

Tri-Linear Configuration — More Bass, Less Space

The D85's Tri-Linear Configuration (TLC) stacks three drivers — an 8" IMG woofer, a 4" IMG midrange, and a 3/4" DPSD silk tweeter — in a compact chassis engineered to fit inside the same 8 3/4" (222mm) ceiling cutout required by most competing 6-inch speakers. In practice this means integrators can offer their clients full-range, 8-inch bass extension and a 36Hz–20kHz frequency response without enlarging ceiling holes or compromising structural integrity. For the end user, the result is noticeably richer, room-filling low end that a genuine 6-inch driver could never produce — with no visible difference in ceiling footprint.

Pivoting FocalPoint Mid-Tweeter Module

The D85's mid and tweeter assembly pivots independently of the woofer, letting installers redirect the critical 700Hz–20kHz frequencies toward any listening position after the speaker is flush-mounted. This is a decisive advantage in rooms where architectural constraints force an off-axis ceiling position — home theatres, hallways, open-plan spaces with offset seating, or anywhere the ceiling grid and the sofa simply don't align. The pivot effectively extends the usable 'sweet spot,' so every seat in the room benefits from full clarity and imaging rather than only those directly below the speaker.

8-inch bass. 6-inch cutout. Perfect aim, every time.

Part no. SCD80500 · Sold individually · Products available through authorised dealers only

Patented DPSD Silk Tweeter Technology

The Dual Plane Stabilized Diaphragm (DPSD™) tweeter is an Origin Acoustics patent. Unlike conventional dome tweeters, the DPSD suspension attaches at both the voice-coil and the peak of the dome, which allows the driver to be crossed over at a significantly lower frequency than standard designs. The outcome is wider high-frequency dispersion, reduced distortion at higher output levels, and more extended, natural-sounding treble. For installers, this means the D85 holds together tonally even when wall angles or furniture layout place listeners off the central axis — and for end users it translates to consistent clarity whether they are seated at the prime listening position or moving around the room.

X-Wave Woofer Surround — Lower Distortion at High Levels

At higher listening levels, woofer cones hit their excursion limits and unwanted resonance waves travel back up the cone, causing audible harmonic distortion. Origin's X-Wave surround is engineered to progressively absorb these reflected waves rather than let them propagate. The design also maximises effective cone area by narrowing the surround itself, squeezing more output from the same physical driver diameter. For end users this means the D85 stays clean and controlled during demanding playback — film soundtracks, live music, or party-level background audio — without the harshness that comparably priced ceiling speakers often exhibit under load.

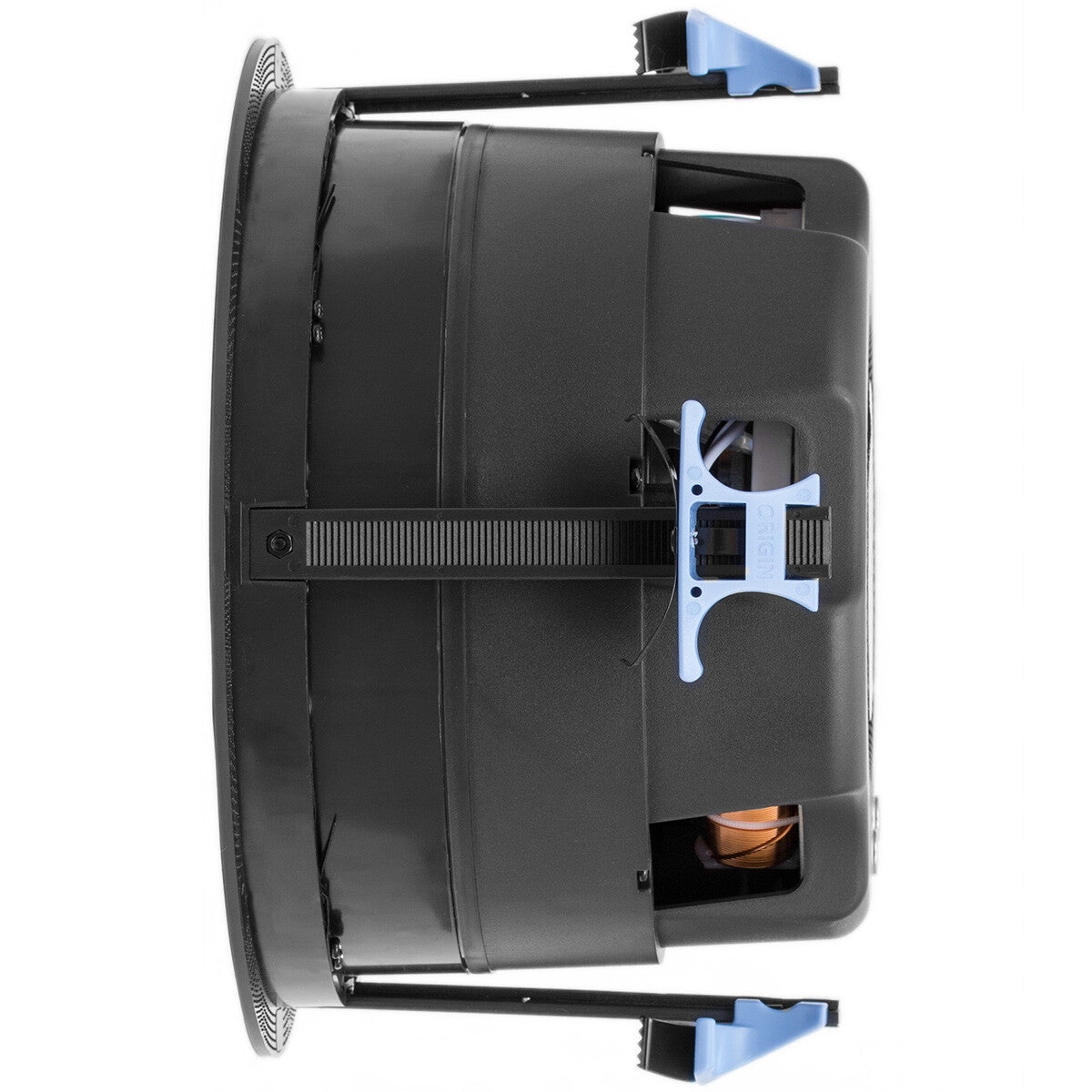

Tool-Less Mounting with Spring-Loaded Clips

The Director Collection's mounting system replaces traditional 'dog-leg' bracket screws with a tool-less, spring-loaded clip mechanism that locks with multiple contact points around the ceiling cutout. Weight is distributed more evenly than screw-based dogs, reducing micro-vibration transfer to the ceiling panel — which matters acoustically as well as structurally. For integrators, the system cuts per-speaker installation time significantly and allows the grille (magnetically attached) to be removed and refitted without tools. Clients who want to repaint grilles or reposition speakers during a renovation can do so without calling in a technician.

IPX6 Weatherproof Rating

The D85 carries an IPX6 rating, meaning it is certified to withstand powerful water jets from any direction — well above the humidity and condensation levels encountered in bathrooms, pool areas, covered terraces, and saunas. For integrators this dramatically broadens the D85's installation scope: a single SKU can cover both living-room audio and wet-area extension without switching to a specialist marine product. End users get consistent sound quality throughout the home, including spaces previously considered too challenging for quality architectural audio.

Onboard Treble EQ Adjustment

The D85 includes a switchable treble EQ trim on the driver chassis. This lets installers compensate for ceiling materials, room absorption, or client preference without requiring an external DSP processor or amplifier with tone controls. In practice it is particularly useful in rooms with highly reflective surfaces (stone, glass, hard plaster) where untreated high frequencies can sound brittle, or in heavily upholstered spaces where a modest treble boost restores air and detail. It is a small feature with a meaningful impact on how quickly — and permanently — a room can be dialled in after installation.
