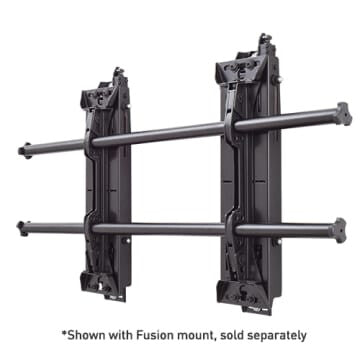

Chief FCAXV1U

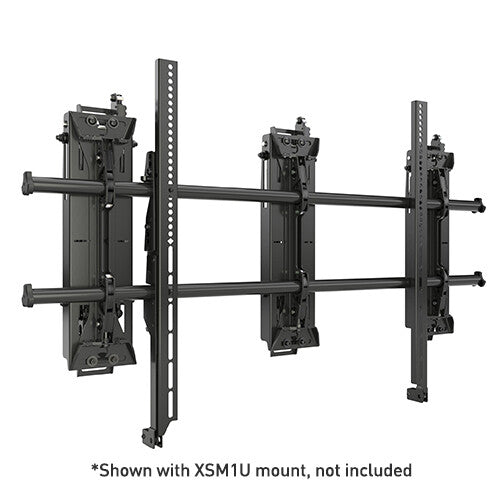

The Chief FCAXV1U is a Fusion Extra-Large Pull-Out Accessory designed for AV integrators and installers working with large-format commercial displays of 80 inches and above. It pairs exclusively with the Fusion Extra-Large Micro-Adjustable Fixed (XSM1U) and Tilt (XTM1U) wall mounts, adding up to 29,3 cm of extension from the wall — making it the ideal solution for recessed installations or spaces where rear access to cabling and AV equipment is otherwise difficult. With its scissor mechanism, plumb adjustment, and home-position latch, it delivers the controlled serviceability and professional finish demanded by corporate boardrooms, conference rooms, auditoriums, and government multi-purpose spaces.

Up to 29,3 cm Wall Extension for Recessed Installs

When paired with a compatible Fusion XL mount, the FCAXV1U adds up to 29,3 cm of extension from the wall. This is decisive for recessed installations — where the display sits inside an alcove or finished wall cavity — making it otherwise impossible to pull the screen forward far enough for safe cabling and service access. Rather than cutting into walls or accepting a permanent service hatch, the display simply swings out on demand. For corporate boardrooms and conference rooms where architectural finish quality matters, this means the display can be recessed cleanly into the wall without sacrificing the ability to service or rewire it later.

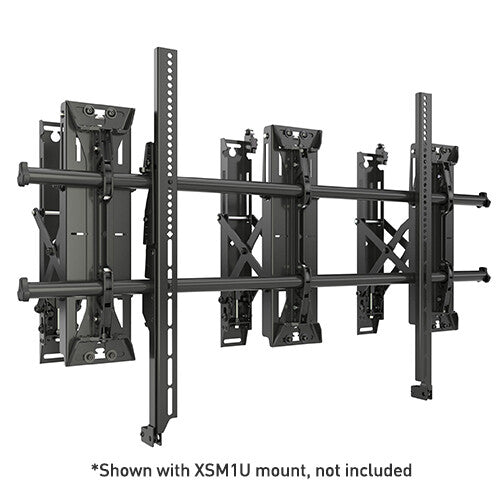

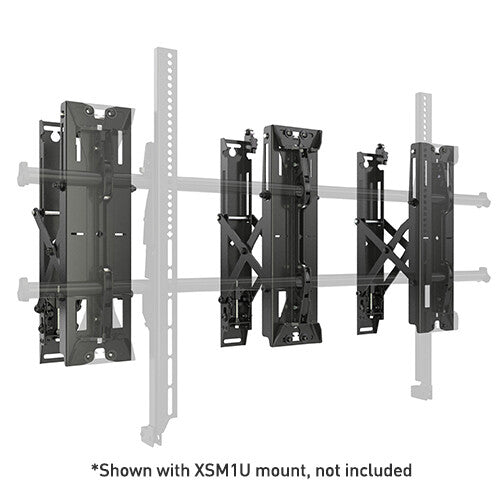

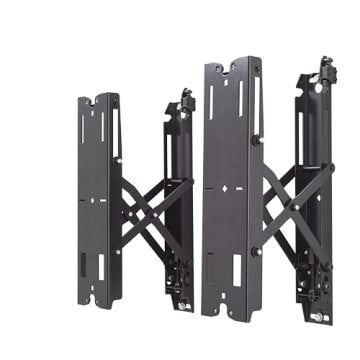

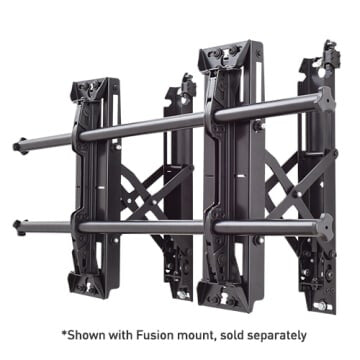

Scissor Mechanism Gives Full Rear Access

The scissor assembly extends out up to 24,1 cm independently of the total wall extension, creating a generous working gap behind the display. In practice this means a technician can reach connectors, swap signal sources, adjust cabling, or inspect AV equipment behind the panel without dismounting the screen. For permanent installations in high-usage spaces such as auditoriums or government briefing rooms, where future service calls are inevitable, this design dramatically reduces the time and risk involved in rear-of-display maintenance.

Pull out. Service. Lock back. No dismounting needed.

Limited 10-year manufacturer warranty · For use with Chief XSM1U and XTM1U mounts

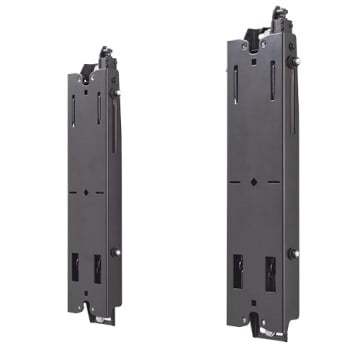

Plumb Adjustment and Home-Position Latch

After a pull-out accessory is installed, even minor structural imperfections can leave large displays visibly tilted — a particularly damaging aesthetic issue in high-end boardrooms or executive environments. The FCAXV1U includes a plumb adjustment that corrects for out-of-square wall conditions, ensuring the display hangs straight regardless of substrate variation. The home-position latch then locks the mount firmly in its resting position once the display is returned to the wall, preventing any accidental drift or movement — a critical safety detail when supporting displays weighing up to 113 kg.

Supports 80"+ Displays Up to 113 kg

The FCAXV1U is rated for displays weighing up to 113 kg when used with compatible Fusion XL mounts and appropriate substrates. Maximum capacity ranges from 91 to 113 kg depending on wall construction — triple steel stud, triple wood stud, plywood-backed steel stud, or solid and hollow concrete block are all documented. This substrate-specific load table is an important planning tool: specifying the right wall preparation upfront avoids costly on-site modifications during installation of very large-format displays in finished rooms.

Optional Integrated AV Equipment Storage

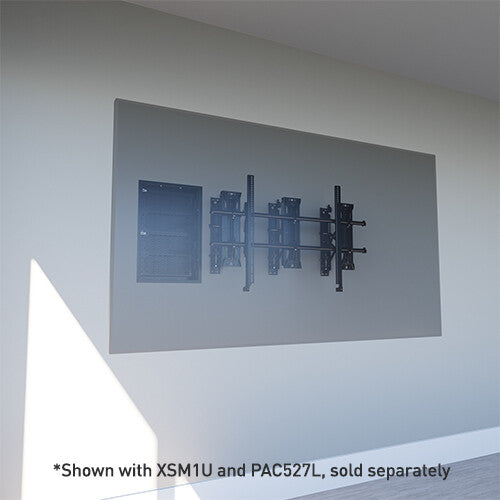

The FCAXV1U is designed to work in combination with Chief Proximity storage solutions — specifically the PAC526 in-wall box or the CSPR on-wall component storage panel. Both options allow signal processors, media players, or other AV components to be mounted and concealed directly behind the display rather than run in a remote rack. This keeps cabling short, simplifies system architecture, and maintains a clean, cable-free appearance from the front — a meaningful benefit in premium meeting spaces where visual cleanliness is part of the room design brief.
