Chief LWM3x1U

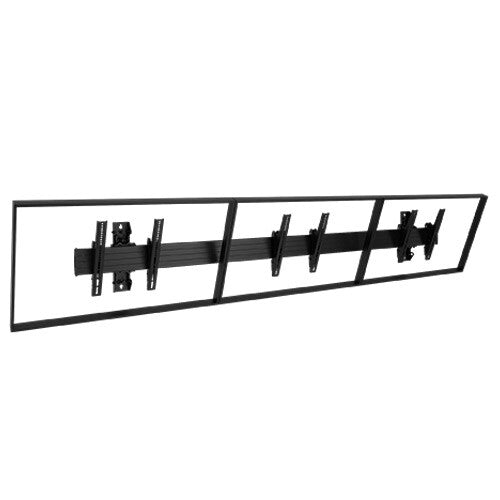

The Chief Fusion LWM3x1U is a wall-mounted hardware solution designed to hold three large-format displays (40–55 inches) in a seamless 3×1 horizontal landscape menu board configuration. Engineered for demanding commercial environments such as quick-service restaurants, retail, corporate lobbies and hospitality venues, it delivers a clean, professional finish while keeping all three screens perfectly aligned — even on uneven wall surfaces. With a combined maximum load capacity of 170,1 kg, UL listing and a full ecosystem of compatible Fusion accessories, the LWM3x1U is a proven, installer-friendly platform for permanent digital menu board deployments.

Single-Extrusion Alignment System

The LWM3x1U uses a single horizontal extrusion to hold and align all three screens simultaneously. Rather than mounting each display independently to the wall — a process prone to cumulative levelling errors — the extrusion acts as a shared reference rail that keeps every screen at exactly the same height and depth. This is especially valuable on masonry or plasterboard walls that are not perfectly flat: the depth-adjustment range of 0–2,5 cm compensates for surface irregularities so screens sit flush and evenly spaced without shimming. The result for the end user is a menu board that looks factory-finished and professional, with no visible gaps or height offsets between panels.

Centris Tilt for Optimal Viewing Angle

The mount's Centris tilt mechanism allows the screen array to be angled downward up to 20° from vertical. For menu board applications where displays are installed high on a wall — typically above a service counter — this means the active image area faces directly toward standing or queuing customers rather than toward the ceiling. The tilt can be set during installation and locked in place, eliminating viewer complaints about glare or poor legibility caused by a screen that is perpendicular to the wall. In high-traffic food-service environments this directly translates to faster customer decision-making and a reduction in order errors.

Three screens. One extrusion. Zero misalignment.

UL Listed · 10-year limited manufacturer warranty

Tool-Free Screen Engagement

Screens can be docked onto the extrusion and secured without additional hand tools. This feature meaningfully reduces installation time when mounting three large-format panels, and is equally valuable during planned maintenance or display swaps — a technician can remove and reinstall a single screen without disturbing the adjacent panels or the wall fixings. For end users running time-sensitive locations such as restaurants during a shift, faster servicing means less disruption to the customer-facing display.

Post-Installation ControlZone Micro-Height Adjustment

A dedicated ControlZone micro-height adjustment of up to 5,1 cm (±2,5 cm) is available after the mount has been fixed to the wall and the screens installed. This is a practical advantage in real installations where small discrepancies in wall plug positions or stud locations result in the extrusion sitting slightly off the intended height. Rather than remounting the entire assembly, the installer fine-tunes the final position in minutes. For the end user this means a correctly positioned menu board is delivered on first visit without the cost of a return call.

High Capacity Rated for Large Commercial Screens

The LWM3x1U carries a combined maximum load of 170,1 kg across the three display positions, equating to approximately 56,7 kg per screen. This comfortably accommodates virtually all 40–55-inch commercial displays currently on the market, including heavier all-in-one units with integrated media players or additional shielding. UL Listing confirms the structural and electrical safety of the assembly has been independently verified — an important consideration for permanent public-facing installations in regulated commercial environments.

Compatible with the Full Fusion Accessory Ecosystem

The LWM3x1U is part of Chief's Fusion platform, which means accessories designed for Fusion wall, ceiling and freestanding products are interchangeable. Cable management components, extension columns, and alternative interface brackets from the same ecosystem can be added without custom fabrication. For installations where the display layout may need to expand — for example from a 3×1 to a 5×1 array in a larger venue — the existing infrastructure investment is reused rather than replaced, reducing the total lifecycle cost for the end user.
