Chief LWM4X1U

The Chief Fusion LWM4X1U is a purpose-built wall mount for four-display menu board installations, accommodating 40–55-inch screens arranged in a 4×1 landscape row. Designed for high-traffic commercial environments such as quick-service restaurants, airports, and retail, the system delivers secure, precise screen positioning through a single horizontal extrusion that keeps all four panels perfectly aligned in one plane — even on uneven or irregular wall surfaces. Three integrated adjustment systems (Centris tilt, ControlZone micro-height, and depth adjustment) allow installers to fine-tune each display independently without specialized tools. UL-listed and backed by a 10-year limited warranty, the LWM4X1U is compatible with the full Fusion accessory ecosystem.

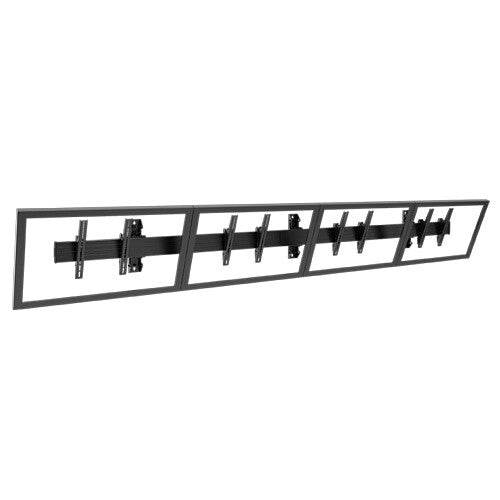

Single Extrusion Keeps All Four Screens Aligned

The mount's entire four-display row attaches to a single horizontal extrusion rather than four separate wall brackets. This is the defining engineering choice: it means screen-to-screen alignment is a function of the extrusion itself, not the installer's precision when drilling into the wall. Even on surfaces that are slightly bowed, uneven, or built from inconsistent materials, all panels end up coplanar. For a menu board that customers are reading from a distance, a visibly misaligned row of screens undermines the professional image of the venue — this design eliminates that risk systematically. The extrusion also includes a depth adjustment so the entire row can be moved in or out from the wall to compensate for wall-depth irregularities.

Centris Tilt for Optimal Viewer Sightlines

The Centris tilt system provides a continuous downward tilt range from 0° to -20°, meaning the screens can be angled toward a standing or queuing audience below the mount. In menu board deployments, displays are typically mounted at ceiling height or well above eye level — a 10–20° downward tilt reduces glare from overhead lighting and brings the content squarely into the viewer's field of vision. The tilt is adjustable per display interface, so each of the four screens can be set independently if the ceiling or wall geometry demands it. This has a direct effect on customer experience: readable content at the right angle translates to faster order decisions and reduced queue times.

Four screens. One extrusion. Perfect alignment every time.

UL Listed · 10-year limited warranty

ControlZone Micro-Height Adjustment

After the main installation is complete, ControlZone allows fine vertical repositioning of individual screens without loosening the primary wall fixings. This matters in real-world installs where the extrusion is level but an individual display's VESA holes introduce a slight vertical offset. Rather than shimming or re-drilling, the installer turns a small adjustment mechanism to bring the screen into perfect vertical register with its neighbours. The practical result is a finished installation that looks factory-precise, with no visible step between adjacent screens — important for venues where brand standards are tightly controlled, such as QSR franchise rollouts.

Tool-Free Screen Engagement for Fast Servicing

Displays connect to the mount's interface brackets without the need for loose screws or tools during the screen attachment step. In a four-screen installation, this matters both during the initial fit-out and whenever a display needs to be swapped for repair or model upgrade. A technician can remove and re-hang a screen in minutes without unpacking a toolkit — reducing both the labour cost of service visits and the disruption to a live trading environment. Quick-release also makes it practical to clean behind the screens periodically, which matters for hygiene compliance in food-service locations.

Compatible with the Full Fusion Accessory Ecosystem

The LWM4X1U is part of Chief's Fusion platform, which shares mounting interfaces and accessory dimensions across wall, ceiling, and freestanding product lines. This means media players, cable management channels, and additional brackets specified or already deployed for other Fusion products can be reused or added without compatibility research. For integrators running multi-site rollouts across different venue formats — some wall-mounted, some freestanding — standardising on Fusion reduces the component inventory and training burden significantly. The shared ecosystem also means accessories ordered today will remain compatible if the installation is later reconfigured.
