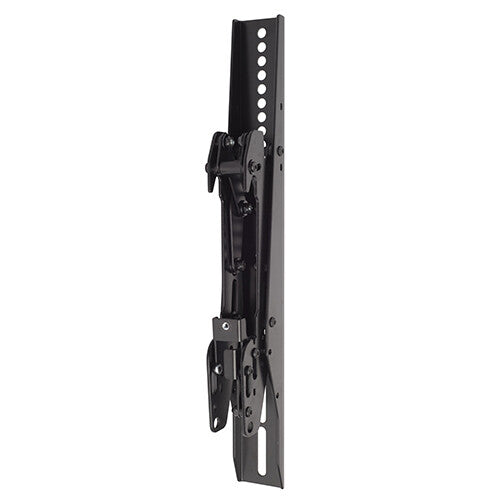

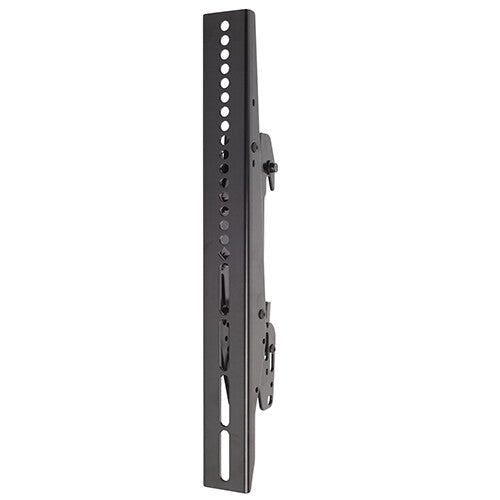

Chief FMSITL

The Chief FMSITL Fusion Large Tilt Interface is a key component in Chief's Fusion modular menu board and multi-display mounting ecosystem. Designed to connect large displays to Chief extrusions, it is compatible with Chief's LBM, LCM, LVM, LWM, and FMS Series mounts and meets the 400 mm VESA standard. The FMSITL is built for AV integrators who need a reliable, adjustable interface in digital signage, restaurant menu board, and commercial display installations. Its modular nature makes it straightforward to specify across a variety of wall and ceiling configurations, in both landscape and portrait orientations.

Centris Tilt — Fingertip Precision

Chief's patented Centris technology is a counterbalanced tilt mechanism that lets the display move freely yet hold its position without requiring tools. On the FMSITL, this translates to a +5° to -20° tilt range that can be dialled in with one hand and then locked at fixed detent positions of 0°, 10°, or 20°. In practice, this is highly valuable in menu board installations above head height, where getting the angle right without a step ladder re-visit matters. The display stays exactly where it is set, with no creep or drift over time — an important reliability point in high-traffic venues such as quick-service restaurants.

Tool-Free Screen Engagement

The FMSITL allows the display to be attached to and released from the mounting rail without any tools. This is not merely a convenience feature — in commercial installations with multiple screens, it measurably cuts installation time and makes future display replacements or content-hardware upgrades a single-person job. For end users in retail or food-service environments, it also means faster service recovery if a display needs to be swapped out, reducing operational downtime.

Snap in. Tilt. Lock. No tools, no guesswork.

Full Legrand Chief USA warranty · 400 mm VESA compliant

Fusion Ecosystem Compatibility

The FMSITL is engineered as a modular building block within Chief's Fusion system, fitting LBM, LCM, LVM, LWM, and FMS Series extrusions. This matters because it means the interface can be specified confidently into new builds or retrofit into existing Fusion framework installations without requiring a full system replacement. The 400 mm VESA compliance ensures broad compatibility with large-format commercial displays from most major manufacturers. Both landscape and portrait orientations are supported, making it suitable for menu boards, wayfinding, and general digital signage configurations.

Optional Padlock Security

The FMSITL includes provisions for an optional padlock that physically locks the display to the mounting rail. This is a practical requirement for public-facing digital signage installations — in retail, hospitality, transport hubs, or education — where unauthorized removal or accidental dislodging of a display is a real risk. The security feature can be added without modifying the mount, keeping the installation clean while providing a meaningful deterrent without the cost of a full security enclosure.
