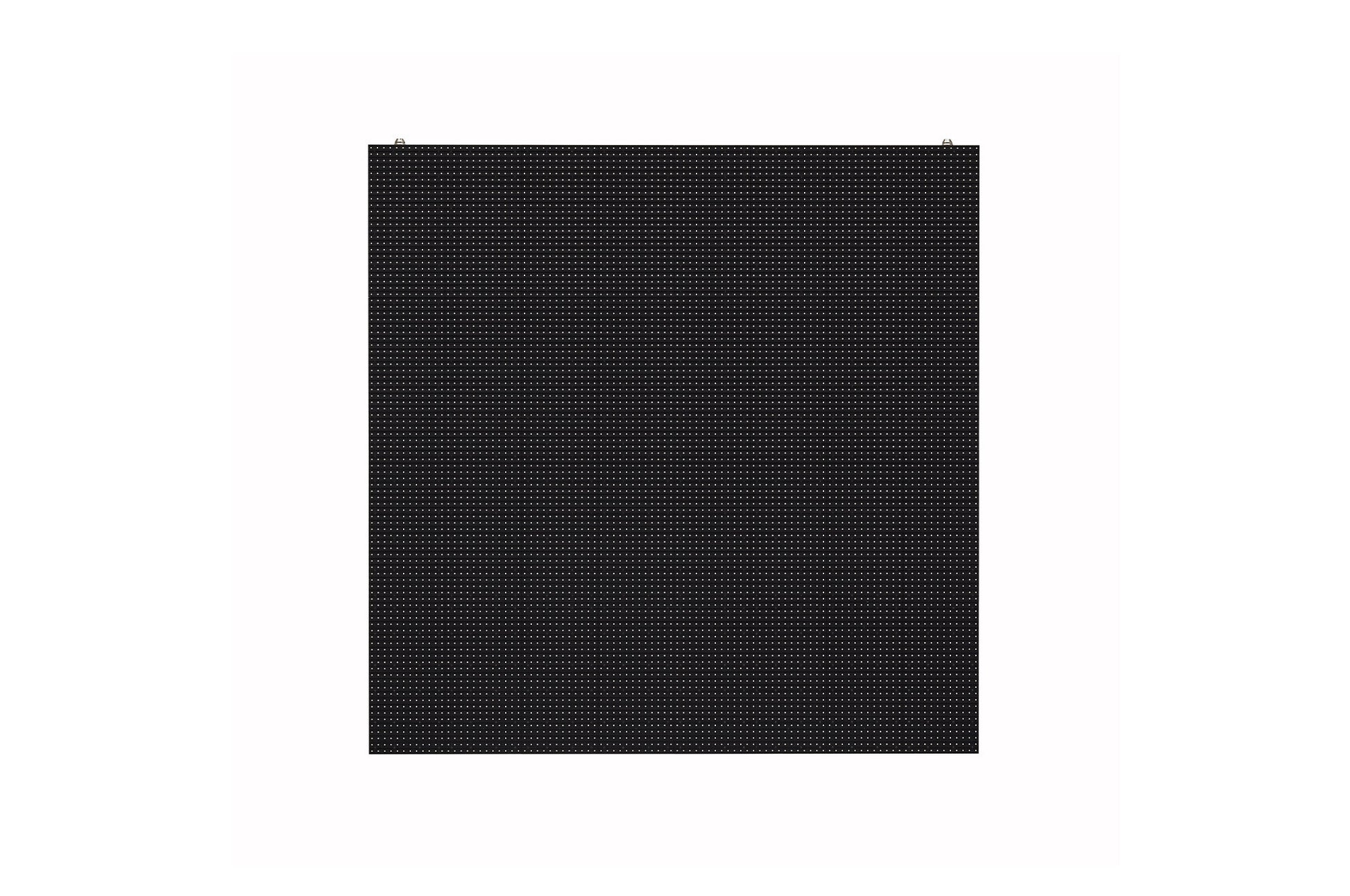

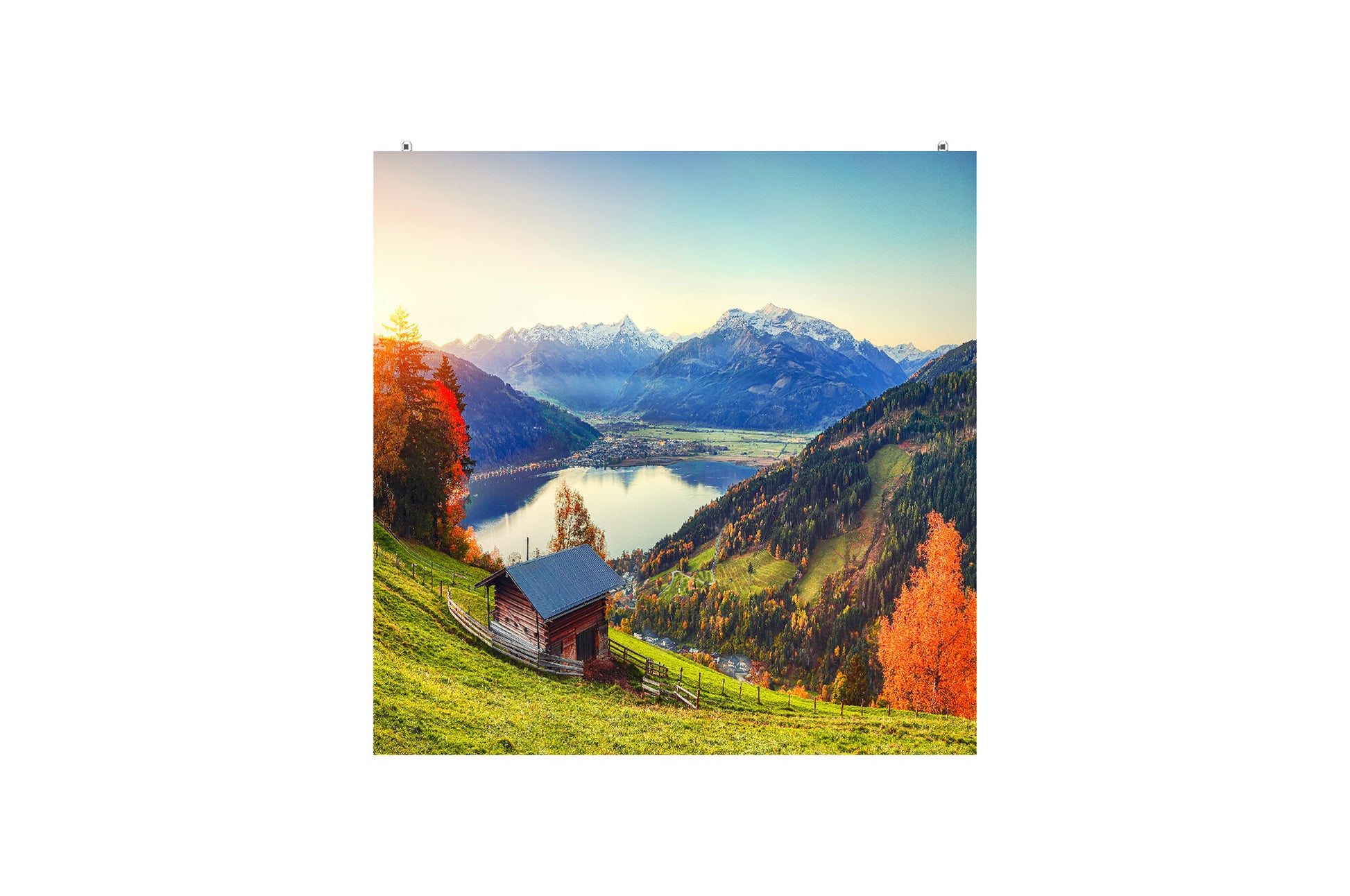

GSCD100 Outdoor LED, 10.41 mm Pixel Pitch

GSCD Ultra Light Series

With a lightweight design, the Ultra Light Series can be easily composed of a large screen without providing heavy load to the installing structure. A 90° corner option is provided for seamless right-angled installation.

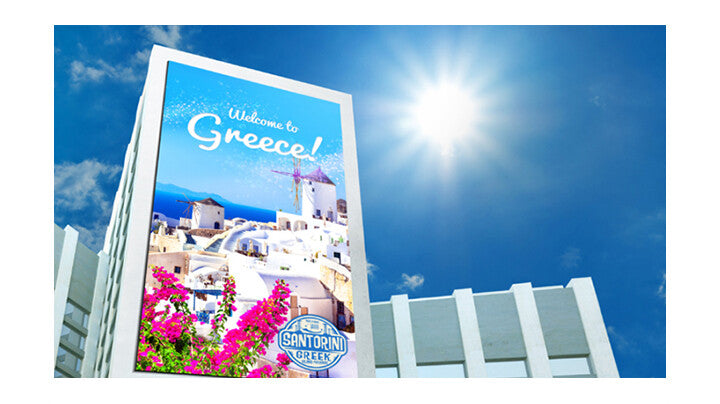

High Brightness

With a great brightness of 7,000 nits*, it clearly delivers content and attracts public attention, which is the ultimate display for outdoor visibility.

* GSCD100-GR series only

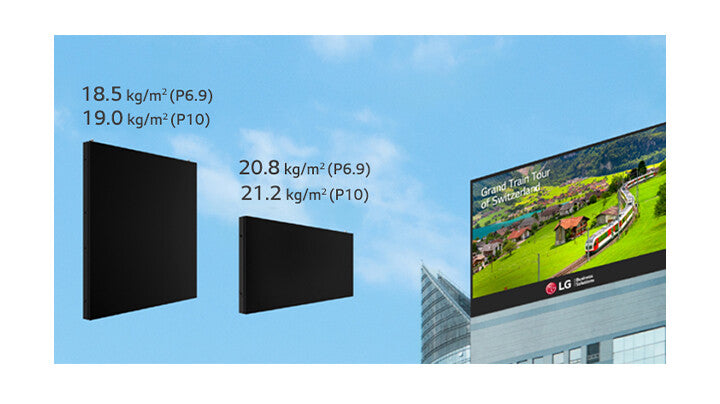

Lightweight Design

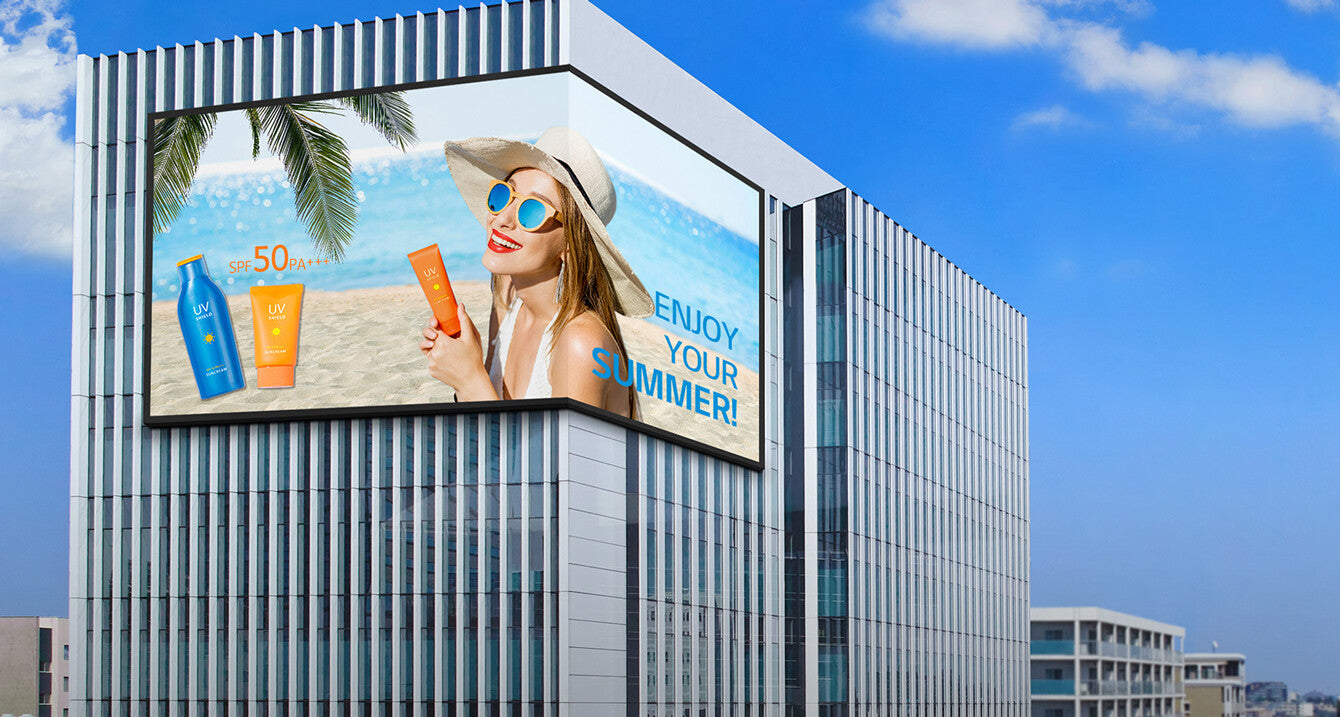

The weights of the cabinet is very light, so even if a large LED screen is installed on the roof, it puts less pressure on the building's load.

Easy Maintenance

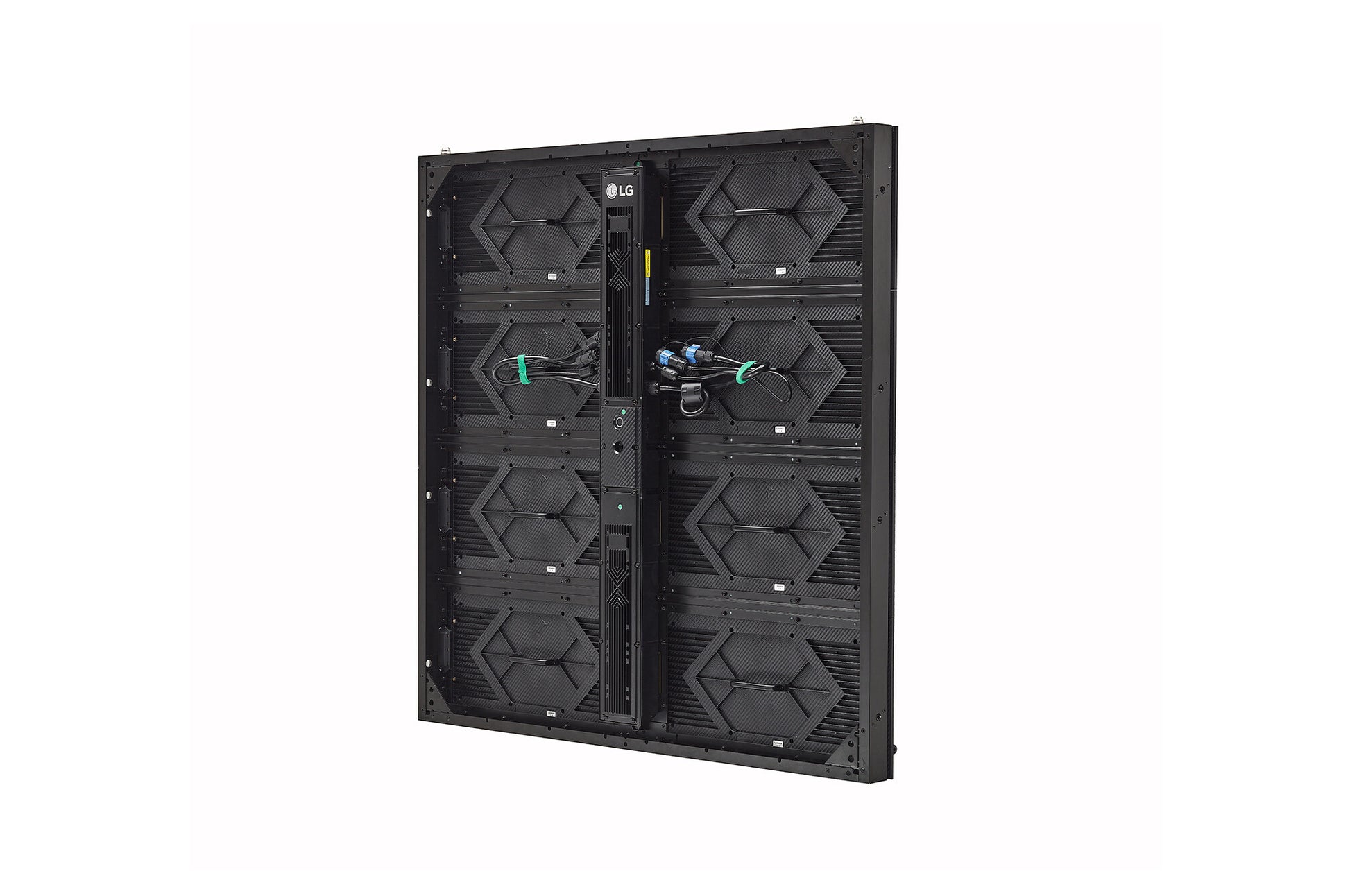

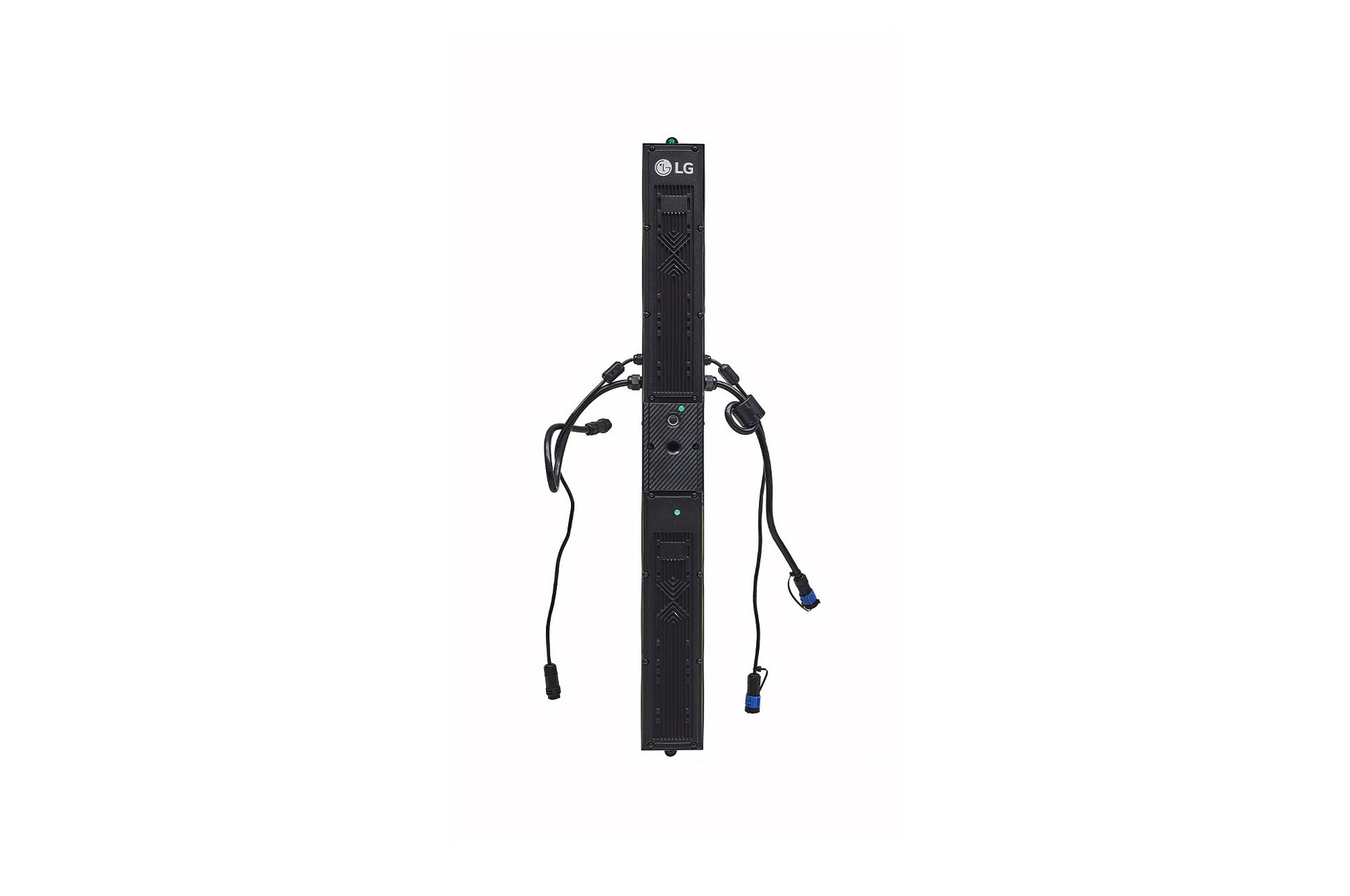

The control unit (PDU) of the cabinet is a modular type which can be easily attached or detached, supporting easy maintenance.

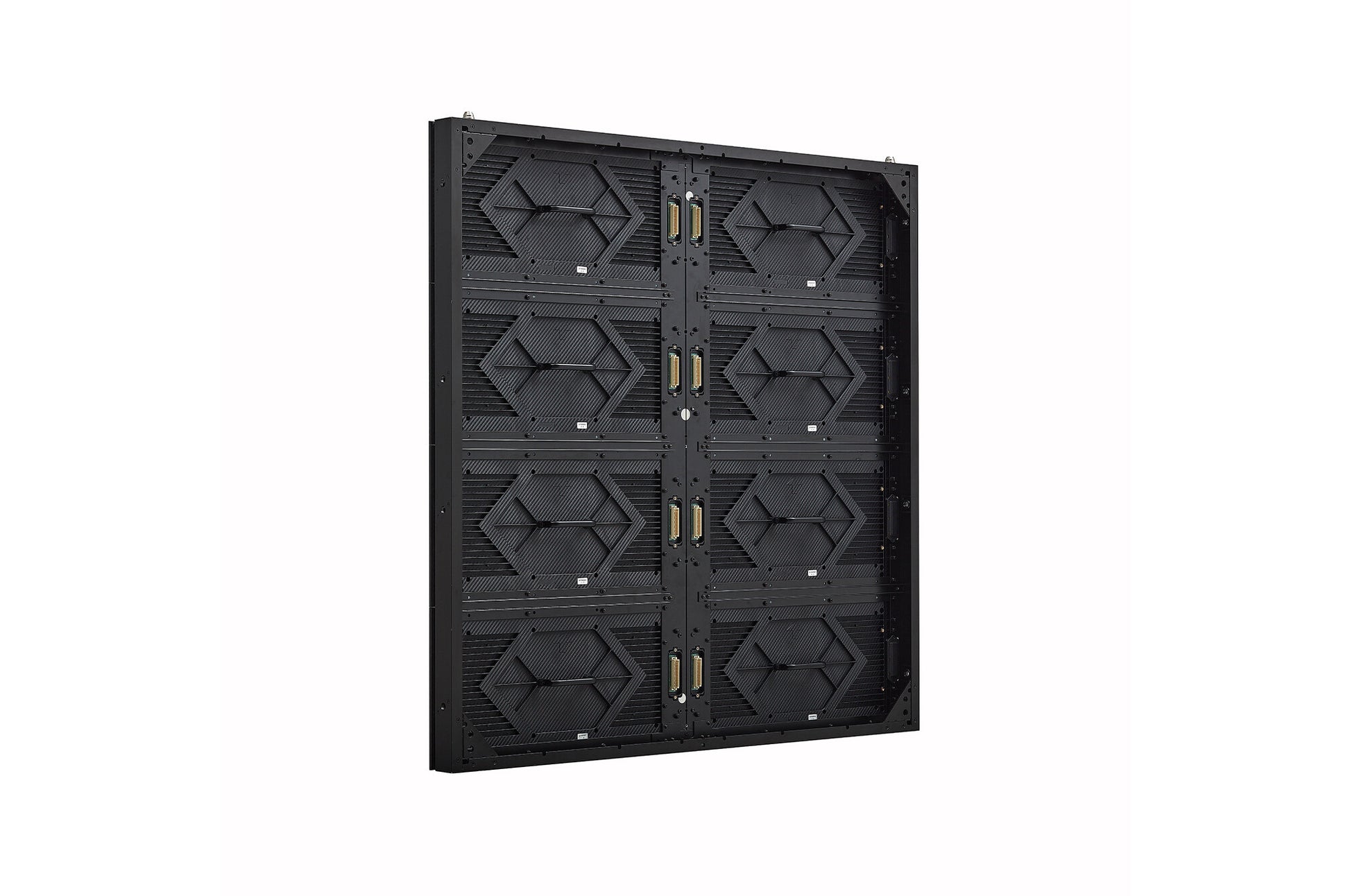

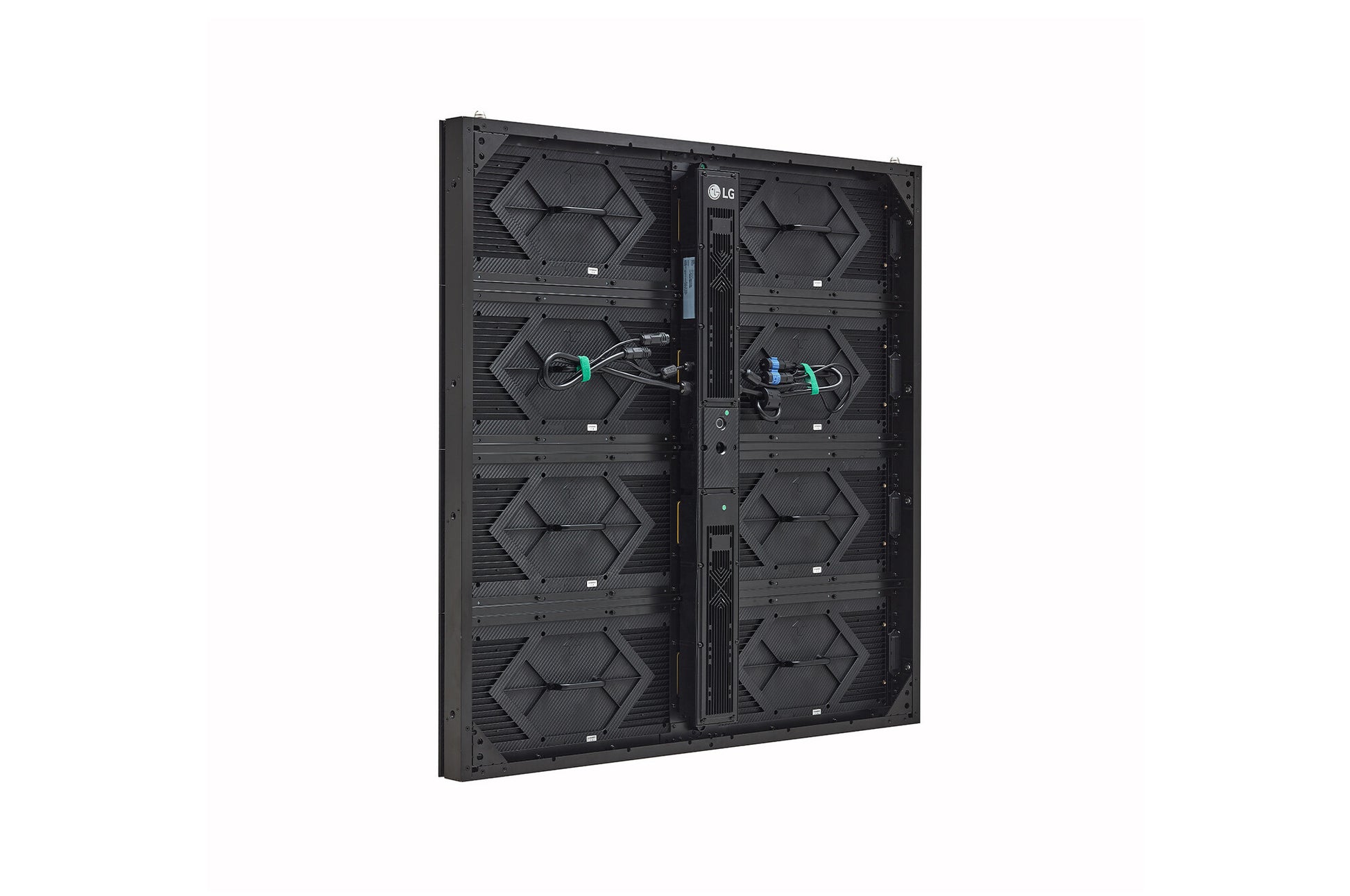

Front or Rear Serviceability

The product offers either front access or rear access, allowing customers to choose installation options according to their environment.

90° Corner Design Available

If you add a 90° corner option*, the GSCD series can deliver content effectively even when installed on the corners.

* Require purchase of 90° corner installable model.

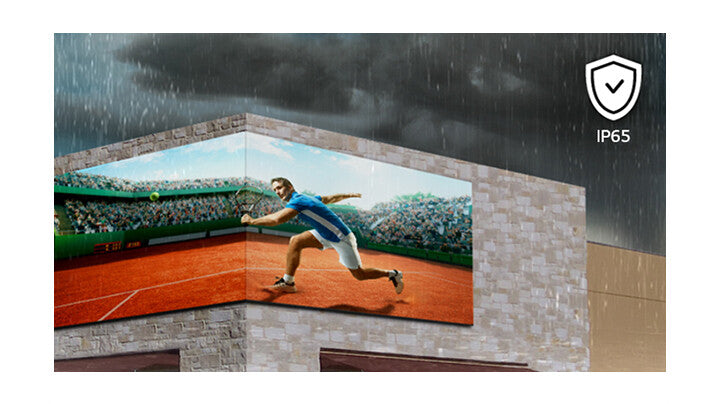

IP Rated Weatherproof Design

The front and back of the cabinet are IP65 certified, allowing stable operation less affected by weather

Compatibility with LG Software Solutions

Powered by LG’s high performance system controller, the GSCD series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)

Tech Spec

• Physical Parameter

  Pixel Configuration	3 in 1 SMD
  Pixel Pitch (mm)	10.41

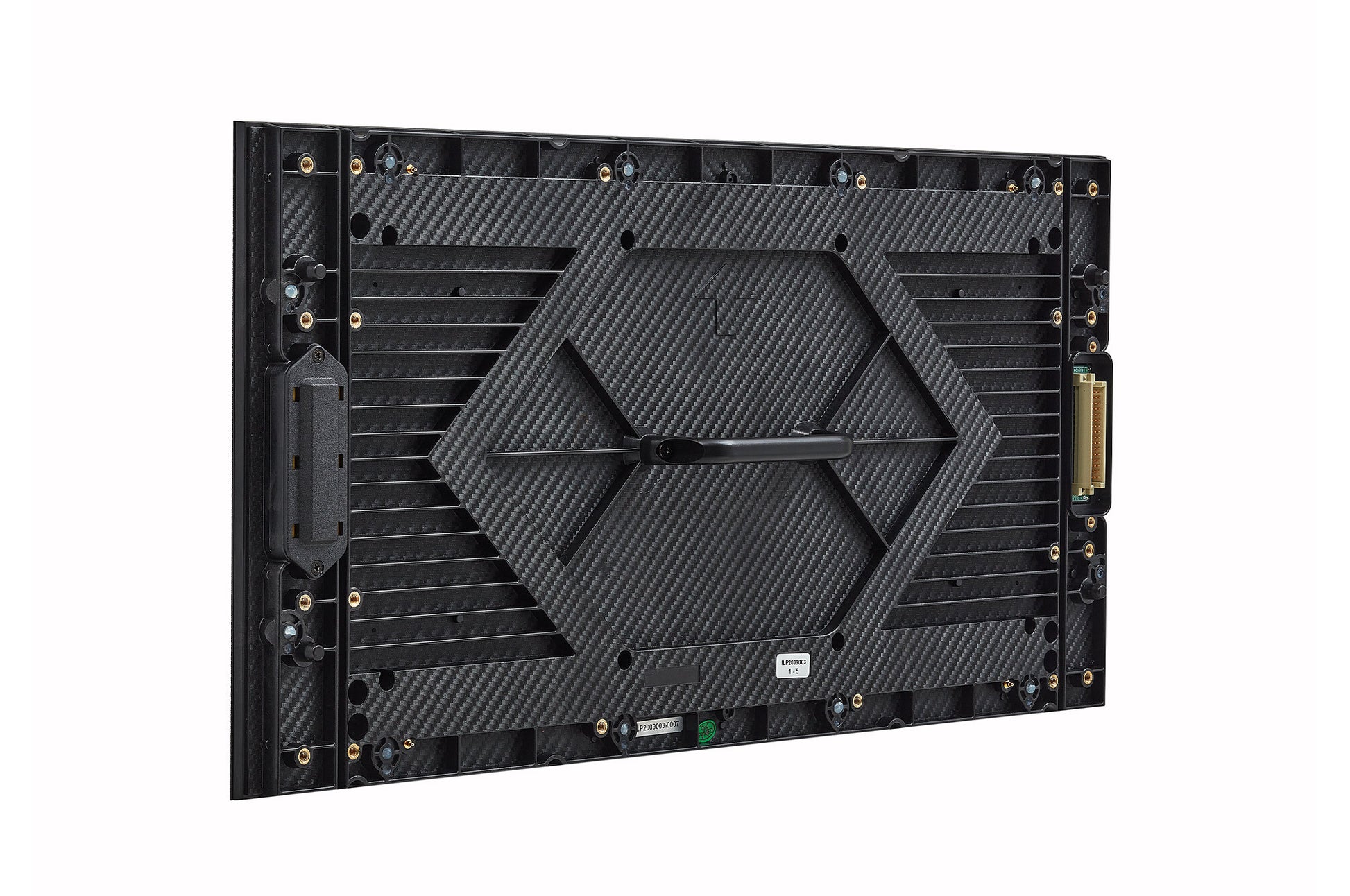

  Module Resolution (W x H)	48 × 24

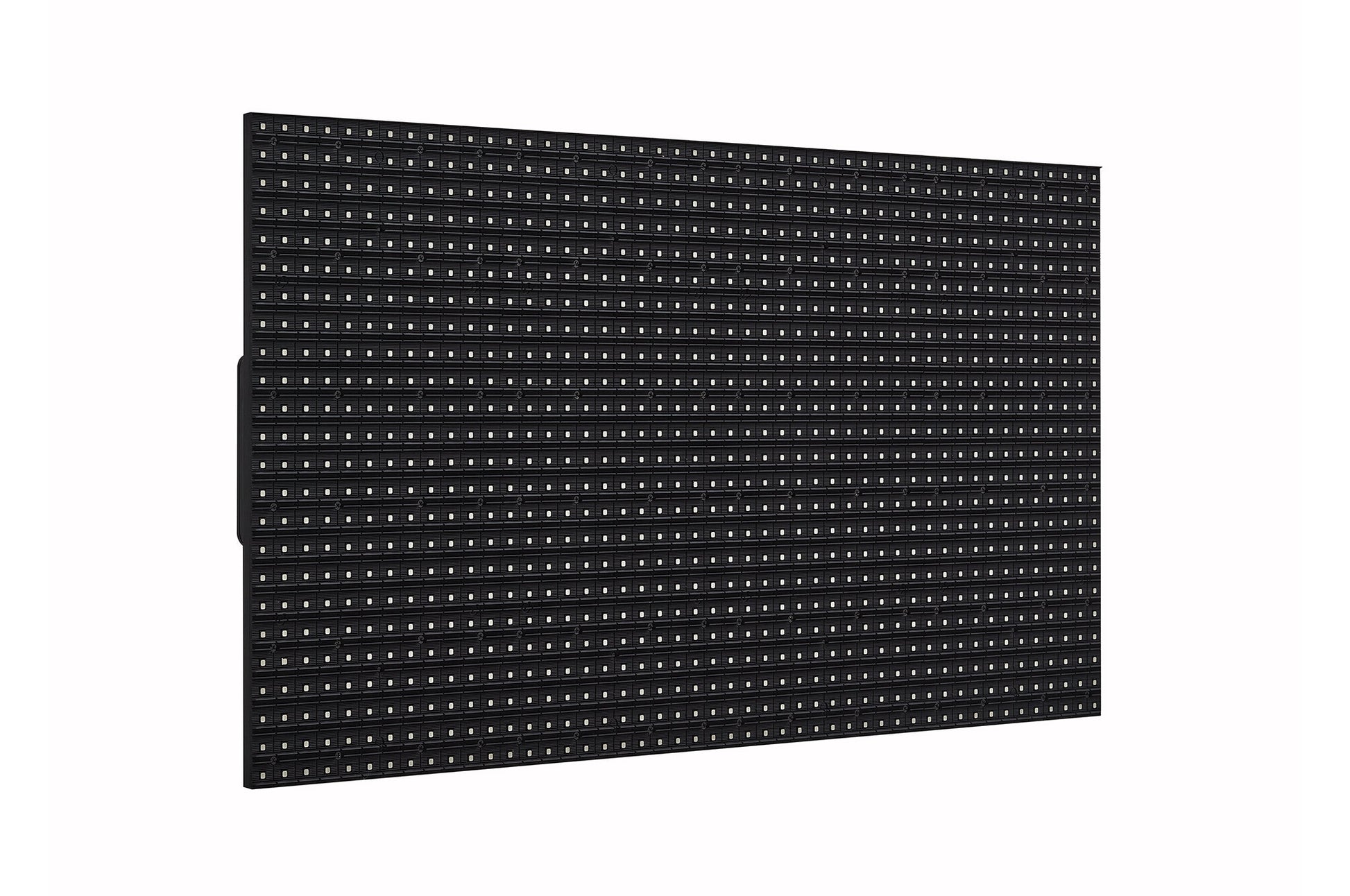

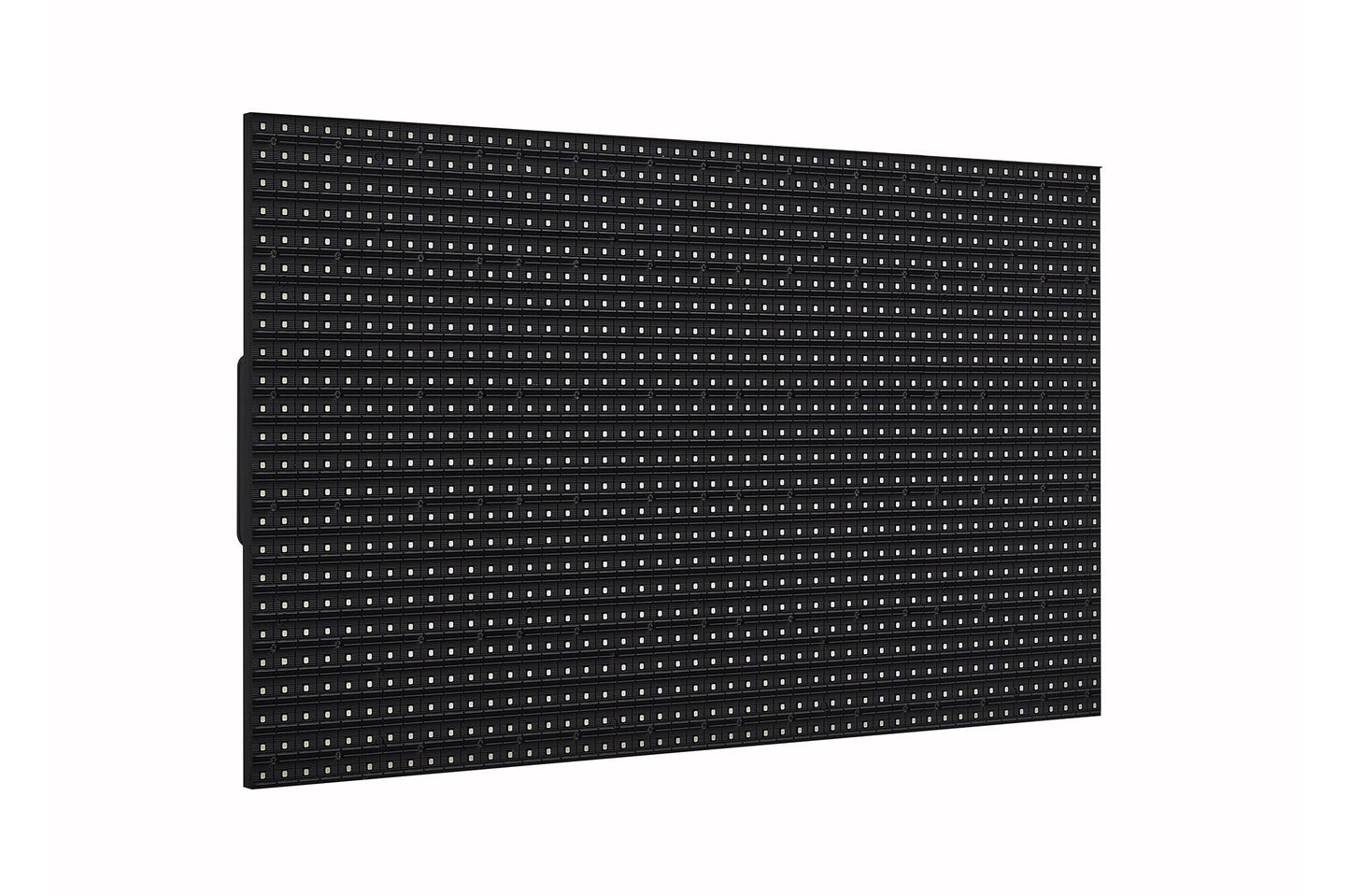

  Module Dimensions (W x H, mm)	500 × 250
  Weight per Module (kg)	1.30

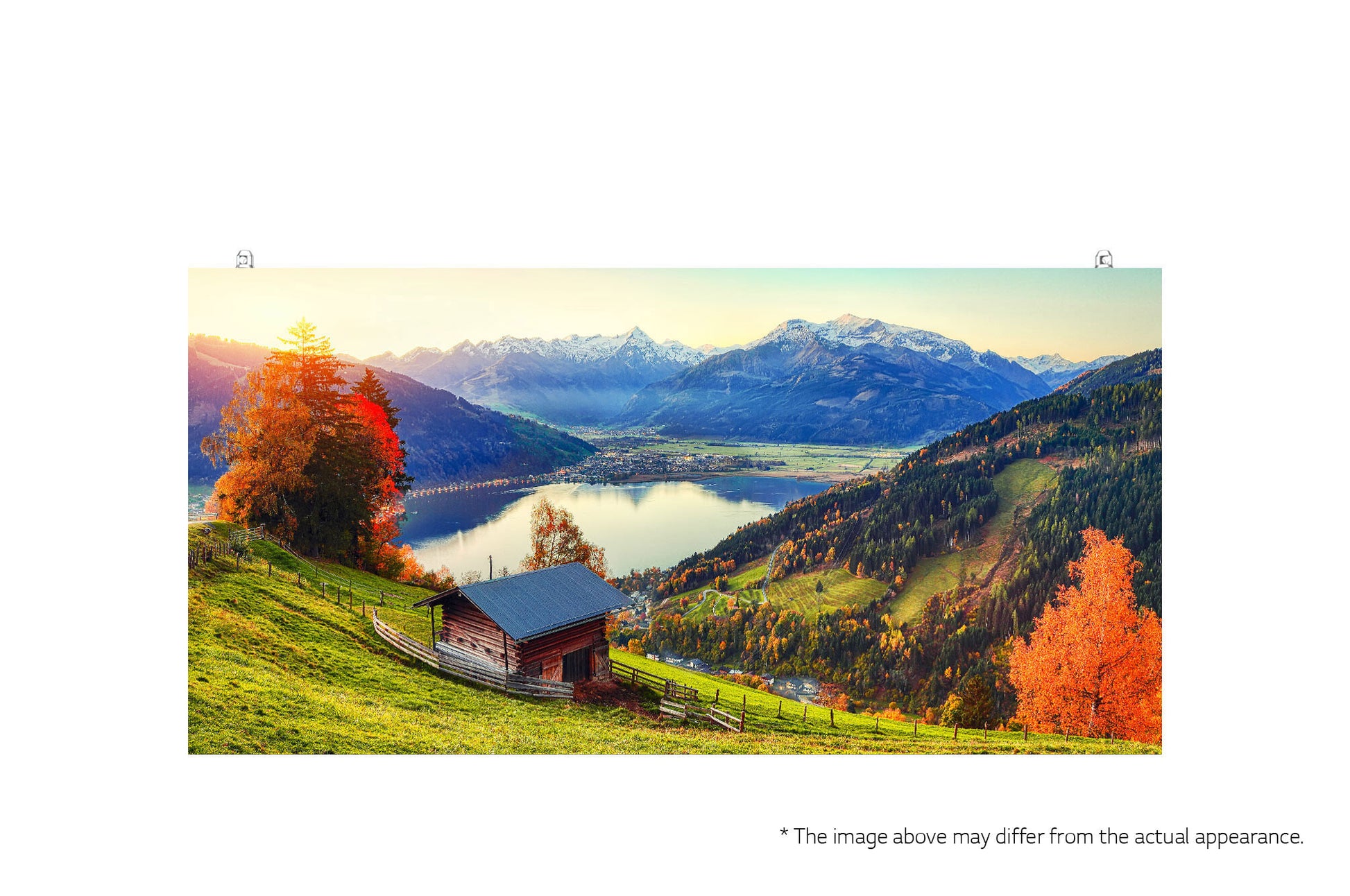

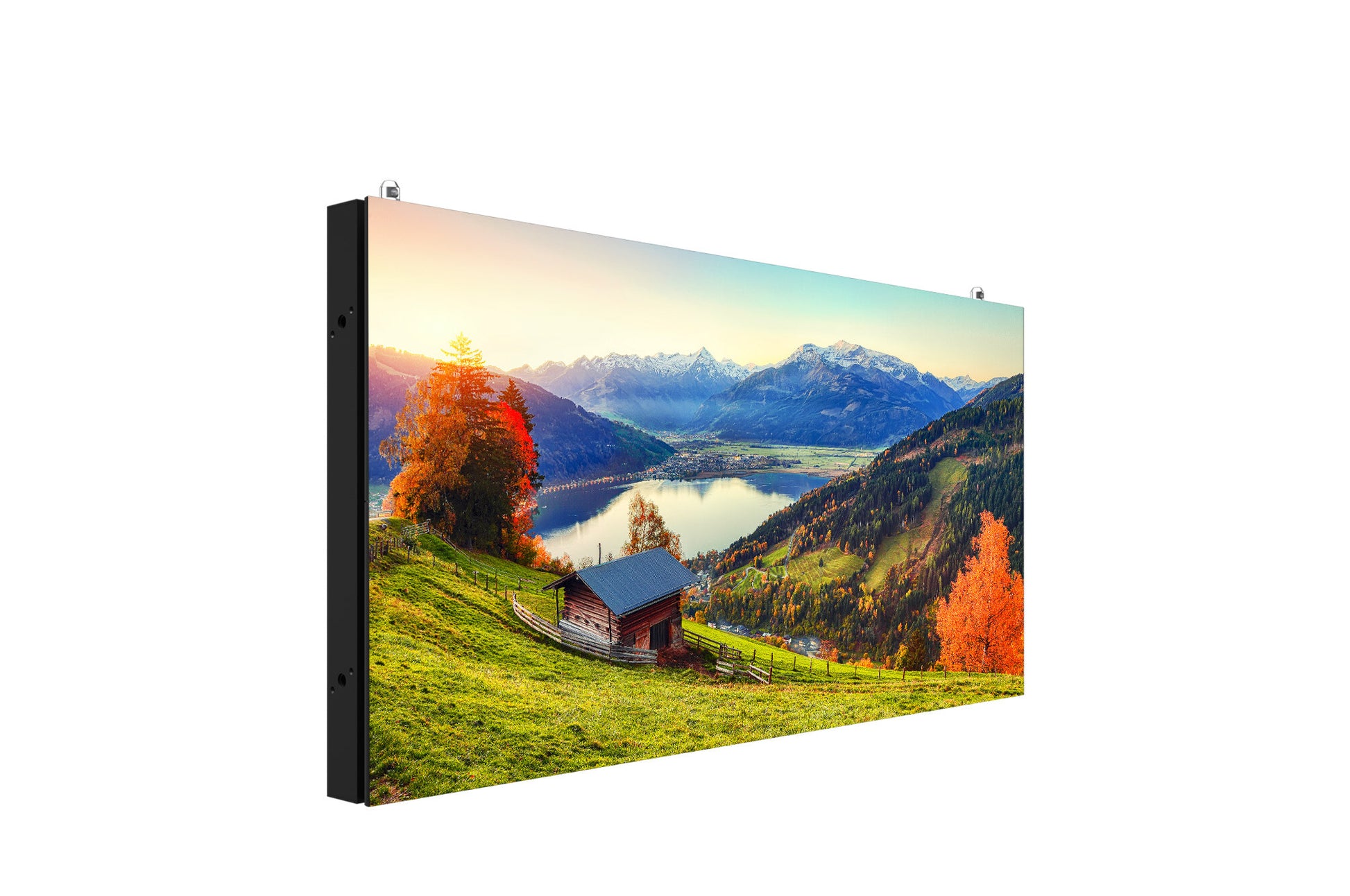

  No. of Modules per Cabinet (W × H)	2 × 4 / 2 × 2 (Half-sized)
  Cabinet Resolution (W × H)	96 × 96 / 96 × 48 (Half-sized)
  Cabinet Dimensions (W × H × D, mm)	1,000 × 1,000 × 85.1 mm / 1,000 × 500 × 85.1 mm (Half-sized)
  Cabinet Surface Area (m²)	1.000 / 0.500 (Half-sized)
  Weight per Cabinet (kg/cabinet)	19.0 / 10.6 (Half-sized)
  Weight per Square Meter (kg/m²)	19.0 / 21.2 (Half-sized)
  Physical Pixel Density (pixels/m²)	9,216
  Flatness of Cabinet	±0.5 mm
  Cabinet Material	Aluminum Profile
  Service Access	Front or Rear (One Option Only)

• Optical Parameter

  Max. Brightness (After Calibration)	5,000/7,000 cd/m² (GN/GR Series)
  Color Temperature	3,200-9,300 (K)
  Visual Viewing Angle (Horizontal/Vertical)	160 / 136
  Brightness Uniformity	97%
  Color Uniformity	±0.003CxCy
  Contrast Ratio	10,000
  Processing Depth (bit)	16

• Electrical Parameter

  Power Consumption (W/Cabinet, Max.)	650 / 330 (Half-sized)
  Power Consumption (W/Cabinet, Avg.)	216 / 110 (Half-sized)
  Power Consumption (W/m², Max.)	650 / 660 (Half-sized)
  Power Supply (V)	100 to 240
  Frame Rate (Hz)	50 / 60
  Refresh Rate (Hz)	3,840

• Operation Conditions

  Lifetime (Hours to Half Brightness)	100,000
  Operating Temperature (°C)	-30°C to +50°C
  Operating Humidity	10-99%RH
  IP rating Front / Rear	IP65 / IP65

• Controller (CVCA)

  Connectivity - Input	HDMI (HDCP 2.2), DP (HDCP 2.2, HDCP 1.4), OPS, USB 2.0
  Connectivity - Output	Gigabit Ethernet × 16, RS-232C In/Out (4 Pin Phone-jack)
  Connectivity - Control	RJ45 In (LAN)
  Video - Resolution	3,840 × 2,160 @ 60Hz
  Video - Format	RGB / YCbCr4:4:4 / YCbCr4:2:2
  Feature	8 GB (System 4 GB + Available 3.6 GB), Temperature Sensor, Local Key Operation, Signal Redundancy, HDR10
  Software - Platform	webOS 4.0 w / Open API Support
  Software - Setup and Maintenance	LG LED Assistant
  Software - Content Management	LG SuperSign CMS
  Software - Cloud Monitoring	LG ConnectedCare
  Physical Specs - Dimensions (W × H × D, mm)	443 × 63 × 307.5 → EIA Standard Rack (2U)
  Physical Specs - Weight (kg)	4.9
  Power Specs - Power Supply (V)	AC 100-240 V, 50/60 Hz
  Power Specs - Power Type	Built-in Power
  Power Specs - Power Consumption (W)	50 (Max.)
  Environmental Conditions - Operation Temperature	0°C to 40°C
  Environmental Conditions - Operation Humidity	10% to 80%
  Certifications - Safety	IEC 60950-1 / EN 60950-1 / UL 60950-1
  Certifications - EMC	FCC Class "A" / CE / KC
