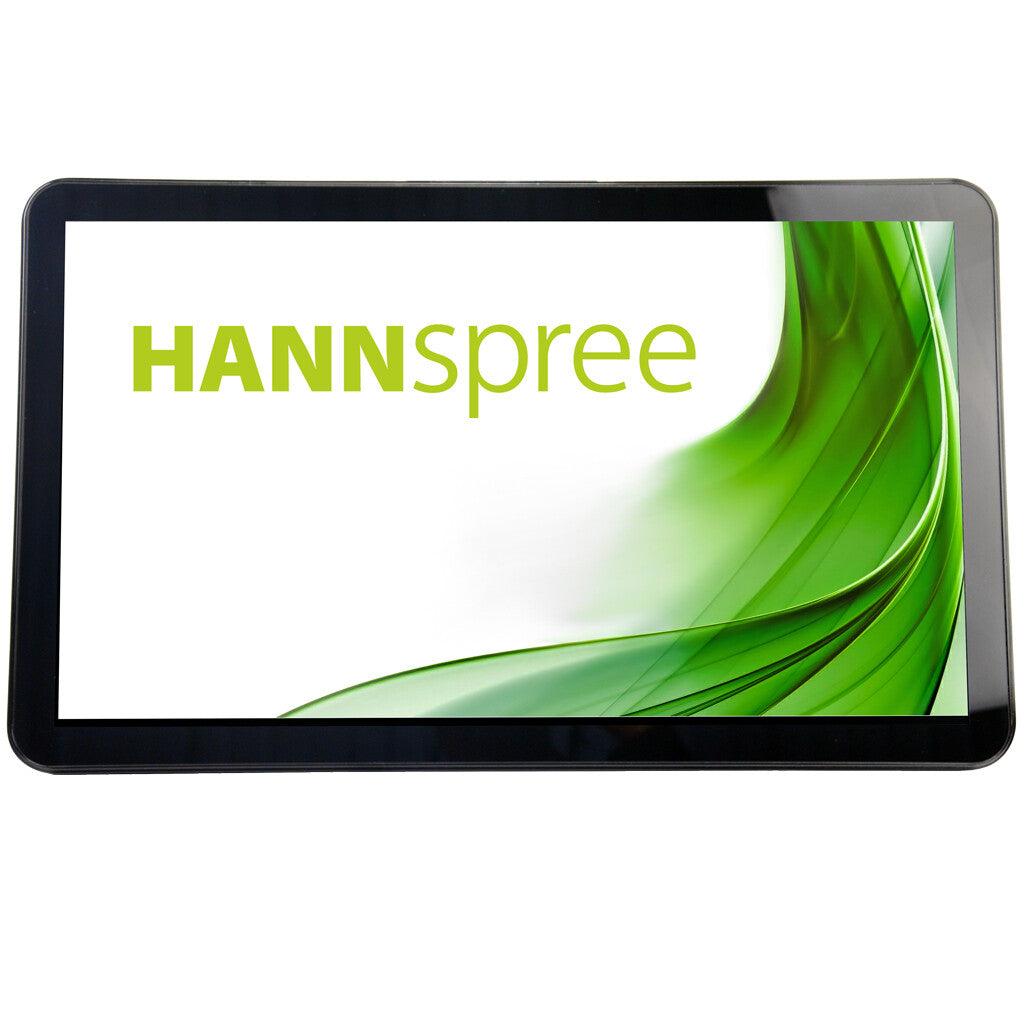

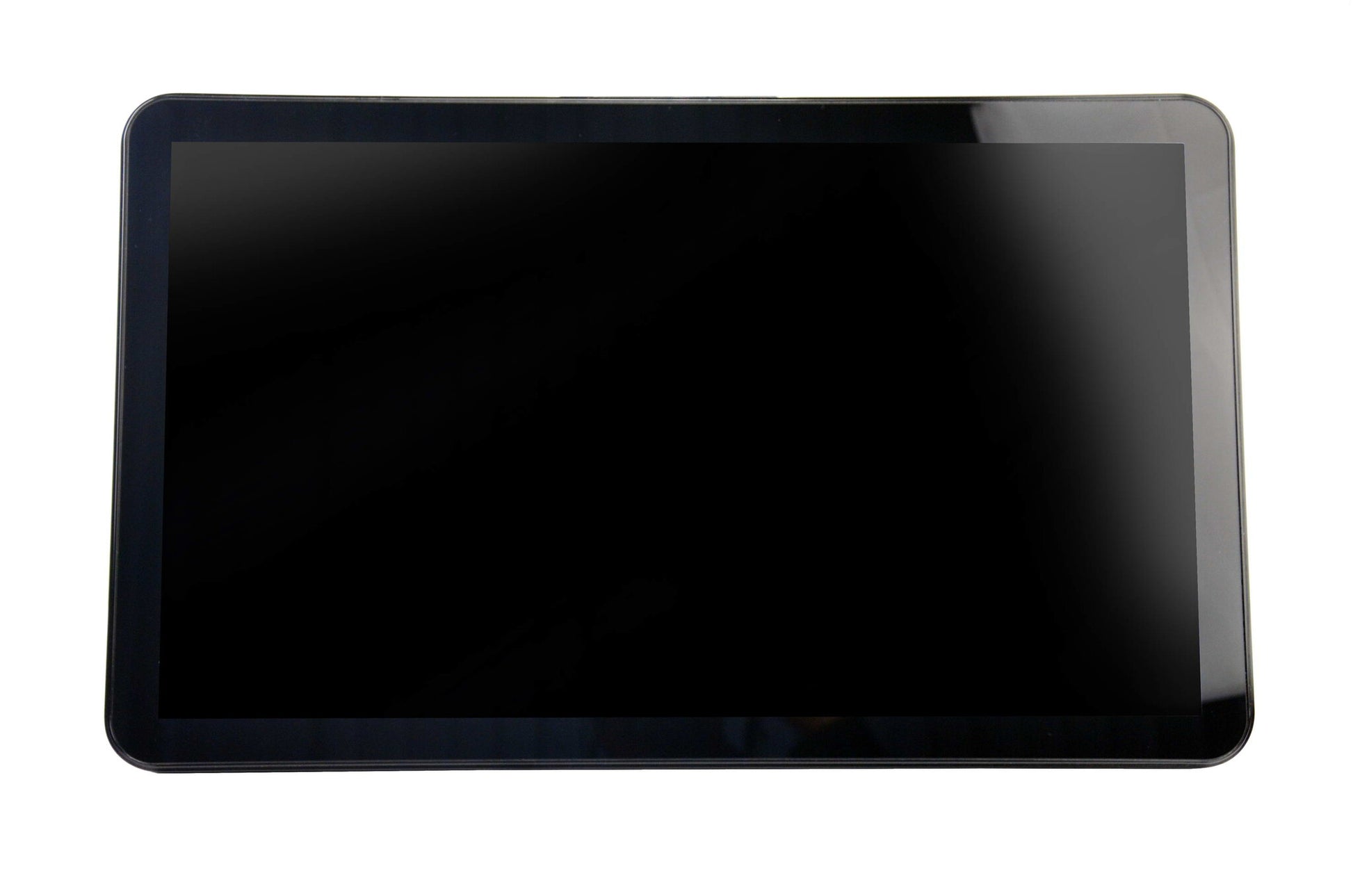

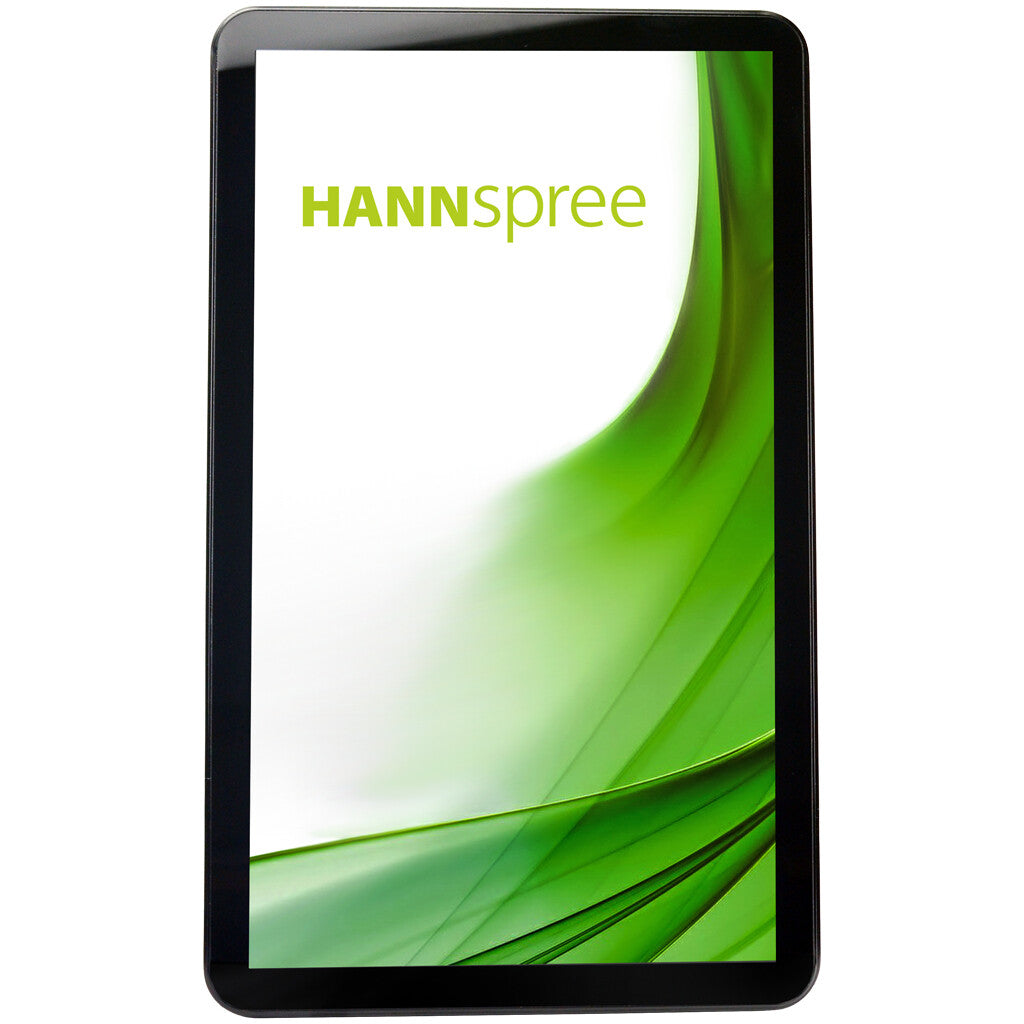

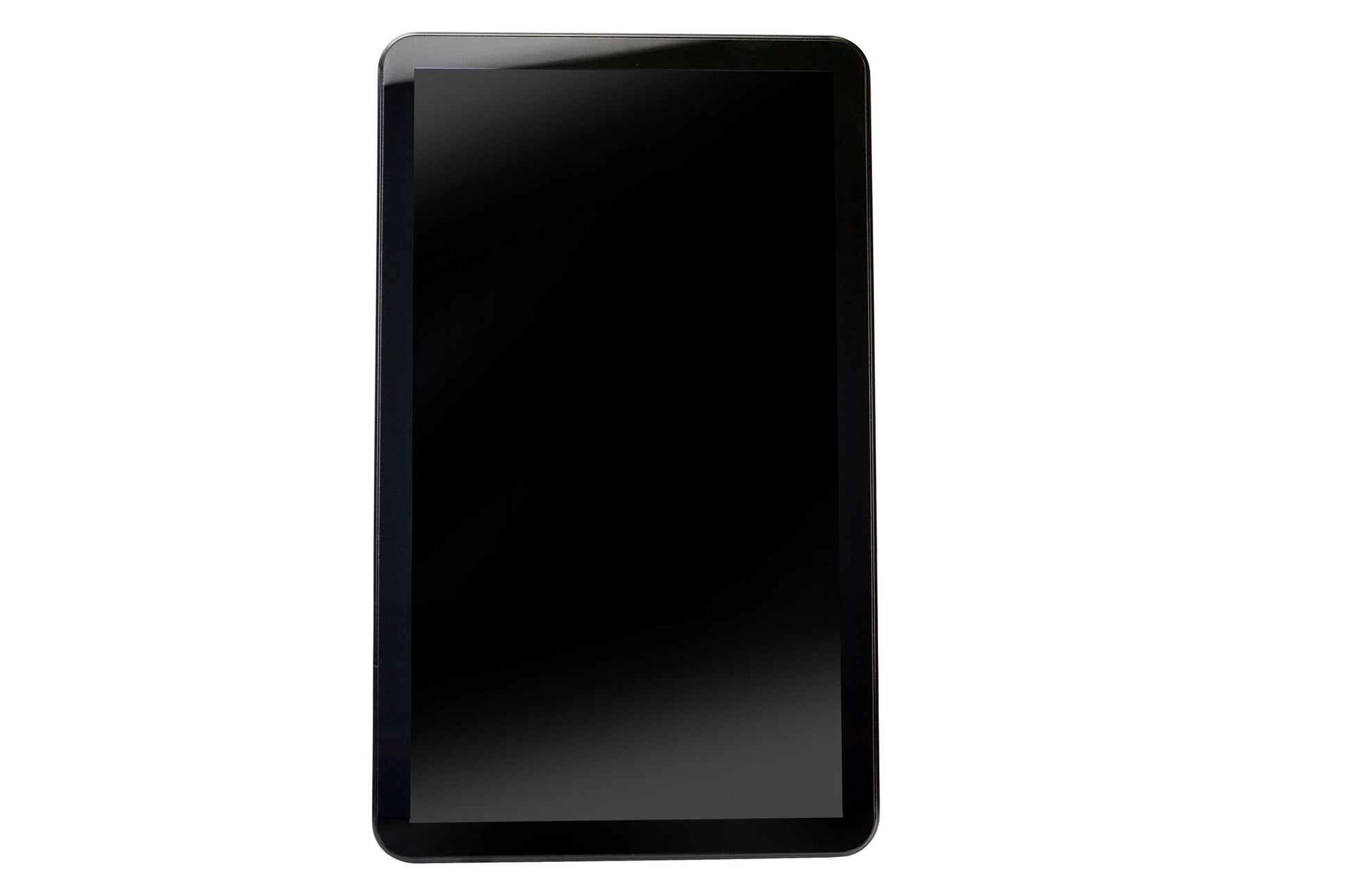

Hannspree HO 225 DTB

Hannspree HO 225 DTB

21.5" FHD TFT LED, Touch, 3000:1, 250 cd/m², 8 ms, 178°/178°, IP 54, 24/7, VGA, DVI, USB, 12V, VESA

  • Indoor Totem design Black
  • 54.6 cm (21.5") 1920 x 1080 pixels LED 250 cd/m²
  • Touchscreen 8 ms
  • SKU:4711404022043
  • GTIN/EAN:4711404022043
  • MPN:HO225DTB

You need to login to view the price.

Add To Favorite
View full details

Hannspree Open Frame HO 225 DTB. Product design: Totem design. Display diagonal: 54.6 cm (21.5"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD, Touchscreen. Operating hours (hours/days): 24/7. Product colour: Black

- 1920 x 1080 WUXGA Resolution Full HD 1080P

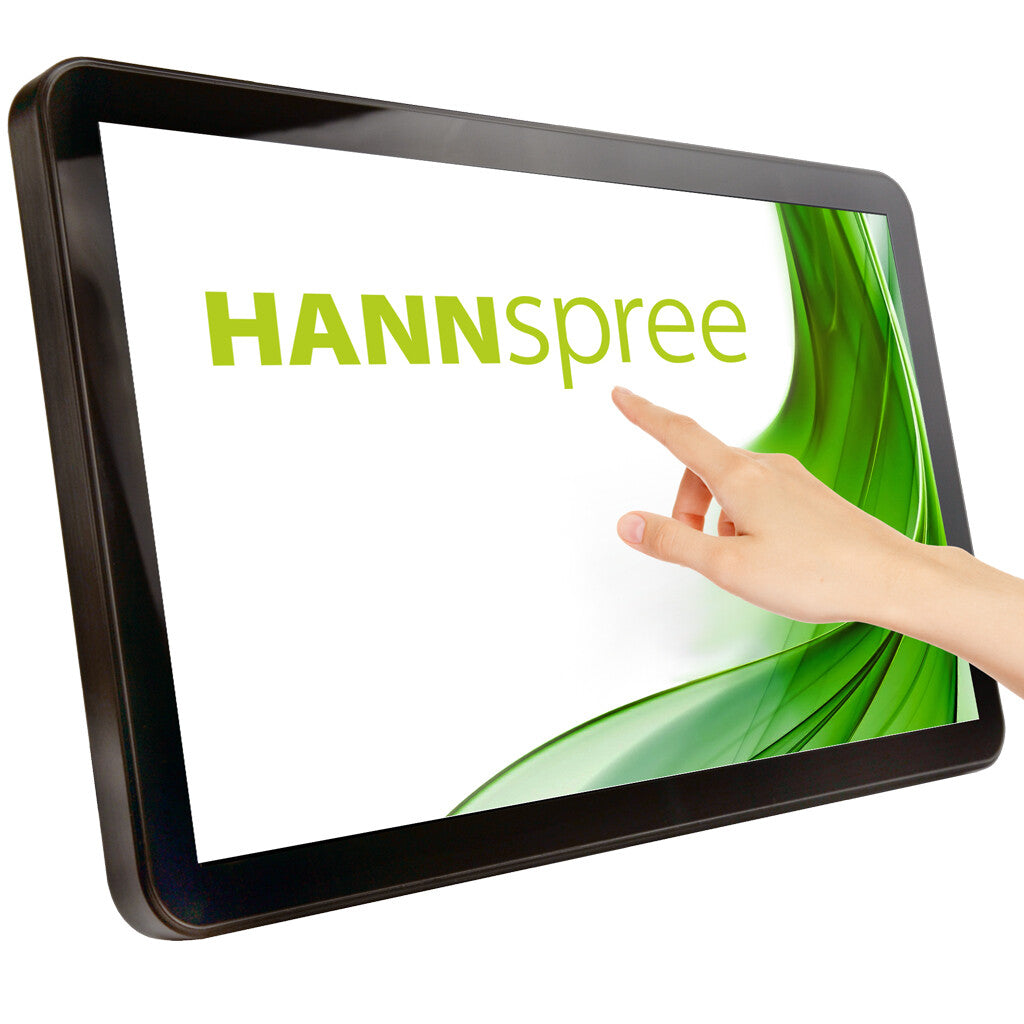

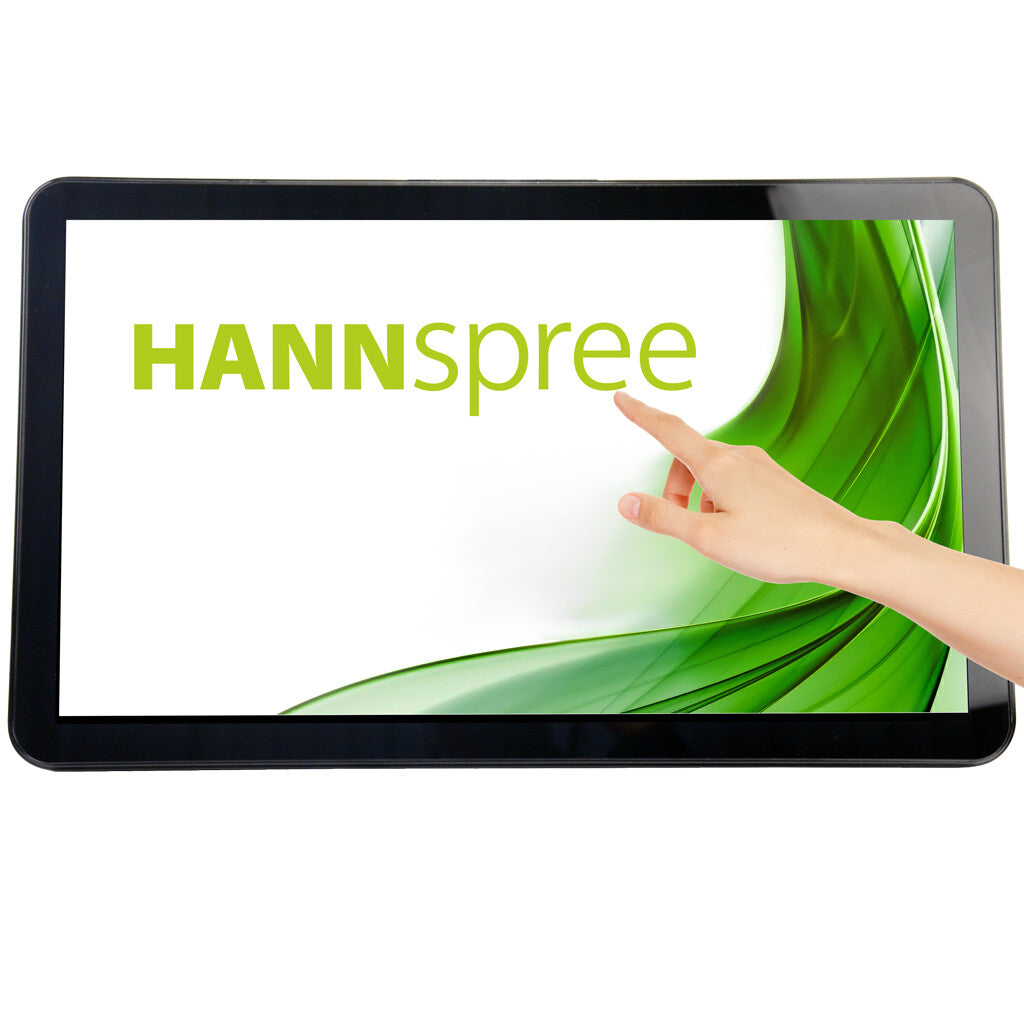

- 10-Point Touch P-Cap Technology
- 178° / 178° Ultra Wide Viewing Angle
- 3000:1 High Contrast Ratio

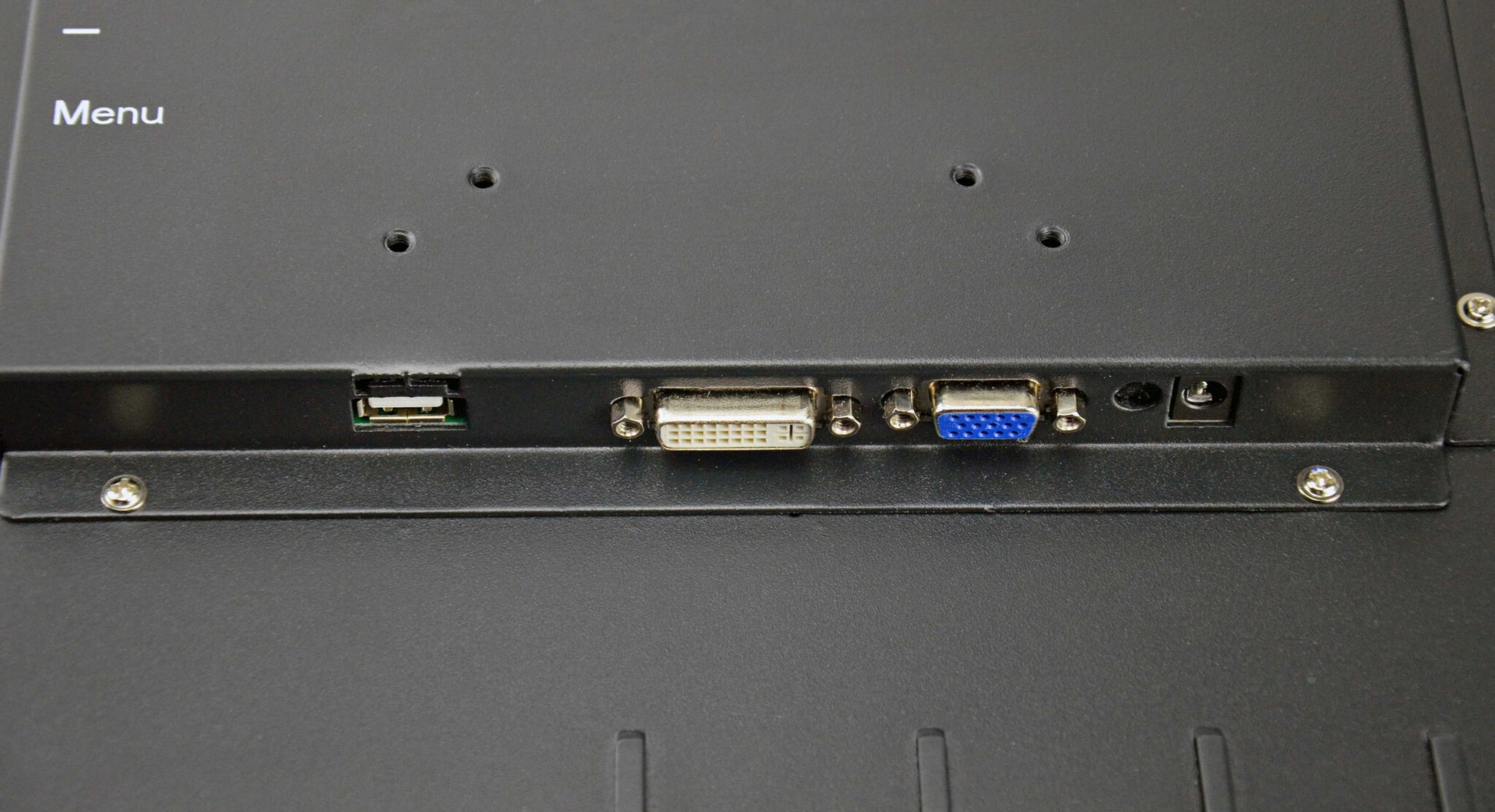

- Dual Input: DVI-D + VGA
- IP54 Rating Level
- Display Protection: Thickness 3.3mm
- 24/7 Operating
- 50.000 Hours Backlight Lifetime

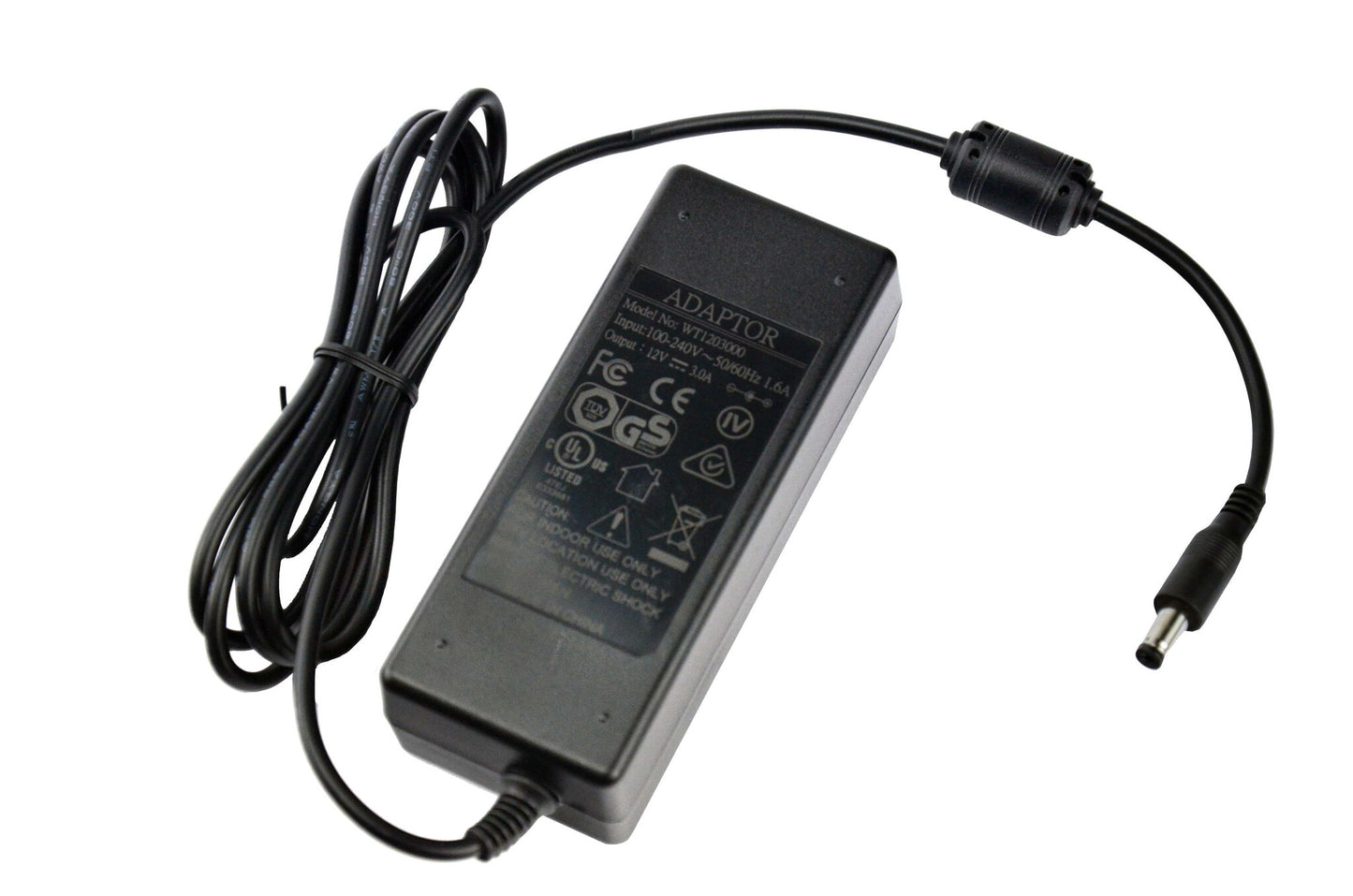

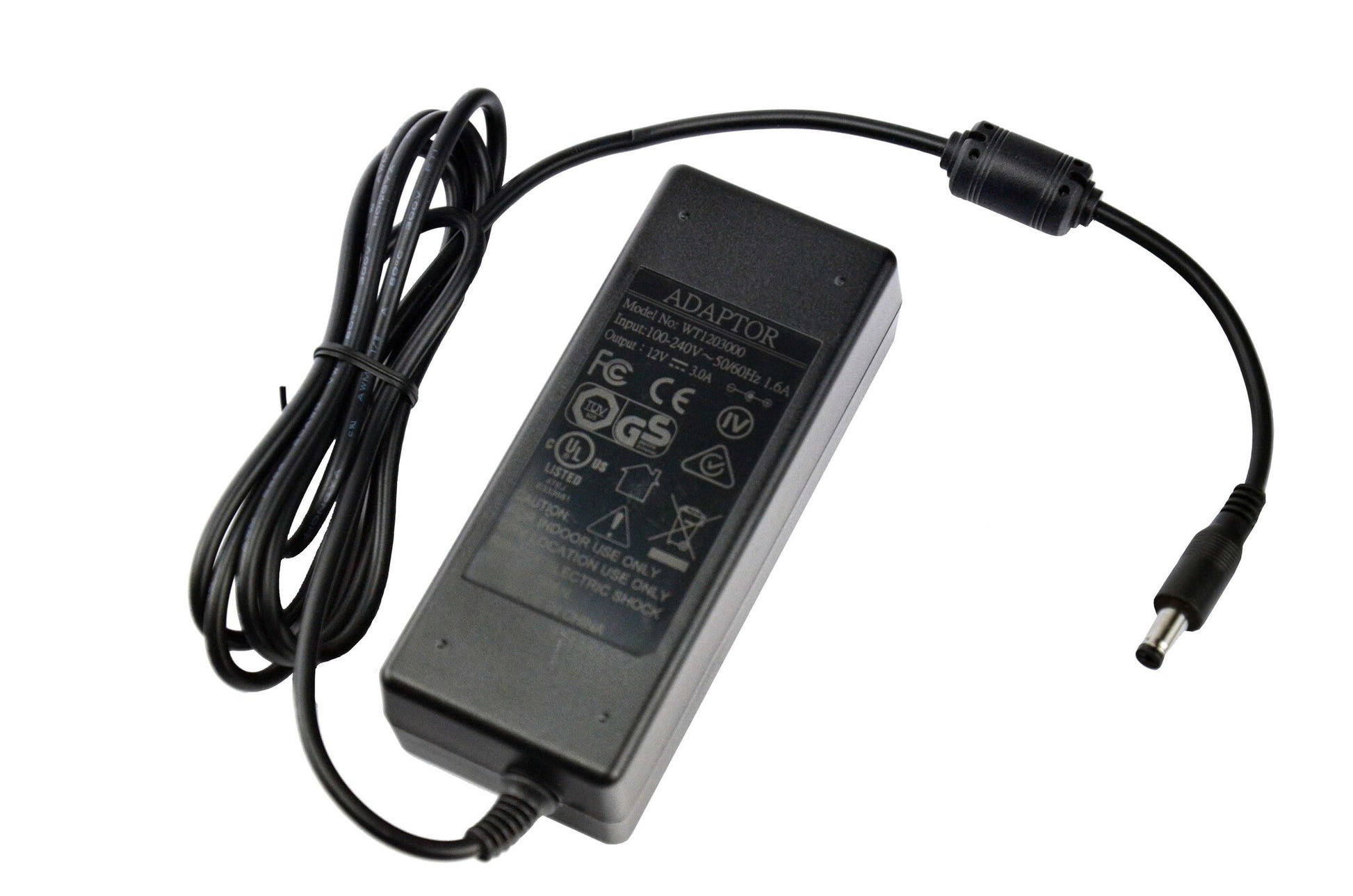

- 12 Volt External Power Supply
- Multiple Mounting Options

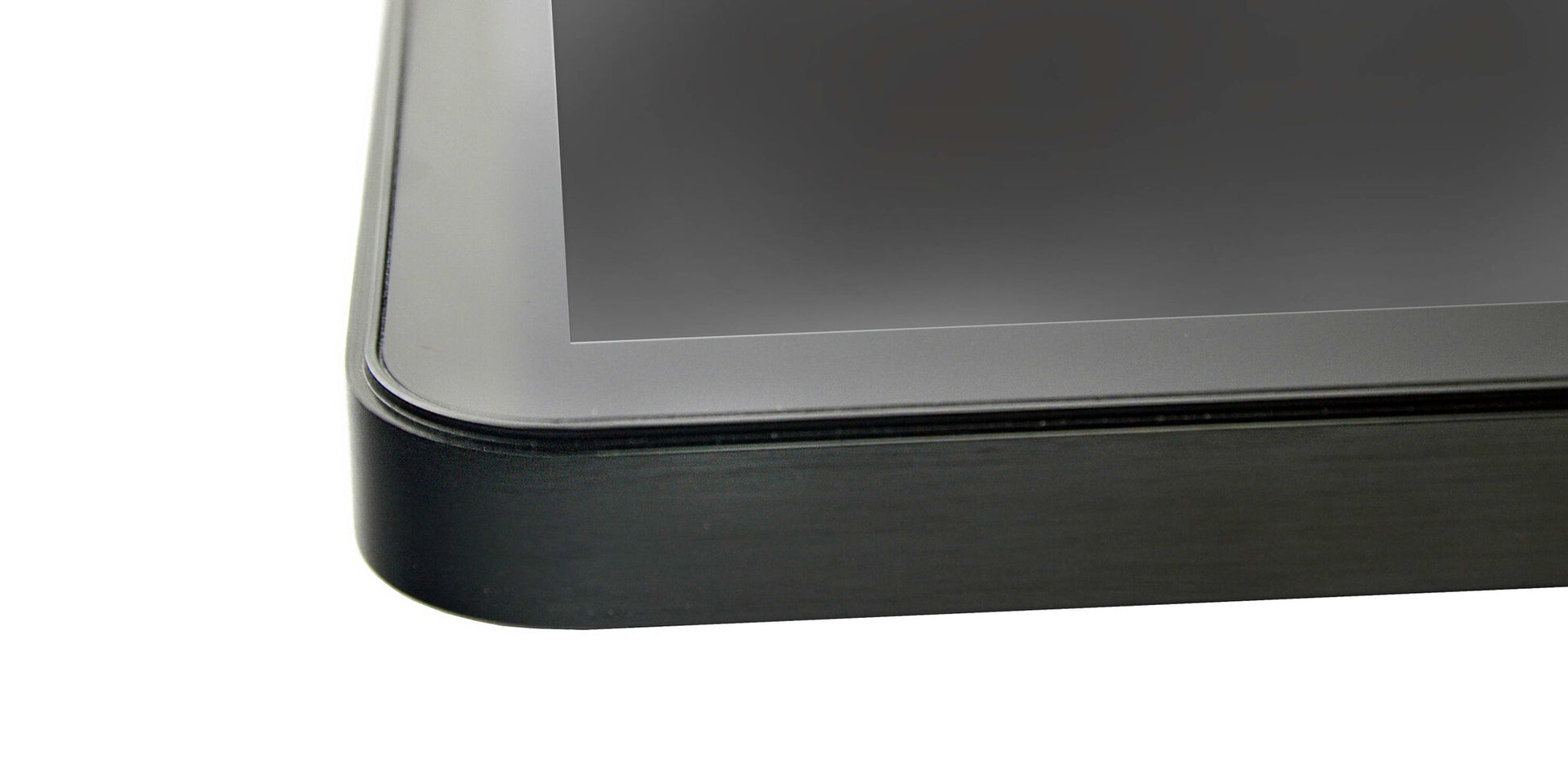

- ≥6H Toughened Hard Panel Surface

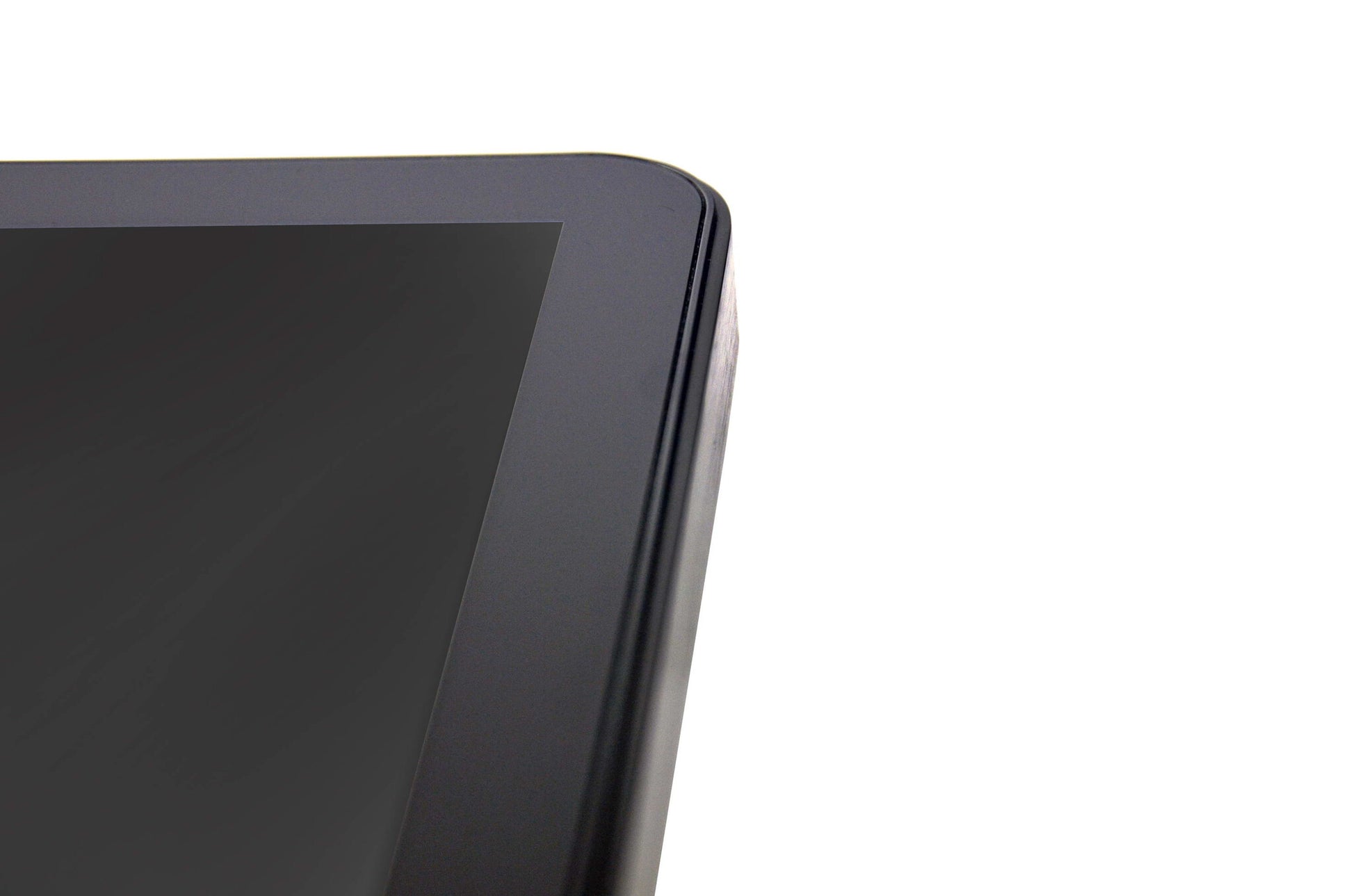

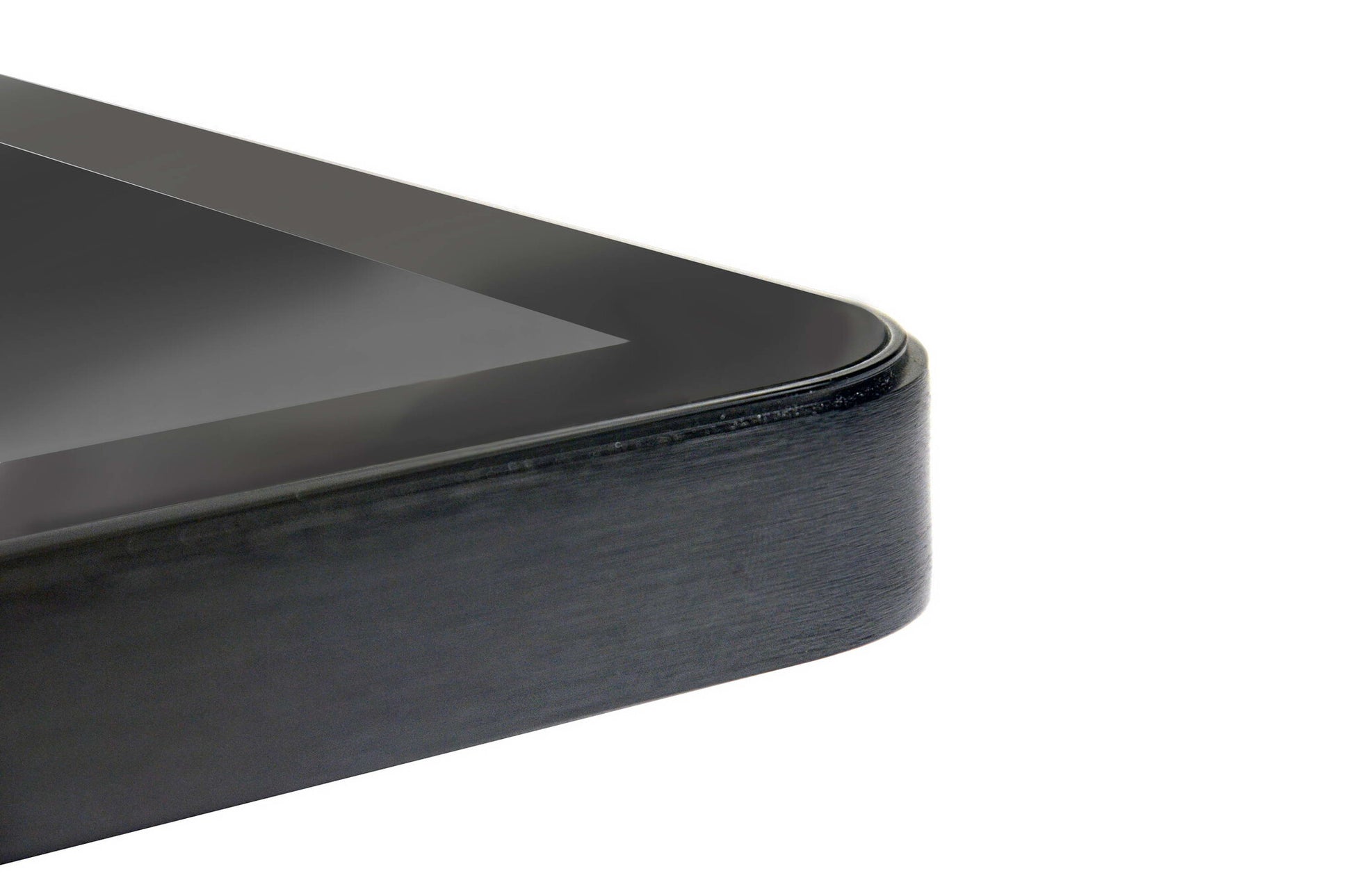

- Slim Profile with Narrow Edges

Open Frame solutions for the amusement and entertainment sectors in a variety of sizes.

With the support of highly experienced, vertical manufacturing capabilities, our Open Frame monitor business is designed to provide a cost effective, "one stop solution" for project requirements. We already supply Open Frame solutions for a number of large gaming tenders
across Europe.

Choose from standard or touch screen high performance displays ranging from 19" up to 27" and the right aspect ratio to best fit your application.

Offering a completely flexible, personal service HannsG by Hannspree delivers customised solutions to fulfil the specific demands of both OEMs and System Integrators.

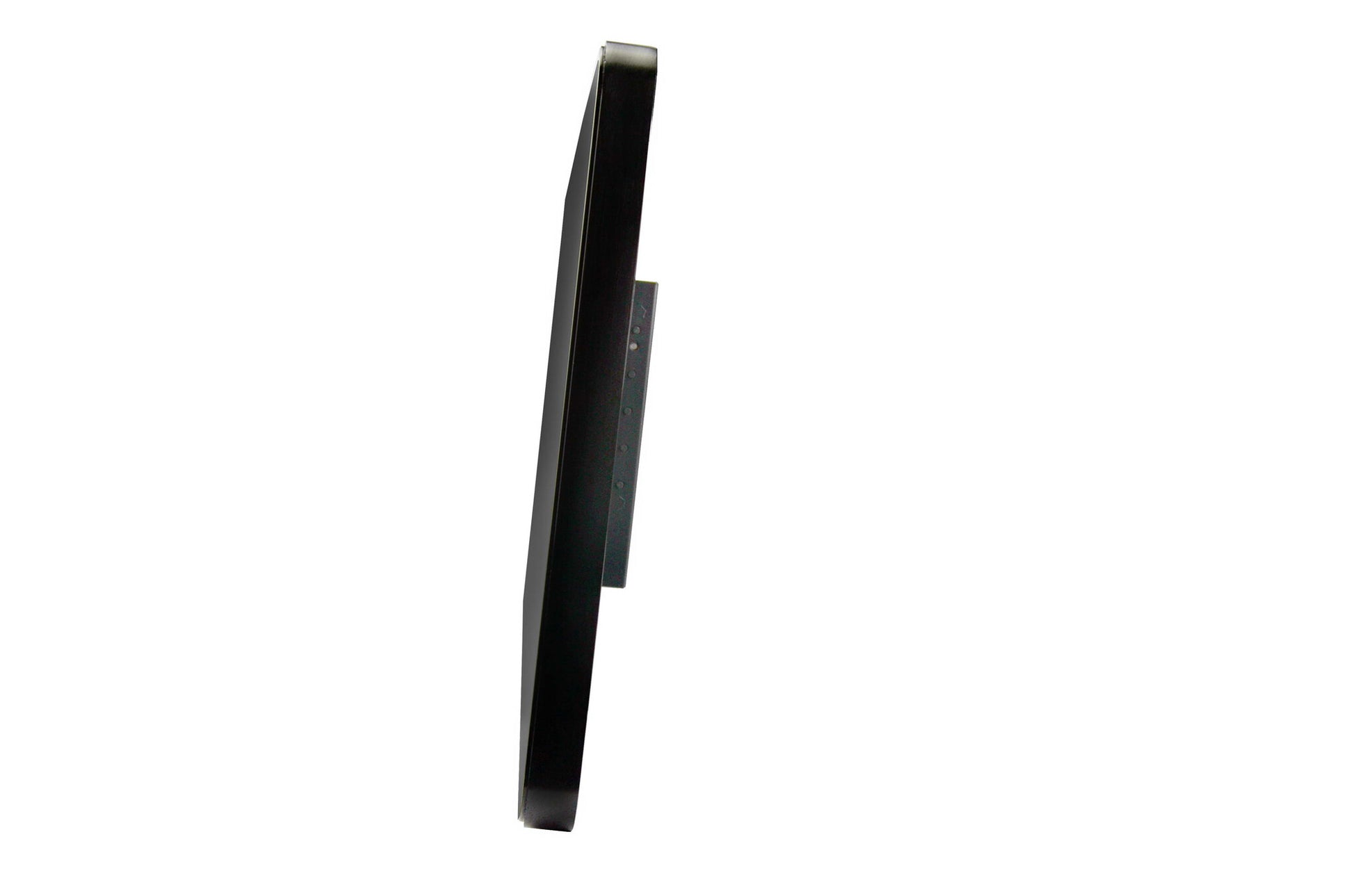

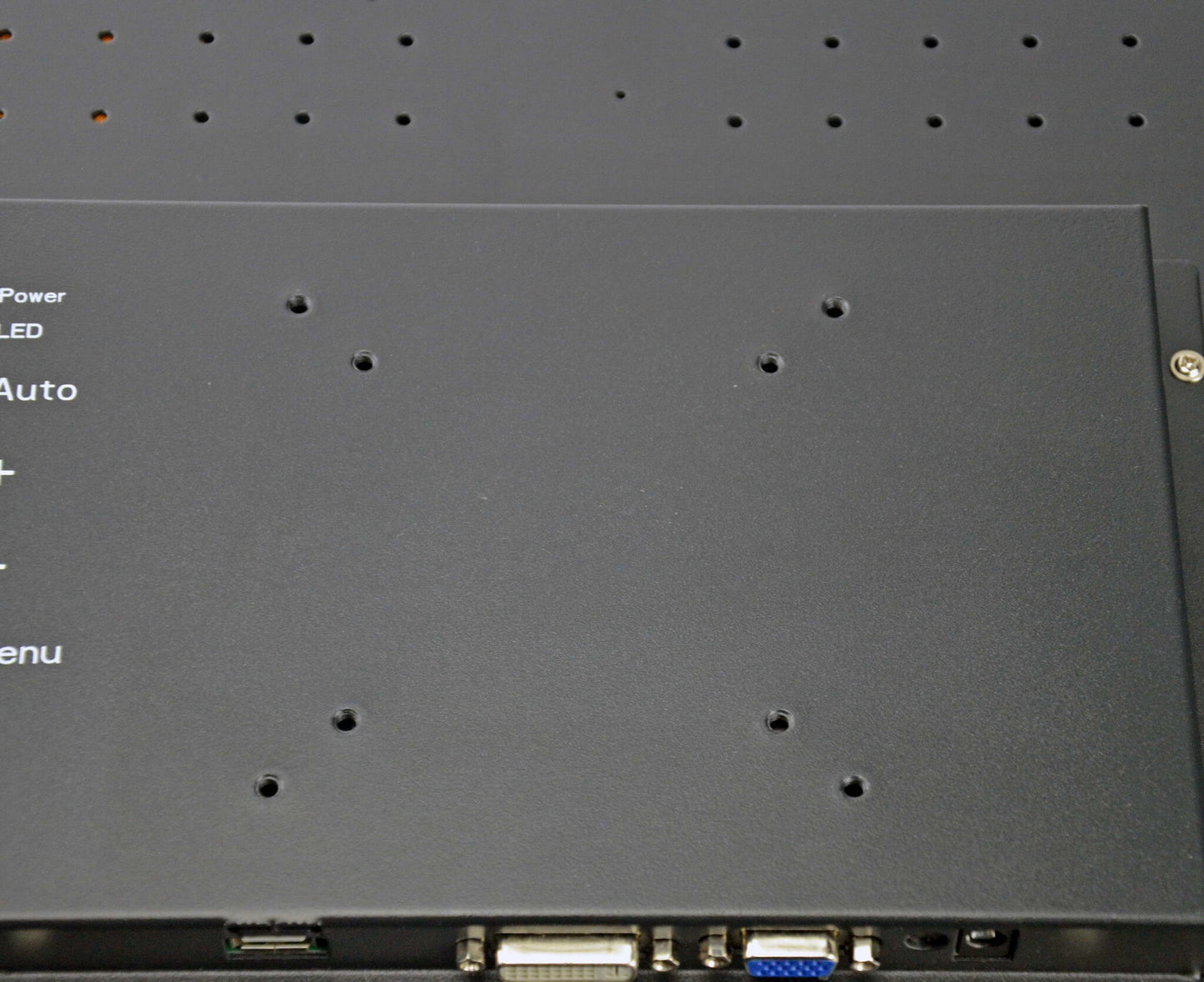

Our display supports rear and VESA mount for multiple mounting options and together with integrated brackets provides the benefits of easy installation, and flexibility for different applications.

Display
Horizontal scan range
30 - 81 kHz
Vertical scan range
56 - 75 Hz
Supported graphics resolutions
1920 x 1080 (HD 1080)
Hardness
6H
Transparency
85%
Panel life
50000 h
Display diagonal (metric)
54.61 cm
Active display area (W x H)
476 x 268 mm
Pixel pitch
0.247 x 0.247 mm
Display number of colours
16.78 million colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
3000:1
Response time
8 ms
Native aspect ratio
16:9
Number of simultaneous touchpoints
10
Multi-touch
Y
Touchscreen
Y
HD type
Full HD
Display brightness
250 cd/m²
Display resolution
1920 x 1080 pixels
Display technology
LED
Display diagonal
54.6 cm (21.5")
Ports & interfaces
Wi-Fi
N
Ethernet LAN
N
USB version
2.0
USB ports quantity
1
USB port
Y
VGA (D-Sub) input ports
1
DVI-D ports quantity
1
DVI port
Y
Audio
Built-in speaker(s)
N
Design
Panel mounting interface
75 x 75,100 x 100 mm
VESA mounting
Y
Placement supported
Indoor
Product colour
Black
Product design
Totem design
Performance
HDCP
N
International Protection (IP) code
IP54
Operating hours (hours/days)
24/7
On Screen Display (OSD)
Y
Number of OSD languages
9
TV tuner integrated
N
Power
Energy efficiency scale
A to G
External power adapter
Y
Energy consumption (SDR) per 1000 hours
16 kWh
Energy efficiency class (SDR)
E
Power consumption (off)
0.5 W
Power consumption (standby)
0.5 W
Power consumption (typical)
18 W
Computer system
Built-in processor
N
Computer system
N
Weight & dimensions
Weight
5.6 kg
Height
318.2 mm
Depth
42 mm
Width
526.6 mm
Packaging data
Package weight
13.2 kg
Package height
380 mm
Package depth
150 mm
Package width
570 mm
Packaging content
Warranty card
Y
Cables included
USB, VGA
Certificates
Certification
CE, WEEE, Reach
Algemeen
Productfamilie
Open Frame
Technical details
Sustainability certificates
RoHS
Other features
Voltage
12 V
Quick start guide
Y
Glass protection
Y
Other features
≥6H Toughened hard panel surface / ≥85%24 / 7 Opearting
Cable length
1.5 m
